MODEL FP-G 300R 1004-004 Key No. P AR T No. P AR T NAME Q’ ty REMARKS New Code NOTE FB-1 FB-1 list-1 1 6301469164 BASE 1 806FB-1 10-001 210A2579 13 6301469201 BLOCK 2 806FB-1 10-013 21 1G4620 15 6301431956 BRACKET 2 806F…
MODEL FP-G300R
0801-002
P
＆
P
X
軸
P
＆
P X
AXIS

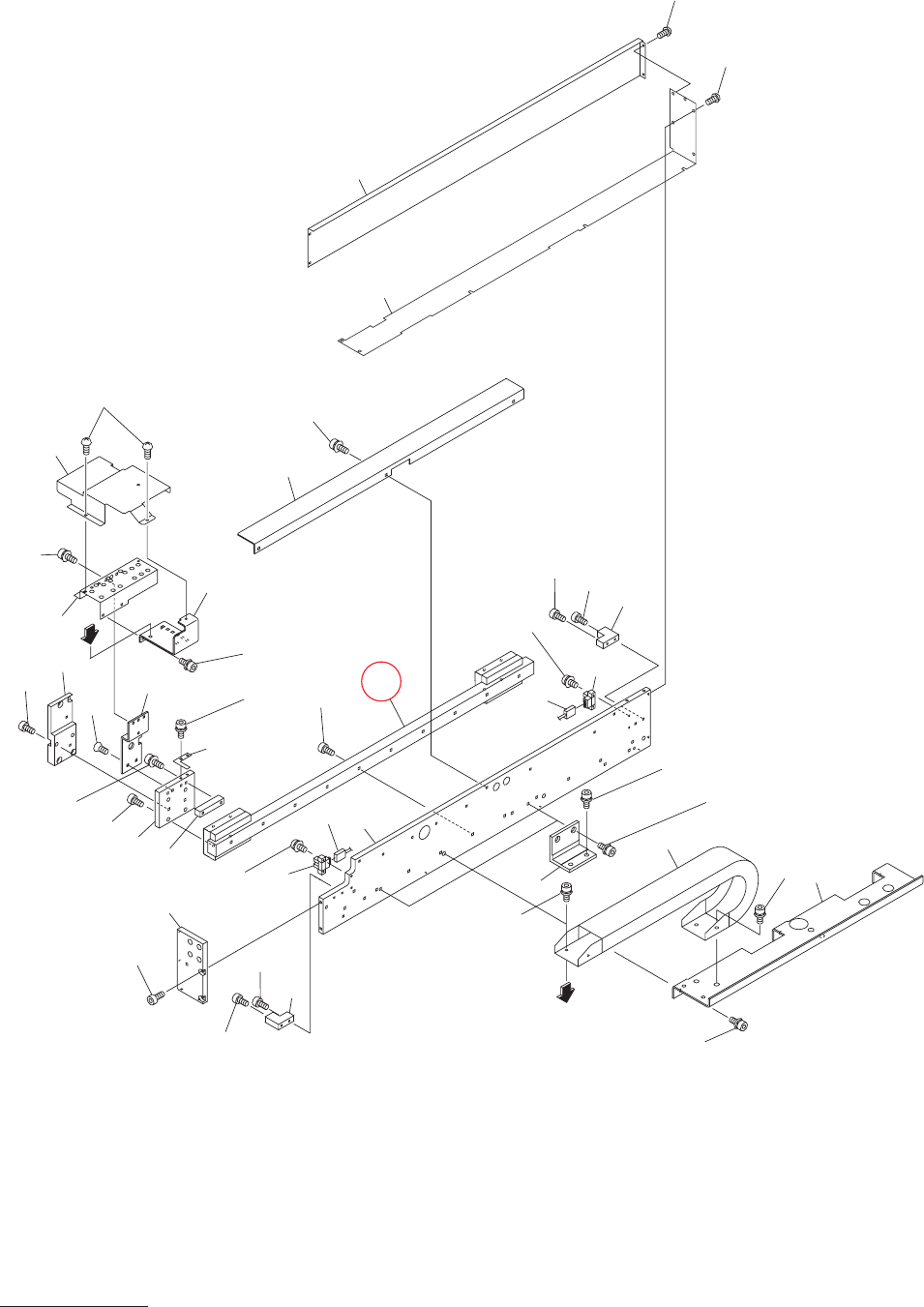

Fig. FB-1 P
＆
P
ベース部
P
＆
P Base Section
27
1
18
17
29
22
19
33
30
20
28
23
15
45
21
25
24
A
A
13
34
35
13
54
.
68
.
73
59
59
59
58
60
56
55
.
68
.
73
51
.
67
.
72
55
.
68
.
73
55
.
68
.
73
58
55
53
52
52
53
61
.
66
.
71
35
34
61
.
66
.
71
58
.
69
.
74
58
.
69
.
75
57
.
69
.
74
57
.
69
.
74
57
.
69
.
74
注) Key No.33(○印)は重要保守部品となっております。交換方法については高度な
技術を要しますので、当社サービス員にご相談下さい。
Notice) The Key No. 33 (with a circle) is an important maintenance component.
Because high-grade technique is required for the replacement of this component,
consult our service personnel.
FB-1 illust-1
MODEL FP-G300R
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FB-1
FB-1 list-1
1 6301469164 BASE 1 806FB-110-001 210A2579
13 6301469201 BLOCK 2 806FB-110-013 211G4620
15 6301431956 BRACKET 2 806FB-110-015 211FA511
17 6301385389 BASE 1 806FB-110-017 210A2415
18 6301407227 BRACKET 1 806FB-110-018 211FA198
19 6301385471 PLATE 1 806FB-110-019 211DA754
20 6301469218 BRACKET 1 806FB-110-020 211FA988
21 6301408392 BRACKET 1 806FB-110-021 211FA222
22 6301385402 BLOCK 1 806FB-110-022 211G4193
23 6301408026 COVER 1 806FB-110-023 211AA227
24 6301449890 COVER 1 806FB-110-024 211AA598
25 6301449043 COVER 1 806FB-110-025 211AA584
27 6301407135 PLATE 1 806FB-110-027 211DB076
28 6301469225 COVER 1 806FB-110-028 211AA875
29 6301449050 PLATE 1 806FB-110-029 211DB518
30 6301469232 BRACKET 1 806FB-110-030 211FA989
33 6301395340 GUIDE,LINEAR 1 806FB-110-103 222L0753
34 6300000252 SENSOR,PHOTO 2 B0401,B0402
806FB-110-104 23G10002
35 6300000269 SENSOR,PHOTO(CONNECTOR) 2 806FB-110-105 23G10003
45 6301398549 MECH PARTS(CABLE BEAR) 1 806FB-110-115 226J2201
51 6300007503 BOLT,HEX-SCT 2 M3X6 221A0005
52 6300007534 BOLT,HEX-SCT 2 M3X12 221A0008
53 6300007572 BOLT,HEX-SCT 2 M3X25 221A0012
54 6300007602 BOLT,HEX-SCT 3 M4X6 221A0015
55 6300007619 BOLT,HEX-SCT 8 M4X8 221A0016
56 6300007732 BOLT,HEX-SCT 4 M5X8 221A0028
57 6300007749 BOLT,HEX-SCT 7 M5X10 221A0029
58 6300007756 BOLT,HEX-SCT 20 M5X12 221A0030
59 4110505004 SCR TRS 3X6 11 M3X6 TRS 221E0529
60 4111407208 SCR FLT 4X6 2 M4X6 FLT 221D0224
61 4110407803 SCR PAN 3X12 4 M3X12 PAN 221E0489
66 4110864408 WASHER SPR 3 4 SW3 F 221H0280
67 4111412806 WASHER SPR 3 2 SW3 221H0281
68 4111412905 WASHER SPR 4 9 SW4 221H0284
69 4111416705 WASHER SPR 5 15 SW5 221H0287
71 4111191909 WASHER V 3X7X0.5 4 FW3 F 221H0311
72 4111413902 WASHER V 3X7X0.5 2 FW3 221H0312
73 4111414008 WASHER V 4X9X0.8 9 FW4 221H0315
74 4111414107 WASHER V 5X10X1 11 FW5 221H0318
75 6300010220 WASHER 4 BW5 221H0005
MODEL FP-G300R
0801-002
P
＆
P
X
軸
P
＆
P X
AXIS

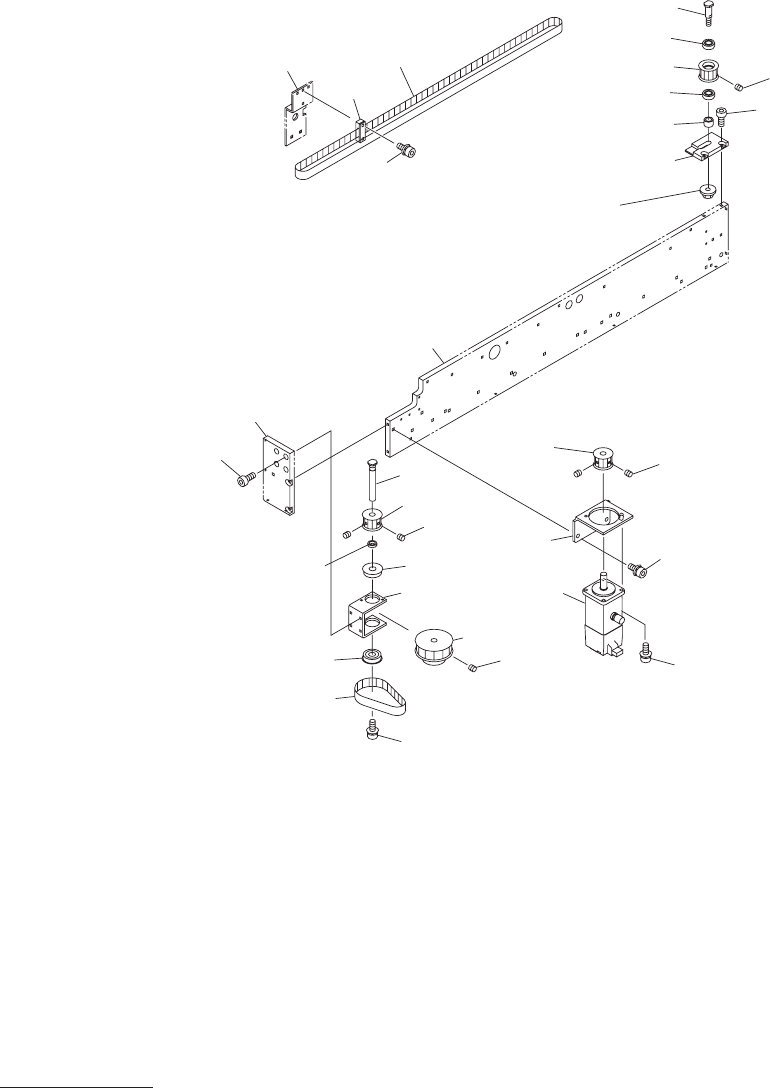

Fig. FB-2 X
軸駆動部
X
Axis Driver Section
134
106
114
146
107
109
123
102
128
124
112
108
112
126
110
111
106
125
154
.
162
.
167
151
.
161
.
166
158
158
153
158
157
.
164
.
169
152
158
156
.
163
.
168
155
.
162
.
167
See Fig. FB-1
Key No.18
See Fig. FB-1
Key No.1
See Fig. FH-1
Key No.27
1
14
FB-2 illust-1
