MODEL FP-G 300R 1004-004 Key No. P AR T No. P AR T NAME Q’ ty REMARKS New Code NOTE FD-3 FD-3 list-1 204 6301395371 GUIDE,LINEAR 2 806FD-1 10-104 222L0756 205 6301283432 CYLINDER 2 B0810,B081 1 1,B0812,B0813 806FD-1 10-1…
MODEL FP-G300R
0801-002
トラバース部
TRA
VERSE SECTION

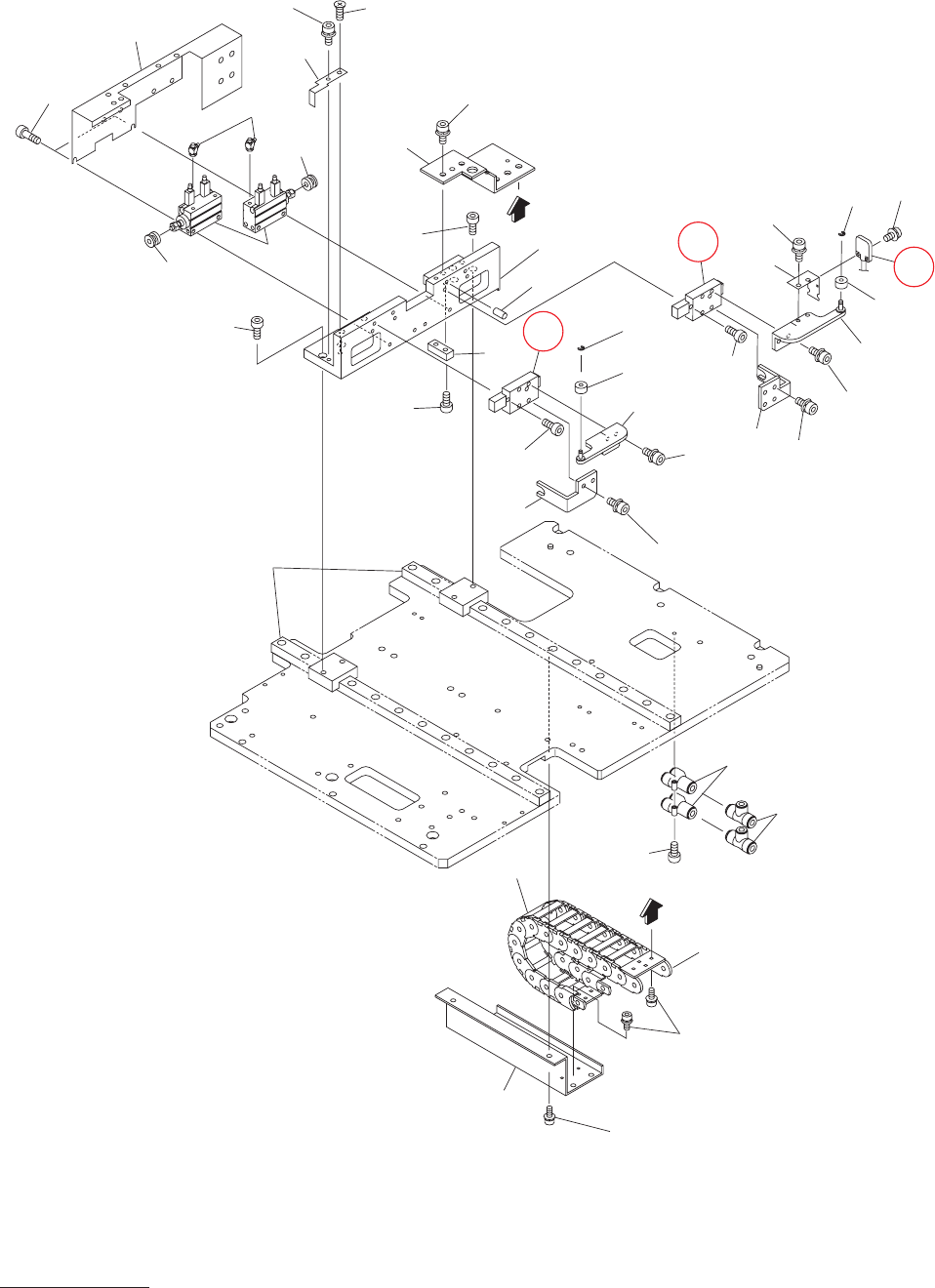

Fig. FD-3
パレットチャック部
Pallet Chuck Section
225
235
205
211
228
228
234
230
229
208
209
See Fig. FD-1
Key No.103
268
263
.
255
.
252
257
267
262
.
251
.
220
221
231
212
213
241
204
252
242
267
262
.
252
.
251
234
235
204
253
255
.
263
.
268
226
266
261
.
256
.
252
236
254
A
A
252
267
262
.
252
.
267
262
.
252
.
267
262
.
252
.
238
267
262
.
251
.
252
.
262
.
267
233
243
注) Key No.204,236(○印)は重要保守部品
となっております。交換方法について
は高度な技術を要しますので、当社サ
ービス員にご相談下さい。
Notice) The Key No. 204,236 (with a circle) is
an important maintenance component.
Because high-grade technique is required
for the replacement of this component,
consult our service personnel.
FD-3 illust-1
MODEL FP-G300R
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FD-3
FD-3 list-1
204 6301395371 GUIDE,LINEAR 2 806FD-110-104 222L0756
205 6301283432 CYLINDER 2 B0810,B08111,B0812,B0813
806FD-110-105 224C0550
208 6301450315 BASE 1 806FD-110-008 210A2542
209 6301385624 BLOCK 1 806FD-110-009 211G4194
211 6300484656 PIPE FITTINGS 4 806FD-110-111 225F0261
212 6300037692 PIPE FITTINGS 2 806FD-110-112 225F0058
213 6300482935 AIR LINE EQPT 2 806FD-110-113 225B0251
220 6301398563 MECH PARTS(CHAIN) 1 806FD-110-130 226J2203
221 6301396101 MECH PARTS(CHAIN) 2 806FD-110-131 226J2190
225 6301442907 LEVER 1 806FD-110-025 216S2965
226 6301442914 LEVER 1 806FD-110-026 216S2966
228 6301282657 SHAFT 2 806FD-110-028 213A1070
229 6301409306 PLATE 1 806FD-110-029 211DB110
230 6301420868 BRACKET 1 806FD-110-030 211FA342
231 6301409481 BRACKET 1 806FD-110-031 211FA229
233 6300775631 PIN,LOCATE 4 806FD-110-123 216E0726
234 6301395258 BEARING,RADIAL 2 806FD-110-124 222D0414
235 4110009304 RING E 2 2 806FD-110-125 221K0095
236 6301292243 SENSOR,PELEC 1 B0814 806FD-110-126 23G00256
238 6301407944 BRACKET 1 806FD-110-038 211FA209
241 6301450223 BRACKET 1 806FD-110-041 211FA728
242 6301449302 BRACKET 1 806FD-110-042 211FA717
243 6301452715 BRACKET 1 806FD-110-043 211FA761
251 6300007503 BOLT,HEX-SCT 5 M3X6 221A0005
252 6300007510 BOLT,HEX-SCT 20 M3X8 221A0006
253 6300007565 BOLT,HEX-SCT 4 M3X20 221A0011
254 6300007572 BOLT,HEX-SCT 1 M3X25 221A0012
255 6300007619 BOLT,HEX-SCT 4 M4X8 221A0016
256 4110392604 SCR PAN 2X6 2 M2X6 PAN 221E0483
257 4110022600 SCR FLT 3X6 1 M3X6 FLT 221D0224
261 4111412509 WASHER SPR 2 2 SW2 F 221H0276
262 4111412806 WASHER SPR 3 15 SW3 221H0281
263 4111412905 WASHER SPR 4 4 SW4 221H0284
266 4111413605 WASHER V 2X5X0.3 2 FW2 F 221H0307
267 4111413902 WASHER V 3X7X0.5 15 FW3 221H0312
268 4111414008 WASHER V 4X9X0.8 4 FW4 221H0315
