MODEL FP-G 300R 1004-004 Key No. P AR T No. P AR T NAME Q’ ty REMARKS New Code NOTE FJ-1 FJ-1 list-1 51 6301417356 BASE 1 806FJ-1 10-051 210A2468 52 6301417363 BRACKET 1 806FJ-1 10-052 21 1F A297 53 6301416403 BRACKET 1 …
MODEL FP-G300R
0801-002
電装部
ELECTRICAL
SECTION

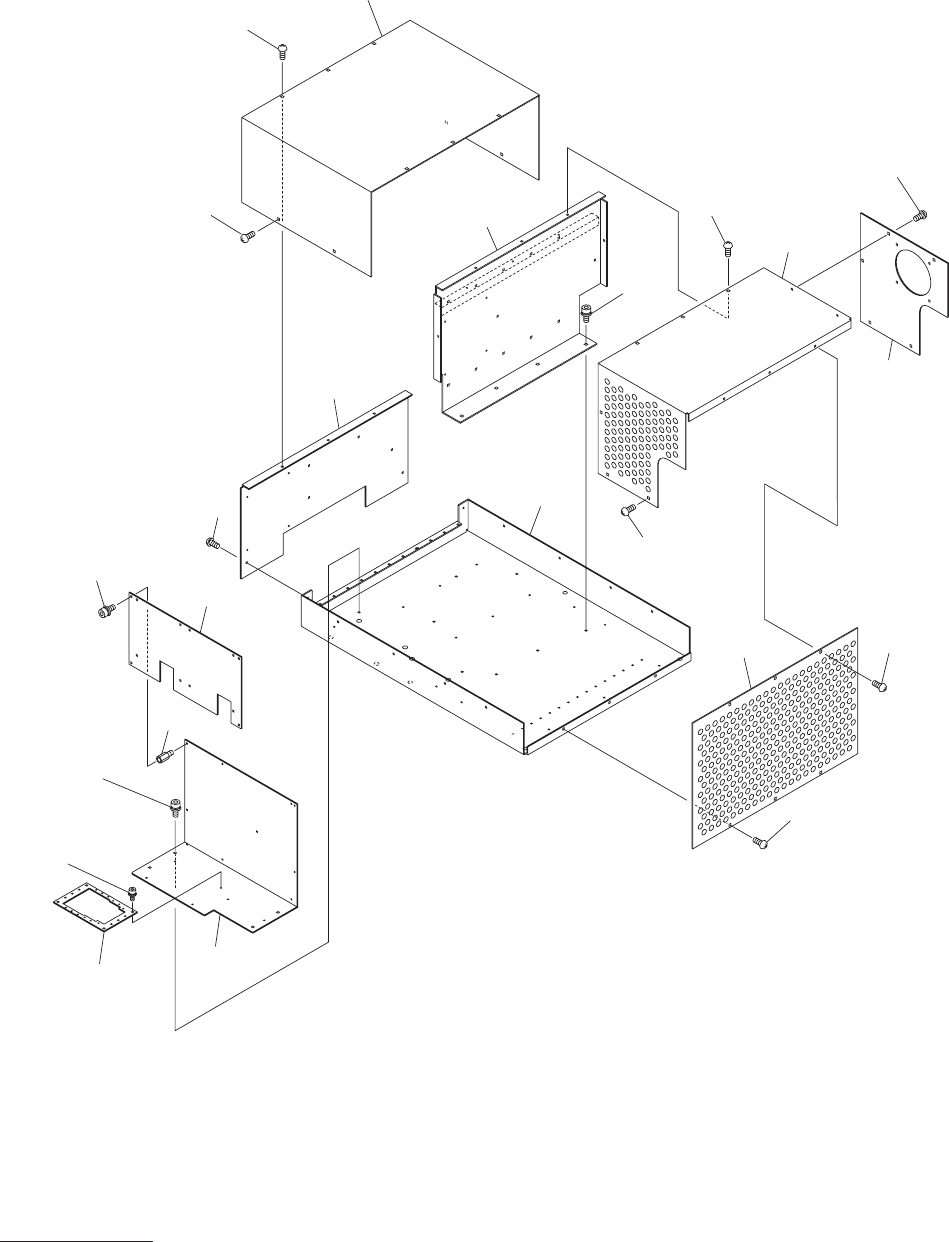

Fig. FJ-1
電装ボックス
Electrical Box
59
56
54
55
53
52
58
51
60
61
72
72
72
72
72
72
72
68
71
.
76
.
77
71
.
76
.
77
71
.
76
.
77
71
.
76
.
77
72
FJ-1 illust-1
MODEL FP-G300R
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FJ-1
FJ-1 list-1
51 6301417356 BASE 1 806FJ-110-051 210A2468
52 6301417363 BRACKET 1 806FJ-110-052 211FA297
53 6301416403 BRACKET 1 806FJ-110-053 211FA286
54 6301416410 BRACKET 1 806FJ-110-054 211FA287
55 6301416427 PLATE 1 806FJ-110-055 211DB188
56 6301416434 PLATE 1 806FJ-110-056 211DB189
58 6301417288 COVER 1 806FJ-110-058 211AA290
59 6301417295 COVER 1 806FJ-110-059 211AA291
60 6301417349 COVER 1 806FJ-110-060 211AA292
61 6301417974 COVER 1 806FJ-110-061 211AA294
68 6300775617 ACCESSORY,P.C.B 8 806FJ-110-168 23L10057
71 6300007619 BOLT,HEX-SCT 20 M4X8 221A0016
72 4110511708 SCR TRS 4X6 29 M4X6 TRS 221E0532
76 4111412905 WASHER SPR 4 20 SW4 221H0284
77 4111414008 WASHER V 4X9X0.8 20 FW4 221H0315
MODEL FP-G300R
0801-002
電装部
ELECTRICAL
SECTION

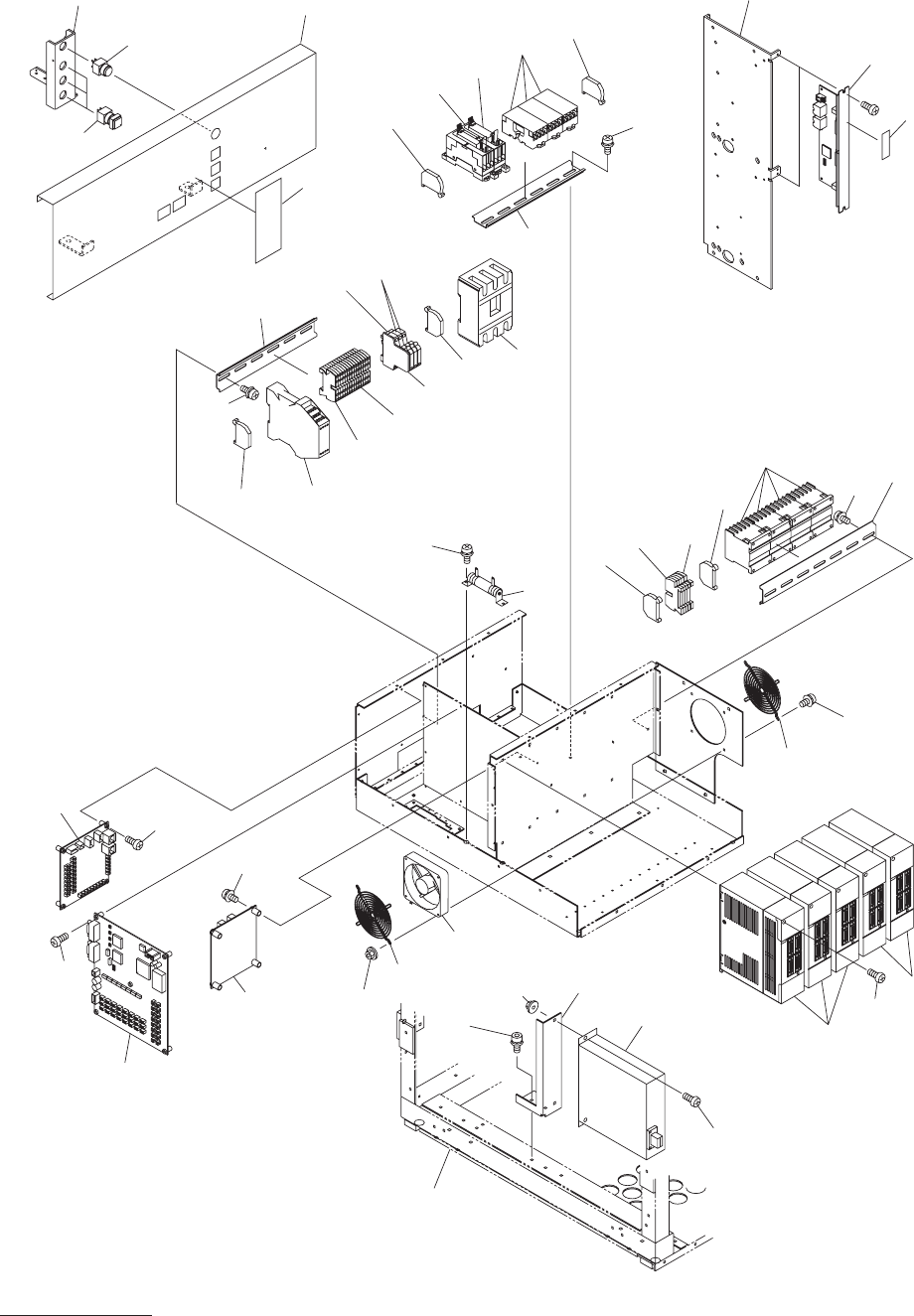

Fig. FJ-2
制御部
Control Section
156
156
155
151
152
192
192
149
170
167
146
170
141
166
.
168
.
169
193
.
197
.
198
185
184
183
185
186
157
164
163
179
173
.
176
.
177
.
178
175
179
171
180
193
.
197
.
198
196
See Fig. FK-1
Key No.1
See Fig. FK-1
Key No.4
See Fig. FK-1
Key No.3
144
.
145
143
.
145
.
147
193
.
197
.
198
142
181
182
158
165
172
.
154
132
192
162
161
162
194
.
197
.
198
195
.
197
.
198
197
.
198
.
199
197
.
198
.
199
189
.
190
.
191
193
.
197
.
198
See Fig. FA-1
Key No.1
