MODEL FP-G 300R 0909-003 P ＆ P X 軸 P ＆ P X AXIS Fig. FF-3 エア配管 Air Piping 224 229 221 222 228 229 224 226 262 257 . 254 . 221 222 235 235 234 233 261 256 . 251 . 261 256 . 251 . 261 256 . 251 . 263 258 . 253 . 262 257 . …
MODEL FP-G300R
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FF-2
FF-2 list-1
101 6301391601 HOLDER 2 806FF-110-201 216B1539
102 6300769265 BUSH,BEARING 4 806FF-110-202 222A0129
103 6300020717 SPRING,COMP 2 806FF-110-203 222M0562
104 6301404868 LEVER 2 806FF-110-204 216S2926
105 6301404875 PLATE 2 806FF-110-205 211DB048
106 6301391625 SHAFT 2 806FF-110-206 213A1239
107 4110009304 RING E 2 4 806FF-110-207 221K0095
108 6301393087 CYLINDER 2 B0718,B0719,B0721,B0722
806FF-110-208 224C0575
109 6301067872 AIR LINE EQPT 4 806FF-110-209 225B0418
110 6301394725 BOLT 2 806FF-110-210 221E0365
111 6301391243 BRACKET 2 806FF-110-211 211F9980
117 6301321578 SWITCH,PRESSURE 2 B0720,B0723
806FF-110-227 4S1M0030
122 6300037241 PIPE FITTINGS 2 806FF-110-232 225F0022
126 6301515212 ASSY,VACUUM PARTS(PP04) 2 806FF-110-241 025D0025
131 6301469317 BASE 1 806FF-110-131 210A2583
133 6301391342 BLOCK 1 806FF-110-133 211G4234
134 6301404691 SHAFT 2 806FF-110-134 213A1256
135 6301393070 BUSH,BEARING 4 806FF-110-135 214A0044
136 6301391373 COLLAR 2 806FF-110-136 216A1300
137 6300069457 BEARING,RADIAL 4 806FF-110-137 222D0131
138 6301391359 COLLAR 1 806FF-110-138 216A1298
139 6301391366 COLLAR 2 806FF-110-139 216A1299
140 6301391410 SPRING,COMP 2 806FF-110-140 222M1383
141 6301391595 BLOCK 2 806FF-110-141 211G4236
142 6301469812 HOLDER 2 806FF-110-142 216B1598
143 6300368444 PIPE FITTINGS 4 806FF-110-143 225F0228
151 6300007466 BOLT,HEX-SCT 5 M2X6 221A0001
153 6300876659 BOLT,HEX-SCT 1 M2X10 221A0245
154 6300007473 BOLT,HEX-SCT 1 M2.5X8 221A0002
155 6300007510 BOLT,HEX-SCT 4 M3X8 221A0006
156 6300007558 BOLT,HEX-SCT 8 M3X16 221A0010
157 6300007565 BOLT,HEX-SCT 4 M3X20 221A0011
158 6300007626 BOLT,HEX-SCT 2 M4X10 221A0017
159 4111407901 SCR TRS 3X4 2 M3X4 TRS 221E0528
160 6300008883 SET SCREW 2 M3X4 SET 221C0001
162 4111416606 WASHER SPR 2.5 1 SW2.5 221H0279
163 4111412806 WASHER SPR 3 8 SW3 221H0281
167 4111413803 WASHER V 2.5X6.5X0.5 1 FW2.5 221H0310
168 4111413902 WASHER V 3X7X0.5 8 FW3 221H0312
MODEL FP-G300R
0909-003
P
＆
P
X
軸
P
＆
P X
AXIS

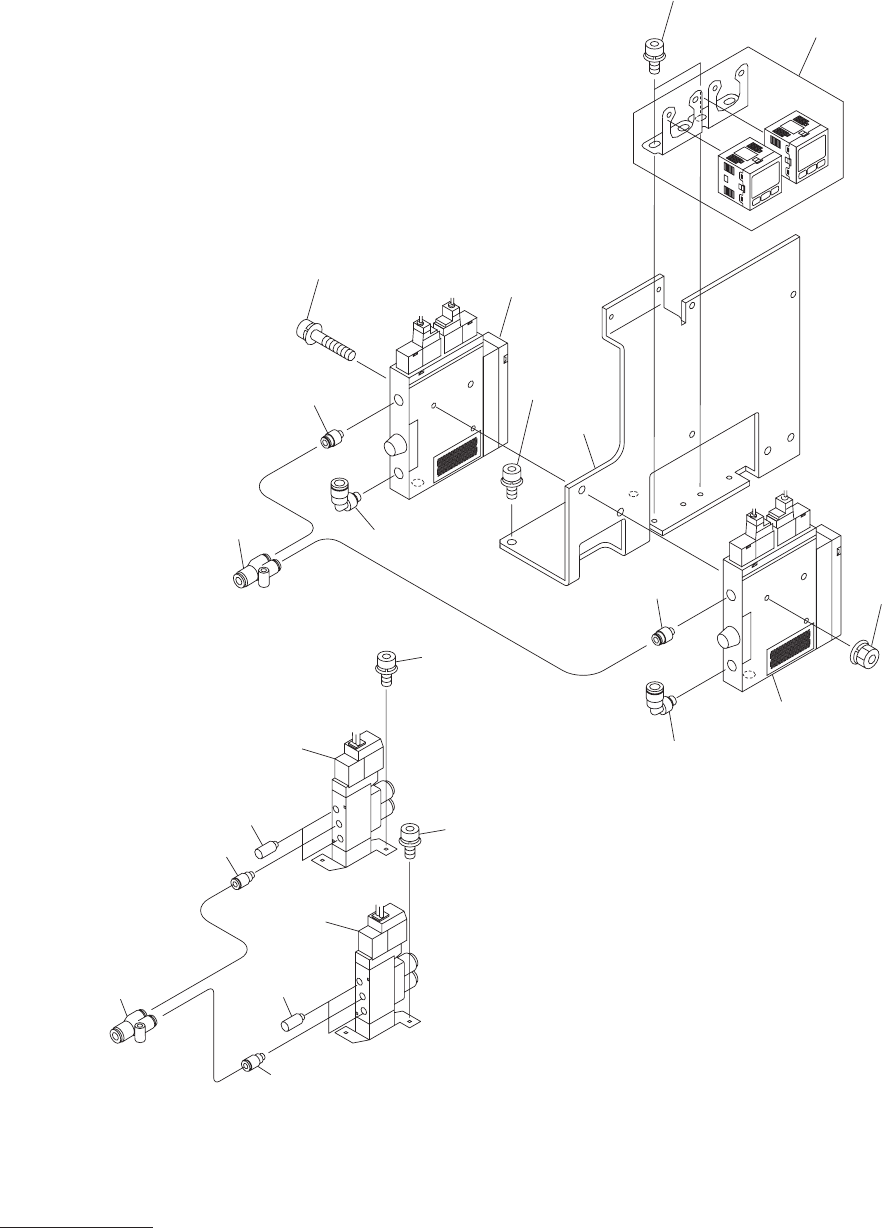

Fig. FF-3
エア配管
Air Piping
224
229
221
222
228
229
224
226
262
257
.
254
.
221
222
235
235
234
233
261
256
.
251
.
261
256
.
251
.
261
256
.
251
.
263
258
.
253
.
262
257
.
252
.
230
230
FF-3 illust-1
MODEL FP-G300R
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FF-3
FF-3 list-1
221 6301389899 VALVE 2 Y0740,Y0743
806FF-110-221 225C0133
222 6300036534 AIR LINE EQPT 4 806FF-110-222 225B0059
224 6301389929 VACUUM PARTS 2 Y0741,Y0742,Y0744,Y0745
806FF-110-224 225D0169
226 6301389905 SWITCH,PRESSURE 2 806FF-110-226 4S1M0033
228 6301449289 BRACKET 1 806FF-110-228 211FA715
229 6300318579 PIPE FITTINGS 2 806FF-110-229 225F0209
230 6300884432 PIPE FITTINGS 2 806FF-110-230 225F0368
233 6300624847 PIPE FITTINGS 1 806FF-110-233 225F0305
234 6300037708 PIPE FITTINGS 1 806FF-110-234 225F0059
235 6300783070 PIPE FITTINGS 2 806FF-110-235 225F0339
251 6300007503 BOLT,HEX-SCT 8 M3X6 221A0005
252 6300007787 BOLT,HEX-SCT 3 M5X25 221A0033
253 6300007862 BOLT,HEX-SCT 4 M6X10 221A0041
254 4111410505 NUT HEX 5 3 M5 221F0085
256 4111412806 WASHER SPR 3 8 SW3 221H0281
257 4111416705 WASHER SPR 5 6 SW5 221H0287
258 4111413001 WASHER SPR 6 4 SW6 221H0289
261 4111413902 WASHER V 3X7X0.5 8 FW3 221H0312
262 4111414107 WASHER V 5X10X1 6 FW5 221H0318
263 4111414305 WASHER V 6X12.5X1.6 4 FW6 221H0006
