- 7 -

3. Install MUMA200

3.1 Computer request

 CPU: Pentium or better host computer(Advise CPU: Pentium 4 or better one)

 RAM-Memory: At least 256MB or more(Advise memory: 512MB)

 HD-Hardware: The free disk space should be at least 50MB or more

 Printer-Printer (Optional, use for printing the report data)

 OS-Operating System :Windows 2000 or XP

 Screen colors quality is for 32 bits, and the resolution has four kinds,1280×800，1366×768，

1440×900 and 1920×1080. Free-running card is 256M or more.

 Input and output devices: At least 1 USB serial ports

3.2 MUMA200 Cables

3.2.1 Cables

Machine USB signal cable: both sides are for USB type, but one is small and the other is large

(as pic1). Two sides of this cable are same (as pic2).

Machine external power cable: one side is circle, the other side is pin (as pic3).

Pic1 Pic2 Pic3

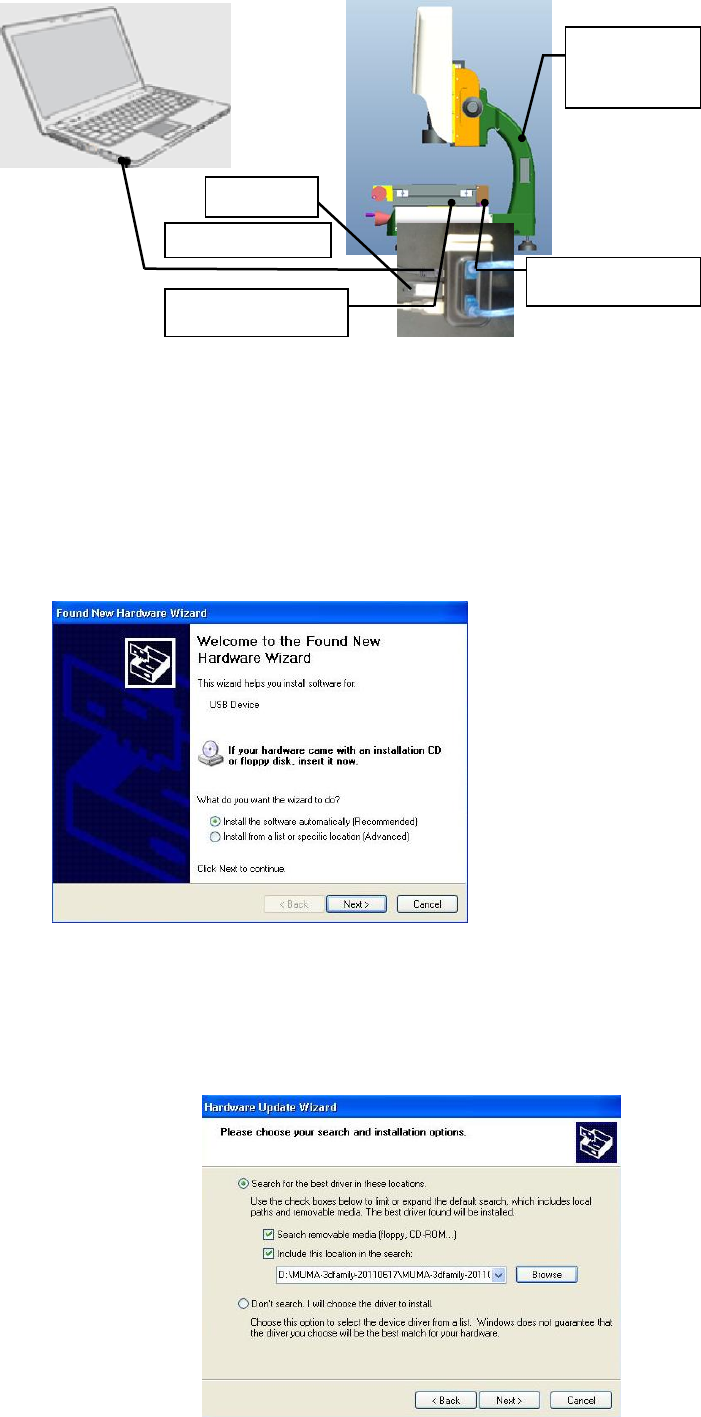

3.2.2 Connect with computer

Machine USB power cable, one side is connected with 4 signal interface on machine , the other

side is connected with computer.

Machine USB signal cable, one side is connected with three signal interface on machine, the

other side is connected with USB power cable, then connect the USB power cable with the computer.

- 8 -

Lockdog

3.3 Driver Installation

Check all the cables connection, and then open computer and installation CD.

3.3.1 Camera installation

 Start the computer.

 A prompt, “Welcome to the Found New Hardware Wizard” will appear, choose “Install the

software automatically (Recommended)” and click “’next” to continue.

 Choose “Include this location in the search”, click “Browse” to find “CCD-Driver”, and click “next”

to continue.

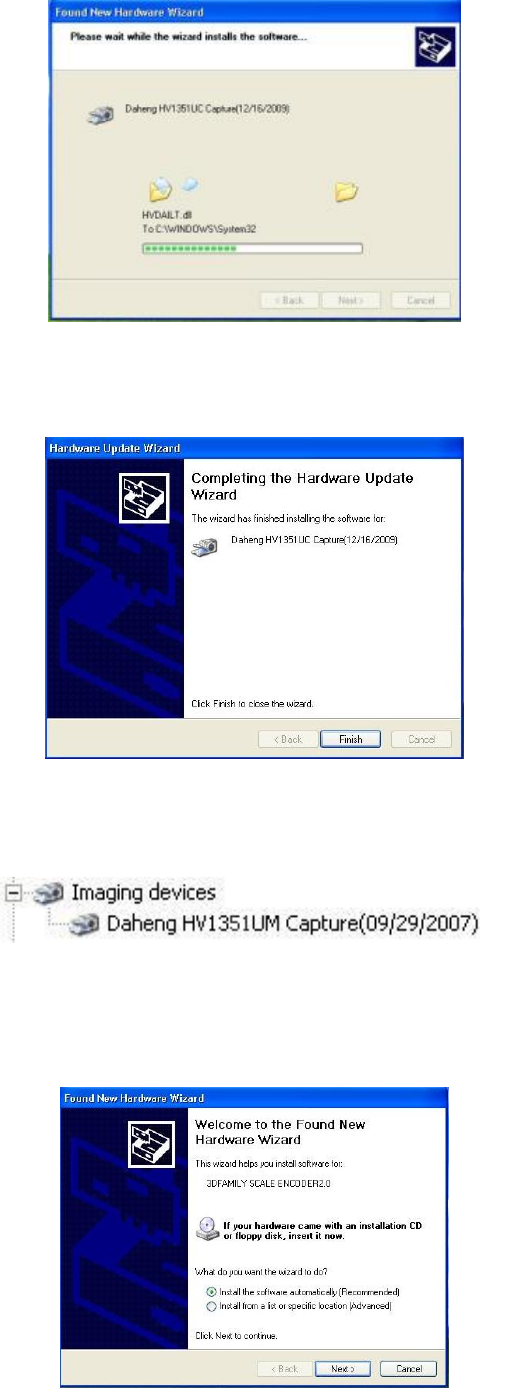

 Camera driver installation is on progress.

USB power cable

External

power cable

Lockdog

USB signal cable

External

power cable

- 9 -

 Click” Finish” to complete the installation.

 In the “Device Manager” you will find following install results.

3.3.2 USB Counter card driver installation

 A prompt, “Welcome to the Found New Hardware Wizard” will appear, choose “installing the

software automatically (Recommended)” and click “next” to continue.

 Choose”Include this location in the search”, click “Browse” to find “USB 2.0 Counter Card” and

click “next” to continue.
