Tg0594-PM-SO
6. Procedure for Black Light Replacement

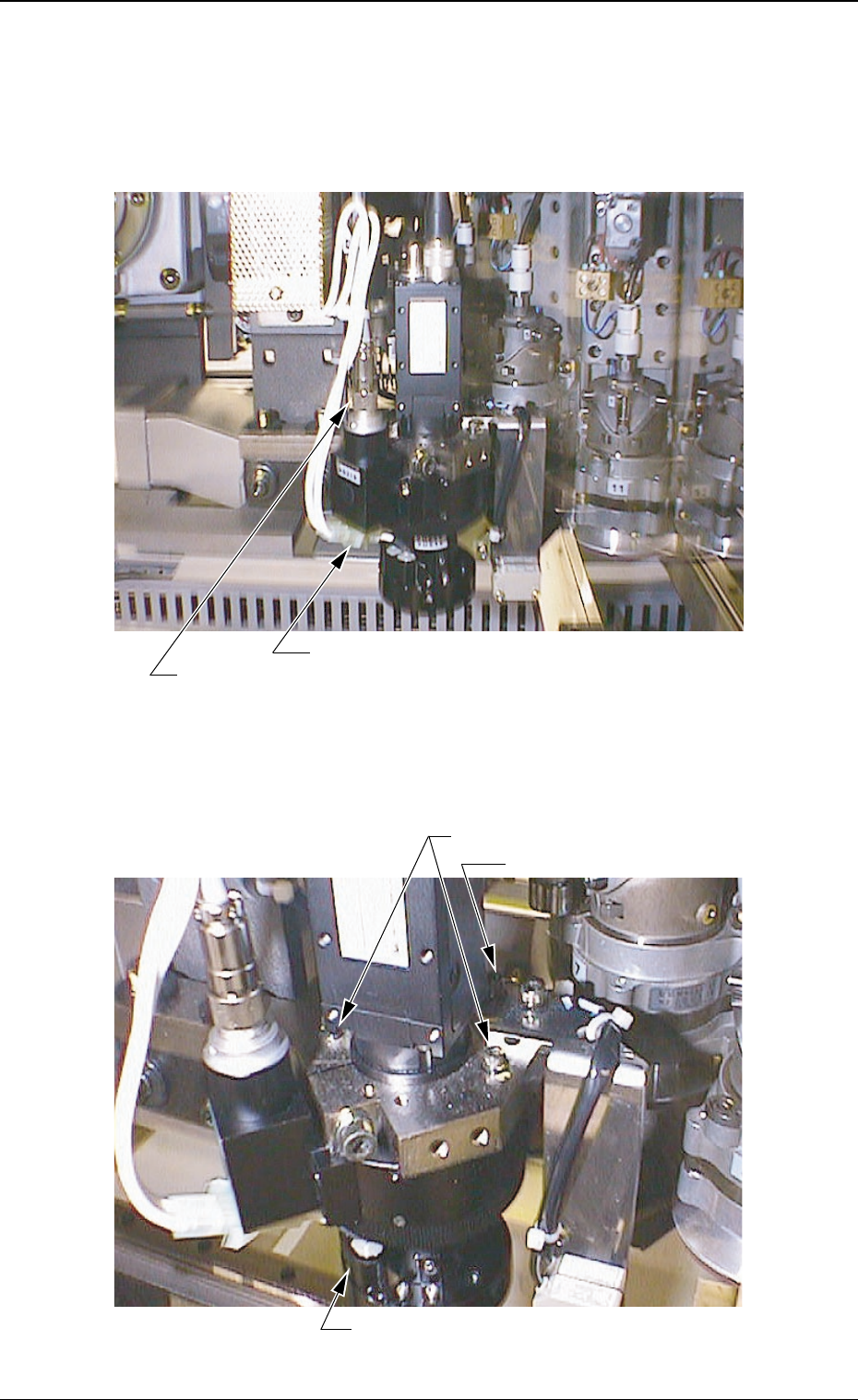

(1) Shut off the power to the machine and disconnect the connector
for ring lighting and the nylon connector for black light.
Fig. 7
(2) Loosen three setscrews fastening the lighting unit and detach the
unit.
Fig. 8
6. Procedure for Black Light Replacement
0402-002 9
Setscrew (2 places)
Lighting Unit
Setscrew (Rear Side)
Connector for Ring Lighting
Nylon Connectors for Black Light
Tg0594-PM-SO

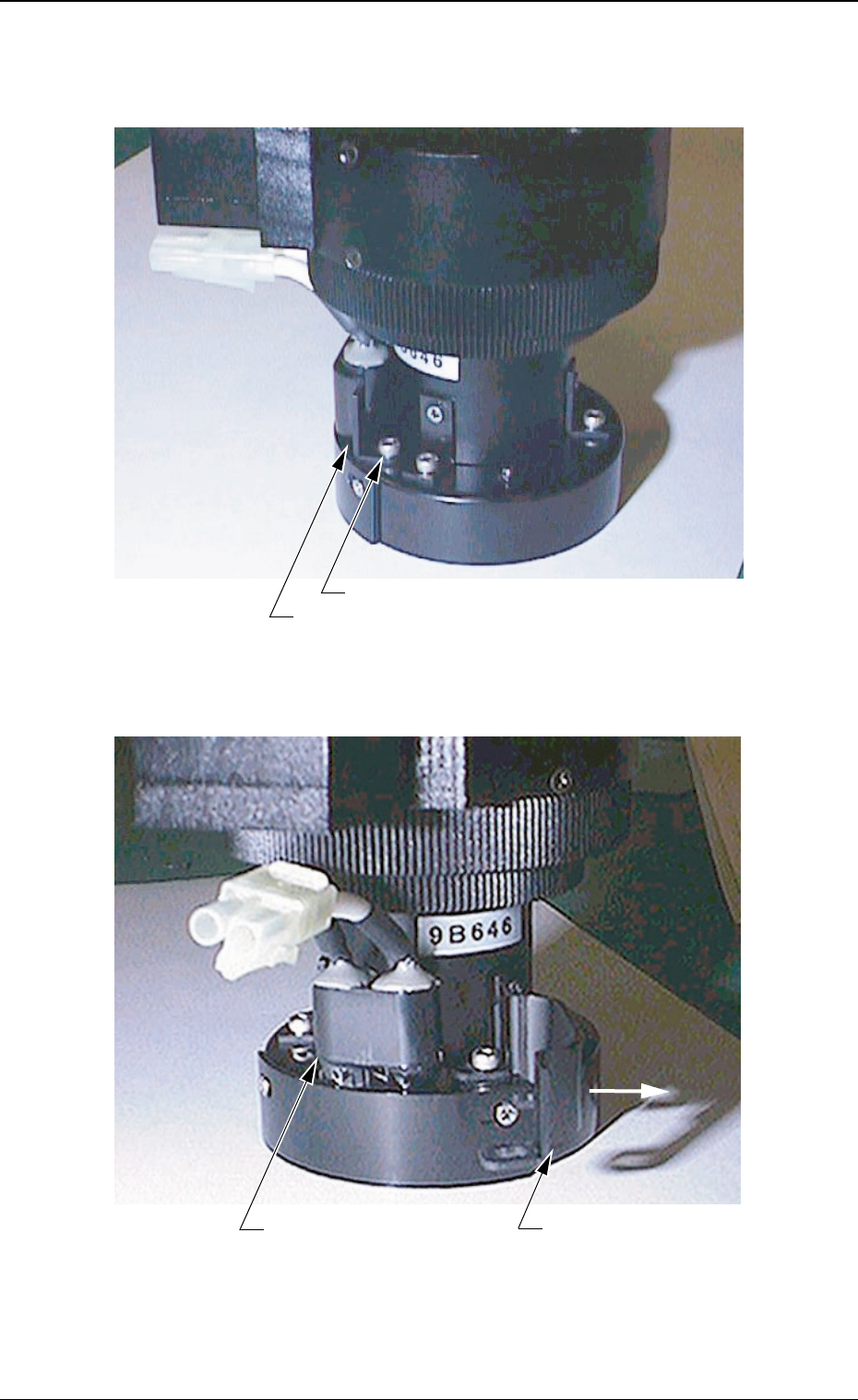

(3) Remove one of the two screws of the metal fixture fastening the
black light and loosen the other one such that the metal fixture
can be moved.
Fig. 9
(4) Shift the metal fixture for black light.
Fig. 10
6. Procedure for Black Light Replacement
0402-002 10
Screw
Metal Fixture for Black Light
Black Light Fluorescent LampBlack Light
Metal Fixture for
Black Light
Tg0594-PM-SO

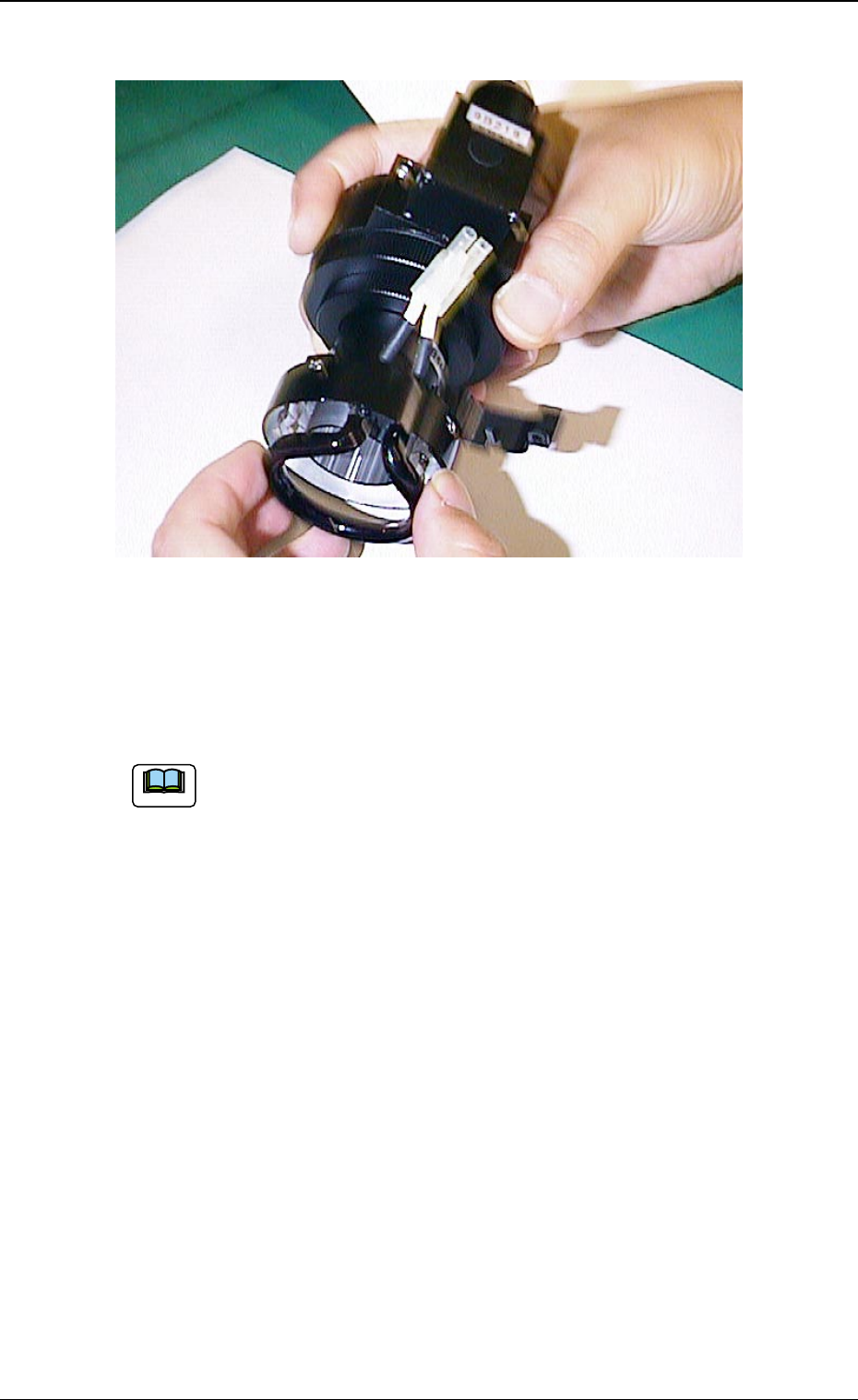

(5) Replace the black light with a new one.
Fig. 11
(6) Attach the lighting unit, following the reverse order
((5)→(4)→(3)→(2)→(1)) of the detachment procedure. Now, the
replacement is completed.
(a) Carefully handle the black light because it is fragile.
(b) When the lighting unit should be attached after lamp
replacement, be sure to tighten the screws securely.
6. Procedure for Black Light Replacement
0402-002 11
Note
