Tg0594-PM-SO 7. Accessory Parts List These parts might be totally consumed in about one year . When you purchase them contact our Customer Service Department. The black light is near ultraviolet rays, which are almost in…

Tg0594-PM-SO

(5) Replace the black light with a new one.

Fig. 11

(6) Attach the lighting unit, following the reverse order

((5)→(4)→(3)→(2)→(1)) of the detachment procedure. Now, the

replacement is completed.

(a) Carefully handle the black light because it is fragile.

(b) When the lighting unit should be attached after lamp

replacement, be sure to tighten the screws securely.

6. Procedure for Black Light Replacement

0402-002 11

Note

Tg0594-PM-SO

7. Accessory Parts List

These parts might be totally consumed in about one year.

When you purchase them contact our Customer Service Department.

The black light is near ultraviolet rays, which are almost

invisible. When a P.C.B. recognition error occurs and the

lighting check for the black light is performed, insert a sheet

of white paper under the black light. When violet light is seen

on the paper, the black light is OK.

7. Accessory Parts List

0402-002 12

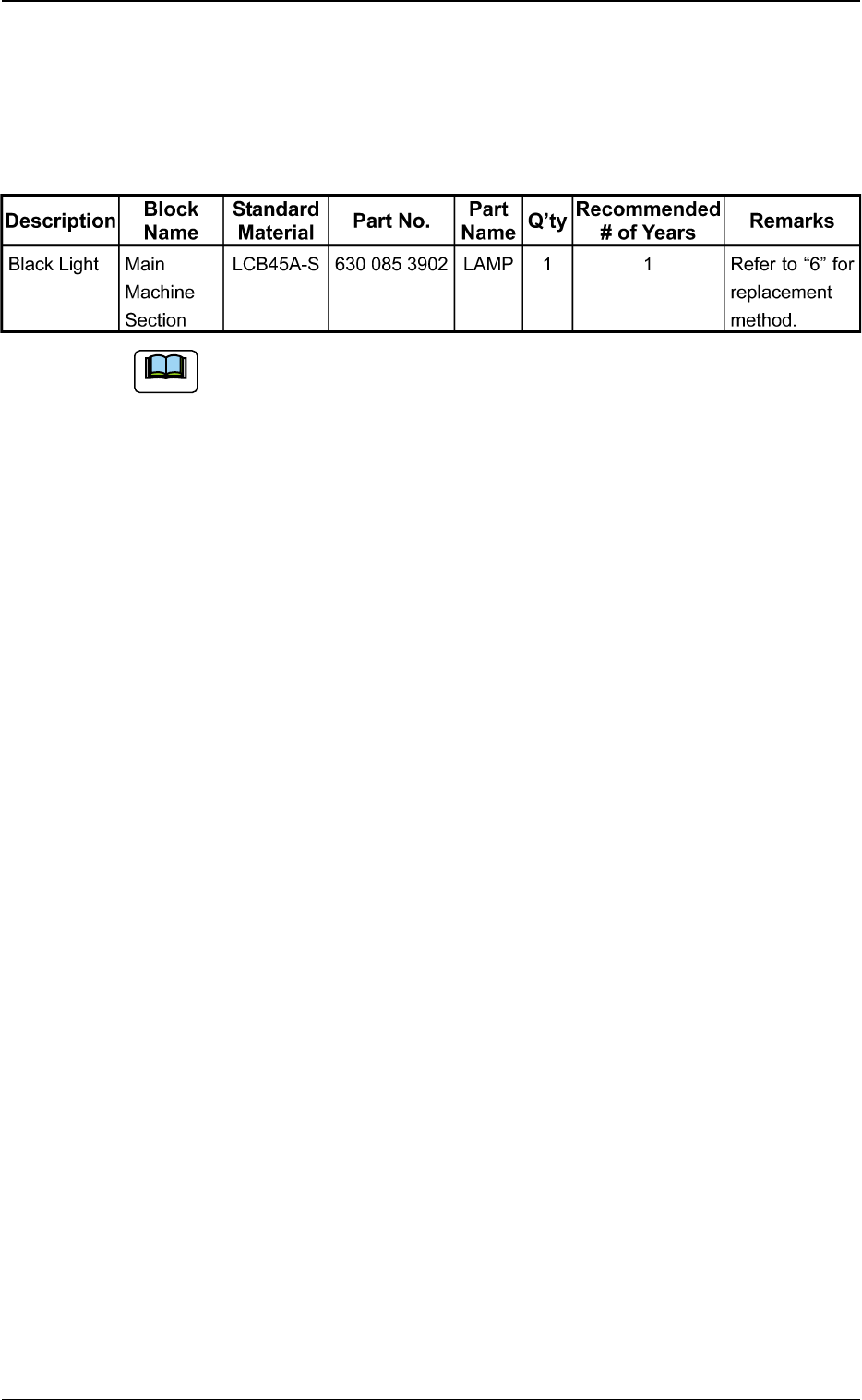

Table 1

Note

Tg0594-PM-SO

8. Electrical Circuit Diagram

0103-001-(M696WR--A1002) 13

8. Electrical Circuit Diagram

Recognition Board Circuit Diagram (1)

Note: -marked area is specially specified.
