KHT -1204 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. P…
KHT-1204
7
3

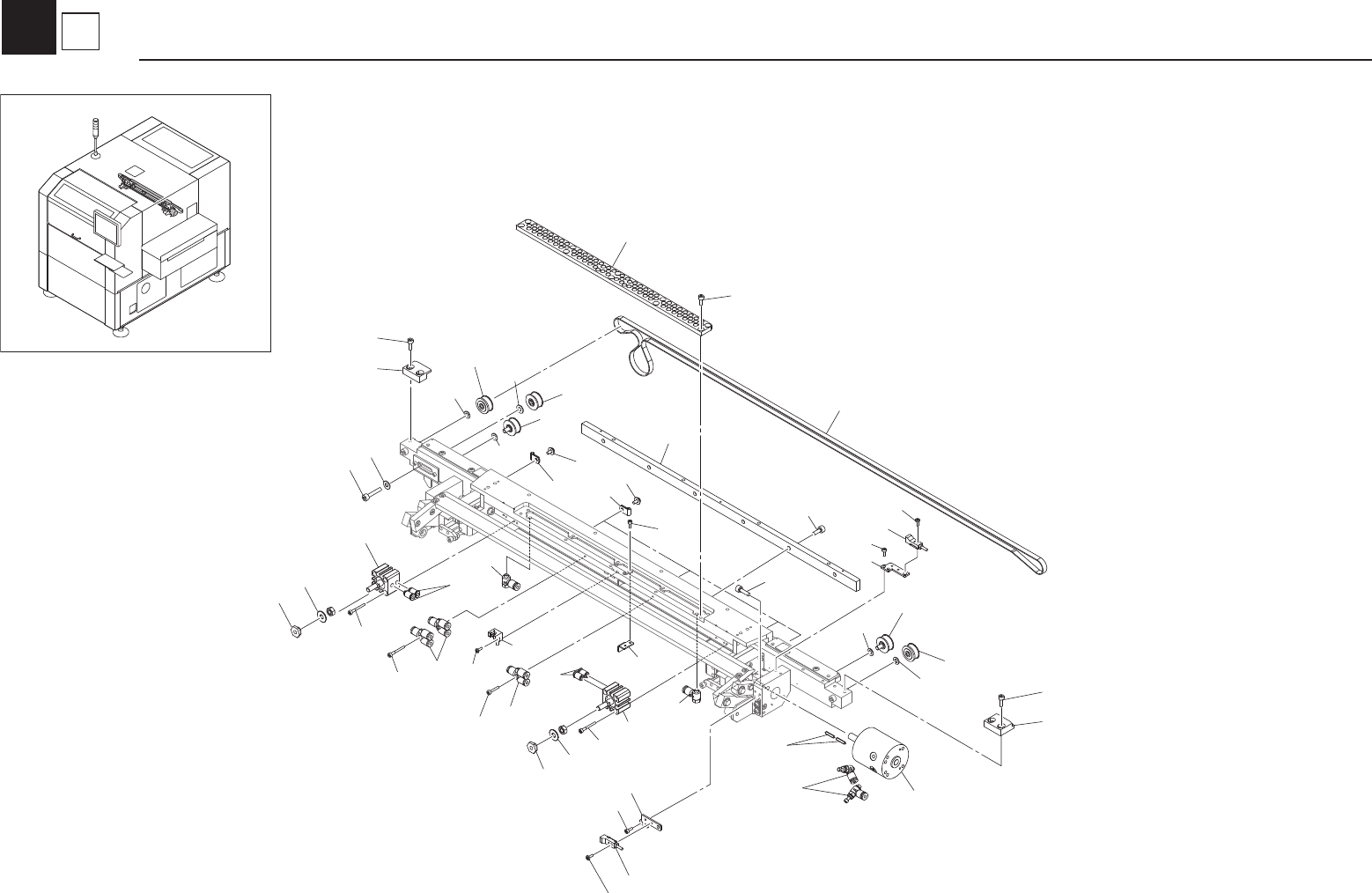

Main R - Belt / Sensor / CYL / Edge / V-Plate
Conveyor Unit
11
5
6
29
32
28
21
5
29
6
7
4
23
25
34
8
3
22
8
2
1
27
25
26
27
26
30
25
10
18
19
20
14
21
30
20
7
23
34
25
33
9
33
17
12
33
17
9
24
15
31
31
16
35
36
36
37
KHT-1204
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1
KHT-M9123-00 CONV. EDGE PLATE 1
A
Í
39
2
KHT-M9124-00 VACUUM PLATE 1
/
Í
40
3
KHT-M9127-02 TRANSFER BELT W2 1 L=1745mm
E
41
4
KHT-M9137-00 ROTARY AC. 1
/
Í
42
5
KHT-M9145-00 CYL.EDG 2
/
Í
43
6
KHT-M9146-00 WASHER,CYL.ROD 2
/
Í
44
7
KHT-M9147-00 SPACER,CYL.ROD 2
/
Í
45
8
KV1-M9140-A0 PULLEY CONV.ASSY. 3
A
46
9
KHT-M9139-00 BRKT.,SENSOR 2
/
Í
47
10
KGJ-M9118-00 GUIDE 1,END 1
/
Í
48
11
KGJ-M9119-00 GUIDE 2,END 1
/
Í
49
12
KHT-M9149-01 DOG,EDGE CLAMP 1
/
Í
50
13
KGT-M9135-00 PULLEY 1,SPLINE 1
51
14
KHT-M6521-Y0 SENSOR E. CLAMP ASSY 1
B
Í
52
15
KHT-M6524-E0 SENS. FLAP R-L ASSY 1
B
Í
53
16
KHT-M6524-D0 SENS. FLAP R-H ASSY 1
B
Í
54
17
$SL4-M5 JOINT 2
/
55
18
91B00-03616 KEY, STRAIGHT 2
/
Í
56
19
$SC4-M5A SPEED CONTROLLER 2
/
57
20
$TSH4-M5M JOINT 4
/
58
21
$UY4 JOINT 3
A
59
22
91312-04010 BOLT HEX.SOCKET HEAD 10 M4X10
60
23
91312-04012 BOLT,HEX.SOCKET HEAD 4 M4X12
61
24
91312-05016 BOLT HEX.SOCKET HEAD 6 M5X16
62
25
92902-05600 WASHER PLAIN 5
63
26
$NK-2N NYLON CLIP 5
64
27
90990-11J003 SCREW,PAN HEAD W/W 5
65
28
91312-03016 BOLT,HEX.SOCKET HEAD 1 M3X16
66
29
91312-03025 BOLT,HEX.SOCKET HEAD 9 M3X25
67
30
91312-05012 BOLT HEX.SOCKET HEAD 6 M5X12
68
31
98902-03008 SCREW BINDING HEAD 2 M3X8
69
32
98502-03008 SCREW PAN HEAD (+) 2 M3X8
70
33
91312-03008 BOLT HEX.SOCKET HEAD 6 M3X8
71
34
KGS-M9140-A0 PULLEY CONV.ASSY. 2
A
72
35
KV7-M9140-A0 PULLEY CONV.ASSY.
1
A
73
36
92902-05200 WASHER PLAIN
2
Ø 12
74
37
91312-05025 BOLT HEX.SOCKET HEAD
1
M5X25
75
38 76
7
3
Main R - Belt / Sensor / CYL / Edge / V-Plate
Conveyor Unit
KHT-1004
1
RF,LR
2
LF,RR
5
6
9
21
19
50
23
24
23
46
29
27
14
30
30
9
42
41
41
35
34
22
20
13
8
11
7
31
26
12
33
28
15
49
4
14
25
3
27
48
12
5
27
32
10
4
25
14
3
48
27
14
10
43
45
37
44
39
38
40
12
12
28
25
17
43
43
45
45
43
45
16
28
22
28
18
22
25
25
25
22
32
39
47
38
31
37
36
7
4
ENT Transport
