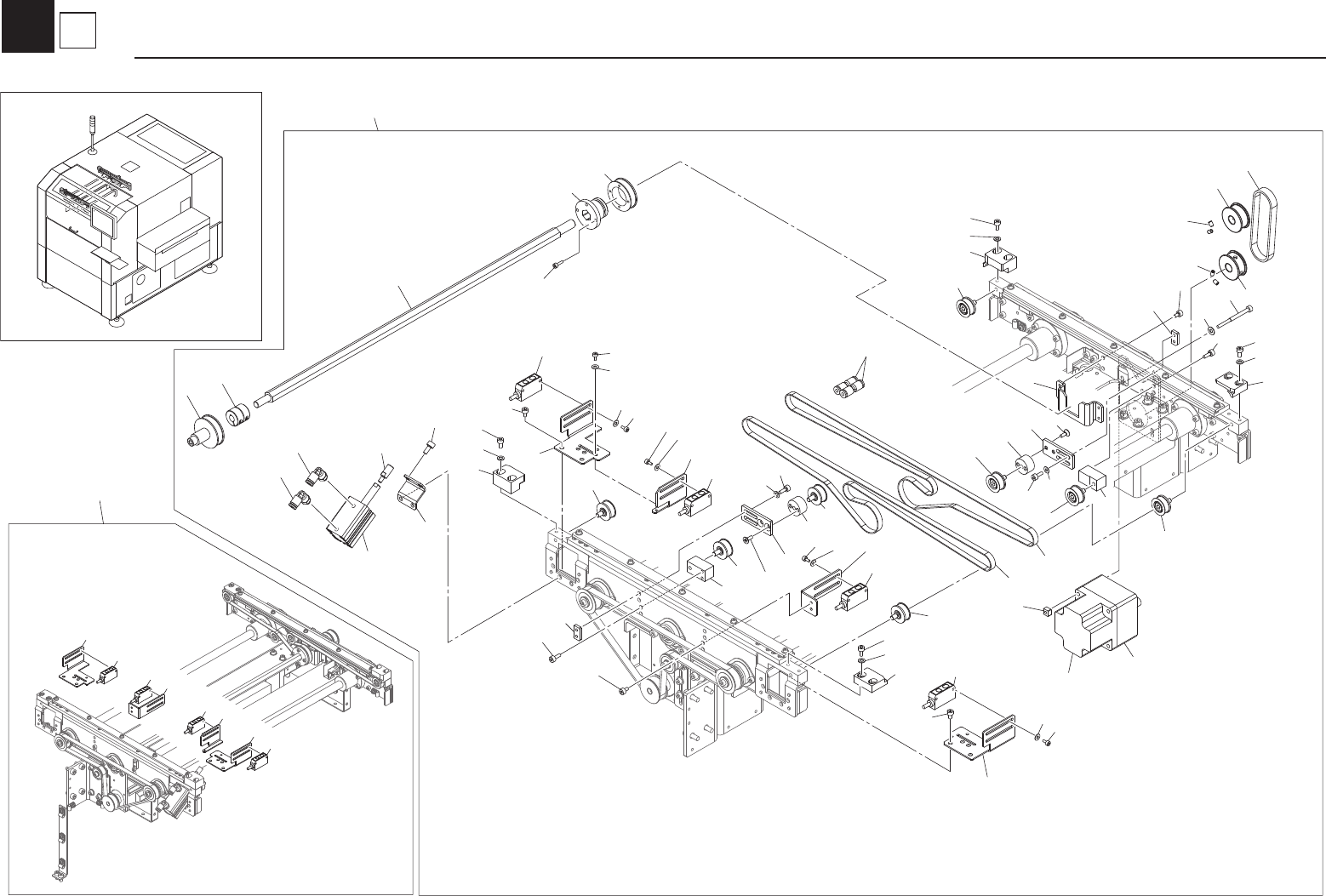

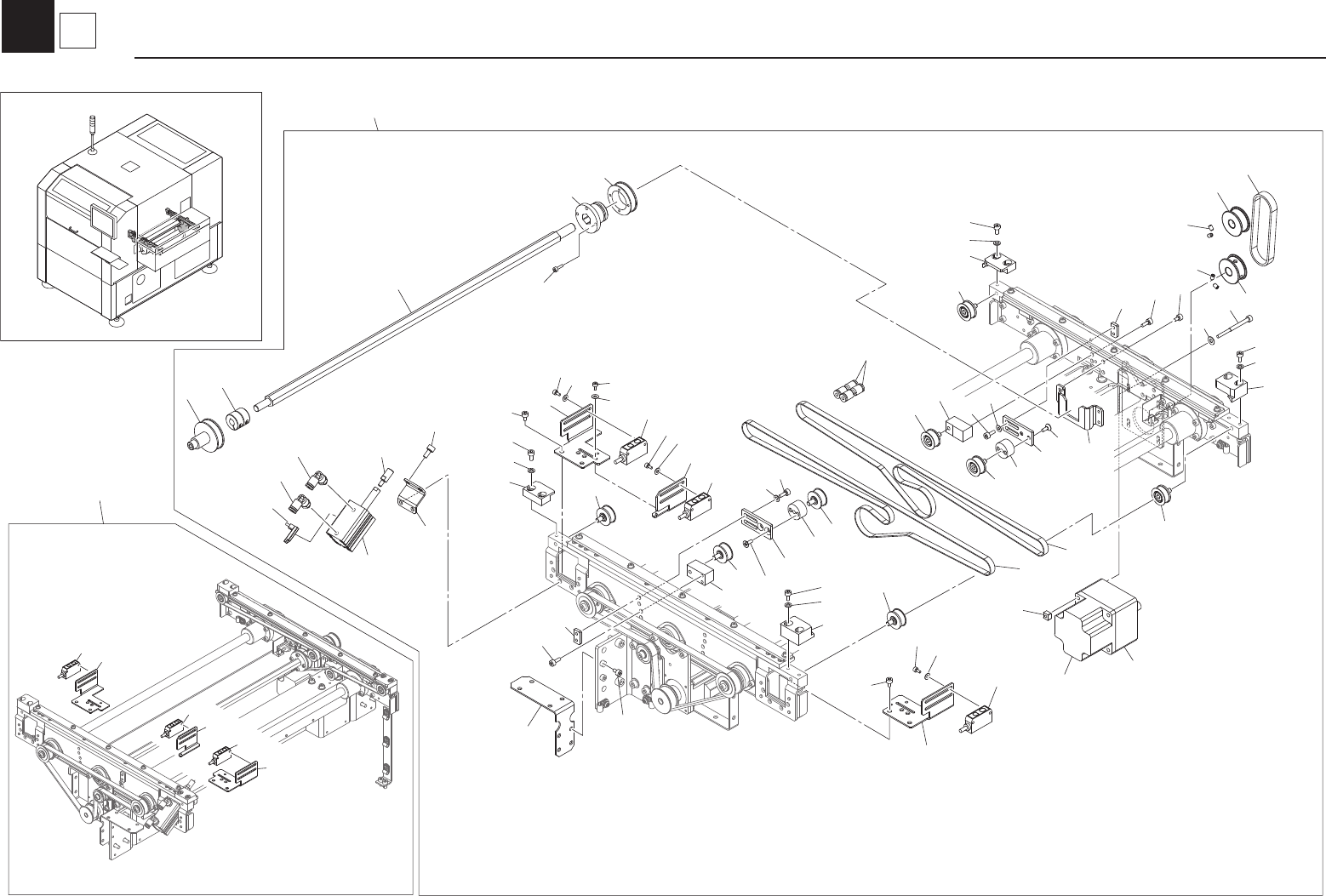

ENT Transport
Conveyor Unit
KHT-1004
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1
KHT-M93A0-A0 ENT CONV ASSY.-RF,LR
1 /
Í
39 KHT-M6529-A0 SENS. CV1L CV3R ASSY
1 B
Í
2
KHT-M93A0-B0
ENT CONV ASSY.-LF,RR
1 /
Í
40
KHT-M9325-10 BRKT.,SENSOR
1
RF,LR
/
3
KHT-M9309-A0 PLATE TENSION,PULLY
1 /
41 $TL4-M5 JOINT
2 /
4
KHT-M9309-B0 BASE TENSION,PULLY
1 /
42 $US4 JOINT
2 /
5
KHT-M9309-01 PLATE,PULLY CONV.
4 /
43 91312-03006 BOLT HEX.SOCKET HEAD
11
M3X6
6
KHT-M9310-02 BRKT.,COLLAR
1 /
Í
44 91312-05010 BOLT HEX.SOCKET HEAD
2
M5X10
7
KHT-M9311-00 PULLEY 1,MOTOR
1
/
45 92902-03200 WASHER PLAIN
11
8
KHT-M9312-00 SPLINE
1
/
Í
46 92902-05200 WASHER PLAIN
4
9
KHT-M9314-01 TRANSFER BELT W1
2
E
47 KHT-M9325-00 BRKT.,SENSOR
1
LF,RR
/
10
KHT-M9309-C0
NUT PLATE
1 /
48 98702-04010 SCREW FLAT HEAD
4
11
KHT-M9113-00 COUPLING
1 /
49 KHT-M9328-00 BRKT.,HNS.
1 /
Í
12
KV1-M9140-A0 PULLEY CONV.ASSY.
4 A
50 KGK-M9171-00 MOTOR
1 /
13
KG2-M9108-11 COLLAR,CONVEYOR
1 /
51
14
91312-04010 BOLT HEX.SOCKET HEAD
8
M4X10 52
15
KGA-M9113-00 GUIDE 1,END
1 /
Í
53
16
KGA-M9114-00 GUIDE 2,END
1 /
Í
54
17
KGJ-M9118-00 GUIDE 1,END
1 /
Í
55
18
KGJ-M9119-00 GUIDE 2,END
1
/
Í
56
19
KGK-M9172-00 GEAR HEAD
1
/
57
20
KGT-M9135-00 PULLEY 1,SPLINE
1
/
Í
58
21
KGT-M9193-00 NUT PLATE
4 /
59
22
KGY-M9140-A0 PULLEY,CONV. ASSY
4 A
60
23
KH2-M9105-11 PULLEY,MOTOR:P30-3GT
2 A
61
24
KGT-M910A-00 BELT(231-3GT-9)
1 /
62
25
92902-04600 WASHER PLAIN
12
63
26
91312-03010 BOLT HEX.SOCKET HEAD
4
M3X10 64
27
91312-04006 BOLT HEX.SOCKET HEAD
10
M4X6 65
28
91312-04008 BOLT HEX.SOCKET HEAD
8
M4X8 66
29
91312-04050 BOLT HEX.SOCKET HEAD
4
M4X50 67
30
92A08-04306 SET SCREW
4
M4X6 68
31
KHT-M9323-01 BRKT 1,SENSOR
1 /
Í
69
32
KHT-M9323-51 BRKT 2,SENSOR
1 /
70
33
KHT-M6526-J0 SENS. ENT-ST ASSY
1 B
Í
71
34
KHT-M9381-01 PLATE,STOPPER
1 /
Í
72
35
KHT-M9382-00 STOPPER
1 /
73
36
KHT-M9384-01 CYLINDER
1 /
74
37
KHT-M6528-A0 SENS. CV1R CV3L ASSY
1 B
Í
75
38
KHT-M6528-B0 SENS. FIX CV. M ASSY
1 B
Í
76
7
4
ENT Transport
Conveyor Unit
KHT-1004
1
RF,LR
2
LF,RR
5
6
9
21
19
49
23
24
23
46
29
27
14
30
30
9
42
41
41
35
36
34
22
38
33
43
45
20
13
8
11
7
31
26
12
28
15
4
14
25
3
27
48
12
5
27
27
32
10
4
25
14
3
48
14
10
39
44
37
37
40
12
12
28
25
17
43
45
43
45
16
28
22
28
18
22
37
32
47
37
33
38
47
31
25
25
25
22
43
45
43
45
7
5
EXT Transport
Conveyor Unit
