Pin Function Type Description

1 +5V Power +5V Power Rail

2 D23 Digital GPIO 23

3 D25 Digital GPIO 25

4 D27 Digital GPIO 27

5 D29 Digital GPIO 29

6 D31 Digital GPIO 31

7 D33 Digital GPIO 33

8 D35 Digital GPIO 35

9 D37 Digital GPIO 37

10 D39 Digital GPIO 39

11 D41 Digital GPIO 41

12 D43 Digital GPIO 43

13 D45 Digital GPIO 45

14 D47 Digital GPIO 47

15 D49 Digital GPIO 49

16 D51 Digital GPIO 51

17 D53 Digital GPIO 53

18 GND Power Ground

D22 - D53 RHS pinout

Arduino® Due

21 / 50 Arduino® Due Modiﬁed: 15/09/2026

7 Device Operation

7.1 Getting Started - IDE

If you want to program your Arduino Due while oﬄine you need to install the Arduino® Desktop IDE [1]. To connect

the Arduino Due to your computer, you will need a USB Type-B cable, which can also provide power to the board, as

indicated by the LED (DL1).

7.2 Getting Started - Arduino Cloud Editor

All Arduino boards, including this one, work out-of-the-box on the Arduino® Cloud Editor [2], by just installing a

simple plugin.

The Arduino Cloud Editor is hosted online, therefore it will always be up-to-date with the latest features and support

for all boards. Follow [3] to start coding on the browser and upload your sketches onto your board.

7.3 Getting Started - Arduino Cloud

All Arduino IoT enabled products are supported on Arduino Cloud which allows you to log, graph and analyze

sensor data, trigger events, and automate your home or business.

7.4 Online Resources

Now that you have gone through the basics of what you can do with the board you can explore the endless

possibilities it provides by checking exciting projects on ProjectHub [4], the Arduino Library Reference [5], and the

online store [6]; where you will be able to complement your board with sensors, actuators and more.

7.5 Board Recovery

All Arduino boards have a built-in bootloader which allows ﬂashing the board via USB. In case a sketch locks up the

processor and the board is not reachable anymore via USB, it is possible to enter bootloader mode by double-

tapping the reset button right after the power-up.

Arduino® Due

22 / 50 Arduino® Due Modiﬁed: 15/09/2026

8 Mechanical Information

The Arduino Due is a microcontroller board measuring 101.52 mm x 53.3 mm, featuring two USB-B connectors and

a big quantity of GPIO pins headers.

8.1 Board Dimensions

The Arduino Due board outline and mounting holes dimensions are shown in the ﬁgure below; all the dimensions

are in mm.

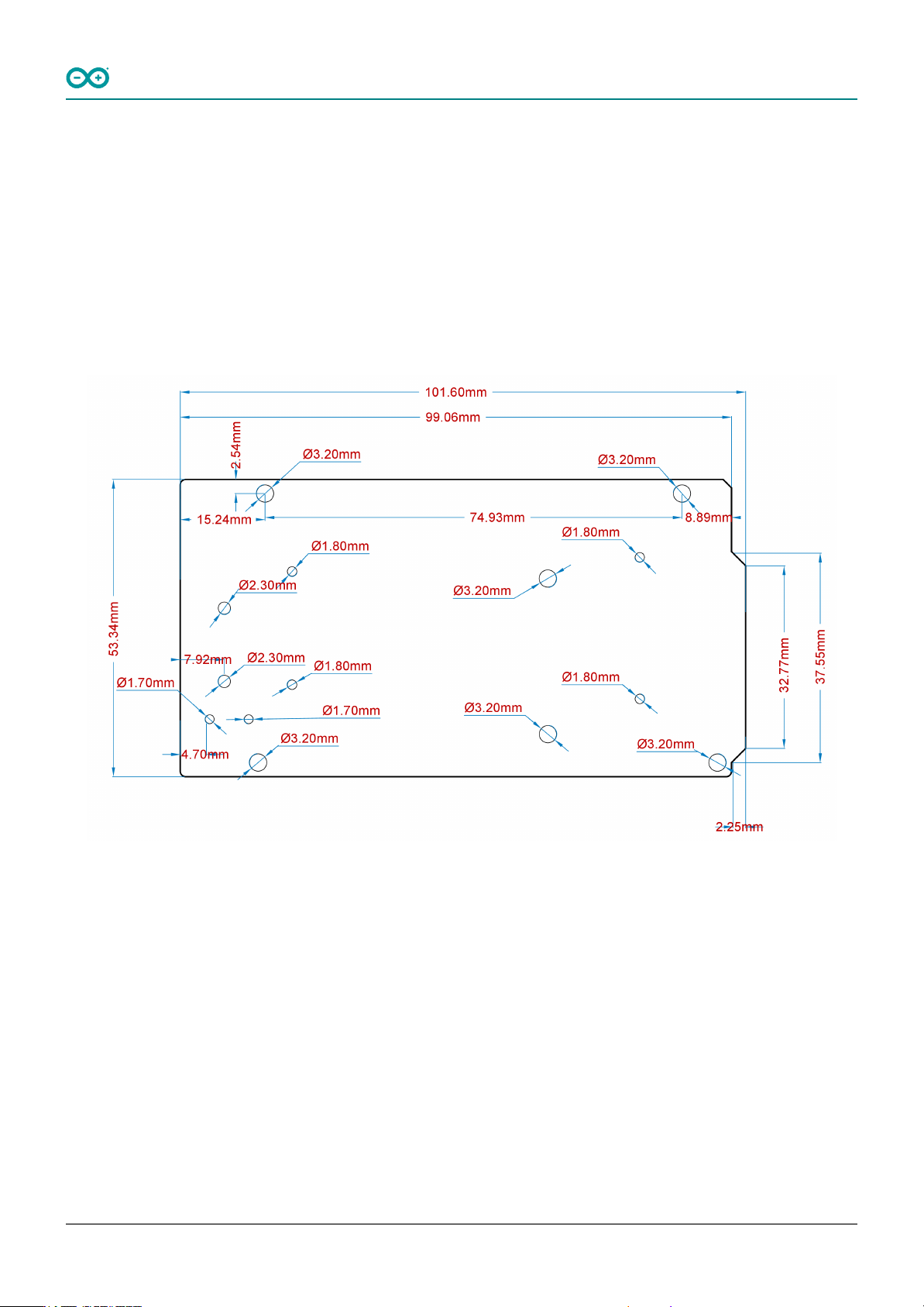

Arduino Due Mounting Holes And Board Outline

Arduino® Due
