Confirmation of Pr oper Operation After reassembling the feeder, reload the feeder with chips and manually operate the feed lever to confirm that parts are supplied smoothly. *KB1005C-123456* Operate manually. Make sure …

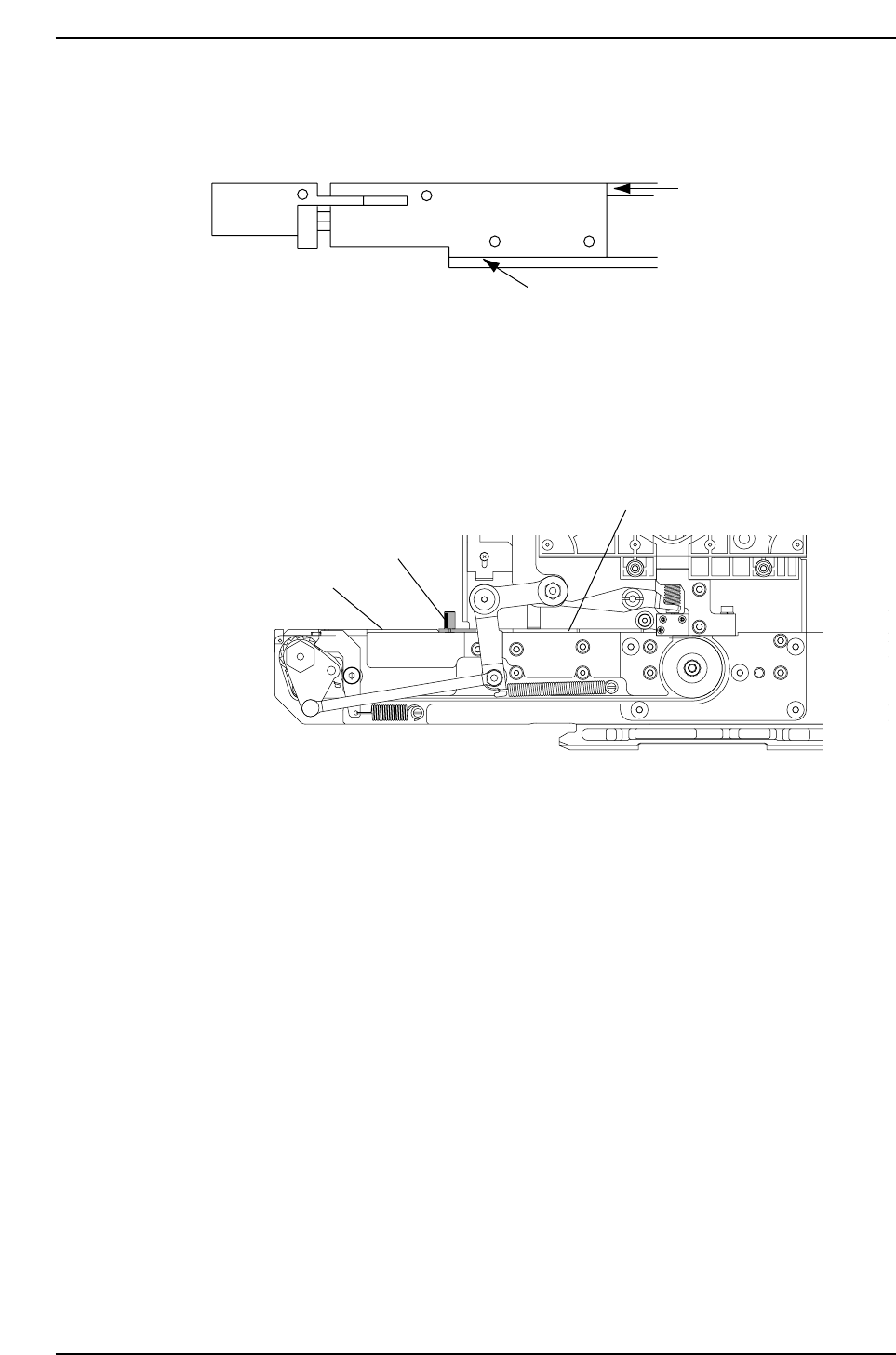

6. Reattach the guide (pickup area cover).
• Attach the guide, making sure that it is flush against the protruding edges on the
feeder arm as shown in the figure below.
7. Reattach the front belt cover.
• Insert the front belt cover horizontally between the guide attached in the previous
step and the rear belt cover attached in step 4. Secure the front belt cover, making
sure there is no gap between it and the feeder arm. Also make sure there is no gap
between the front belt cover and the either the guide or the rear belt cover.
8. Reattach the stainless steel plate.
• Attach the stainless steel plate to the side of the feeder, securing it with the original
seven bolts.
Guide
Rear belt cover
Front belt cover
BF014
Flush against protruding edge.
Flush against protruding edge.
BF013
Cleaning and Lubrication
Version 3.0 8 CP-6 Bulk Feeder Instruction

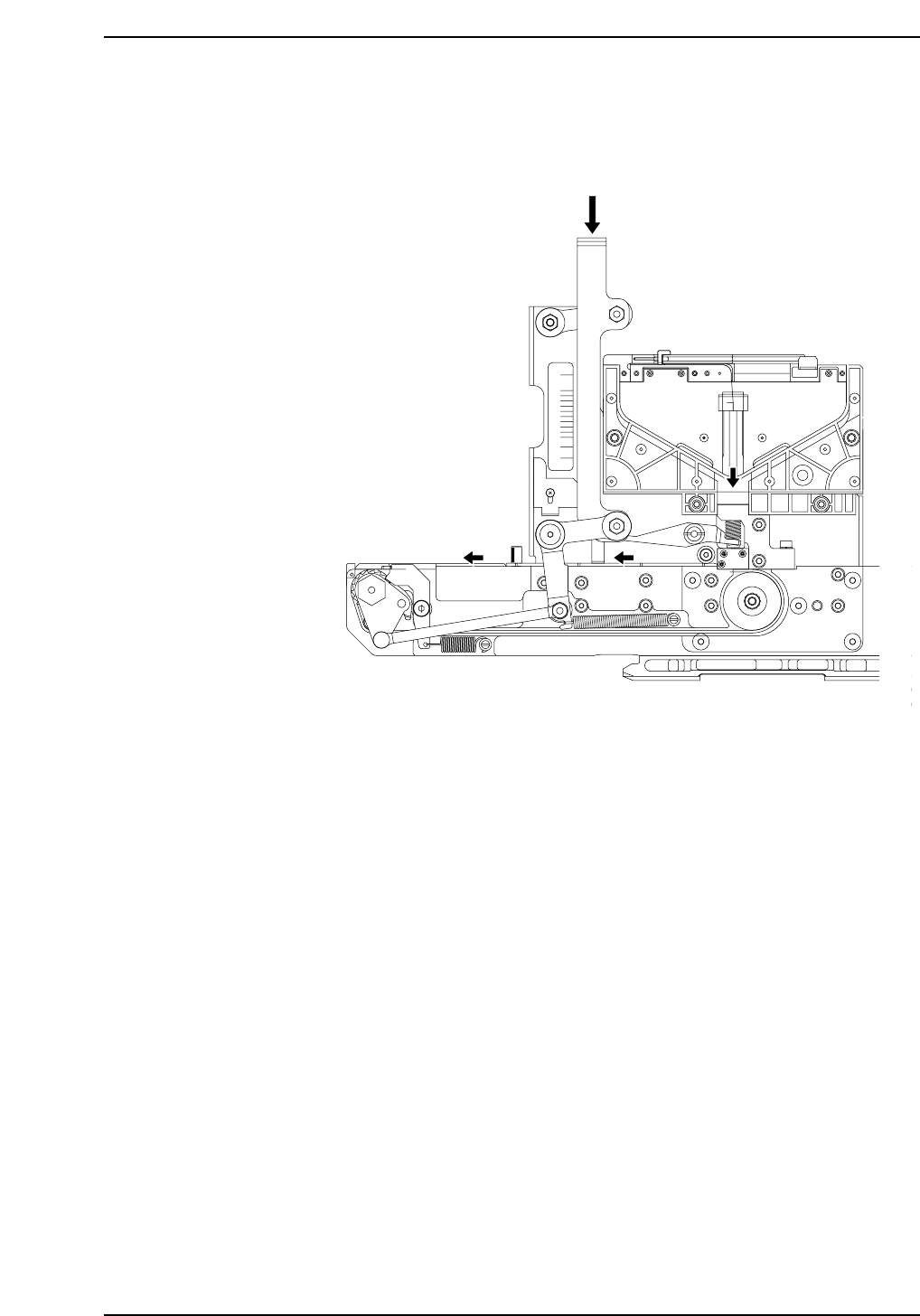

Confirmation of Proper Operation
After reassembling the feeder, reload the feeder with chips and manually operate the
feed lever to confirm that parts are supplied smoothly.
*KB1005C-123456*
Operate manually.
Make sure chips are supplied smoothly.
BF015
Cleaning and Lubrication
Version 3.0 9 CP-6 Bulk Feeder Instruction

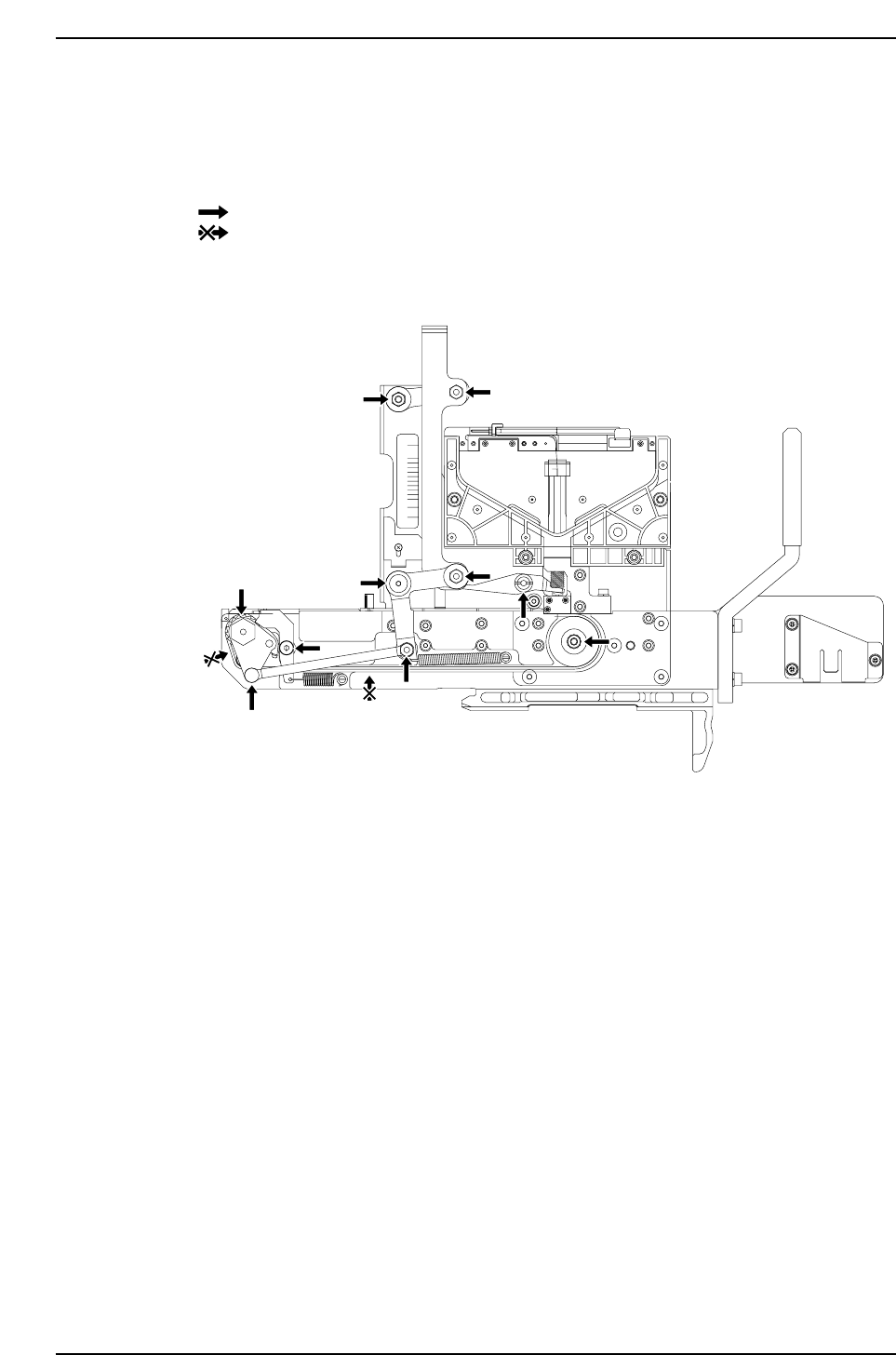

Lubrication
Lubricate the bulk feeder according to the following specifications:
*KB1005C-123456*
BF016
Ratchet
Belt
Belt
Timing : Every week, or sooner if needed
Lubricant : Biral T & D
: Lubricate locations marked with an arrow in the figure.
: Do not lubricate locations with a crossed-out arrow.
Cleaning and Lubrication
Version 3.0 10 CP-6 Bulk Feeder Instruction
