If there are no chips on the belt:

This symptom indicates that chips have become jammed in the bushing at the bottom of

the hopper.

1. Since this problem is caused by chips having settled in such a way as to prevent

the proper action of the outer pipe, it can be solved by manually pushing the pipe

upward as shown in the figure below. The outer pipe should then move smoothly

in response to operation of the feed lever.

2. Manually operate the feed lever to confirm that parts are smoothly supplied as far

as the pickup area.

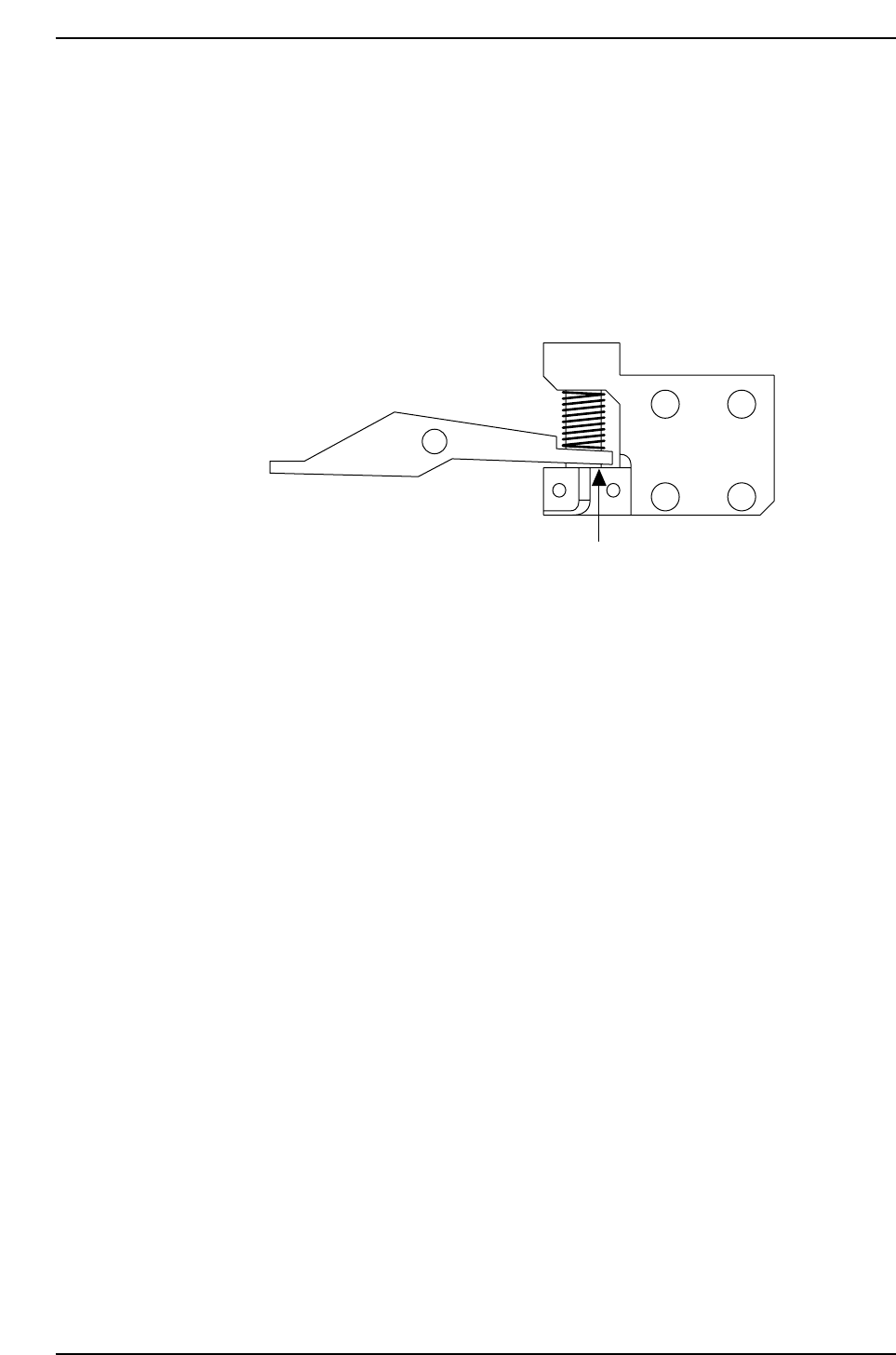

Push outer pipe upward.

BF018

Troubleshooting a Jammed Feeder

Version 3.0 12 CP-6 Bulk Feeder Instruction

Replacing the Hopper String

The shutter in the hopper is operated by means of a nylon string. If the string breaks or comes loose, it

should be repaired or replaced as shown below.

Procedure

1. Insert one end of the string into the slit in the shutter.

2. Pass the other end of the string upward through the slit in the plate and around

the retainer bolt, then back down through the slit in the plate. Insert this end of the

string into the slit in the shutter.

3. Move the slider forward as far as it will go, then adjust the string so there is a gap

of about 1 mm between the upper edge of the shutter and the upper limit of the

slit in the divider. Tighten the retainer screw to secure the string in this position.

4. Make sure the shutter moves smoothly up and down along the slit in the divider.

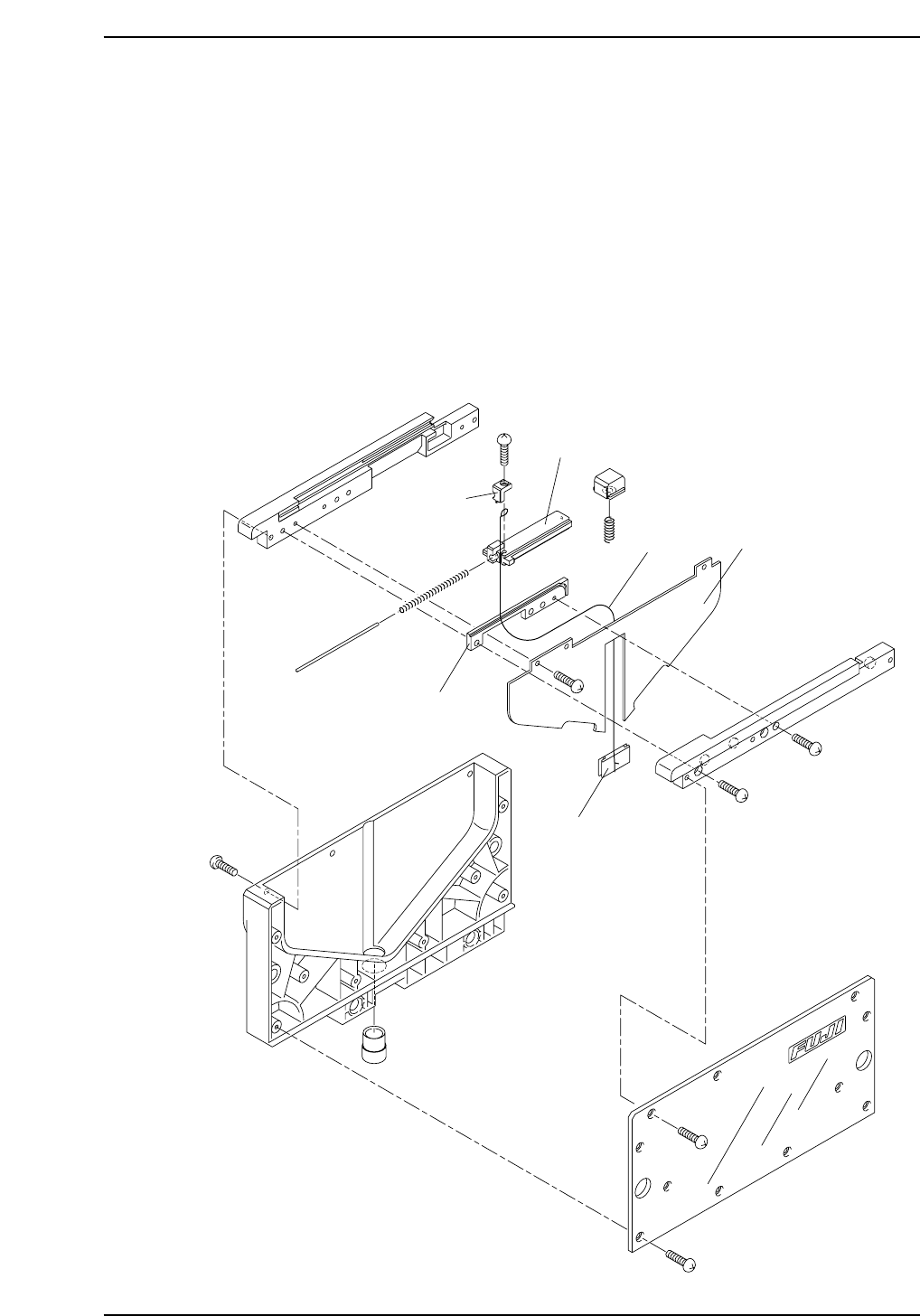

Slider

Retainer

String

Divider

Plate

Shutter

BF019

Replacing the Hopper String

Version 3.0 13 CP-6 Bulk Feeder Instruction
