Retrofit instructions: SIEMENS conveyor interface for the SIPLACE HF series / X-series / D3
06/2006
13
2.4 Preparatory work
: Switch the placement machine off at the main switch.
2.5 Retrofit

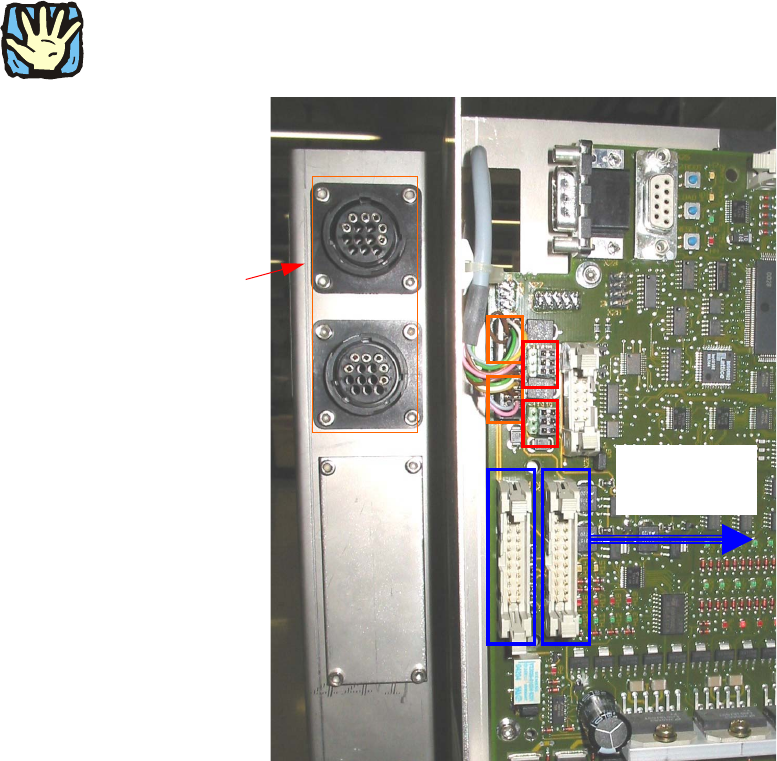

: To connect the Siemens interface cable and reconfigure, open the conveyor control above the
pneumatic unit and pull out the control.
You can then run the cable from the inside of the machine and through the conveyor control
terminal box.
: Connect the interface cable for each conveyor track to the conveyor control according to the
type of interface and configure it.
2
Incorrect configuration will cause a short-circuit, and thus damage the conveyor control. You must
therefore check your settings again before switching the placement machine on again. 2
2
X
3
X
4
J
2
J
1
X1
X2
V
erlegung der
Siem ens
Schnittstellenka
SM EM A
Schnitt-
stellen
Siemens inter-
face cable
routing
SMEMA
interfaces
Retrofit instructions: SIEMENS conveyor interface for the SIPLACE HF series / X-series / D3
06/2006
14
2
2
SMEMA connectors X3 and X4 must be unplugged from the boards. Otherwise the machines are
not electrically isolated from one another, and circulating currents could damage the interfaces of
both machines. 2
2
2.5.1 Single conveyor or right-hand track of dual conveyor on TSP301 00370397-
2.5.1.1 Upstream station:
2
2
2
2.5.1.2 Downstream station
2
2
2
Standard: "SMEMA"
Connector X3 Jumper J1: 2-3 5-6 8-9
1 2 3
4 5 6
7 8 9
Option: "Siemens"
Connector X1 Jumper J1: 1-2 4-5 7-8
1 2 3
4 5 6
7 8 9
Standard: "SMEMA"
Connector X4 Jumper J2: 2-3 5-6 8-9
1 2 3
4 5 6
7 8 9
Option: "Siemens"
Connector X2 Jumper J2: 1-2 4-5 7-8
1 2 3
4 5 6
7 8 9
Retrofit instructions: SIEMENS conveyor interface for the SIPLACE HF series / X-series / D3
06/2006
15
2.5.2 Left-hand track of dual conveyor on TSP301E 00370398-
2.5.2.1 Upstream station:
2
2
2
2.5.2.2 Downstream station
2
2
2
2
2
2
2
2
2
Standard: "SMEMA"
Connector X3 Jumper J1: 2-3 5-6 8-9
1 2 3
4 5 6
7 8 9
Option: "Siemens"
Connector X1 Jumper J1: 1-2 4-5 7-8
1 2 3
4 5 6
7 8 9
Standard: "SMEMA"
Connector X4 Jumper J2: 2-3 5-6 8-9
1 2 3
4 5 6
7 8 9
Option: "Siemens"
Connector X21 Jumper J2: 1-2 4-5 7-8
1 2 3
4 5 6
7 8 9
