KHY_KJV_YS(G)12_PL.pdf - 第10页
4 2 T op Cover YG12 (New) Cover KHY/KJV -1 11 1 Cover Rear (Fixed) 50 51 19 2 27 12 22 23 15 23 22 10 18 13 1 14 1 1 1 1 5 21 21 21 6 13 28 4 17 16 12 3 27 22 23 23 22 30 29 31 49 32 42 41 39 39 35 37 36 38 39 39 39 35 3…
3
2

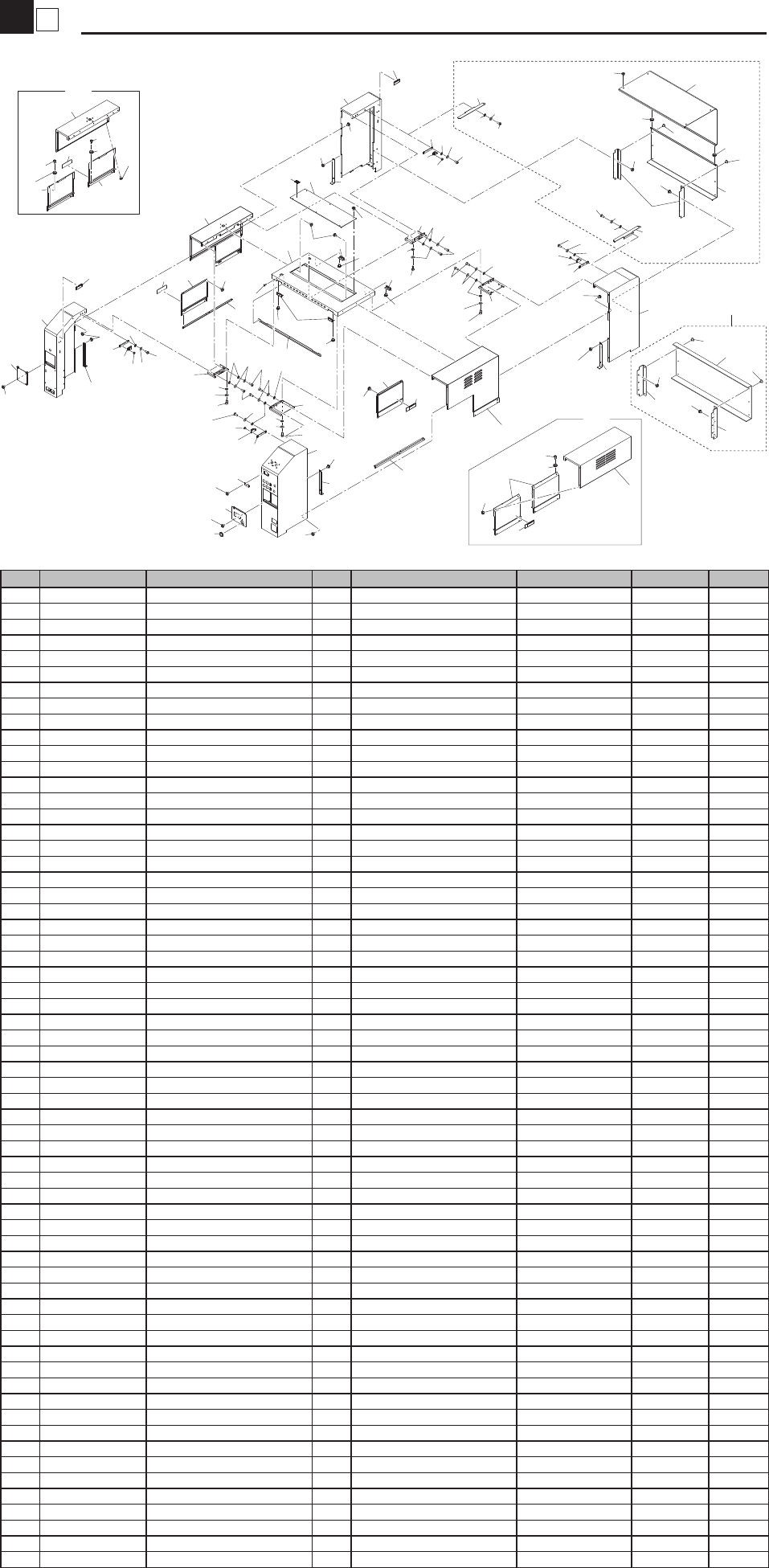

Top Cover YG12 (Old)
Cover
KHY/KJV-1111
Cover Rear (Fixed)
19
2
27
12
22
23
15
23
22
10
18
25
13
1
14
11
11
5
21
21
21
6
13
28
4
7
17
16
12
3
27
22
23
23
22
30
24
24
29
31
32
32
39
42
41
26
24
9
24
9
8
33
33
39
39
39
35
37
36
38
39
39
39
39
35
34
34
37
38
38
38
37
37
36
34
37
38
26
24
9
39
33
35
36
37
38
36
37
38
34
38
37
38
37
34
34
37
38
38
37
37
34
34
39
39
39
39
39
39
36
37
38
39
39
40
40
40
35
37
36
38
39
39
39
OLD
OLD
26
9
39
8
26
9
39
7
Cover Rear (Tray)
39
39
45
43
44
44
45
46
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M1301-00 COVER 1 1
1-1 KHY-M1301-01 COVER 1 1 (2008/6/18) ME60048 NG
2 KJV-M1302-00 COVER 2 1
2-1 KJV-M1302-01 COVER 2 1 (2008/6/18) ME60048 NG
3 KHY-M1303-00 COVER 3 1
3-1 KHY-M1303-01 COVER 3 1 (2008/6/18) ME60048 NG
3-2 KHY-M1303-02 COVER 3 1 (2009/1/29) MF10067 NG
4 KHY-M1304-00 COVER 4 1
4-1 KHY-M1304-01 COVER 4 1 (2008/6/18) ME60048 NG
5 KJV-M1306-00 COVER 6 1
6 KHN-M1306-10 COVER 6-1 1
6-1 KJJ-M1306-10 COVER 6-1 1 (2008/10/30) ME00104 OK
7 KJV-M13A5-00 COVER A5 1
7-1 KJV-M13A5-01 COVER A5 1 (2008/6/18) ME60048 NG
7-2 KJV-M13A5-02 COVER A5 1 (2009/5/29) MF50147 NG
8 KJV-M13A6-00 COVER A6 1
8-1 KJV-M13A6-01 COVER A6 1 (2008/6/18) ME60048 NG
8-2 KJV-M13A6-02 COVER A6 1 (2009/5/29) MF50147 NG
9 KJV-M13A7-01 COVER A7 4
9-1 KJV-M13A7-02 COVER A7 4 (2009/5/29) MF50147 NG
10 KGA-M1318-00 COVER 18 1
11 KHY-M1331-01 BRKT.31,SIDE COVER 2
11-1 KHY-M1331-02 BRKT.31,SIDE COVER 2 (2008/6/9) ME60067 NG
11-2 KHY-M1331-03 BRKT.31,SIDE COVER 2 (2009/1/28) MF10077 OK
12 KHY-M1334-00 BRKT.1,GATE COVER 2
12-1 KHY-M1334-01 BRKT.1,GATE COVER 2 (2008/6/9) ME60067 NG
13 KHY-M1335-00 BRKT.2,GATE COVER 2
13-1 KHY-M1335-01 BRKT.2,GATE COVER 2 (2008/6/9) ME60067 NG
14 KHY-M1356-00 PLATE 1,JOINT 1
15 KHY-M1357-00 PLATE 2,JOINT 1
16 KHY-M1358-00 PLATE 3,JOINT 1
17 KHY-M1359-00 PLATE 4,JOINT 1
18 KHY-M13M1-00 PLATE M1 1
19 KHY-M13M2-00 PLATE M2 1
20
21 K46-M1374-10 HINGE 2 4
21-1 K46-M1374-11 HINGE 2 4 (2009/7/13) MF70096 OK
22 KM0-M1332-01 BRACKET MAGNET 4
23 KV5-M1130-00 CATCH MG. 4
24 90990-23J024 GROMMET 10
25 90990-23J023 GROMMET 2
26 90K41-000380 LABEL,ALERT 2
27 90K41-000350 LABEL,ALERT 2
28 90K43-200370 LABEL,ANTISTATIC 1
29 KJV-M1316-00 COVER 16 1 Cover Rear
30 KJV-M1317-00 BRACKET,COVER 16 1 Cover Rear
31 KJV-M1318-00 COVER 18 1 Cover Rear
32 KJV-M1319-00 BRACKET,COVER 18 1 Cover Rear
33 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
34 91312-04010 BOLT HEX.SOCKET HEAD 36 M4X10
35 98902-03005 SCREW BINDING HEAD 8 M3X5
36 98902-04010 SCREW BINDING HEAD 12 M4X10
37 92902-04200 WASHER PLAIN 48
38 92990-04400 WASHER PLAIN 48
39 90990-12J001 SCREW BIN.HEAD W/W 70
40 K16-90101-06 BOLT:TP-M4X6 10
41 KJV-M1329-00 COVER 29 2 (2010/7/19) H014662
42 98902-03008 SCREW BINDING HEAD 6
43 KKJ-M1316-00 COVER 16 1
44 KKJ-M1317-00 BRACKET,COVER 16 2
45 90990-46J001 BOLT, THIN HEAD 6
46 KKJ-M1310-00 COVER REAR ASSY. 1
4
2
Top Cover YG12 (New)
Cover
KHY/KJV-1111
Cover Rear (Fixed)
50
51
19
2
27
12
22
23
15
23
22
10
18
13
1
14
11
11
5
21
21
21
6
13
28
4
17
16
12
3
27
22
23
23
22
30
29
31
49
32
42
41
39
39
35
37
36
38
39
39
39
35
34
34
37
38
38
38
37
37
36
34
37
38
35
36
37
38
39
34
38
37
38
37
34
34
37
38
38
37
37
34
34
39
39
39
39
39
50
39
39
39
39
50
35
37
36
38
39
39
39
26
9
39
8
26
9
39
Cover Rear (Tray)
39
39
45
43
44
44
45
46
7
47
48
52
53
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1-2 KHY-M1301-02 COVER 1 1 (2009/1/28) MF10055 NG
2-2 KJV-M1302-02 COVER 2 1 (2009/1/21) MF10060 OK
3-2 KHY-M1303-02 COVER 3 1 (2009/1/29) MF10115 NG
4-2 KHY-M1304-02 COVER 4 1 (2009/1/28) MF10067 NG
5 KJV-M1306-00 COVER 6 1
6-1 KJJ-M130B-00 COVER 6-1 1 (2008/10/30) ME00104 OK
7-2 KJV-M13A5-02 COVER A5 1 (2009/5/29) MF50147 NG
8-2 KJV-M13A6-02 COVER A6 1 (2009/5/29) MF50147 NG
9-1 KJV-M13A7-02 COVER A7 4 (2009/5/29) MF50147 NG
10 KGA-M1318-00 COVER 18 1
11-2 KHY-M1331-03 BRKT.31,SIDE COVER 2 (2009/1/28) MF10077 OK
12-1 KHY-M1334-01 BRKT.1,GATE COVER 2 (2008/6/9) ME60067 NG
13-1 KHY-M1335-01 BRKT.2,GATE COVER 2 (2008/6/9) ME60067 NG
14 KHY-M1356-00 PLATE 1,JOINT 1
15 KHY-M1357-00 PLATE 2,JOINT 1
16 KHY-M1358-00 PLATE 3,JOINT 1
17 KHY-M1359-00 PLATE 4,JOINT 1
18-1 KHY-M13M1-A0 PLATE M1 ASSY 1 (2010/2/23) MG20109 OK
19-1 KHY-M13M2-A0 PLATE M2 ASSY 1 (2010/2/23) MG20109 OK
20
21-1 K46-M1374-11 HINGE 2 4 (2009/7/13) MF70096 OK
22 KM0-M1332-01 BRACKET MAGNET 4
23 KV5-M1130-00 CATCH MG. 4
24 90990-23J024 GROMMET 10
25 90990-23J023 GROMMET 2
26 90K41-000380 LABEL,ALERT 2
27 90K41-000350 LABEL,ALERT 2
28 90K43-200370 LABEL,ANTISTATIC 1
28-1 Delete (2008/7/2) ME70010
29-1 KJV-M1316-01 COVER 16 1 Cover Rear (2009/7/3) MF60283 NG
30-1 KJV-M1317-01 BRACKET,COVER 16 1 Cover Rear (2009/7/3) MF60283 NG
31-1 KJV-M1376-00 COVER TOP,R 1 Cover Rear (2009/7/3) MF60283 NG
32-1 KHY-M1319-00 BRACKET L,COVER18 1 Cover Rear (2008/9/2) ME80171 NG
33
34 91312-04010 BOLT HEX.SOCKET HEAD 36 M4X10
35 98902-03005 SCREW BINDING HEAD 8 M3X5
36 98902-04010 SCREW BINDING HEAD 12 M4X10
37 92902-04200 WASHER PLAIN 48
38 92990-04400 WASHER PLAIN 48
39 90990-12J001 SCREW BIN.HEAD W/W 70
40
41 KJV-M1329-00 COVER 29 2 (2010/7/19) H014662
42 98902-03008 SCREW BINDING HEAD 6
43 KKJ-M1316-00 COVER 16 1
44 KKJ-M1317-00 BRACKET,COVER 16 2
45 90990-46J001 BOLT, THIN HEAD 6
46 KKJ-M1310-00 COVER REAR ASSY. 1
47 KJV-M1378-00 COVER CENTER,R 1 (2009/7/3) MF60283
48 KHU-M1117-00 PULL1 1 (2009/7/3) MF60283
49 KHY-M1318-00 BRACKET R,COVER18 1 (2008/9/2) ME80171
50 90990-12J006 SCREW BIN.HEAD W/W 10
51 KHY-M139D-A0 COVER CAP ASSY 3
52 KJV-M1310-01 COVER REAR ASSY 1
53 90990-41J134 COLLAR 4 (2013/6/10) MK30113
5
2
Acryl Door YS12 (Before Feb. 2009) / YG12 (Before Jun. 2009)
Cover
KHY/KJV-1111
Front
Rear
3
6
4
12
10
11
8
12
7
12
10
11
12
14
13
16
16
5
8
2
9
14
13
16
10
12
11
12
30
6
7
9
30
12
10
11
12
29
28
27
26
24
22
24
21
17
18
19
19
22
23
18
17
15
1
31
24
22
16
24
17
18
20
20
21
18
22
23
17
15
25
31
32
33
34
35
34
35
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KHY-M1309-A0 COVER 9 ASSY. 1 for YS
KJV-M1309-A0 COVER 9 ASSY. 1 for YG
2
KHY-M1309-00 COVER 9-1 1 for YS
KJV-M1309-00 COVER 9-1 1 for YG
3 KHY-M130A-01 COVER 9-2 1
4 KHY-M1340-00 BRKT.1,COVER 9 1
5 KHY-M1341-00 BRKT.2,COVER 9 1
6 KHY-M1342-00 BRKT.3,COVER 9 2
7 KHY-M1343-00 BRKT.4 COVER 9 2
8 KV7-M1349-00 PLATE 2,NUT 2
9 KH2-M1324-00 GRIP 2
10 KM0-M1331-01 BRACKET GAS DAMPER 4
11 KGS-M1348-00 GAS SPRING 4
12 KM0-M1346-00 SHOULDER,BOLT 8
13 KL0-M1373-01 BRACKET 1 SCHMEASAL 2
14 KL0-M1374-00 PLATE 1 SCHMESAL 2
15 KJJ-M1348-00 STOPPER 65 4
16 KGS-M1360-00 BOLT 8
17 K16-90101-06 BOLT:TP-M4X6 30
18 K16-90101-10 BOLT:TP-M4X10 12
19 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
20 91312-04008 BOLT HEX.SOCKET HEAD 16 M4X8
21 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14
22 92902-04200 WASHER PLAIN 6
23 92902-04600 NUT HEXAGON 2
24 92902-06600 NUT HEXAGON 4
25 KHY-M1309-B0 COVER 9 ASSY. 1
26 KHY-M1309-10 COVER 9-1 1
27 KHY-M130A-11 COVER 9-2 1
28 KHY-M1340-10 BRKT.1,COVER 9 1
29 KHY-M1341-10 BRKT.2,COVER 9 1
30 KV2-M1351-00 PLATE 2 NUT 2
31 90K43-200370 LABEL,ANTISTATIC 1
32
KHY-M13D6-00 SEAL 1 (YS12) 1 for YS
KJV-M13D6-00 SEAL 1 (YG12) 1 for YG
33 KW7-M13D7-01 SEAL 2(YAMAHA) 1
34 90K41-000420 LABEL,ALERT 2
35 90K41-000360 LABEL,ALERT 2
