4 10 Cutter V alve/Slope/Safty Cover Assy 60 (New T ype) T ape Cutter KHY/KJV -1 11 1 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KHY -M1 1C1-20 DUCT 1 1 2 KHY -M1 1C3-01 BRKT ., DUCT 2 3 KHY -M…
3
10

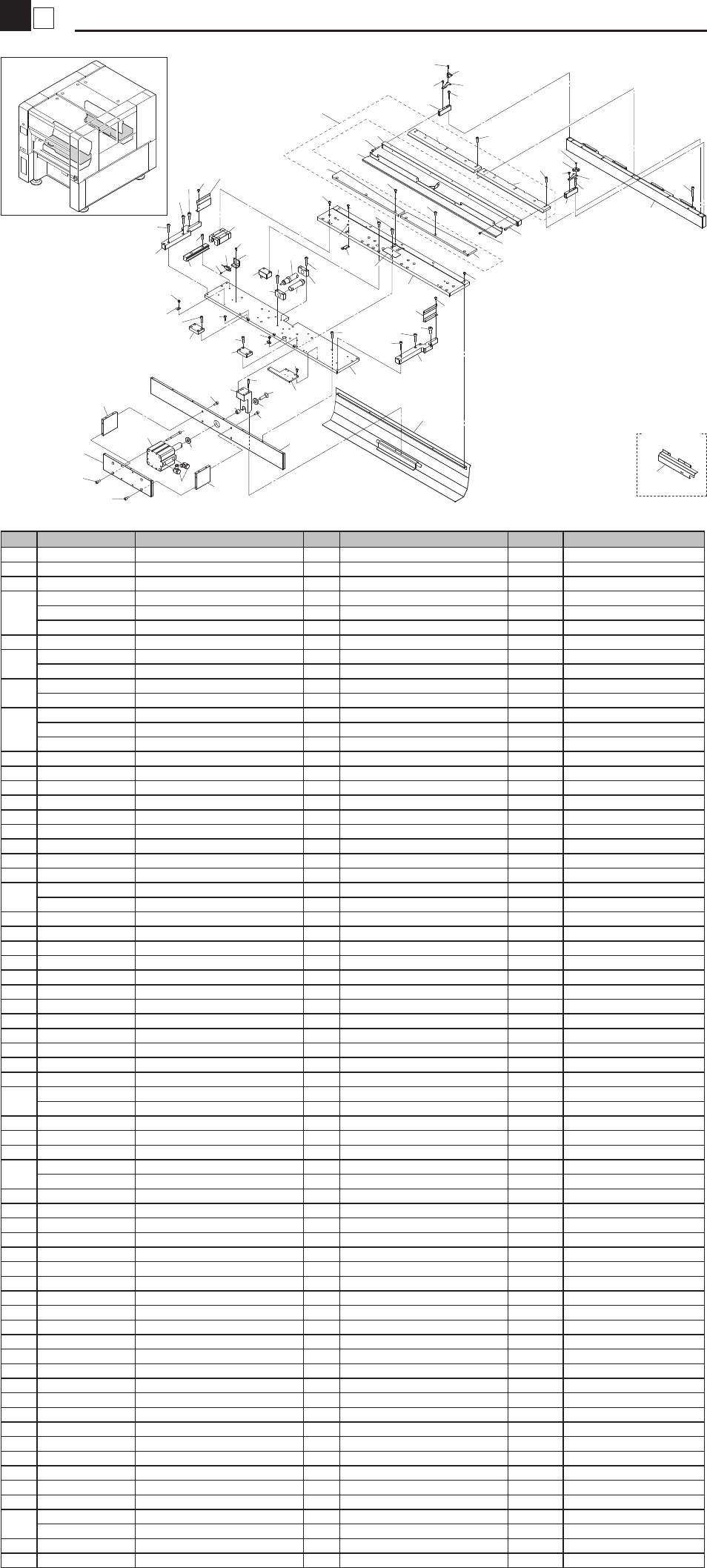

Main Cutter Assy 60 (New Type)
Tape Cutter
KHY/KJV-1111
36
52
49
48
9
43
33
34
56
14
24
55
58
54
29
26
47
42
37
53
39
12
45
20
45
18
11
26
47
29
54
27
13
28
19
30
45
45
28
16
51
17
48
23
22
41
6
25
44
57
8
7
7
2
56
56
50
35
35
31
3
44
31
3
44
43
43
4
4
38
46
40
40
48
23
22
47
48
49
21
15
32
36
37
52
5
6
36
44
10
1
21
59
New Type
Distinction
60
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M3T01-20 BASE PLATE 1 1
2 KHY-M3T02-20 BASE PLATE 2 1
3 KHY-M3T03-02 STAY 60, AIR JOINT 2
4
KHY-M3T05-32 CUTTER UPPER, 60 2 OK MGY0034-2010/12/22
KHY-M3T05-31 CUTTER UPPER, 60 2 OK MG70107-2010/7/26
KHY-M3T05-30 CUTTER UPPER, 60 2
5 KHY-M3T06-20 BASE PLATE 3 1
6
KHY-M3T07-C1 CUTTER LOWER, 720 1 OK MGY0034-2010/12/22
KHY-M3T07-C0 CUTTER LOWER, 720 1
7
KHY-M3T08-21 BAR 2 OK MG80029-2010/8/16
KHY-M3T08-20 BAR 2
8
KHY-M3T09-22 PLATE 4, 720 1 OK MG00035-2010/10/19
KHY-M3T09-21 PLATE 4, 720 1 OK MG40081-2010/4/20
KHY-M3T09-20 PLATE 4, 720 1
9 KHY-M3T0A-20 SIDE BLOCK, L 1
10 KHY-M3T0A-30 SIDE BLOCK, R 1
11 KHY-M3T0B-11 FRONT STAY 4 1
12 KHY-M3T0L-01 CYL. COLLAR 3 1
13 KHY-M3T0N-30 COVER M, 60 1
14 KHY-M3T0U-10 SENSOR STAY 1
15 KHY-M3T0V-01 DOG., SENSOR 1
16 KHY-M3T10-10 TAPE CUTTER CYL. 1
17 KHY-M3T11-20 CYL. STAY 1 1
18
KHY-M3T12-11 CLY.BLOCK 1 OK MG80091-2011/4/18
KHY-M3T12-10 CLY.BLOCK 1
19 KHY-M3T13-00 CYL. COLLAR 1 1
20 KHY-M3T14-02 CYL. COLLAR 2 1
21 KHY-M3T19-10 SIDE COVER 2
22 KHY-M3T22-00 SHOCK ABSORBERS 1
23 KHY-M3T23-00 DAMPER STAY 2
24 KHY-M3T24-10 DAMPER STOPPER 1
25 KHY-M3T26-40 CUTTER COVER, 720 1
26 KHY-M3T28-10 FRONT STAY 2
27 KHY-M3T30-11 CYL. STAY 2 1
28 KHY-M3T31-10 CYL. STAY 3 2
29 $NK-2N NYLON CLIP 2
30 $SL6-02 JOINT 2
31
Delete MH40065-2011/4/22
$UL6M JOINT 2
32 90K41-000800 LABEL, ALERT 1
33 90K72-5L0120 LM GUIDE 4
34 90K80-020L00 LM BLOCK, HSR20-L 4
35
Delete MH40065-2011/4/22
91312-03012 BOLT HEX. SOCKET HEAD 2
36 91312-04008 BOLT HEX. SOCKET HEAD 10
37 91312-04010 BOLT HEX. SOCKET HEAD 7
38 91312-04014 BOLT HEX. SOCKET HEAD 2
39 91312-04035 BOLT HEX. SOCKET HEAD 2
40 91312-05010 BOLT HEX. SOCKET HEAD 6
41 91312-05014 BOLT HEX. SOCKET HEAD 16
42 91312-05016 BOLT HEX. SOCKET HEAD 3
43 91312-05018 BOLT HEX. SOCKET HEAD 20
44 91312-05030 BOLT HEX. SOCKET HEAD 8
45 91312-06014 BOLT HEX. SOCKET HEAD 8
46 91312-06018 BOLT HEX. SOCKET HEAD 6
47 91312-06022 BOLT HEX. SOCKET HEAD 17
48 91312-06030 BOLT HEX. SOCKET HEAD 10
49 91312-06040 BOLT HEX. SOCKET HEAD 2
50 91312-06060 BOLT HEX. SOCKET HEAD 4
51 91312-06070 BOLT HEX. SOCKET HEAD 4
52 91312-08020 BOLT HEX. SOCKET HEAD 2
53 92B12-10035 SCREW, CROS.COUN. 1
54 97602-04308 SCREW, PAN HEAD W/W 2
55 98902-03008 SCREW, BINDING HEAD 2
56 98902-04008 SCREW, BINDING HEAD 4
57 KHY-M3T00-T0 60-BLADE SPARE ASSY 1 spare
58
KHY-M652U-00 SENSOR,F1 CUT CL ASSY 1 Front
KHY-M652U-20 SENSOR,R1 CUT CL ASSY 1 Rear
59 KHY-M3T25-03 VALVE COVER 1 Distinction of Old and New type
60 92902-04600 WASHER PLAIN 2 MH20094-2011/3/2
4
10

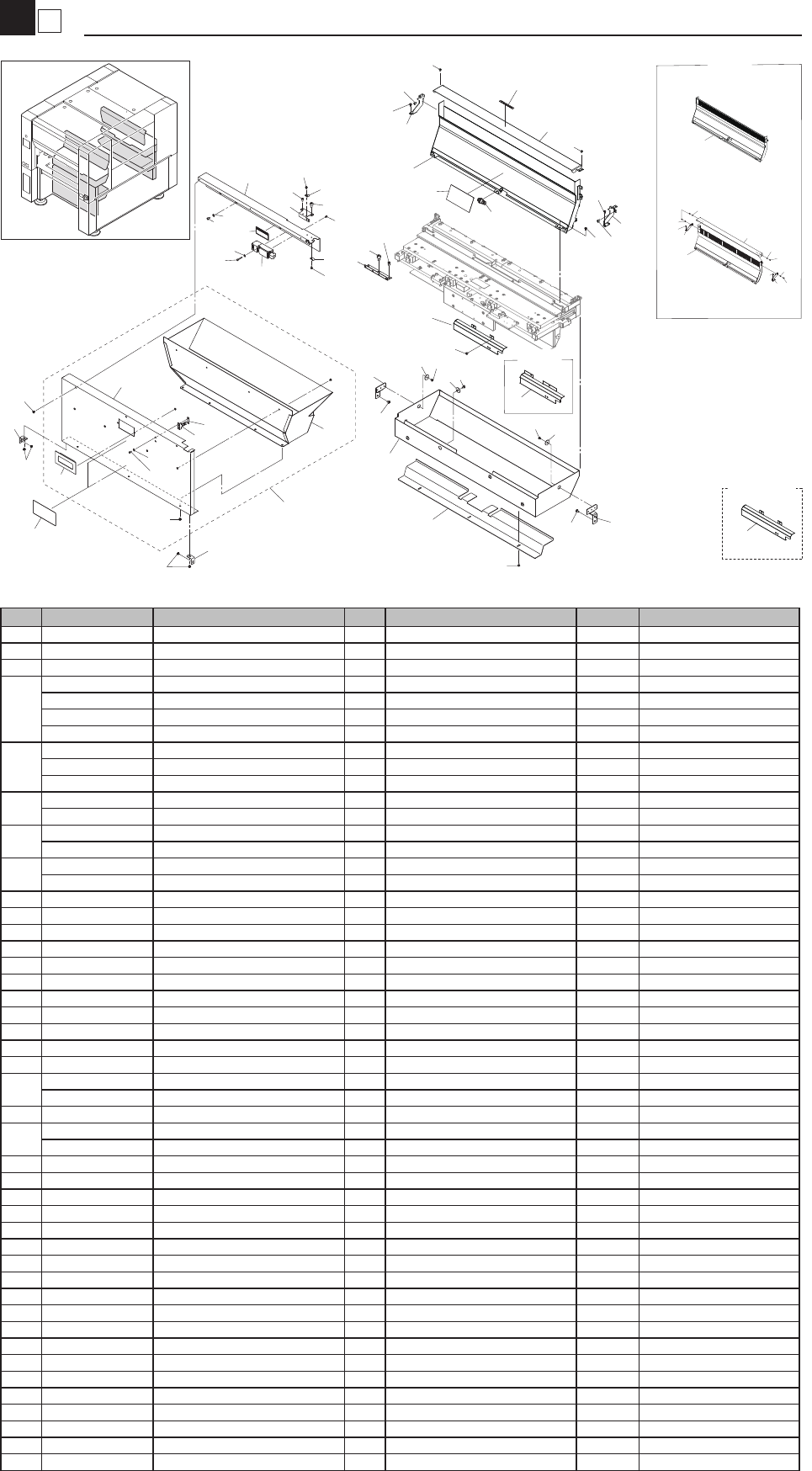

Cutter Valve/Slope/Safty Cover Assy 60 (New Type)
Tape Cutter
KHY/KJV-1111
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M11C1-20 DUCT 1 1
2 KHY-M11C3-01 BRKT., DUCT 2
3 KHY-M11C5-00 WASHER 6
4
KHY-M3T53-22 UPPER COVER 1, 720 1 Resin tape OK ML20100-2014/3/13
KHY-M3T53-21 UPPER COVER 1, 720 1 OK MJ10031-2012/1/18
KHY-M3T53-20 UPPER COVER 1, 720 1 Fig 2 NG MH20012-2011/2/17
KHY-M3T0E-61
UPPER COVER 1, 720
1 Fig 1
5
KHY-M3T51-21 UPPER COVER 2, 720 1 Slope step OK MK90021-2013/10/16
KHY-M3T51-20 UPPER COVER 2, 720 1 NG MH20012-2011/2/17
KHY-M3T0S-30 UPPER COVER 2, 720 1 Fig 1
6
KHY-M3T52-40 FIX STAY L 1 NG MH20012-2011/2/17
KHY-M3T0X-20 STAY L 1
7
KHY-M3T52-50 FIX STAY R 1 NG MH20012-2011/2/17
KHY-M3T0X-30 STAY R 1
8
KHY-M3T25-04 VALVE COVER 1 Distinction of Old and New type OK MH60104-2011/8/22
KHY-M3T25-03 VALVE COVER 1 Distinction of Old and New type
9 KHY-M3T40-00 STAY, HARNESS 1
10 $UK6 JOINT 1
11 90K41-000240 SEAL DON'T TOUCH 1
12
90K41-000730 LABEL, ALERT 1
13 91312-04006 BOLT HEX. SOCKET HEAD 8 M4X6
14 91312-05008 BOLT HEX. SOCKET HEAD 6 M5X8
15 91312-08012 BOLT HEX. SOCKET HEAD 2 M8X12
16 92902-04600 WASHER, PLAIN 6
17 98902-04006 SCREW, BINDING HEAD 4
18 98902-04008 SCREW, BINDING HEAD 10
19 98902-05008 SCREW, BINDING HEAD 8
20
KHY-M1325-02 COVER 25 1 OK MG10110-2010/1/27
KHY-M1325-01 COVER 25 1
21 KHY-M11C6-A2 COVER 720, SUB ASSY 1
22
KJJ-M11CA-00 STAY.HNS 1 OK MF80092-2009/9/1
KHY-M11C8-00 HNS. STAY 1
23 KJJ-M11C8-00 BRKT. , CUTTER COVER 2
24 KJJ-M5126-F0 SAFETY SWITCH UNIT ASSY 1
25 90990-12J001 SCREW, BIN. HEAD W/W 7
26 90K41-000350 LABEL, ALERT 1
27 90K41-000730 LABEL, ALERT 2
28 91312-04025 BOLT HEX. SOCKET HEAD 2 M4X24
29 92902-04200 WASHER, PLAIN 2
30 92902-05600 WASHER, PLAIN 4
31 97602-04308 SCREW, PAN HEAD W/WASHER 4
32 $NK-3N NYLON CLIP 4
33 KHY-M11C2-42 DUCT 2, 720 1
34 KHY-M11C6-02 COVER, TAPE CUTTER 1
35 KJJ-M11C9-00 PLATE, NUT 1
36 KJJ-M5127-00 SAFETY SWITCH KEY 1
37 KHU-M1117-00 PULL 1
38 KGS-M1360-00 BOLT 2
39 92902-04200 WASHER, PLAIN 2
40 KHY-M11C9-00 COVER,UNDER 1
41 91312-05010 BOLT HEX. SOCKET HEAD 4
13
16
16
13
18
16
13
7
5
16
18
6
4
OLD
4
Fig 1
Fig 2
31
22
14
32
15
13
32
31
13
11
17
18
8
2
19
1
3
3
3
2
17
40
18
19>41
17
19
14
9
15
17
13
5
17
12
10
6
4
24
28
29
26
30
20
14
23
27
23
25
25
25
37
38
39
25
21
33
34
35
36
8
New Type
Distinction
8
OLD
7
17
17
5
10
Main Cutter Assy 24 (Old Type)
Tape Cutter
KHY/KJV-1004
22
25
15
50
44
44
24
54
31
38
41
33
47
34
41
18
19
18
46
20
32
51
39
44
37
42
5
44
45
43
4
41
41
1
49
38
30
44
10
9
55
50
16
26
23
33
47
34
12
13
27
52
11
29
50
38
28
38
6
48
56
57
57
58
58
3
7
38
8
21
38
53
17
46
14
2
53
17
40
35
36
36
43
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M3T01-04 BASE PLATE 1,288 1
2 KHY-M3T02-00 BASE PLATE 2,288 1
3 KHY-M3T05-00 CUTTER UPPER,288 1
4 KHY-M3T06-03 BASE PLATE 3,288 1
5 KHY-M3T07-A0 CUTTER LOWER,288 1
6 KHY-M3T08-01 BAR,L 1
7 KHY-M3T08-11 BAR,R 1
8 KHY-M3T09-02 PLATE 4,288 1
9 KHY-M3T10-00 TAPE CUTTER CYL. 1
10 KHY-M3T11-01 CYL. STAY 1
11 KHY-M3T12-01 CYL.BLOCK 1
12 KHY-M3T13-00 CYL. COLLAR 1 1
13 KHY-M3T14-00 CYL. COLLAR 2 1
14 KHY-M3T16-00 BACK STAY 1
15 KHY-M3T18-00 COVER L,288 1
16 KHY-M3T18-10 COVER R,288 1
17 KHY-M3T19-00 SIDE COVER 2
18 KHY-M3T22-00 SHOCK ABSORBERS 2
19 KHY-M3T23-00 DAMPER STAY 2
20 KHY-M3T24-00 DAMPER STOPPER 1
21 KHY-M3T26-00 CUTTER COVER,288 1
22 KHY-M3T0A-01 SIDE BLOCK,L 1
23 KHY-M3T0A-11 SIDE BLOCK.R 1
24 KHY-M3T0B-02 FRONT STAY 1
25 KHY-M3T0H-00 CYL. COVER,L 1
26 KHY-M3T0H-10 CYL. COVER,R 1
27 KHY-M3T0L-00 CYL. COLLAR 3 1
28 KHY-M3T0M-00 STAY,COVER M 1
29 KHY-M3T0N-00 COVER M 1
30 KHY-M3T0P-00 CYL. COVER 1 1
31 KHY-M3T0U-00 SENSOR STAY 1
32 KHY-M3T0V-00 DOG.,SENSOR 1
33 90K73-7L0130 LM RAIL 2
34 90K80-025L00 LM BLOCK,HSR25-L 2
35
KHY-M652U-00 SENSOR,F1CUT CL.ASSY 1 Front Left
KHY-M652U-10 SENSOR,F2CUT CL.ASSY 1 Front Right
KHY-M652U-20 SENSOR,R1CUT CL.ASSY 1 Rear Left
KHY-M652U-30 SENSOR,R2CUT CL.ASSY 1 Rear Right
36 91312-06030 BOLT HEX.SOCKET HEAD 4 M3X4
37 91312-04006 BOLT HEX.SOCKET HEAD 7 M4X6
38 91312-04008 BOLT HEX.SOCKET HEAD 18 M4X8
39 91312-04010 BOLT HEX.SOCKET HEAD 7 M4X10
40 91312-04016 BOLT HEX.SOCKET HEAD 2 M4X16
41 91312-04018 BOLT HEX.SOCKET HEAD 10 M4X18
42 91312-05010 BOLT HEX.SOCKET HEAD 6 M5X10
43 99480-04010 PIN PARALLEL: 4X10 4
44 91312-06014 BOLT HEX.SOCKET HEAD 17 M6X14
45 91312-06016 BOLT HEX.SOCKET HEAD 4 M6X16
46 91312-06020 BOLT HEX.SOCKET HEAD 3 M6X20
47 91312-06022 BOLT HEX.SOCKET HEAD 4 M6X22
48 91312-06025 BOLT HEX.SOCKET HEAD 3 M6X25
49 91312-08020 BOLT HEX.SOCKET HEAD 4 M8X20
50 98902-04008 SCREW BINDING HEAD 6
51 92902-04600 WASHER PLAIN 7
52 92B12-10035 SCREW,H.S.COUN. 1
53 98702-03006 SCREW FLAT HEAD 4
54 98902-03008 SCREW BINDING HEAD 2
55 $TL4-02 JOINT 2
56 KHY-M3T04-00 STAY,AIR JOINT 1 (2010/2/18) MG20076
57 $UL6M JOINT 2 (2010/2/18) MG20076
58 91312-03012 BOLT HEX. SOCKET HEAD 2
