1 12 Control Box Controller KHY/KJV -1810 OLD 16 14 15 17 18 5 19 2 2 1 25 23 1 25 23 21 26 28 13 20 24 22 26 3 4 27 7 6 10,1 1,29 1 1 12 8,9 3 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.…
4
11

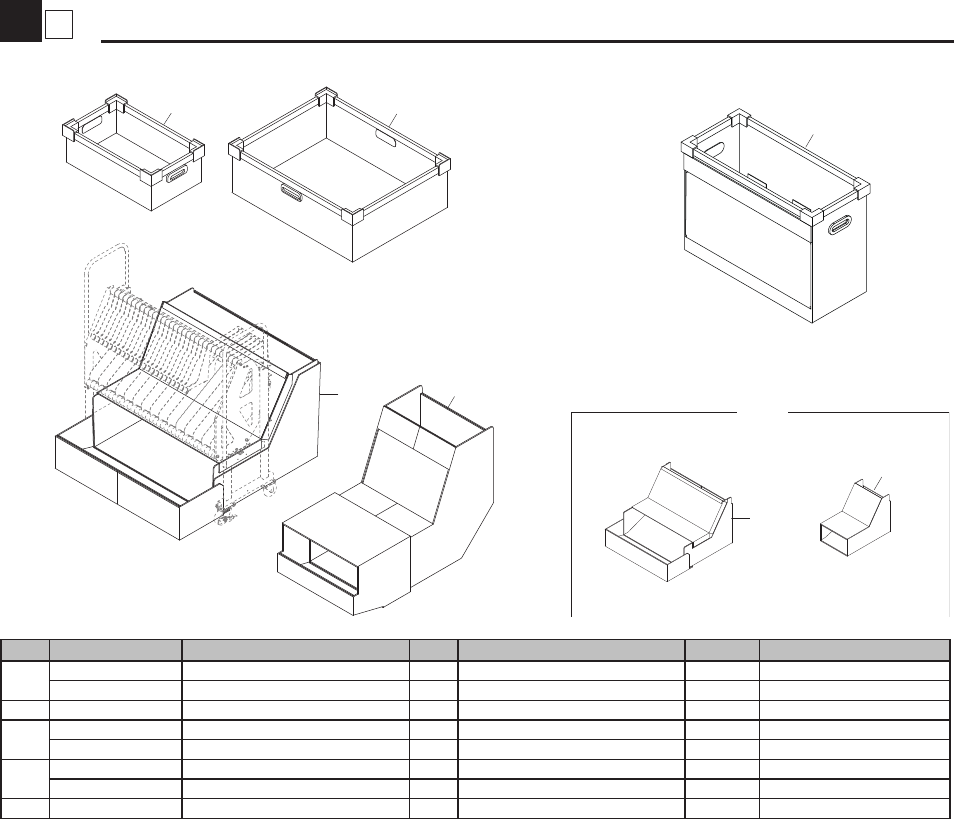

Dust Box
FDR
KHY/KJV-1111
1 2
3
4
3
OLD
4
YS
YG
5
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHY-M3600-02 DUST BOX ASSY. 1 in Tape Cutter (FES24 X 12P) OK MG80080-2010/9/9
KHY-M3600-01 DUST BOX 1 in Tape Cutter (FES24 X 12P)
2 KHY-M3600-11 DUST BOX 1 in Tape Cutter (FIX60,24)
3
KHY-M3600-A2 DUST BOX ASSY,720 1 non Tape Cutter (FIX60,24) OK MGY0062-2011/1/11
KHY-M3600-A1 DUST BOX ASSY 1 non Tape Cutter (FIX60,24)
4
KHY-M3600-B0 DUST BOX ASSY,288 1 non Tape Cutter (FES24 X 12P) OK MGY0062-2011/1/11
KHY-M3600-30 DUST BOX 1 non Tape Cutter (FES24 X 12P)
5 KJV-M3600-00 DUST BOX 1 for YG
1
12

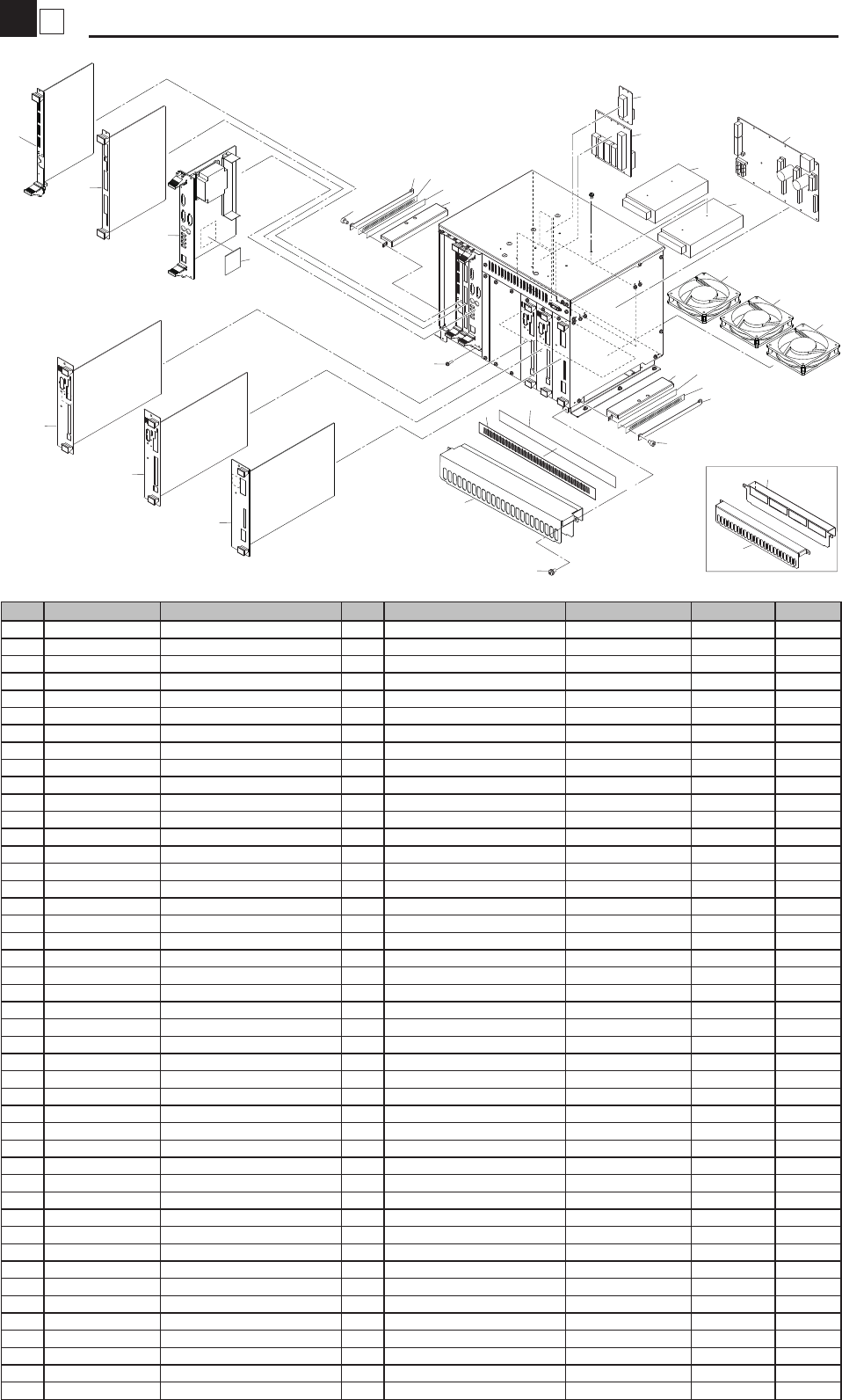

Control Box
Controller
KHY/KJV-1810
OLD
16
14
15
17
18
5
19
2
2
1
25
23
1
25
23
21
26
28
13
20
24
22
26
3
4
27
7
6
10,11,29
11
12
8,9
3
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJJ-M411B-00 BRACKET 2 2
2 KJJ-M411A-00 PLATE 2
3 KJJ-M4119-00 BRACKET 1 FILTER 1
3-1 KJJ-M4119-01 BRACKET,FILTER 1 (2014/3/19) ML30024 OK
4 KJJ-M4120-00 BRACKET 2 FILTER 1
4-1 Delete (2014/3/19) ML30024
5 KJJ-M4510-11 MOTHER BOARD ASSY 1
5-1 KJJ-M4510-12 MOTHER BOARD ASSY 1 (2009/7/21) MF70129 OK
6 KHN-M5840-00 SERVO BOARD ASSY 1
6-1 KHN-M5840-02 SERVO BOARD ASSY 1 (2010/10/13) MG90117 OK
7 KHN-M5840-50 SERVO BOARD ASSY 1
7-1 KHN-M5840-52 SERVO BOARD ASSY 1 (2010/10/13) MG90117 OK
8 KHL-M4209-00 SYSTEM UNIT ASSY 1 for STD
8-1 KHL-M4209-01 SYSTEM UNIT ASSY 1 for STD (2008/10/16) ME00063 OK
8-2 KHL-M4209-21 SYSTEM UNIT ASSY 1 Common with IT Option (2014/7/29) ML70037 OK
9 KHL-M4209-20 SYSTEM UNIT ASSY 1 for IT Option
9-1 KHL-M4209-21 SYSTEM UNIT ASSY 1 for IT Option (2008/10/16) ME00063 OK
9-2 KLA-M4209-00 SYSTEM UNIT ASSY 1 STD & IT Option (2012/7/11) H016895 NG
9-3 KLA-M4209-01 SYSTEM UNIT ASSY 1 (2015/7/9) MM60187 OK
9-4 KLA-M4209-02 SYSTEM UNIT ASSY 1 (2016/6/17) MN60077 OK
10 KHL-M441H-03 VISION BOARD ASSY 1 F/R Multi Camera
10-1 KHL-M441H-33 VISION BOARD ASSY 1 F/R Multi Camera (2009/9/3) MF80042 OK
11 KHL-M441H-13 VISION BOARD ASSY 1 F Multi Camera
12 KHN-M4530-02 REMOTE IF BOARD ASSY 1
12-1 KHN-M4530-03 REMOTE IF BOARD ASSY 1 (2008/9/1) ME80154 OK
12-2 KHN-M4530-54 REMOTE IF BOARD ASSY 1 (2009/5/19) MF50046 OK
12-3 KHN-M4530-55 REMOTE IF BOARD ASSY 1 (2009/7/29) MF70214 OK
13 KJJ-M5880-00 DRIVER POWER ASSY 1
13-1 KJJ-M5880-10 DRIVER POWER ASSY 1 (V3.21 STD 1.000-) (2010/11/19) MGX0081 NG
14 KJJ-M4454-01 RAS BOARD ASSY 1
15 KJJ-M4250-00 BACKPLANE BOARD ASSY 1
16 KHL-M4255-00 FLASH DISK 1
16-1 KLA-M4255-00 FLASH DISK 1 (2012/7/11) H016895 NG
17 KGS-M5303-00 SW POWER DC5 1
18 KGS-M5303-10 SW POWER DC12 1
19 KJJ-M4186-00 FAN MOTOR ASSY 1
20 KJJ-M4186-10 FAN MOTOR ASSY 1
21 KJJ-M4186-20 FAN MOTOR ASSY 1
22 KJJ-M53A9-10 FILTER 1
23 KJJ-M53A9-20 FILTER 2
24 KJJ-M53E9-10 TAPE 1
25 KJJ-M53E9-20 TAPE 2
26 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
27 90166-12JA10 SCREW,PAN HEAD 4
28 97602-04308 SCREW,PAN HEAD W/W 63
1
13

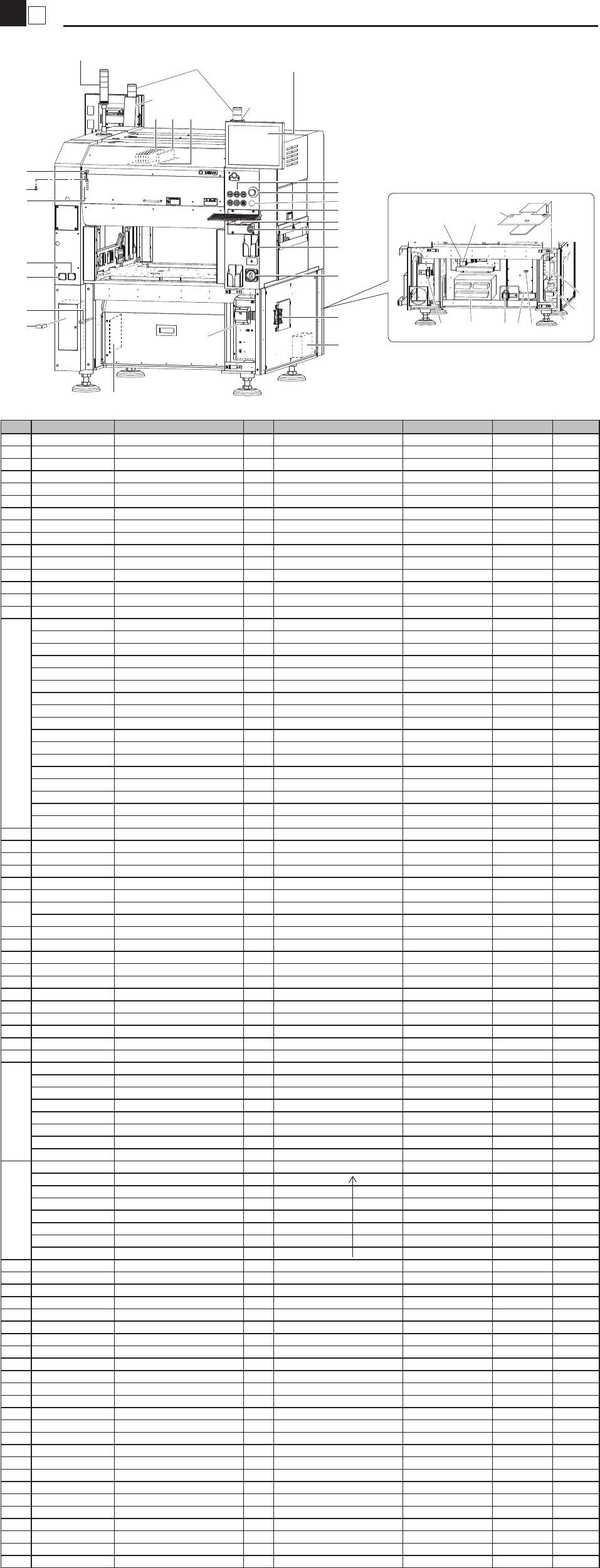

Exterior, etc
Exterior, etc
KHY/KJV-1111
1, 2
3
4
22, 23
10
40
18 19 17
39
38
42
7
8
9
11
32
20, 21
37,43,48
5, 6
24
30
33
45
34
12,13
31
46
14 44
15
16
36
35
41
47
49
50
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGT-M5106-02 15NORMAL LCD" 2 AC100V
1-1 KGT-M5106-B0 SMT OPE.PANEL ASSY 1 DC12V
(Compati.:KHW-M5106-10X)
(2012/11/22) MJX0111 NG
2 KGT-M5119-02 15 TOUCH LCD ASSY" 2
2-1 KKE-M5119-00 15 TOUCH LCD ASSY" 2 (2009/9/30) MF90148 NG
2-2 KGT-M5119-03 SMT OPE.T.PANEL ASSY 1 TOUCH PANEL (2013/2/25) MK20042 OK
3 KHY-M1380-00 F.LCD STAY ASSY. 1
3-1 KHY-M1380-01 F.LCD STAY ASSY. 1 Vibration measures (2009/1/28) MF10055 NG
3-2 KHY-M1380-02 F.LCD STAY ASSY. 1 Interference No.SI1602007J (2009/9/30) MF90148 OK
4 KHY-M1390-00 R.LCD STAY ASSY. 1
4-1 KHY-M1390-01 R.LCD STAY ASSY. 1 Interference No.SI1602007J (2009/9/30) MF90148 OK
5 KW3-M5150-50 KEYBOARD J 1
6 KW3-M5150-60 KEYBOARD E 1
7 KW3-M5169-04 MOUSE 1
8 KHY-M13B1-B0 BRKT. KEYBOARD ASSY. 1 STD Interference No.SI1602007J
9 KGA-M13B5-00 MOUSE POCKET ASSY 1
10
KHY-M4899-00 LIGHT 1 ASSY (L=414) 1 1850 R.Y.G
KHY-M4899-10 LIGHT 1 ASSY (L=470) 1 1980 R.Y.G
KHY-M4899-20 LIGHT 1 ASSY (L=570) 1 2000 R.Y.G
KHY-M4899-30 LIGHT 1 ASSY (L=664) 1 2100 R.Y.G
KHY-M4899-40 LIGHT 1 ASSY (L=770) 1 2200 R.Y.G
KHY-M4899-50 LIGHT 1 ASSY (L=864) 1 2300 R.Y.G
KHY-M4899-60 LIGHT 1 ASSY (L=414) 1 1850 W.B.G
KHY-M4899-70 LIGHT 1 ASSY (L=470) 1 1980 W.B.G
KHY-M4899-80 LIGHT 1 ASSY (L=570) 1 2000 W.B.G
KHY-M4899-90 LIGHT 1 ASSY (L=664) 1
2100 W.B.G
KHY-M4899-A0 LIGHT 1 ASSY (L=770) 1 2200 W.B.G
KHY-M4899-B0 LIGHT 1 ASSY (L=864) 1 2300 W.B.G
KV7-M4887-00 LED UNIT,R-R 1 SPARE
KV7-M4887-10 LED UNIT,Y-Y 1 SPARE
KV7-M4887-20 LED UNIT,G-G 1 SPARE
KV7-M4887-30 LED UNIT,BL-BL 1 SPARE
KV7-M4887-40 LED UNIT,W-W 1 SPARE
11 KM5-M6554-10 MAIN SWITCH 1
12 KHM-M1397-00 BRACKET,FDD 3 1
13 KGK-M6680-20 HNS,USB-MEMORY 2M AS 1
14 KJJ-M4580-02 I/O CONVEYOR BOARD A 1
14-1 KJJ-M4580-03 I/O CONVEYOR BOARD A 1 (2009/3/19) MF30087 OK
14-2 KJJ-M4580-04 I/O CONVEYOR BOARD A 1 (2010/4/13) MG30022 OK
15
KHY-M6561-A0 POWER SUPPLY 1 ASSY 1 for YS
KJV-M6561-A0 POWER SUPPLY 1 ASSY 1 for YG
16 KHY-M6561-B0 POWER SUPPLY 1 ASSY 1
17 KHY-M4570-01 I/O HEAD BOARD ASSY 1
17-1 KHY-M4570-20 I/O HEAD BOARD ASSY 1 (2008/10/30) ME00097 NG
18 KHY-M5802-01 Z SERVO UNIT ASSY 5
18-1 KHY-M5802-02 Z SERVO UNIT ASSY 5 (2008/10/9) ME90138 OK
19 KHY-M5802-11 R SERVO UNIT ASSY 1
19-1 KHY-M5802-12 R SERVO UNIT ASSY 1 (2008/10/9) ME90138 OK
20 KHN-M6185-10 FAN MOTOR ASSY 1
21 KGA-M4187-00 FAN GUARD 119MM 8
22 KGS-M4896-01 LIGHT,ERR ASSY 1 for S.T.D
23 KHG-M4896-01 LIGHT,ERR ASSY 1 for CE
24
KGA-M669V-04 HNS,SWITCH ACTIVE 1
KGA-M669V-14 HNS,SWITCH READY 1
KGA-M669V-24 HNS,SWITCH START 1
KGA-M669V-32
HNS,SWITCH STOP 1 for S.T.D
KGA-M669V-42 HNS,SWITCH ERR.CLR. 1 for S.T.D
KGA-M669V-54 HNS,SWITCH RESET 1
KHA-M669V-03 HNS,SWITCH STOP 1 for CE
KHA-M669V-12 HNS,SWICTH ERR.CLR. 1 for CE
24-1
KLW-M65NK-A0 ACTIVE ASSY 1 Appearance colors are different (2017/1/26) MP10097 NG
KLW-M65NK-B0 READY ASSY 1 (2017/1/26) MP10097 NG
KLW-M65NK-C0 START ASSY 1 (2017/1/26) MP10097 NG
KLW-M65NK-D0 STOP YM ASSY 1 for STD (2017/1/26) MP10097 NG
KLW-M65NK-E0 ERR.CLR.YM ASSY 1 for STD (2017/1/26) MP10097 NG
KLW-M65NK-F0 RESET ASSY 1 (2017/1/26) MP10097 NG
KLW-M65NK-G0 STOP CE ASSY 1 for CE (2017/1/26) MP10097 NG
KLW-M65NK-H0 ERR.CLR.CE ASSY 1 for CE (2017/1/26) MP10097 NG
30 KGS-M6510-00 BREAKER ASSY 1
31 KHY-M6513-00 CIRCUIT PROTECTOR,1 1
31-1 KHY-M6513-01 CIRCUIT PROTECTOR,3P 1 (2008/6/19) ME60163 NG
32 KHA-M6513-00 CIRCUIT PROTECTOR,3 1
32-1 KHA-M6513-01 CIRCUIT PROTECTOR,1P 1 for UPS (2008/6/19) ME60161 NG
33 KHY-M8596-00 PRESSURE GAUGE 1
34 KHW-M8596-00 PRESSURE GAUGE 1 for YG
35 KGK-M4590-01 I/O TF BOARD ASSY 1 for FDR I/O
36 KJJ-M5328-00 POWER TRANSFORMER 1
36-1 KJJ-M5328-10 POWER TRANSFORMER 1 (2008/12/27) MEY0145 OK
37 KJJ-M5318-10 POWER TRANSFORMER 1 for YS,YG-UPS
38 KGK-M5138-00 SWITCH EMG ASSY 2
39
KW7-M5126-00 SAFETY SWITCH 2
39-1 KW7-M5126-H0 SAFETY SW UNIT ASSY 2 (2009/12/1) MFX0093 OK
40 KW7-M5127-00 SAFETY SWITCH KEY 2
41 KGS-M1360-00 BOLT 4 IBNP4-10
42 KGB-M3992-00 SWITCH,SELECT 4
43 KGA-M5318-01 POWER TRANSFORMER 1 for YG
44 KGA-M6522-20 SPARE RELAY 1
45 KGY-M4268-00 USB MEMORY 1
46 KKJ-M13B1-C0 BRKT. KEYBOARD ASSY 1 for Rear (2009/7/23) MF70162
47 KHY-M6561-C0 POWER SUPPLY 1 ASSY 1 for YS
48 KJJ-M5318-30 POWER TRANSFORMER 1 for YS-UPS
49 KGS-M537G-01 CONTACTOR,1 1 Magnetic contactor
50 KGS-M537G-11 CONTACTOR,1 1 Auxiliary contact unit
