7 7 Main Conveyor 4 (Rear STD) Conveyor Unit KHY/KJV -1 11 1 OLD 17 18 18 17 31 7 6 4 35 35 35 35 30 33 27 23 24 21 36 27 27 5 8 38 1 1 1 1 33 27 8 30 21 36 5 27 20 28 19 13 15 28 3 14 15 28 23 2 30 9 9 1 25 30 28 34 21 …
6
7

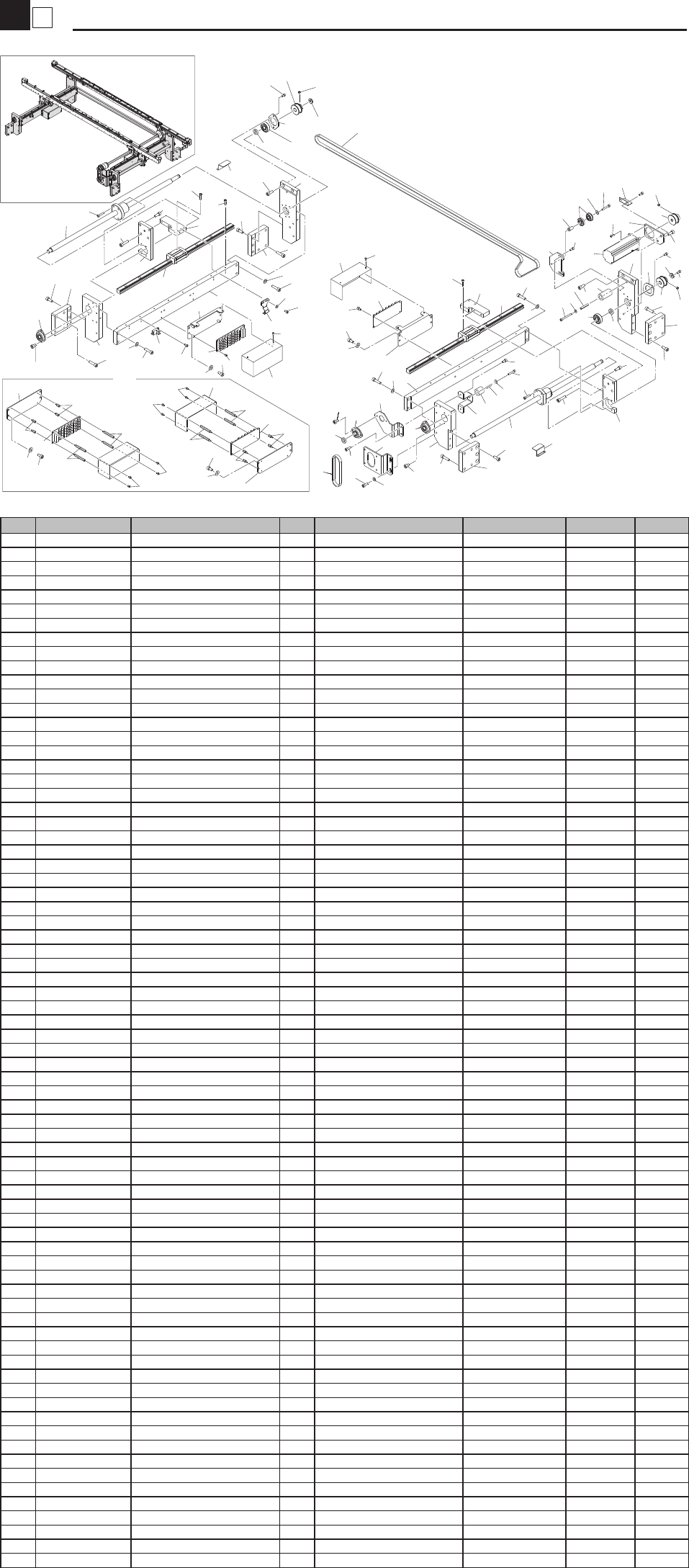

Main Conveyor 3 (Rear STD)
Conveyor Unit
KHY/KJV-1111
26
49
55
56
50
6
5
31
41
29
46
34
30
38
18
46
57
15
56
13
56
40
6
49
56
39
41
54
33
11
52
14
44
2
51
8
29
10
55
34
30
46
47
29
31
56
7
55
41
55
56
4
26
50
48
57
24
23
25
7
55
56
45
58
53
35
53
9
30
45
32
32
3
46
17
46
57
27
43
59
3
56
40
20
46
57
40
56
56
55
32
45
7
12
56
55
7
1
56
48
13
28
28
19
21
22
57
17
57
12
38
W=410,460 is the same parts besides No.25.
59
42
42
37
16
37
46
57
36
36
17
59
17
36
36
46
57
37
37
42
42
59
60
42
16
16
60
42
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M9101-00 STAY 1 1
1-1 KHY-M9101-01 STAY 1 1 (2008/12/24) MEY0089 OK
2 KHY-M9102-00 STAY 2 1
2-1 KHY-M9102-01 STAY 2 1 (2008/12/24) MEY0089 OK
3 KHY-M9103-00 STAY 3 2
3-1 KHY-M9103-01 STAY 3 2 (2008/12/24) MEY0089 OK
4 KHY-M9104-00 PLATE 1A 1
5 KHY-M9105-00 PLATE 1B 1
6 KHY-M9106-00 BRKT.,GUIDE 2
7 KHY-M9107-00 STAY 1 4
7-1 KHY-M9107-01 STAY 1 4 (2008/12/24) MEY0089 OK
8 KHY-M9109-01 BRKT.,MOTOR W 1
9 KHY-M9110-00 BRKT.,CONV.MOTOR 1
10 KG7-M9113-01 PULLEY 3 1
11 KHY-M9112-00 BRKT.,TENSION 1
12 KHY-M9115-00 PLATE 1,LINEAR 2
12-1 KHY-M9115-01 PLATE 1,LINEAR 2 (2008/12/24) MEY0089 OK
13 KHY-M9116-00 LM RALE&BLOCK 15,480 2
14 90K55-4W476W AC SERVO MOTOR 1
15 KHY-M9128-00 BRKT.2,SPLINE 1
16 KHY-M911G-00 COVER,TERMINAL 2
16-1 KHY-M911G-01 COVER,TERMINAL 2 (2011/4/26) MH30093 NG
17 KHY-M911Y-00 PLATE,TERMINAL 2
17-1 KJJ-M911Y-00 PLATE,TERMINAL 2 (2011/4/26) MH30093 NG
17-2 KHY-M911Y-01 PLATE,TERMINAL 2 (2011/10/6) MH90069 OK
18 KHY-M9120-00 BELT, W AXIS 1
19 KHY-M9134-00 COVER,PULLEY 1
20 KHY-M9150-00 DOG,ORIGIN 1
21 KHY-M9151-00 DAMPER A 1
22 KHY-M9152-00 SPACER 1
23 KHY-M9153-00 DAMPER B 1
24 KHY-M9154-00 SPACER 1
25 KHY-M9155-00 BRKT.,STOPPER 1 W=410
26 KHY-M9A00-00 BALL SCREW W(460) 2
27 KHY-M652H-01 SENSOR,W1ORG ASSY 1
28 KHY-M1124-00 PLATE 24 1
29 92A08-04303 SET SCREW 8
30 90990-41J006 COLLAR 3
31 KGT-M912D-00 PULLEY 2
32 KH2-M9121-00 BEARING 4
33 KHW-M9137-00 COLLAR,BRG. 1
34 KHW-M9139-00 PLATE,BRG. 2
35 KHW-M9146-00 BELT(249-3GT-9) 1
36 90563-03J100 SPACER BOLT 8
36-1 Delete (2011/4/26) MH30093
37 90563-03J400 SPACER BOLT 8
37-1 Delete (2011/4/26) MH30093
38 90933-01J200 BEARING 2
39 90933-03J608 BEARING 2
40 92902-06200 WASHER PLAIN 8
41 90990-28J076 WASHER 2
42 91312-03005 BOLT HEX.SOCKET HEAD 8 M3X5
42-1 91312-03005 BOLT HEX.SOCKET HEAD 4 M3X5 (2011/4/26) MH30093
43 91312-03008 BOLT HEX.SOCKET HEAD 2 M3X8
44 91312-03010 BOLT HEX.SOCKET HEAD 4 M3X10
45 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
46 91312-04008 BOLT HEX.SOCKET HEAD 14 M4X8
47 91312-04010 BOLT HEX.SOCKET HEAD 2 M4X10
48 91312-04014 BOLT HEX.SOCKET HEAD 16 M4X14
49 91312-04018 BOLT HEX.SOCKET HEAD 8 M4X18
50 91312-04020 BOLT HEX.SOCKET HEAD 9 M4X20
51 91312-04040 BOLT HEX.SOCKET HEAD 1 M4X40
52 91312-05010 BOLT HEX.SOCKET HEAD 2 M5X10
53 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14
54 91312-05020 BOLT HEX.SOCKET HEAD 1 M5X20
55 91312-06016 BOLT HEX.SOCKET HEAD 22 M6X16
56 91312-06025 BOLT HEX.SOCKET HEAD 28 M6X25
57 92902-04200 WASHER PLAIN 13
57-1 92902-04200 WASHER PLAIN 11 (2011/4/26) MH30093
58 92902-05200 WASHER PLAIN 5
59 KJJ-M4554-00 TERMINAL BOARD ASSY 2
60 97602-03304 SCREW, PAN HEAD W/W 4 (2011/4/26) MH30093
60-1 97602-03306 SCREW, PAN HEAD W/W 4 (2011/10/6) MH90069 OK
7
7

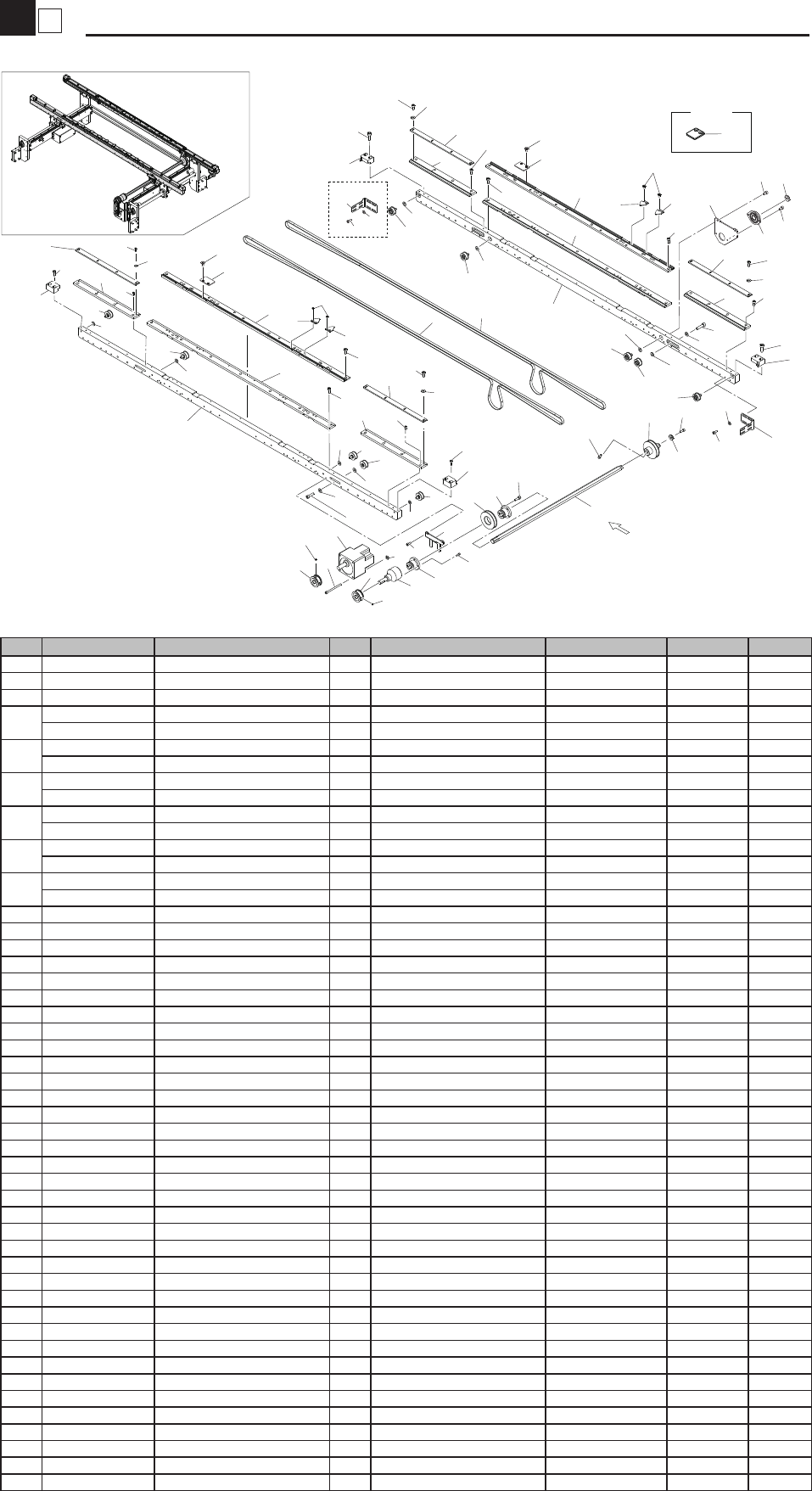

Main Conveyor 4 (Rear STD)
Conveyor Unit
KHY/KJV-1111
OLD
17
18
18
17
31
7
6
4
35
35
35
35
30
33
27
23
24
21
36
27
27
5
8
38
11
11
33
27
8
30
21
36
5
27
20
28
19
13
15
28
3
14
15
28
23
2
30
9
9
1
25
30
28
34
21
24
23
10
30
31
5
8
33
27
38
11
11
7
6
4
35
35
35
35
35
23
21
30
27
33
8
27
27
5
22
37
37
22
32
27
26
26
16
29
40
39
25
R>L
L>R
28
34
10
12
41
38
41
38
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M9113-00 PULLEY 1,MOTOR 1
2 KHY-M9117-00 SPLINE 1 1
3 KHY-M9127-00 BRACKET R,COLLAR 1
4
KHY-M9121-00 FRAME,CONVEYOR 2 L=1250
KHY-M9121-10 FRAME,CONVEYOR 2 L=1460
5
KHY-M9123-00 GUIDE 1 4 L=1250
KHY-M9123-10
GUIDE 1 1
L=1460
6
KHY-M9124-00 PLATE 1,GUIDE 2 L=1250
KHY-M9124-10 PLATE 1,GUIDE 1 L=1460
7
KHY-M9125-00 PLATE 2,GUIDE 2 L=1250
KHY-M9125-10 PLATE 2,GUIDE 2 L=1460
8
KHY-M9126-00 GUIDE 1-1 4 L=1250
KHY-M9126-10
GUIDE 1-1 2 L=1460
9
KHY-M9129-00 BELT 1,CONVEYOR 2 L=1250
KHY-M9129-10 BELT 1,CONVEYOR 1 L=1460
10 KHY-M912A-00 BRKT.,SENSOR 1
10-1 KHY-M912A-01 BRKT.,SENSOR 1 (2010/5/10) MG40138 OK
11 KHY-M9135-00 PLATE,EDGE 2 8
11-1 KHY-M9135-00 PLATE,EDGE 2 16 (2008/9/29) ME90125
12 KHY-M9136-00 PLATE,EDGE 3 8
12-1 Delete (2008/9/29) ME90125
13 KHY-M9157-00 SHAFT,MOTOR 1
14 KG2-M9105-00 PULLEY 1,SPLINE 1
15 KG2-M9108-11 COLLAR,CONVEYOR 2
16 KHY-M9111-00 BRKT.1,SPLINE 1
17 KGA-M9113-00 GUIDE 1,END 2
18 KGA-M9114-00 GUIDE 2,END 2
19 KGK-M9170-00 DC MOTOR ASSY. 1
20 KGT-M9193-00 NUT PLATE 4
21 KGY-M9140-A0 PULLEY,CONV. ASSY 4
22 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2
23 KV1-M9140-A0 PULLEY CONV.ASSY. 4
24 KV7-M9140-A0 PULLEY CONV.ASSY. 2
25 90990-28J076 WASHER 2
26 91312-03006 BOLT HEX.SOCKET HEAD 16 M3X6
27 91312-03008 BOLT HEX.SOCKET HEAD 46 M3X8
28 91312-03010 BOLT HEX.SOCKET HEAD 8 M3X10
29 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
30 91312-04012 BOLT HEX.SOCKET HEAD 10 M4X12
31 91312-05020 BOLT HEX.SOCKET HEAD 2 M5X20
32 91317-04055 BOLT HEX.SOCKET HEAD 4 M4X55
33 92902-03200 WASHER PLAIN 16
34 92902-04200 WASHER PLAIN 3
35 92902-05200 WASHER PLAIN 8
36 92902-05600 WASHER PLAIN 4
37 92A08-04303 SET SCREW 4
38 98702-03005 SCREW FLAT HEAD 32
39 KH2-M9121-00 BEARING 1
40 91312-04006 BOLT HEX.SOCKET HEAD 2 M4X6
41 KHY-M9135-10 PLATE,EDGE 3 2 (2011/1/12) MGX0072
8
7
Main Conveyor 5 (LED Type)
Conveyor Unit
KHY/KJV-1012
30
34
34
5
35
34
4
20
33
27
29
16
29
24
29
1
26
32
26
2
27
14
21
36
27
3
12
19
18
21
36
31
17
29
35
20
14
13
14
27
34
34
30
5
26
32
26
8
25
37
11
11
44
43
26
26
26
29
35
20
32
22
34
40
9
9
7
37
25
8
11
11
26
6
22
34
22
20
35
17
41
8
26
32
29
26
8
42
10
38
39
28
24
15
34
22
23
23
R>L
16
27
33
10
L>R
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M9113-00 PULLEY 1,MOTOR 1
2 KHY-M9117-00 SPLINE 1 1
3 KHY-M9118-00 BRACKET F,COLLAR 1
4
KHY-M9121-20 FRAME,CONVEYOR 2 L1250 (L=1250)
KHY-M9121-40 FRAME,CONVEYOR 2 L1460 (L=1460)
5
KHY-M9123-20 GUIDE 1 4 L1250 (L=211)
KHY-M9123-50
GUIDE 1 1
L1460 (L=316)
6 KHY-M9124-20 PLATE 1,GUIDE 2 L1250/1460 (L=749)
7 KHY-M9125-20 PLATE 2,GUIDE 2 L1250/1460 (L=875)
8
KHY-M9126-20 GUIDE 1-1 4 L1250 (L=156) 3-Holes
KHY-M9126-30 GUIDE 1-1 2 L1460 (L=261) 4-Holes
9
KHY-M9129-00 BELT 1,CONVEYOR 2 L1250 (L=2692)
KHY-M9129-10
BELT 1,CONVEYOR 1 L1460 (L=3111)
10 KHY-M912A-00 BRKT.,SENSOR 1
10-1 KHY-M912A-01 BRKT.,SENSOR 1 (2010/5/10) MG40138 OK
11 KHY-M9135-00 PLATE,EDGE 2 16
12 KHY-M9157-00 SHAFT,MOTOR 1
13 KG2-M9105-00 PULLEY 1,SPLINE 1
14 KG2-M9108-11 COLLAR,CONVEYOR 2
15 KHY-M9111-00 BRKT.1,SPLINE 1
16 KGA-M9113-00 GUIDE 1,END 2
17 KGA-M9114-00 GUIDE 2,END 2
18 KGK-M9170-00 DC MOTOR ASSY. 1
19 KGT-M9193-00 NUT PLATE 4
20 KGY-M9140-A0 PULLEY,CONV. ASSY 4
21 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2
22 KV1-M9140-A0 PULLEY CONV.ASSY. 4
23 KV7-M9140-A0 PULLEY CONV.ASSY. 2
24 90990-28J076 WASHER 2
25 91312-03006 BOLT HEX.SOCKET HEAD 16 M3X6
26 91312-03008 BOLT HEX.SOCKET HEAD 46 M3X8
27 91312-03010 BOLT HEX.SOCKET HEAD 8 M3X10
28 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
29 91312-04012 BOLT HEX.SOCKET HEAD 10 M4X12
30 91312-05020 BOLT HEX.SOCKET HEAD 2 M5X20
31 91317-04055 BOLT HEX.SOCKET HEAD 4 M4X55
32 92902-03200 WASHER PLAIN 16
33 92902-04200 WASHER PLAIN 3
34 92902-05200 WASHER PLAIN 8
35 92902-05600 WASHER PLAIN 4
36 92A08-04303 SET SCREW 4
37 98702-03005 SCREW FLAT HEAD 32
38 KH2-M9121-00 BEARING 1
39 91312-04006 BOLT HEX.SOCKET HEAD 2 M4X6
40
KHY-M9121-30 FRAME,CONVEYOR 2 L1250 (L=1250)
KHY-M9121-50 FRAME,CONVEYOR 2 L1460 (L=1460)
41
KHY-M9123-30 GUIDE 1 4 L1250 (L=226)
KHY-M9123-60 GUIDE 1 1 L1460 (L=331)
42
KHY-M9123-40 GUIDE 1 4 L1250 (L=226)
KHY-M9123-70 GUIDE 1 1 L1460 (L=331)
43 KHY-M9124-30 PLATE 1,GUIDE 2 L1250/1460 (L=749)
44 KHY-M9125-30 PLATE 2,GUIDE 2 L1250/1460 (L=875)
