8 7 Main Conveyor 5 (LED T ype) Conveyor Unit KHY/KJV -1012 30 34 34 5 35 34 4 20 33 27 29 16 29 24 29 1 26 32 26 2 27 14 21 36 27 3 12 19 18 21 36 31 17 29 35 20 14 13 14 27 34 34 30 5 26 32 26 8 25 37 1 1 1 1 44 43 26 …
7
7
Main Conveyor 4 (Rear STD)
Conveyor Unit
KHY/KJV-1111
OLD
17
18
18
17
31
7
6
4
35
35
35
35
30
33
27
23
24
21
36
27
27
5
8
38
11
11
33
27
8
30
21
36
5
27
20
28
19
13
15
28
3
14
15
28
23
2
30
9
9
1
25
30
28
34
21
24
23
10
30
31
5
8
33
27
38
11
11
7
6
4
35
35
35
35
35
23
21
30
27
33
8
27
27
5
22
37
37
22
32
27
26
26
16
29
40
39
25
R>L
L>R
28
34
10
12
41
38
41
38
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M9113-00 PULLEY 1,MOTOR 1
2 KHY-M9117-00 SPLINE 1 1
3 KHY-M9127-00 BRACKET R,COLLAR 1
4
KHY-M9121-00 FRAME,CONVEYOR 2 L=1250
KHY-M9121-10 FRAME,CONVEYOR 2 L=1460
5
KHY-M9123-00 GUIDE 1 4 L=1250
KHY-M9123-10
GUIDE 1 1
L=1460
6
KHY-M9124-00 PLATE 1,GUIDE 2 L=1250
KHY-M9124-10 PLATE 1,GUIDE 1 L=1460
7
KHY-M9125-00 PLATE 2,GUIDE 2 L=1250
KHY-M9125-10 PLATE 2,GUIDE 2 L=1460
8
KHY-M9126-00 GUIDE 1-1 4 L=1250
KHY-M9126-10
GUIDE 1-1 2 L=1460
9
KHY-M9129-00 BELT 1,CONVEYOR 2 L=1250
KHY-M9129-10 BELT 1,CONVEYOR 1 L=1460
10 KHY-M912A-00 BRKT.,SENSOR 1
10-1 KHY-M912A-01 BRKT.,SENSOR 1 (2010/5/10) MG40138 OK
11 KHY-M9135-00 PLATE,EDGE 2 8
11-1 KHY-M9135-00 PLATE,EDGE 2 16 (2008/9/29) ME90125
12 KHY-M9136-00 PLATE,EDGE 3 8
12-1 Delete (2008/9/29) ME90125
13 KHY-M9157-00 SHAFT,MOTOR 1
14 KG2-M9105-00 PULLEY 1,SPLINE 1
15 KG2-M9108-11 COLLAR,CONVEYOR 2
16 KHY-M9111-00 BRKT.1,SPLINE 1
17 KGA-M9113-00 GUIDE 1,END 2
18 KGA-M9114-00 GUIDE 2,END 2
19 KGK-M9170-00 DC MOTOR ASSY. 1
20 KGT-M9193-00 NUT PLATE 4
21 KGY-M9140-A0 PULLEY,CONV. ASSY 4
22 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2
23 KV1-M9140-A0 PULLEY CONV.ASSY. 4
24 KV7-M9140-A0 PULLEY CONV.ASSY. 2
25 90990-28J076 WASHER 2
26 91312-03006 BOLT HEX.SOCKET HEAD 16 M3X6
27 91312-03008 BOLT HEX.SOCKET HEAD 46 M3X8
28 91312-03010 BOLT HEX.SOCKET HEAD 8 M3X10
29 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
30 91312-04012 BOLT HEX.SOCKET HEAD 10 M4X12
31 91312-05020 BOLT HEX.SOCKET HEAD 2 M5X20
32 91317-04055 BOLT HEX.SOCKET HEAD 4 M4X55
33 92902-03200 WASHER PLAIN 16
34 92902-04200 WASHER PLAIN 3
35 92902-05200 WASHER PLAIN 8
36 92902-05600 WASHER PLAIN 4
37 92A08-04303 SET SCREW 4
38 98702-03005 SCREW FLAT HEAD 32
39 KH2-M9121-00 BEARING 1
40 91312-04006 BOLT HEX.SOCKET HEAD 2 M4X6
41 KHY-M9135-10 PLATE,EDGE 3 2 (2011/1/12) MGX0072
8
7
Main Conveyor 5 (LED Type)
Conveyor Unit
KHY/KJV-1012
30
34
34
5
35
34
4
20
33
27
29
16
29
24
29
1
26
32
26
2
27
14
21
36
27
3
12
19
18
21
36
31
17
29
35
20
14
13
14
27
34
34
30
5
26
32
26
8
25
37
11
11
44
43
26
26
26
29
35
20
32
22
34
40
9
9
7
37
25
8
11
11
26
6
22
34
22
20
35
17
41
8
26
32
29
26
8
42
10
38
39
28
24
15
34
22
23
23
R>L
16
27
33
10
L>R
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M9113-00 PULLEY 1,MOTOR 1
2 KHY-M9117-00 SPLINE 1 1
3 KHY-M9118-00 BRACKET F,COLLAR 1
4
KHY-M9121-20 FRAME,CONVEYOR 2 L1250 (L=1250)
KHY-M9121-40 FRAME,CONVEYOR 2 L1460 (L=1460)
5
KHY-M9123-20 GUIDE 1 4 L1250 (L=211)
KHY-M9123-50
GUIDE 1 1
L1460 (L=316)
6 KHY-M9124-20 PLATE 1,GUIDE 2 L1250/1460 (L=749)
7 KHY-M9125-20 PLATE 2,GUIDE 2 L1250/1460 (L=875)
8
KHY-M9126-20 GUIDE 1-1 4 L1250 (L=156) 3-Holes
KHY-M9126-30 GUIDE 1-1 2 L1460 (L=261) 4-Holes
9
KHY-M9129-00 BELT 1,CONVEYOR 2 L1250 (L=2692)
KHY-M9129-10
BELT 1,CONVEYOR 1 L1460 (L=3111)
10 KHY-M912A-00 BRKT.,SENSOR 1
10-1 KHY-M912A-01 BRKT.,SENSOR 1 (2010/5/10) MG40138 OK
11 KHY-M9135-00 PLATE,EDGE 2 16
12 KHY-M9157-00 SHAFT,MOTOR 1
13 KG2-M9105-00 PULLEY 1,SPLINE 1
14 KG2-M9108-11 COLLAR,CONVEYOR 2
15 KHY-M9111-00 BRKT.1,SPLINE 1
16 KGA-M9113-00 GUIDE 1,END 2
17 KGA-M9114-00 GUIDE 2,END 2
18 KGK-M9170-00 DC MOTOR ASSY. 1
19 KGT-M9193-00 NUT PLATE 4
20 KGY-M9140-A0 PULLEY,CONV. ASSY 4
21 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2
22 KV1-M9140-A0 PULLEY CONV.ASSY. 4
23 KV7-M9140-A0 PULLEY CONV.ASSY. 2
24 90990-28J076 WASHER 2
25 91312-03006 BOLT HEX.SOCKET HEAD 16 M3X6
26 91312-03008 BOLT HEX.SOCKET HEAD 46 M3X8
27 91312-03010 BOLT HEX.SOCKET HEAD 8 M3X10
28 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
29 91312-04012 BOLT HEX.SOCKET HEAD 10 M4X12
30 91312-05020 BOLT HEX.SOCKET HEAD 2 M5X20
31 91317-04055 BOLT HEX.SOCKET HEAD 4 M4X55
32 92902-03200 WASHER PLAIN 16
33 92902-04200 WASHER PLAIN 3
34 92902-05200 WASHER PLAIN 8
35 92902-05600 WASHER PLAIN 4
36 92A08-04303 SET SCREW 4
37 98702-03005 SCREW FLAT HEAD 32
38 KH2-M9121-00 BEARING 1
39 91312-04006 BOLT HEX.SOCKET HEAD 2 M4X6
40
KHY-M9121-30 FRAME,CONVEYOR 2 L1250 (L=1250)
KHY-M9121-50 FRAME,CONVEYOR 2 L1460 (L=1460)
41
KHY-M9123-30 GUIDE 1 4 L1250 (L=226)
KHY-M9123-60 GUIDE 1 1 L1460 (L=331)
42
KHY-M9123-40 GUIDE 1 4 L1250 (L=226)
KHY-M9123-70 GUIDE 1 1 L1460 (L=331)
43 KHY-M9124-30 PLATE 1,GUIDE 2 L1250/1460 (L=749)
44 KHY-M9125-30 PLATE 2,GUIDE 2 L1250/1460 (L=875)
9
7

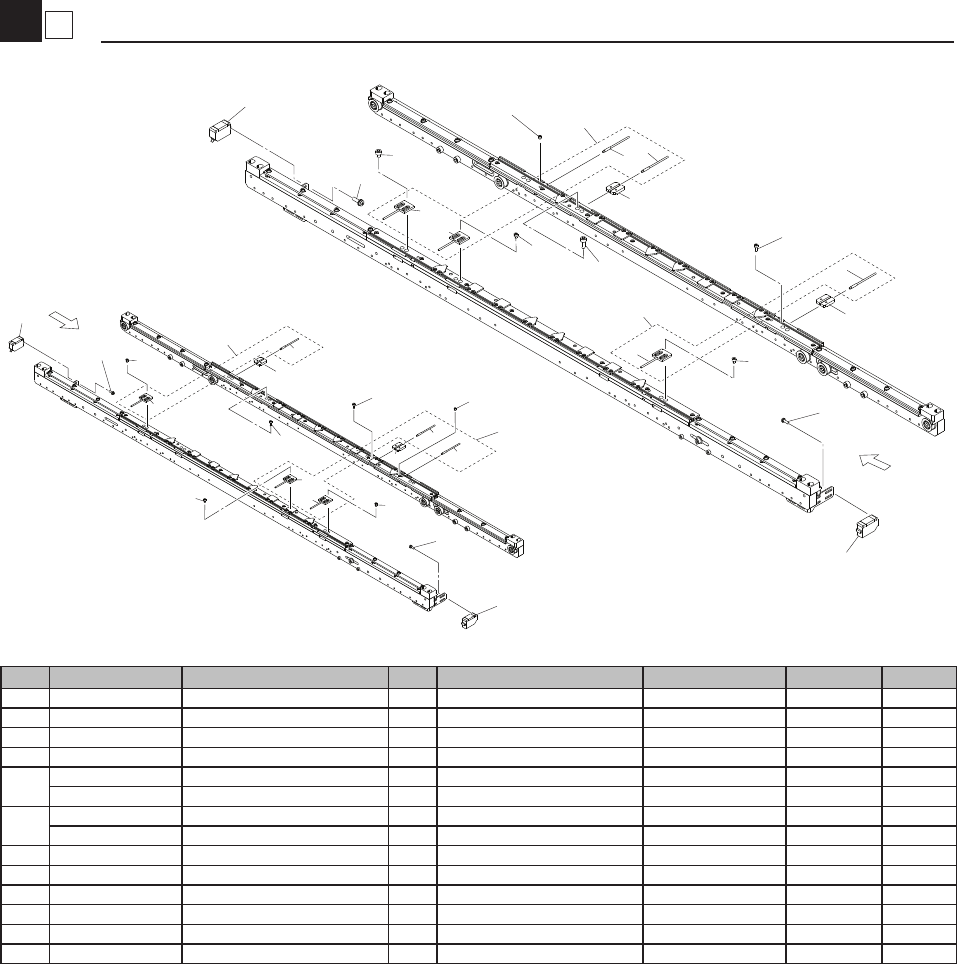

Sensor
Conveyor Unit
KHY/KJV-0807
2
5
9
2
8
10
7
3
4
8
7
6
6
5
4
2
3
7
8
8
10
7
7
10
9
1
1
1
1
1
2
1
1
1
1
1
1
1
7
10
L>R
R>L
All conveyor is the same.
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHM-M654C-01 SENSOR,FIBER 2 1 FIBER
2 KHW-M9157-00 HOLDER,SENSOR 2
3 KHY-M652J-00 SENSOR,ENT ASSY 1
3-1 KHY-M652J-10 SENSOR,ENT ASSY 1 (2017/1/12) MNX0125 OK
4
KHY-M652K-00 SENSOR,WAIT ASSY 1 FIBER & AMP
KHY-M652K-A0 SENSOR,AMP ASSY 1 AMP (E3X-DA41RM-S-17)
5
KHY-M652L-00 SENSOR,POS.1 ASSY 1 FIBER & AMP
KHY-M652L-A0 SENSOR,AMP ASSY 1 AMP (E3X-MDA41-17)
6 KHY-M652M-00 SENSOR,EXIT ASSY 1
6-1 KHY-M652M-10 SENSOR,EXIT ASSY 1 (2017/1/12) MNX0125 OK
7 91312-03004 BOLT HEX.SOCKET HEAD 6 M3X4
8 91312-03008 BOLT HEX.SOCKET HEAD 4 M3X8
9 92A08-03303 SET SCREW M3X3 1
10 97602-03310 SCREW,PAN HEAD W/W 4
