KHY_KJV_YS(G)12_PL.pdf - 第25页
1 5 Body Head / V ision Head KHY/KJV -1 11 1 1 14 4 3 16 15 15 19 15 16 15 18 30 37 27 38 21 40 26 29 28 39 19 18 18 32 34 23 36 34 33 18 34 35 36 36 35 35 22 13 18 7 19 2 19 18 8 15 5 6 19 19 15 15 16 16 16 12 10 24 28 …
4
4
Y-axis (BS Cover/Frame/Grease)
Moving-axis
KHY/KJV-1111
6
1
9
8
9
7
18
16
13
23
23
21
19
13
21
11
14
15
6
1
22
24
12
2
11
9
5
11
30
27
30
29
28
29
27
14
12
4
28
25
25
26
25
22
12
11
14
3
2
8
11
9
5
11
14
7
21
17
OLD
OLD
11
14
11
14
11
14
11
14
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M26C1-00 COVER TOP,BALL SCREW 1 12 holes M4x6
1-1 KHY-M26C1-01 COVER TOP,BALL SCREW 1 9 holes M5x8 (2011/4/19) MH40007 NG
2 KHY-M26C2-00 COVER1,BALL SCREW 2 H=31mm
2-1 KHY-M26C2-01 COVER1,BALL SCREW 2 H=35mm (2008/11/19) MEX0027 NG
3 KHY-M26C3-00 COVER2,BALL SCREW 1
4 KHY-M26C4-00 COVER3,BALL SCREW 1
5 KHY-M26C5-00 HEX. POST 6
6 KHY-M26C6-00 BRKT. 2R,COVER Y 1
6-1 KHY-M26C6-01 BRKT. 2R,COVER Y 1 (2011/4/19) MH40007 NG
7 KHY-M26C7-00 BRKT. 2L,COVER Y 1
7-1 KHY-M26C7-01 BRKT. 2L,COVER Y 1 (2011/4/19) MH40007 NG
8 KHY-M26C8-00 COVER TOP L,BS 1 12 holes M4x6
8-1 KHY-M26C8-01 COVER TOP L,BS 1 9 holes M5x8 (2011/4/19) MH40007 NG
9 KHY-M2655-00 BRKT. COVER Y AXIS 2
9-1 KHY-M2655-01 BRKT. COVER Y AXIS 2 (2011/4/19) MH40007 NG
10 91312-04006 BOLT HEX.SOCKET HEAD 20 M4X6
10-1 Delete (2011/4/19) MH40007 NG
11 91312-05008 BOLT HEX.SOCKET HEAD 26 M5X8
11-1 91312-05008 BOLT HEX.SOCKET HEAD 30 M5X8 (2011/4/19) MH40007 OK
12 91312-06010 BOLT HEX.SOCKET HEAD 20 M6X10
13 92902-04200 WASHER PLAIN 31
13-1 92902-04200 WASHER PLAIN 11 (2011/4/19) MH40007 OK
14 92902-05200 WASHER PLAIN 14
14-1 92902-05200 WASHER PLAIN 24 (2011/4/19) MH40007 OK
15 90172-00J050 WASHER,EXTL.TOOTHED 8
16 KHY-M26F1-00 FRAME 1 1
16-1 KHY-M26F1-01 FRAME 1 1 (2008/12/12) MEY0048 NG
17 KHY-M26F2-00 FRAME 2 1
17-1 KHY-M26F2-01 FRAME 2 1 (2008/12/12) MEY0048 NG
18 KHY-M26F4-01 DUCT,HARNESS 1
19 KHY-M2694-01 BRACKET 1,GUIDE 1
20
21 91312-04008 BOLT HEX.SOCKET HEAD 13 M4X8
22 92902-06200 WASHER PLAIN 16
23 90172-00J040 WASHER,EXTL.TOOTHED 11
24 90172-00J060 WASHER,EXTL.TOOTHED 16
25 KHY-M266A-00 PLATE,PIPE R 1
25-1 KHY-M266A-01 PLATE,PIPE 2 (2010/3/26) MG30119 OK
26 KHY-M266B-00 PLATE,PIPE L 1
26-1 Delete (2010/3/26) MG30119
27 KHY-M266C-00 BLOCK,JOINT 2
28 KHY-M266D-00 JOINT 2
29 KHY-M266E-00 JOINT 2
30 KHN-M22AD-00 GREASE NIPPLE 2
1
5

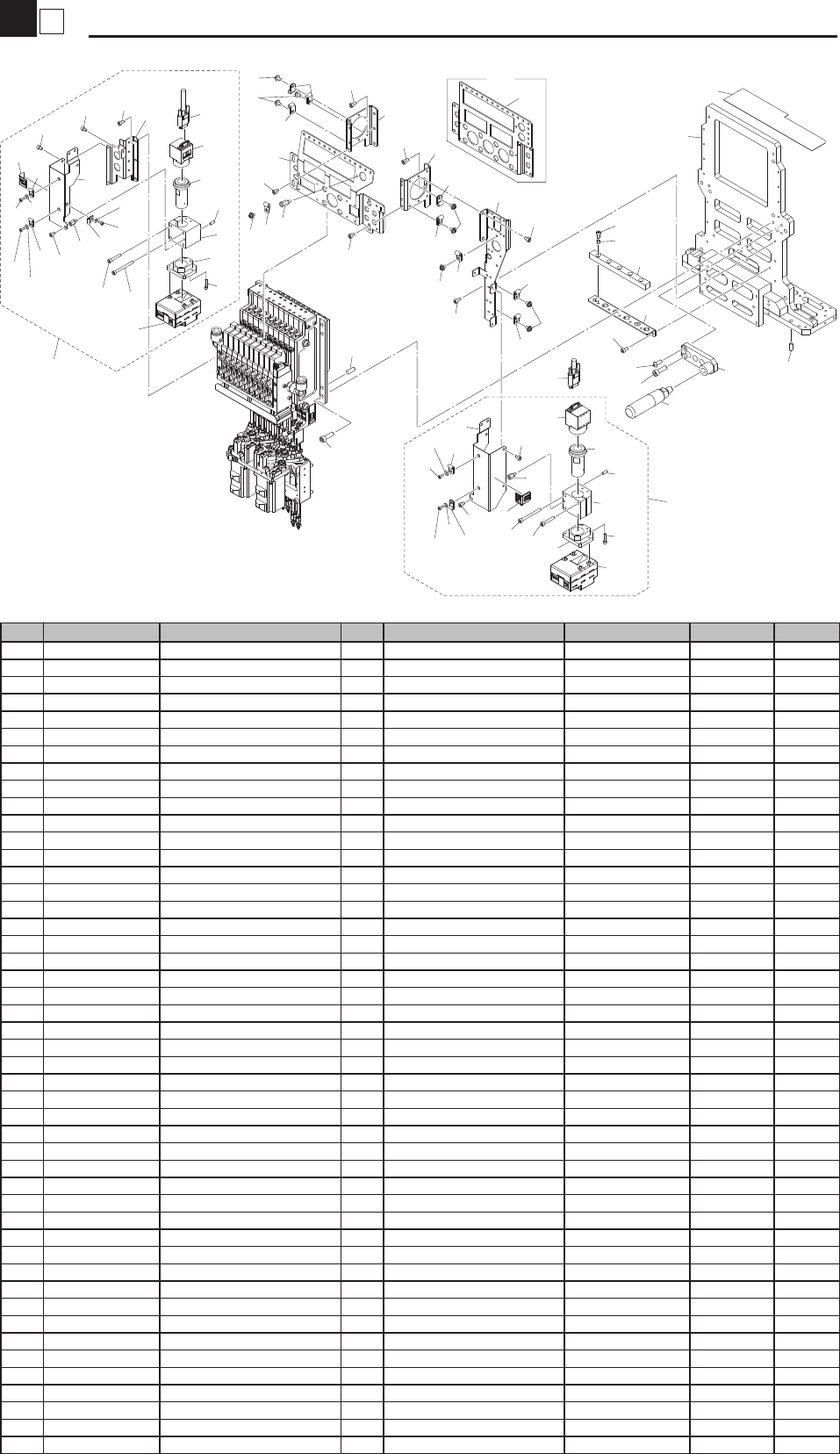

Body Head / Vision
Head
KHY/KJV-1111
1
14
4
3
16
15
15
19
15
16
15
18
30
37
27
38
21
40
26
29
28
39
19
18
18
32
34
23
36
34
33
18
34
35
36
36
35
35
22
13
18
7
19
2
19
18
8
15
5
6
19
19
15
15
16
16
16
12
10
24
28
18
27
40
32
38
18
34
35
36
29
33
31
34
35
36
14
13
26
37
25
30
17
20
41
16
15
43
OLD
7
42
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M7103-00 PLATE,HEAD 1
2 KHY-M7117-00 STOPPER 1
3 KHY-M7118-00 PLATE,STOPPER 1
4 KHY-M7141-00 STAY,HANDLE 1
5 KHY-M71C1-00 BRACKET,RIGHT 1
6 KHY-M71C2-00 BRACKET,LEFT 1
7
KHY-M71C3-00 STAY,EJECTOR
1
7-1 KHY-M71C3-01 STAY,EJECTOR 1 (2009/2/26) MF20098 OK
8 KHY-M71C5-00 BRACKET,CABLE 1
8-1 KHY-M71C5-01 BRACKET,CABLE 1 (2010/1/8) MFY0063 OK
9
10 KGS-M2256-00 GRIP 1
11
12 90990-41J123 COLLAR 5
13 99480-04010 PIN PARALLEL: 4X10 6
14 99480-06014 PIN,PARALLEL 4
15 $NK-3N NYLON CLIP 11
16 90990-11J003 SCREW,PAN HEAD W/W 11
17 92012-05014 BOLT BUTTON HEAD 2 M5X14
18 91312-04006 BOLT HEX.SOCKET HEAD 14 M4X6
19 91312-04008 BOLT HEX.SOCKET HEAD 20 M4X8
20 91312-06020 BOLT HEX.SOCKET HEAD 4 M6X20
21 KHY-M71B0-L0 VISION ATTACHMENT L 1
22 KHY-M71C7-00 STAY,LEFT 1
23 KHY-M71C8-00 COVER,CAMERA L 1
23-1 KHY-M71C8-01 COVER,CAMERA L 1 (2009/12/17) MFY0065 OK
24 KHY-M66K3-00 HNS,FID1 CAMERA 1
25 KHY-M71B0-R0 VISION ATTACHMENT R 1
26 KHY-M71B1-00 HOLDER,CAMERA 2
27 KHY-M71B2-00 SATY,FID.LIGHT 2
28 KHN-M7210-01 CCD CAMERA 2
29 KHY-M7211-00 LENS FID. 2
30 KHN-M7600-00 FIDUCIAL LIGHT ASSY. 2
31 KHY-M71C6-00 COVER,CAMERA R 1
31-1 KHY-M71C6-01 COVER,CAMERA R 1 (2009/12/17) MFY0065 OK
32 KV7-M7165-00 SEAL DON'T TOUCH 2
33 90563-04J100 SPACER BOLT 2
34 $NK-2N NYLON CLIP 5
35 92902-03200 WASHER PLAIN 5
36 91312-03006 BOLT HEX.SOCKET HEAD 5 M3X6
37 91312-03016 BOLT HEX.SOCKET HEAD 4 M3X16
38 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25
39 KHY-M66K3-10 HNS,FID2 CAMERA 1
40 91312-04045 BOLT HEX.SOCKET HEAD 4 M4X45
41 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14
42 KHY-M7109-00 TAPE PLATE 1
43 90563-04150 SPACER BOLT 1
2
5

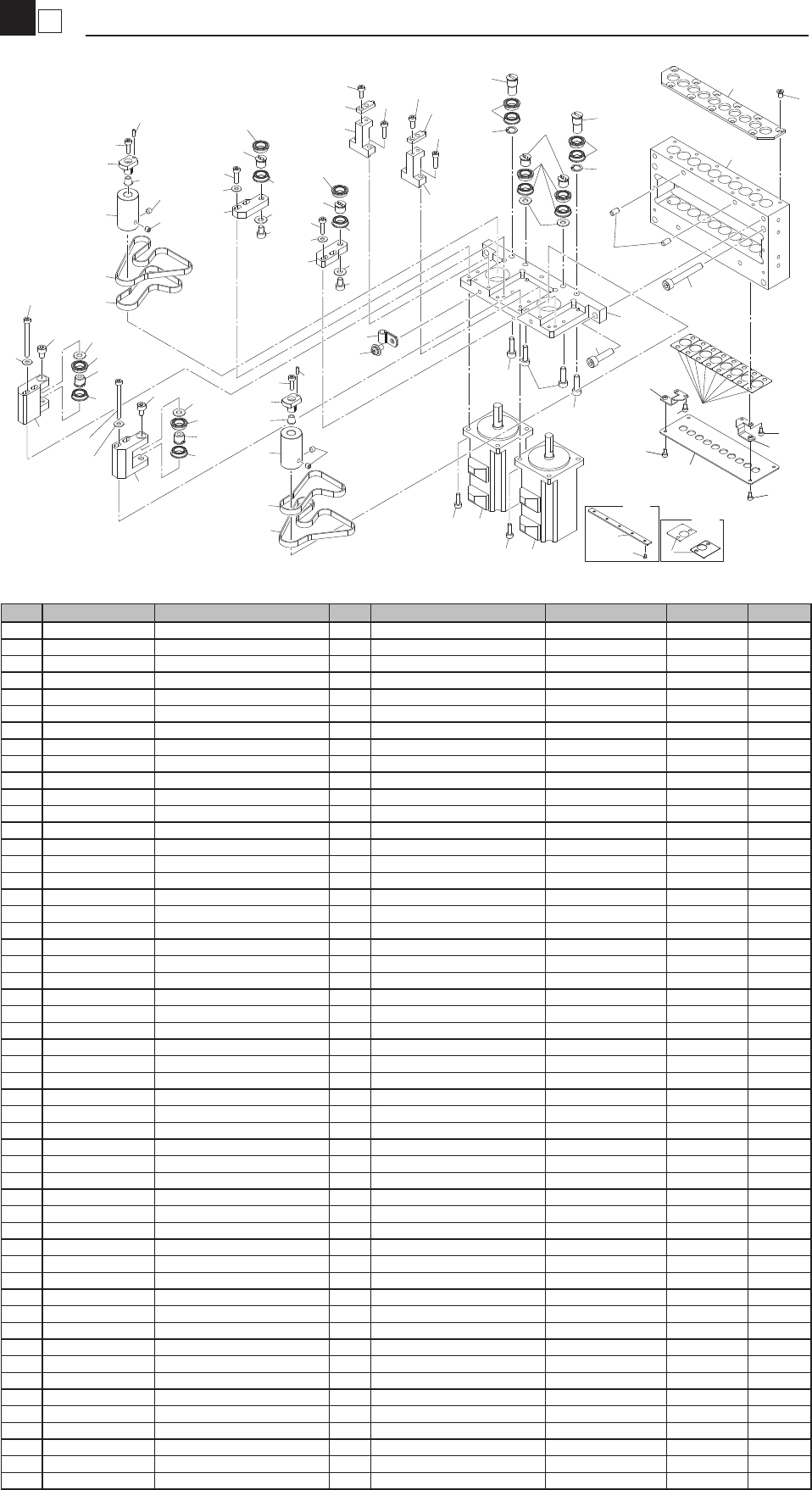

Body Head Sub
Head
KHY/KJV-1111
35
36
29
24
23
32
32
18
34
34
10
10
2
1
6
23
25
20
23
29
23
25
9
18
9
20
23
29
36
27
31
37
22
37
21
38
38
8
26
OLD
4
3
39
7
38
34
28
12
23
20
23
29
36
34
28
11
33
17
16
19
30
24
33
17
16
15
14
15
14
19
30
30
23
23
20
35
28
28
13
36
29
23
23
20
13
5
5
5
41
40
42
5
43
44
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M7101-00 HOUSING,HEAD 1
2 KHY-M7113-00 PLATE 2,BRG. 1
3 KHY-M7114-00 PLATE 3,BRG. 10
4 KHY-M711B-00 PLATE 4,BRG. 2
4-1 Delete (2009/12/22) MFY0106
5 90990-01J040 BOLT HEX.SOCKET HEAD 20
5-1 91312-03006
BOLT HEX.SOCKET HEAD 20
(2010/4/28) MG40130
OK
6 98702-03006 SCREW FLAT HEAD 11
7 91317-05035 BOLT HEX.SOCKET HEAD 4 M5X35
8 KHY-M7102-00 PLATE,R MOTOR 1
9 KHY-M7125-00 BRACKET,STOPPER 2 BLACK
9-1 KHY-M7125-01 BRACKET,STOPPER 2 WHITE MF70027 SET
10 KHY-M7126-00 SHAFT 2,TENSION 2
11 KHY-M7127-00 BLOCK 1,ADJUST 1
12 KHY-M7128-00 BLOCK 2,ADJUST 1
13 KHY-M7129-00 BLOCK 3,ADJUST 2
14 KHY-M7131-00 BELT 1 2
15 KHY-M7132-00 BELT 2 2
16 KHN-M7131-00 PULLY R MOTOR 2
17 KHN-M7132-00 BLOCK1 STOPPER 2
18 KHN-M7139-00 STOPPER R 2
19 KGV-M7157-00 BLOCK2,STOPPER R 2
20 KV8-M7115-00 SHAFT 1,TENSION 6
21 90K21-038011 AC SERVO MOTOR 1
22 90K21-037512 AC SERVO MOTOR 1
23 90933-03J128 BEARING 16
23-1 90990-25J016 BEARING 16 (2011/10/28) MH00044 OK
24 90990-19J016 NEEDLE,PIN 2
25 99009-07800 CIRCLIP : 2
26 99480-04008 PIN,PARALLEL:4X8 2
27 $NK-3N NYLON CLIP 1
28 92902-03200 WASHER PLAIN 8
29 92902-04200 WASHER PLAIN 6
30 92A08-04304 SET SCREW M4X4 4
31 90990-11J003 SCREW,PAN HEAD W/W 1
32 91312-03008 BOLT HEX.SOCKET HEAD 4 M3X8
32-1 Delete MF70027 SET
33 91312-03010 BOLT HEX.SOCKET HEAD 2 M3X10
34 91312-03012 BOLT HEX.SOCKET HEAD 8 M3X12
34-1 91312-03012 BOLT HEX.SOCKET HEAD 12 M3X12 MF70027 SET
35 91312-03035 BOLT HEX.SOCKET HEAD 4 M3X35
36 91312-04006 BOLT HEX.SOCKET HEAD 4 M4X6
37 91317-03010 BOLT HEX.SOCKET HEAD 8 M3X10
38 91317-04014 BOLT HEX.SOCKET HEAD 4 M4X14
39 91317-05020 BOLT HEX.SOCKET HEAD 2 M5X20
40 KKE-M7133-00 SHEET, SCREEN 1 After Jan.2010 (2009/12/22) MFY0106 NG
41 KKE-M7134-00 PLATE, SCREEN 2 After Jan.2010 (2009/12/22) MFY0106 NG
42 KKE-M7135-00 PLATE, SCREEN 2 After Jan.2010 (2009/12/22) MFY0106 NG
43 KHY-M71CB-00 COVER,BASE 1
43-1 Delete (2009/12/22) MFY0106
44 90990-09J007 SCREW,FLAT HEAD 5
44-1 Delete (2009/12/22) MFY0106
