KHY_KJV_YS(G)12_PL.pdf - 第53页
1 1 1 Set Up ST on MC FDR KHY/KJV -1 11 1 OLD OLD 10 9 19 18 17 12 21 24 34 43 34 43 34 43 31 33 29 29 30 26 43 34 28 31 33 43 34 27 40 40 6 7 3 25 40 38 38 39 43 42 20 22 13 15 35 39 43 42 16 40 23 8 36 35 40 40 32 41…
10
10

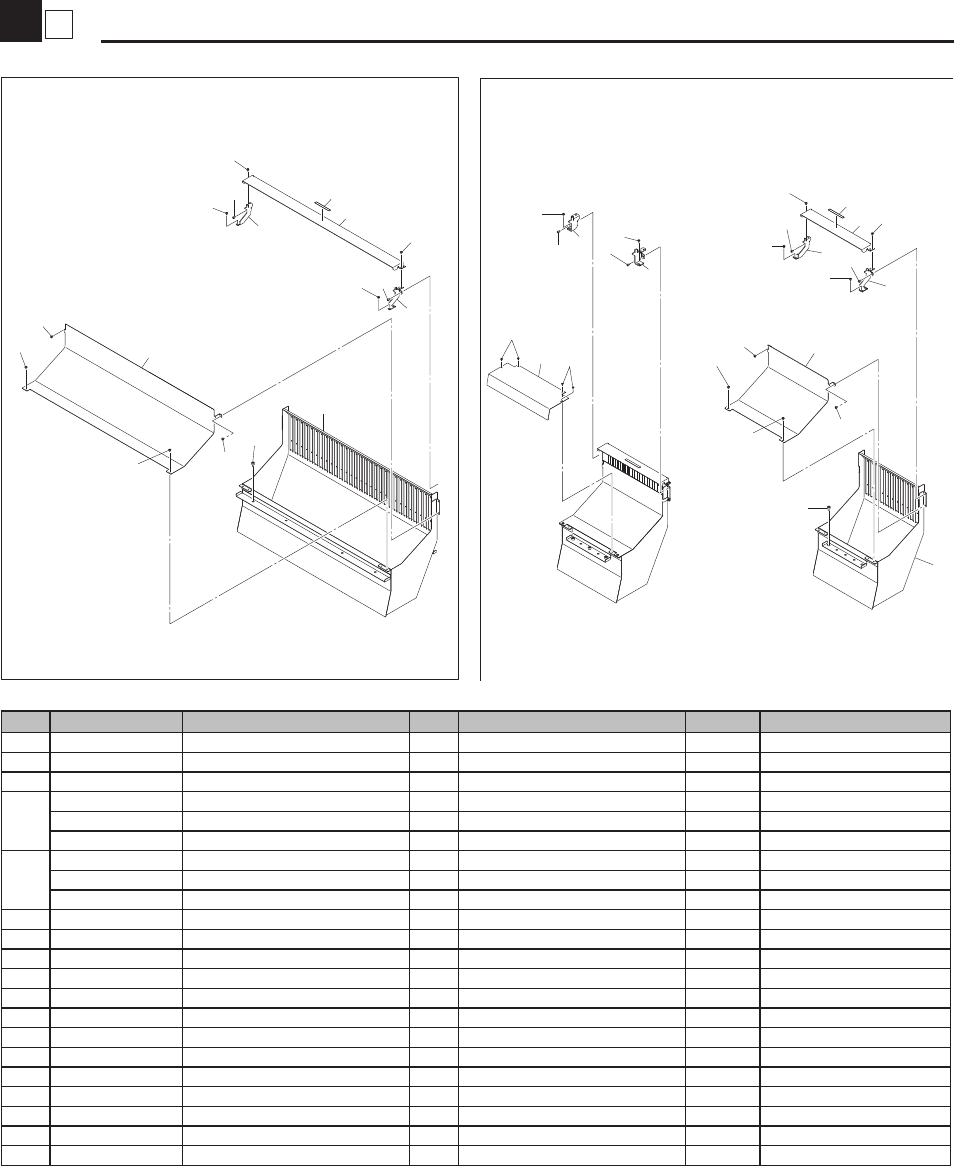

Non Tape Cutter (New Type)
Tape Cutter
KHY/KJV-1111
1
17
7
17
17
7
10
17
16
16
17
17
12
13
17
17
17
9
8
17
17
17
15
15
4
17
17
17
17
17
5
18
18
6
17
16
16
3
2
16
16
FIX60
FIX24
FES24
14
11
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M3T51-00 UPPER COVER 2.288 2
2 KHY-M3T52-00 FES STAY. L 1
3 KHY-M3T52-10 FES STAY. R 1
4
KHY-M3U01-02 UPPER COVER 1.288 2 OK MH60107-2011/6/24
KHY-M3U01-01 UPPER COVER 1.288 2 OK MH50098-2011/6/3
KHY-M3U01-00 UPPER COVER 1.288 2
5
KHY-M3U02-02 SLOPE COVER 288 2 OK MH60107-2011/6/24
KHY-M3U02-01 SLOPE COVER 288 2 OK MH50098-2011/6/3
KHY-M3U02-00 SLOPE COVER 288 2
6 KHY-M3U03-00 BASE COVER 1
7 60K41-000240 SEAL DON’T TOUCH 2
8 KHY-M3T52-20 FES STAY. L 2
9 KHY-M3T52-30 FES STAY. R 2
10 KHY-M3T51-20 UPPER COVER 2.720 1
11 KHY-M3T52-40 FES STAY. L 1
12 KHY-M3T52-50 FES STAY. R 1
13 KHY-M3U01-20 UPPER COVER 1.720 2
14 KHY-M3U02-20 SLOPE COVER 720 2
15 91312-06010 BOLT HEX. SOCKET HEAD 10 M6X10
16 91312-04006 BOLT HEX. SOCKET HEAD 16 M4X6
17 98902-04006 SCREW BINDING HEAD 38
18 98902-03006 SCREW BINDING HEAD 4
1
11
Set Up ST on MC
FDR
KHY/KJV-1111
OLD
OLD
10
9
19
18
17
12
21
24
34
43
34
43
34
43
31
33
29
29
30
26
43
34
28
31
33
43
34
27
40
40
6
7
3
25
40
38
38
39
43
42
20
22
13
15
35
39
43
42
16
40
23
8
3635
40
40
32
41
5
3637
37
11
3637
1
4
2
14
31
33
11
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHJ-MD101-00 FEEDER PLATE 1
2 KHJ-MD102-00 SIDE PLATE, L 1
3 KHJ-MD103-00 SIDE PLATE, R 1
4 KHJ-MD104-00 CLAMP PLATE 1. 1
5 KHJ-MD105-00 FEEDER STOPPER 1
6 KHJ-MD106-00 CONNECTOR PLATE 1
7
KHJ-MD107-00
UNDER COVER 1
8 KHJ-MD108-00 BACK COVER 1
9 KHJ-MD109-00 SWITCH COVER 1
10 KHJ-MD110-00 LABEL, PITCH 1
11 KHJ-MD111-00 RAIL GUIDE 1
11-1 KHJ-MD111-01 RAIL GUIDE 1 (2008/7/22) ME70163 NG
12 KHJ-MD112-00 GROMMET 1
13 KHY-M379K-00 LABEL, LED POSI. 1
14 KHJ-M4484-01 FDR. ST. BOARD ASSY 1
14-1 KHJ-M4484-02 FDR. ST. BOARD ASSY 1 (2009/6/4) MF60008 OK
15 KHJ-M4486-00 PITCH LED BOARD ASSY 1
16 KHJ-M663B-10 HNS, PITCH LED 1
17 KHJ-M663C-10 HNS, PITCH UP 1
18 KHJ-M663D-10 HNS, PITCH DOWN 1
19 KHJ-M663E-10 HNS, PITCH SET 1
20 KHY-M66TE-00 HNS, F. CTRL-FDR. 1
21 KHY-M66RK-00 HNS, FDR. ST. 1
22 KHY-M372M-00 SCREW, STAD 2
23 KHJ-MD113-00 PROTECT,CONNECTOR 1
24 KHJ-MD114-00 PIN,HUNG L 1
25 KHJ-MD115-00 PIN,HUNG R 1
26 KHJ-MD120-00 REELHOLDER EQUIP. 1
27 KHJ-MD121-01 SIDE PLATE,L 1
27-1 KHJ-MD121-02 SIDE PLATE,L 1 (2011/2/24) MH20072 OK
28 KHJ-MD122-01 SIDE PLATE,R 1
29 KHJ-MD123-00 SHAFT 3
30 KHJ-MD12A-00 PARTITION ASSY 1
30-1 Delete (2011/2/24) MH20072
31 KHJ-MD210-00 FOOT 6
32 91312-03006 BOLT HEX.SOCKET HEAD 2
33 91312-03008 BOLT HEX.SOCKET HEAD 6
34 91312-06010 BOLT HEX.SOCKET HEAD 8
34-1 91312-06010 BOLT HEX.SOCKET HEAD 6 (2011/2/24) MH20072 OK
35 98902-03004 SCREW BINDING HEAD 6
36 98902-03006 SCREW BINDING HEAD 10
36-1 Delete (2011/6/15) MH60058
37 98902-03008 SCREW BINDING HEAD 7
38 98902-04006 SCREW BINDING HEAD 5
39 98902-06010 SCREW BINDING HEAD 4
40 90990-12J001 SCREW BIN.HEAD W/W 16
41 98702-03005 SCREW FLAT HEAD 4
42 90172-00J060 WASHER,EXTL.TOOTHED 4
43 92902-06200 WASHER PLAIN(N) 12
43-1 92902-06200 WASHER PLAIN(N) 10 (2011/2/24) MH20072 OK
2
11
FDR Power ST
FDR
KHY/KJV-1111
12
20
34
19
16
33
35>33
33
35>33
30
23
6
29
27
37
34
2
10
9
31
3
8
13
28
14
7
33
33
21
33
32
18
22
5
1
1 1
33
33
15
24
17
35
25
26
4
34
33
36
34
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHJ-MD201-00 FEEDER PLATE 1
2 KHJ-MD202-00 SIDE PLATE, L 1
3 KHJ-MD203-00 SIDE PLATE, R 1
4 KHJ-MD204-00 CLAMP PLATE 1
5 KHJ-MD205-00 FEEDER STOPPER 1
6 KHJ-MD206-00 CONNECTOR PLATE 1
7 KHJ-MD207-00 UNDER COVER 1
8 KHJ-MD208-00 BACK COVER 1
9 KHJ-MD209-00 BASE PLATE 1
10 KHJ-MD210-00 FOOT 4
11 KHJ-MD211-00 RAIL GUIDE 1
11-1 KJJ-M371R-00 RAIL GUIDE 16P 1 (2008/6/11) ME60083 OK
12 KHJ-MD212-00 BKT. SWITCH 1
13 KHJ-MD213-00 REEL HOLDER, FIX. 1
14 KHJ-MD214-00 REEL HOLDER, MOVE 1
15 KHJ-MD110-00 LABEL, PITCH 1
16 KHJ-M4484-01 FDR. ST. BOARD ASSY 1
16-1 KHJ-M4484-02 FDR. ST. BOARD ASSY 1 (2009/6/4) MF60008 OK
17 KHJ-M4486-00 PITCH LED BOARD ASSY 1
18 KJ3-M6511-00 CIRCUIT PROTECTOR, 1 1
19 KHJ-M537A-00 NOISE FILTER 1
20 KHJ-M6561-10 POWER SUPPLY 1 1 (2008/6/3) ME60010
21 KHJ-M661B-00 HNS, AC IN 2 1
21-1 KHJ-M661B-01 HNS, AC IN 2 1 (2008/9/17) ME90041 OK
22 KHJ-M662A-00 HNS, CP DC24V 1
23 KHJ-M662B-00 HNS, LAMP 1
24 KHJ-M663C-00 HNS, PITCH UP 1
25 KHJ-M663D-00 HNS, PITCH DOWN 1
26 KHJ-M663E-00 HNS, PITCH SET 1
27 KHY-M66TE-00 HNS, F. CTRL-FDR. 1
28 KJ3-M661A-00 HNS, AC IN 1 1
28-1 KJ3-M662A-00 HNS, AC IN 1 1 (2009/3/16) MF30081 OK
29 KHY-M372M-00 SCREW, STAD 2
30 90563-23J100 SPACER BOLT 4
30-1 90563-03J100 SPACER BOLT 4 (2008/2/25) ME20194 OK
31 92902-03200 WASHER, PLAIN 4
32 98902-03004 SCREW, BINDING HEAD 4
33 98902-03005 SCREW, BINDING HEAD 28
34 98902-04006 SCREW, BINDING HEAD 10
35 97602-03304
SCREW, PAN HEAD W/WASHER
8
35-1 Delete (2008/7/9) ME70053
36 98702-03006 SCREW, FLAT HEAD 8
37 91312-03008 BOLT HEX. SOCKET HEAD 4 M3X8
