KHY_KJV_YS(G)12_PL.pdf - 第31页
2 6 Nozzle Changer Nozzle KHY/KJV -1 11 1 1 5 2 6 33 33 35 35 35 36 36 36 36 35 35 34 65 1 34 34 8 7 37 6 26 26 9 10 29 18 30 30 1 1 12 14 OLD 15 17 13 19 22 32 20 20 21 31 31 16 18 23 38,39 25 24 24 27 28 57 57 47 46 59…

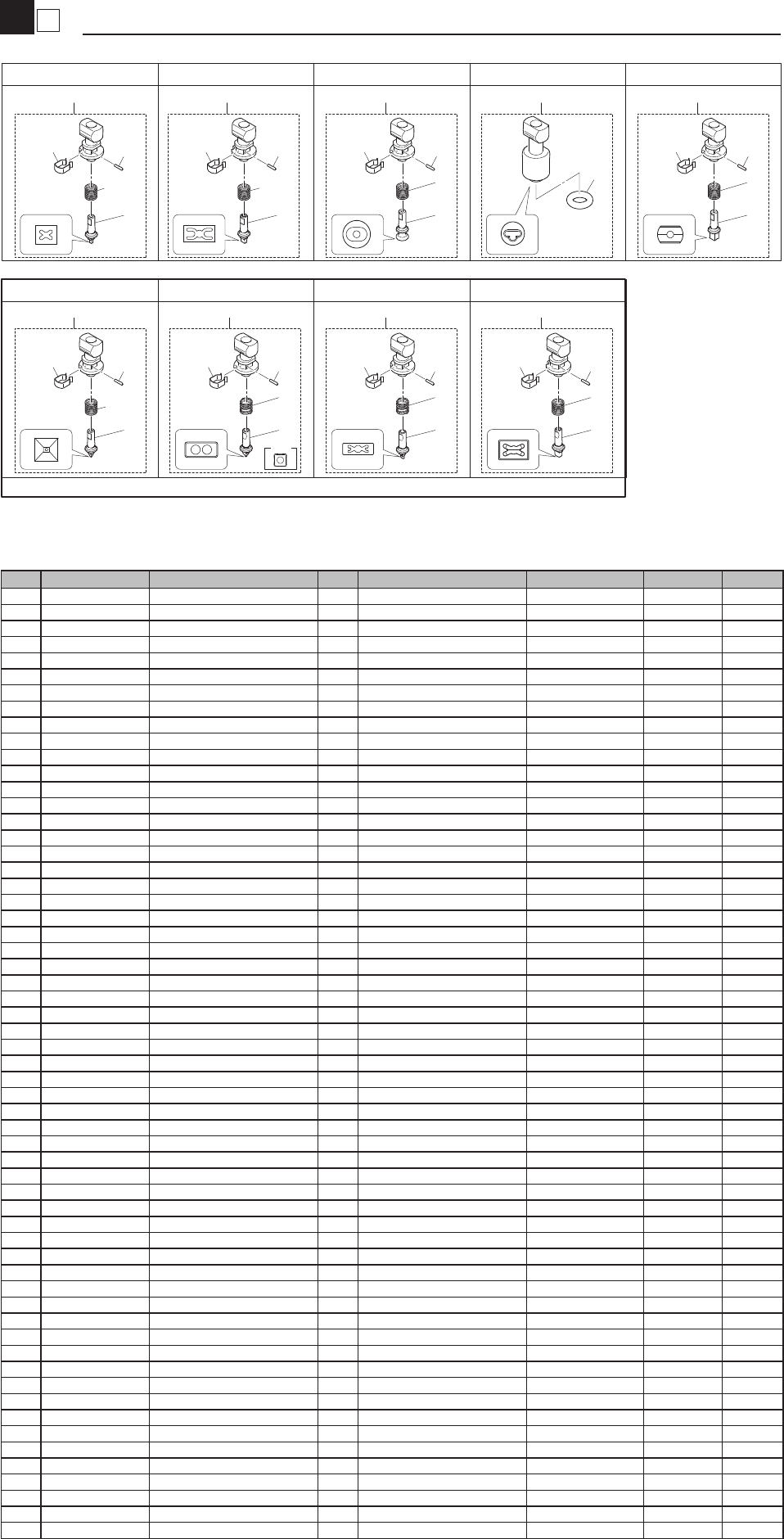

1
6
Nozzle
Nozzle
KHY/KJV-1201
OLD
NOZZLE 312A ASSY NOZZLE 313A ASSY NOZZLE 310A ASSY NOZZLE 311A ASSY
19
6
20
5
22
24
6
23
5
25
24
6
26
5
28
4
6
29
5
NOZZLE 301A ASSY
15
NOZZLE 302A ASSY NOZZLE 303A/314A ASSY NOZZLE 304A/315A ASSY NOZZLE 306A/317A ASSY
1
4>30
6
2
5
7
4>31
6
8
5
10 13
4
6
11
5
16
4
6
17
5
Narrow adjacent Type
4>31
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHN-M7710-A1 NOZZLE 301A ASSY. 1
1-1 KHN-M7710-A2 NOZZLE 301A ASSY. 1 (2009/10/1) MF90155 OK
1-2 KHN-M7710-A3 NOZZLE 301A ASSY. 1 (2010/7/8) MG60126 OK
1-3 KHN-M7710-A4 NOZZLE 301A ASSY. 1 TYPE 301A (2011/11/25) MHX0059 OK
2 KHN-M7711-01 BODY,NOZZLE 1 1
2-1 KHN-M7711-02 BODY,NOZZLE 301 1 (2009/1/6) MEY0134 OK
2-2 KHN-M7711-03 BODY,NOZZLE 301 1 (2009/10/1) MF90155 OK
2-3 KHN-M7711-04 BODY,NOZZLE 301 1 (2010/7/8) MG60126 OK
2-4 KHN-M7711-05 BODY,NOZZLE 301 1 (2011/11/25) MHX0059 OK
3
4 KHN-M7713-00 SPRING 1 Black
5 KHN-M7714-00 PIN 1
6 KHN-M7715-00 CLIP 1
7 KHN-M7720-A1 NOZZLE 302A ASSY. 1
7-1 KHN-M7720-A2 NOZZLE 302A ASSY. 1 (2010/7/8) MG60126 OK
7-2 KHN-M7720-A3 NOZZLE 302A ASSY. 1 TYPE 302A (2011/11/25) MHX0059 OK
8 KHN-M7721-01 BODY,NOZZLE 2 1
8-1 KHN-M7721-02 BODY,NOZZLE 302 1 (2009/1/6) MEY0134 OK
8-2 KHN-M7721-03 BODY, NOZZLE 302 1 (2010/7/8) MG60126 OK
8-3 KHN-M7721-04 BODY, NOZZLE 302 1 (2011/11/25) MHX0059 OK
9
10 KHY-M7740-A0 NOZZLE 303A/314A ASSY. 1 TYPE 303A/314A
11 KHY-M7741-00 BODY,NOZZLE 303/314 1
12
13 KHY-M7750-A0 NOZZLE 304A/315A ASSY. 1 TYPE 304A/315A
14
15 90990-17J013 O-RING 5
15-1 90990-17J081 O-RING 5 (2015/4/27) MM30191 OK
16 KHY-M7770-A0 NOZZLE 306A/317A ASSY. 1 TYPE 306A/317A
17 KHY-M7771-00 BODY,NOZZLE 306/317 1
18
19 KHY-M77A0-A0 NOZZLE 310A ASSY. 1
TYPE 310A (Narrow adjacent Type)
20 KHY-M77A1-00 BODY,NOZZLE 310 1
21
22 KHY-M7710-A0 NOZZLE 311A ASSY. 1
22-1 KHY-M7710-A1 NOZZLE 311A ASSY. 1 (2008/11/09) MEX0013 OK
22-2 KHY-M7710-A2 NOZZLE 311A ASSY. 1 (2010/1/28) MFX0107 NG
22-3 KHY-M7710-A3 NOZZLE 311A ASSY. 1 (2010/7/8) MG60126 OK
22-4 KHY-M7710-A4 NOZZLE 311A ASSY. 1
TYPE 311A (Narrow adjacent Type)
(2011/11/25) MHX0059 OK
23 KHY-M7711-00 BODY,NOZZLE 311 1
23-1 KHY-M7711-01 BODY,NOZZLE 311 1 (2010/1/28) MFX0107 NG
23-2 KHY-M7711-02 BODY, NOZZLE 311 1
23-3 KHY-M7711-03 BODY, NOZZLE 311 1 (2011/11/25) MHX0059 OK
24 KHN-M7713-10 SPRING 1
25 KHY-M7720-A0 NOZZLE 312A ASSY. 1
25-1 KHY-M7720-A1 NOZZLE 312A ASSY. 1 (2008/11/09) MEX0013 OK
25-2 KHY-M7720-A2 NOZZLE 312A ASSY. 1 (2010/7/8) MG60126 OK
25-3 KHY-M7720-A3 NOZZLE 312A ASSY. 1
TYPE 312A (Narrow adjacent Type)
(2011/11/25) MHX0059 OK
26 KHY-M7721-00 BODY,NOZZLE 312 1
26-1 KHY-M7721-01 BODY,NOZZLE 312 1 (2010/7/8) MG60126 OK
26-2 KHY-M7721-02 BODY,NOZZLE 312 1 (2011/11/25) MHX0059 OK
28 KHY-M7730-A0 NOZZLE 313A ASSY. 1
28-1 KHY-M7730-A1 NOZZLE 313A ASSY. 1 (2010/7/8) MG60126 OK
28-2 KHY-M7730-A2 NOZZLE 313A ASSY. 1
TYPE 313A (Narrow adjacent Type)
(2011/11/25) MHX0059 OK
29 KHY-M7731-00 BODY,NOZZLE 313 1
29-1 KHY-M7731-01 BODY,NOZZLE 313 1 (2010/7/8) MG60126 OK
29-2 KHY-M7731-02 BODY,NOZZLE 313 1 (2011/11/25) MHX0059 OK
30 KHN-M7713-10 SPRING 1 White (Same as No.24) (2011/3/9) MH30013 OK
31 KHN-M7713-10 SPRING 1 White (Same as No.24) (2011/9//7) MH90007 OK

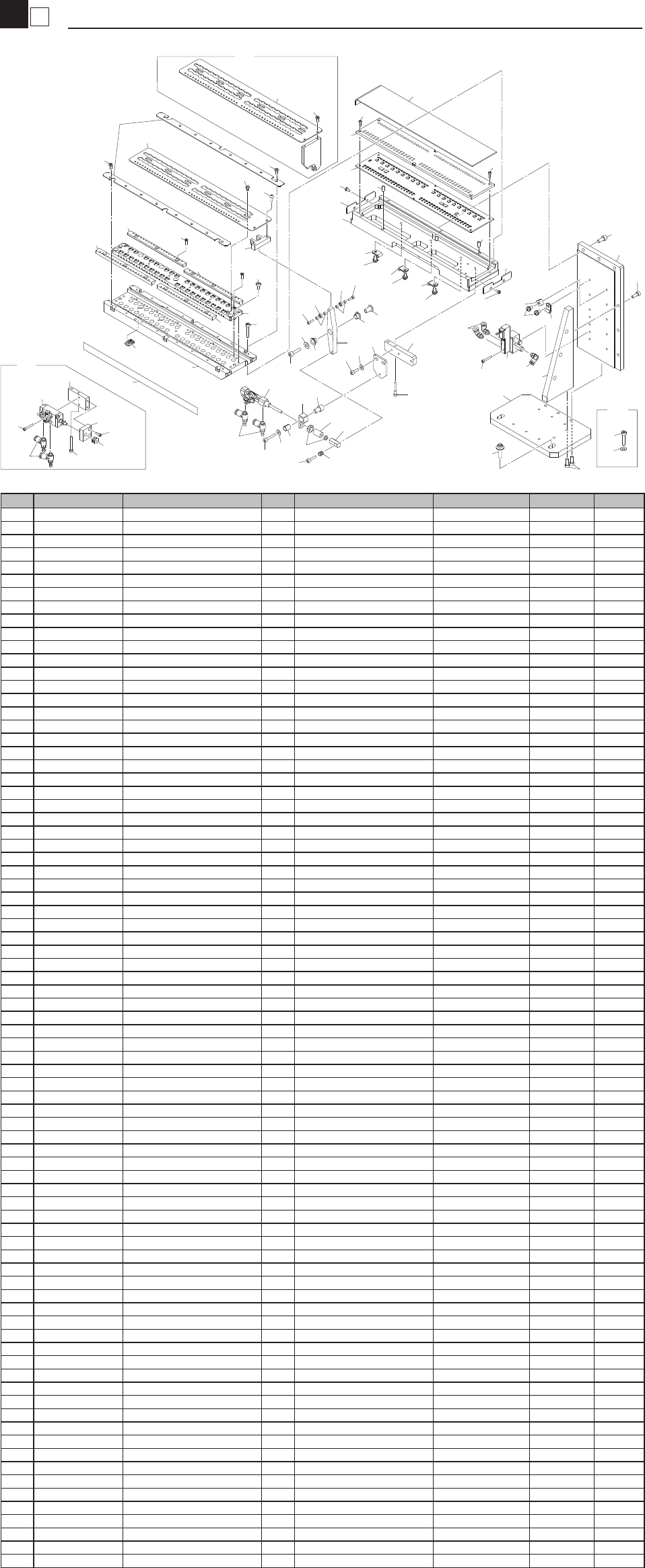

2
6
Nozzle Changer
Nozzle
KHY/KJV-1111
1
5
2
6
33
33
35
35
35
36
36
36
36
35
35
34
65
1
34
34
8
7
37
6
26
26
9
10
29
18
30
30
11
12
14
OLD
15
17
13
19
22
32
20
20
21
31
31
16
18
23
38,39
25
24
24
27
28
57
57
47
46
59
54
61
63
51
42
42
52
53
60
49
48
44
63
58
45
43
50
64
62
50
55
56
56
55
24
24
4
3
40
OLD
40
41
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M9607-00 PLATE,CLAMP 1
1-1 KHY-M9607-10 PLATE,CLAMP 1
2 KHY-M9608-00 PIN,SLIDE 6
3 KHY-M9609-00 PLATE,JOINT,CYL. 1
3-1 KHY-M9630-00 HOOK, BEARING 1
4 KHY-M9610-01 BOARD,CLEAR 1
5 KHY-M9611-00 SHEET,GUIDE,CLAMP 2
6 KHY-M9612-00 SHEET,SIDE 2
7 KHY-M9622-00 PLATE,SHIELD,LED 1
7-1 KHY-M9622-01 PLATE,SHIELD,LED 1 (2008/11/17) MEX0046 OK
7-2 KHY-M9622-02 PLATE,LED,SHIELD 1 (2009/4/9) MF30150 OK
7-3 KHY-M9622-03 PLATE,LED,SHIELD 1 (2009/4/16) MF40047 OK
8 KHY-M9603-00 HOLDER,BOTTOM,IN. 1
9 KHY-M9616-01 PLATE,STAND,ANC 1
10 KHY-M9617-00 PLATE,RIB,ANC 1
11 KHY-M9618-00 PLATE,BASE,ANC 1
12 KHY-M652G-00 CYLINDER,ANC ASSY 1
12-1 Delete (2008/10/01) H012224
13 KGS-M9604-00 JOINT CYL. 1
13-1 Delete (2008/10/01) H012224
14 KHN-M9613-50 BLOCK,CYLINDER 1
14-1 Delete (2008/10/01) H012224
15 KHN-M9614-50 BLOCK,CYL.,STOPPER 1
15-1 Delete (2008/10/01) H012224
16 $SC4-M5A SPEED CONTROLLER 2
17 91312-03008 BOLT HEX.SOCKET HEAD 2 M3X8
17-1 Delete (2008/10/01) H012224
18 91312-03020 BOLT HEX.SOCKET HEAD 2 M3X20
18-1 Delete (2008/10/01) H012224
19 91312-03030 BOLT HEX.SOCKET HEAD 2 M3X30
19-1 Delete (2008/10/01) H012224
20 91312-04012 BOLT HEX.SOCKET HEAD 8 M4X12
21 91312-05012 BOLT HEX.SOCKET HEAD 3 M5X12
22 KHY-M9601-00 NOZZLE HOLDER,IN. 1
22-1 KHY-M9601-01 NOZZLE HOLDER,IN. 1 (2008/6/19) ME60178 OK
23 KHY-M9602-00 BASE,NOZZLE HOLDER 1
23-1 KHY-M9602-01 BASE,NOZZLE HOLDER 1 (2008/6/19) ME60178 OK
24 KHY-M9606-00 MIRROR,SIDE 4
25 KHY-M9621-A0 BASE,NOZZLE D ASSY. 2
26 KHN-M9623-50 PIN 2
27 98702-03010 SCREW FLAT HEAD (+) 12
28 91312-04008 BOLT HEX.SOCKET HEAD 5 M4X8
29 KHN-M9619-50 VALVE 1
30 $TL4-M5M JOINT 3
31 90112-2AJ008 BOLT HEX.SOCKET HEAD 6
32 91312-04022 BOLT HEX.SOCKET HEAD 6 M4X22
33 98902-03006 SCREW BINDING HEAD 4
34 98902-03008 SCREW BINDING HEAD 18
35 $NK-2N NYLON CLIP 5
36 97602-04308 SCREW,PAN HEAD W/W 5
37 KHY-M45BA-00 ANC CTRL BOARD ASSY 1
37-1 KHY-M45BA-01 ANC CTRL BOARD ASSY 1 (2009/1/9) MF10004 OK
38 KHY-M9656-00 LABEL,A.N.C.30X 1 STD
39 KHY-M9656-10 LABEL,A.N.C.31X 1 Adjacent Nozzle
40 91312-06020 BOLT HEX.SOCKET HEAD 2 M6X20
40-1 90990-32J005 BOLT,FLANGE 2 M6X20 (2015/3/16) MM10012 OK
41 92902-06200 WASHER PLAIN 2
41-1 delete (2015/3/16) MM10012
42 KHY-M652G-10 CYLINDER AMC ASSY 1 (2008/10/01) H012224
43 KHY-M9613-00 BLOCK,CYLINDER 1 (2008/10/01) H012224
44 KHY-M9614-00 STOPPER,CYLINDER 1 (2008/10/01) H012224
45 KHY-M9615-00 PLATE,CYLINDER 1 (2008/10/01) H012224
46 KHY-M9627-00 BLOCK,LINK 1 (2008/10/01) H012224
47 KHY-M9628-00 COLLAR,LINK 1 (2008/10/01) H012224
48 KHY-M9631-00 COLLAR,FLOATING 1 (2008/10/01) H012224
49 KHY-M9632-00 BLOCK,FLOATING 1 (2008/10/01) H012224
50 KHW-M916A-00 BUSH 2 (2008/10/01) H012224
51 KHW-M916E-00 BUSH 1 (2008/10/01) H012224
52 KHW-M916G-00 COLLAR,JOINT 1 (2008/10/01) H012224
53 KHW-M916H-00 JOINT,CYL. 1 (2008/10/01) H012224
54 $SC4-M5A SPEED CONTROLLER 2 (2008/10/01) H012224
55 90933-02J063 BEARING 2 (2008/10/01) H012224
56 90990-41J129 COLLAR 4 (2008/10/01) H012224
57 91312-03010 BOLT HEX.SOCKET HEAD 2 M3X10 (2008/10/01) H012224
58 91312-03025 BOLT HEX.SOCKET HEAD 2 M3X25 (2008/10/01) H012224
59 91312-04012 BOLT HEX.SOCKET HEAD 10 M4X12 (2008/10/01) H012224
60 91312-04016 BOLT HEX.SOCKET HEAD 1 M4X16 (2008/10/01) H012224
61 91312-04022 BOLT HEX.SOCKET HEAD 1 M4X22 (2008/10/01) H012224
62 91312-05020 BOLT HEX.SOCKET HEAD
1 M5X20 (2008/10/01) H012224
63 92902-04200 W
ASHER PLAIN 3 (2008/10/01) H012224
1
7
Push-Up
Conveyor Unit
KHY/KJV-1111
42
37
1
1
16
24
38
47
47
19
24
37
38
37
42
47
40
37
22
38
2
15
35
20
10
44
34
43
45
4
40
45
41
39
46
5
30
14
26
28
21
35
18
49
31
6
8
29
9
25
45
32
17
38
27
35
3
33
36
35
21
28
26
14
30
45
40
38
22
23
37
40
45
37
22
23
40
40
1
40
7
11
12
13
15
16
44
48
47
37
2
1
41
OLD
KHY-9210-200~500 push-up Assy is the same parts.
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M921T-00 BOLT 4
2 KHW-M9215-00 PULLEY:P60-3GT 2
3 KHW-M9219-01 BRKT.,MOTOR 1
4 KHW-M921A-00 BRKT.,TENSIONER 1
5 KHW-M921B-00 STAY,ADJUST 1
6 KHW-M921C-00 SHAFT 1 1
7 KHW-M921K-00 BRKT.,SENSOR 1
8 KHW-M9222-00 POST 1
9 KHW-M9223-00 PULLEY:P40-3GT 1
10 KHY-M652E-00 SENSOR,PUORG ASSY 1
11
KHY-M920A-30 PLATE 1 1 (510X460)
KHY-M920A-40 PLATE 1 1 (670X460) LED
12 KHY-M920B-00 STAY 1
13 KHY-M920D-00 PUSH UP PIN UNIT 9
14 KHY-M9211-00 HOUSING,BRG. 2
15 KHY-M9212-00 HOUSING 2
16 KHY-M9217-00 BALL BUSH & SHAFT 2
17 KHY-M921D-00 BELT 315-3GT-15 1
18 KHY-M921E-00 BELT 1086-3GT-15 1
19 KHY-M921G-00 BRKT.,DOG 1 4 Holes
19-1 KHY-M921G-01 BRKT.,DOG 1 6 Holes (2008/5/27) ME50160 NG
20 KHY-M921H-00 PLATE,DOG 1
20-1 KHY-M921H-01 PLATE,DOG 1 (2008/5/27) ME50160 OK
21 KHY-M921M-00 WASHER 2
21-1 KHY-M921M-01 WASHER 2 (2009/4/14) MF40064 OK
22 KHY-M921N-00 JOINT A 2
22-1 KHY-M921N-01 JOINT A 2 (2008/12/19) MEY0088 OK
23 KHY-M921P-00 JOINT B 2
23-1 Delete (2008/12/19) MEY0088
24 KHY-M9221-00 DAMPER 2
25 KHY-M9224-00 COVER,PU MOTOR 1
26 KHY-M9B00-00 BALL SCREW PU 2
27 KV7-M9205-01 PULLEY 1:P22-3GT 1
28 90440-01J090 CIRCLIP 2
29 90933-01J001 BEARING 2
30 90933-01J007 BEARING 4
31 90933-01J300 BEARING 2
32 90990-28J076 WASHER 1
33 90K63-331512 AC SERVO MOTOR 1
34 91312-03005 BOLT HEX.SOCKET HEAD 2 M3X5
35 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
36 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
37 91312-04010 BOLT HEX.SOCKET HEAD 12 M4X10
38 91312-04012 BOLT HEX.SOCKET HEAD 17 M4X12
39 91312-04020 BOLT HEX.SOCKET HEAD 1 M4X20
40 91312-05010 BOLT HEX.SOCKET HEAD 13 M5X10
41 91312-05012 BOLT HEX.SOCKET HEAD 8 M5X12
42 91312-05016 BOLT HEX.SOCKET HEAD 8 M5X16
43 91312-05020 BOLT HEX.SOCKET HEAD 1 M5X20
44 92902-04200 WASHER PLAIN 4
45 92902-05200 WASHER PLAIN 14
46 95302-04600 NUT HEXAGON 1
47 95602-10100 NUT U 4
48 99009-10400 CIRCLIP : 1
49 99009-12400 CIRCLIP : 1
