5.2.5.2 Volume Mode

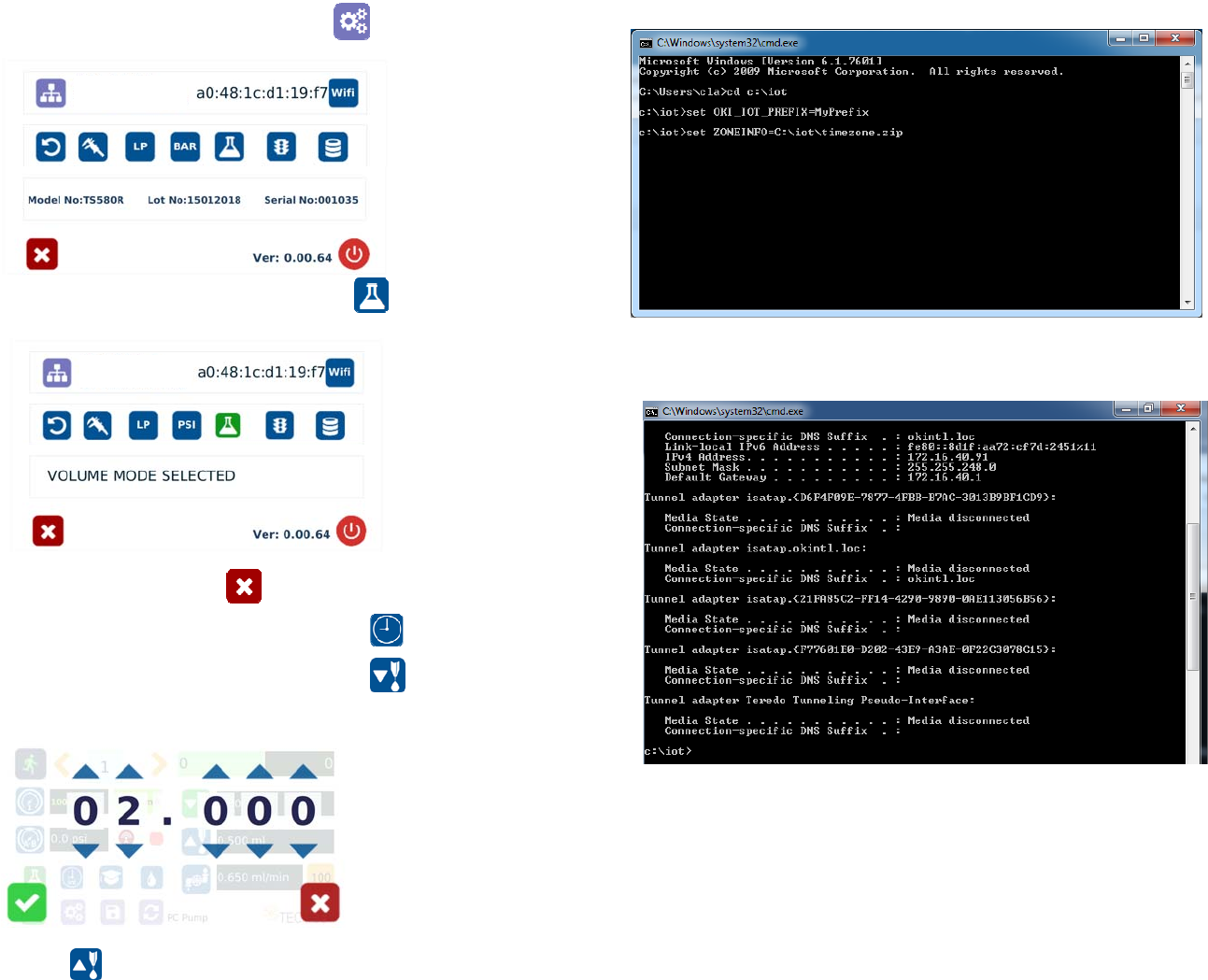

1. Touch the “Setup” icon to enter the setup screen

2. Touch the “Volume” icon to switch to volume mode

3. Press the X icon to save and exit

Note: To switch back to time mode, touch the “Timed” icon

4. Touch the “Dispense” icon to enter the setup screen

5. Touch the Up and Down arrows to set the dispense volume

Note: if suck back is needed, touch the “Reverse” icon to setup

reverse volume

9. Type: “set ZONEINFO=C:\iot\timezone.zip” then touch the “Enter” button

10. Type: “ipconfig” then touch the “Enter” button

11. Record the Server IPv4 address show in the “IPv4 Address” line on the above

screen; For this example, the Server IP address is: 172.16.40.91

This address will be entered in the controller screen later.

12. Type: “.\portal” then touch the Enter button

7. Type: “cd :\iot” then touch the “Enter” button

8. Type: “set OKI_IOT_PREFIX=MyPrefix” then touch the “Enter” button

5.2.6 Teach Mode Setting

In the teach mode, the dispense time will be accumulated as long as the

foot switch is depressed. This is helpful in determining the required

dispense time when dispense output is known.

1. Touch the “Teach” icon to enter the teach mode

2. Touch the “Time Reset” icon to set timer to zero

3. Press and hold down the foot switch, the dispense time will be accumulated.

4. Release the foot switch when the desired amount of fluid has dispensed.

5. Touch the “Timed” icon to transfer the dispense time to “Timed” mode

6. The unit is now set to repeat this “Timed” cycle.

5.2.7 To run in Continous Mode

The controller can be setup to repeat the run continuously.

1. Touch the Setup icon to enter the setup screen

2. Touch the “Run Method” icon

3. Enter the delay time (ex. 5000ms)

4. Touch the “Countinous Run” icon

5. Touch the Check Mark icon to save and exit

The screen will look similarly to the screen below:

Note: If the controller is set to activate memory cell 1 and the delay time is

set at 5000 ms, the controller will activate memory 1 contiuously with 5000

ms delay between each activation.

5.3 Low Pressure Alarm Setting

Note: This controller is equipped with an adjustable “Low Pressure” alarm

function. If the set pressure dropped below the “Low Pressure” setting, the

controller will not activate. The “Low Pressure” setting is pre-set at the factory

to 10 Psi (0.7 bars). When the supplied pressure drops below 10 Psi (0.7 bars)

the unit will not function. The “Low Pressure” setting can be adjusted. Follow

the instructions below.

1. Touch the Setup icon to enter the setup screen

6. INTERNET of Thing (IoT)

6.1 Setup webserver on the computer

1. Go to Techcon Website (www.techconsystems.com) and download the

following files to your computer:

a. The “portal.exe” file

b. The “timezone.zip” file

2. Create a new folder and name “IoT” or any desired name

3. Copy the “portal.exe” file and the “timezone.zip” file in the “IoT” folder

4. Click on the “Windows” start icon

5. Type: “cmd” in the box (as show below)

6. Touch the “Enter” button

The screen should appear as shown below
