8 4. Touch the Setup icon to enter the setup screen 5. Touch the Calibration icon to enter calibration scr een Note: Make sure the air pressure line is not connected to the unit at this time. 6. Touch the 0 Icon to set t…

6. Wait until the system completes the software update from the USB drive

and the first touch-screen calibration is displayed

7. Remove the USB drive from the USB port before proceeding to the next

step

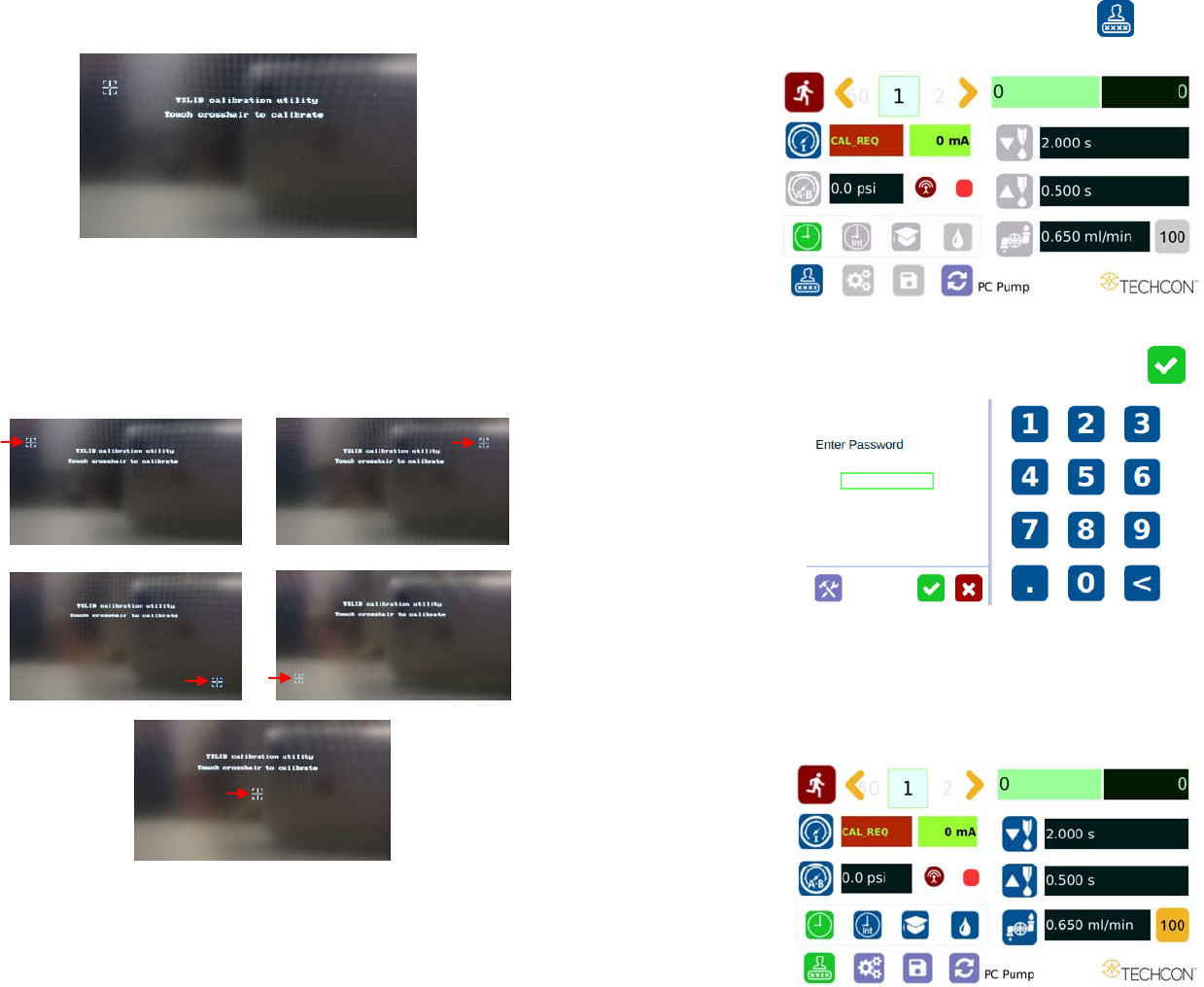

8. Follow the instructions on the display to calibrate the touch screen by

touching the crosshair at five different points. Note: In order to

accurately calibrate the touch screen, it’s recommended that the stylus

pen is used

9. Wait until the system completes the rebooting sequence and the home

screen is displayed

10. Repeat sections 5.1.1 and 5.1.2 to re-calibrate the air pressure

5.1.1 Login

1. Touch the Login icon to enter login screen

2. Enter “0000” in Password window

3. Touch the green check mark Icon to save and exit

5.1.2 Pressure Calibration

Note: Pressure calibration must be performed when the unit is activated for

the first time.

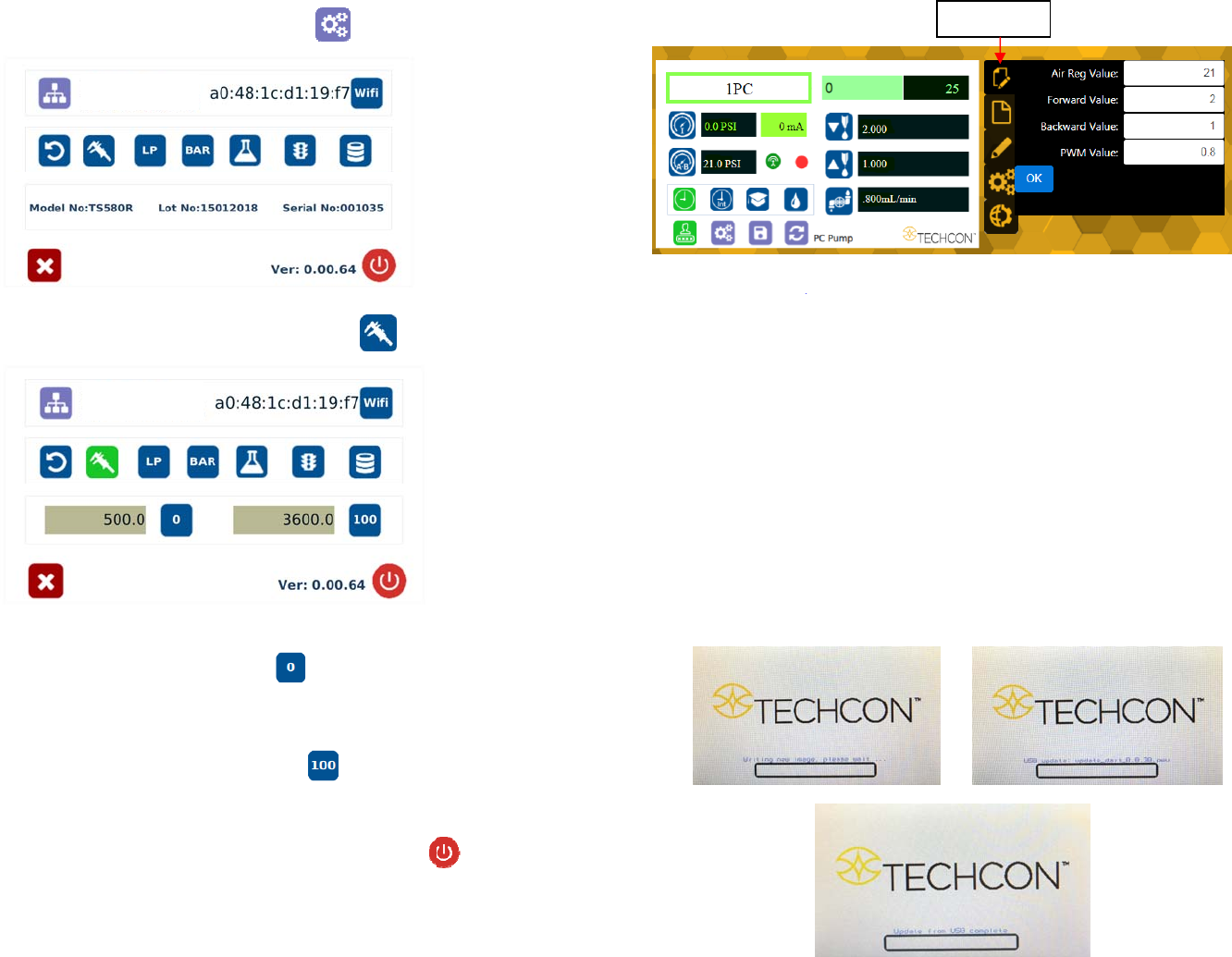

4. Touch the Setup icon to enter the setup screen

5. Touch the Calibration icon to enter calibration screen

Note: Make sure the air pressure line is not connected to the unit at this time.

6. Touch the 0 Icon to set the pressure to 0

7. Now connect the supplied air pressure line to the back of the unit and turn

up input air pressure to 100 psi

8. Touch the 100 Icon to set the pressure to 100

Note: The digital values shown at “0” and “100” icons are for reference only.

The actual calibrated values will be different.

9. Touch the Reboot icon to save the settings and reboot the system

10. Wait until the system completes the rebooting sequence and the home

screen is displayed

The unit is now calibrated and ready to operate

Proceed to make changes

Click “OK” button to save

The new parameter will be displayed on the controller.

7. SOFTWARE UPGRADE

Note: For future software upgrade, follow the instructions below.

1. Download the latest software version from Techcon website and copy it to a

blank USB thumb drive. Note: Do not put the software file inside a

folder

2. Make sure that the unit is turned off

3. Insert the USB drive to the USB port located in the back of the unit

4. Turn on the unit

5. Wait while the system is loading the new software. This process can take a

few minutes

“Edit” Icon

6.2 Making Parameters Adjustment from the websever

Go back to the webserver site and click on the “Controllers” menu

Click on the active controller link

The controller screen will be displayed in the webserver as shown below.

The controller parameters such as pressure and dispense time can be adjusted

from the webserver.

Click on the “Edit” icon

The parameter screen will appear as shown below:

5.2 Dispensing

5.2.1 Flow Rate Setting

Note: Each PC Pump version has a fix maximum flow rate. Make sure to

check the PC Pump flow rate specs before operating.

1. Touch the “Flow Rate” icon to enter the setup screen

2. Touch Up and Down arrows to set the desired flow rate in ml/minute

3. Touch the Check Mark icon to save and exit

5.2.2 Pressure Adjustment

Note: Pressure on port A and B provides constant regulated pressure.

1. Touch the “Pressure A.B” icon to enter pressure setup screen

2. Touch the Up and Down arrows to set the desired fluid pressure

3. Touch the Check Mark icon to save and exit
