6. If the selected network is an unsecured network (not password protected),
touch “Connect” tab to connect.
7. Once the unit is successfully connected to the Wi-Fi network, the
“Connect” tab will change to “Disconnect” and the online symbol will
change to green
8. If the selected network is a secured network (password protected), first
create a text file and type the network’s password, then save the file as
“password.txt”
9. Copy the “password.txt” file to a blank USB thumb drive. Note: Do not
put the “password.txt” file inside a folder
10. Insert the USB drive to the USB port located in the back of the unit
11. Touch “Connect” tab to connect. Once the unit is successufully connected
to the Wi-Fi network, remove the USB drive from the USB port
12. Touch X icon to save and exit
13. Touch the IP Address icon
and the unit will show an IP address
Note: Once the unit is turned off, the Wi-Fi connection is lost. To re-connect
the unit back to the same network after the unit is turned on, repeat steps 1-4
and touch the “Default” tab.
15
2. Touch the Low Pressure (LP) icon to set the desired low pressure
3. Slide the pressure scale to set the desired low pressure threashold
4. Press the X icon to save and exit
5.4 Stored Program in Memory cell
The unit has 50 memory cells to store all dispense parameters. The controller can
activate all memory cells in sequence mode.
5.4.1 To Store dispense parameters
1. Touch the forward or backward arrow to
select desired memory cell.
2. Enter all desired dispense parameters then touch the “Save” icon
to save the data.
16
5.4.2 To run in Single Sequence Mode
1. Touch the Setup icon to enter the setup screen
2. Touch the Run Method icon
3. Enter number of memory to be run in sequence (ex. 1 to 3)
4. Touch the “Sequence Mode” icon
5. Touch the Check Mark icon to save and exit
The screen will look similarly to the screen below:
21
5.8 To Connect to Wi-Fi network.
1. Connect the antenna to the Wi-Fi connector located in the back of the unit
2. Touch the Setup icon to enter the setup screen
3. Touch the Wi-Fi icon to enter the network setup screen
4. Touch the “Scan” tab to scan for all available networks
5. Touch the Up and Down arrows to select the desired network
20
5.7 To Change Password
Note: The default password is “0000”. To change password, follow the
instructions below.
1. Touch the Login icon to enter the login screen
2. Touch the change “Password” icon
3. Enter the old Password, then enter the new password
4. Touch the Check Mark icon to save
5. Touch X icon to exit
17
Notes:
A. If there is no delay time entered in the setting, the operator has
to press the foot switch after each memory cell is completed to
activatte the next memory cell.
B. If delay time is entered in the setting, the controller will activate
the next memory cell in sequence automatically.
5.4.3 To run in Continuous Sequence Mode
1. Follow step 1 to 2 above and enter the waiting time “delay time” between
each activation.
2. Touch the “Sequence Mode” icon
3. Touch the “Continuous Mode” icon
4. Touch the Check Mark icon to save and exit

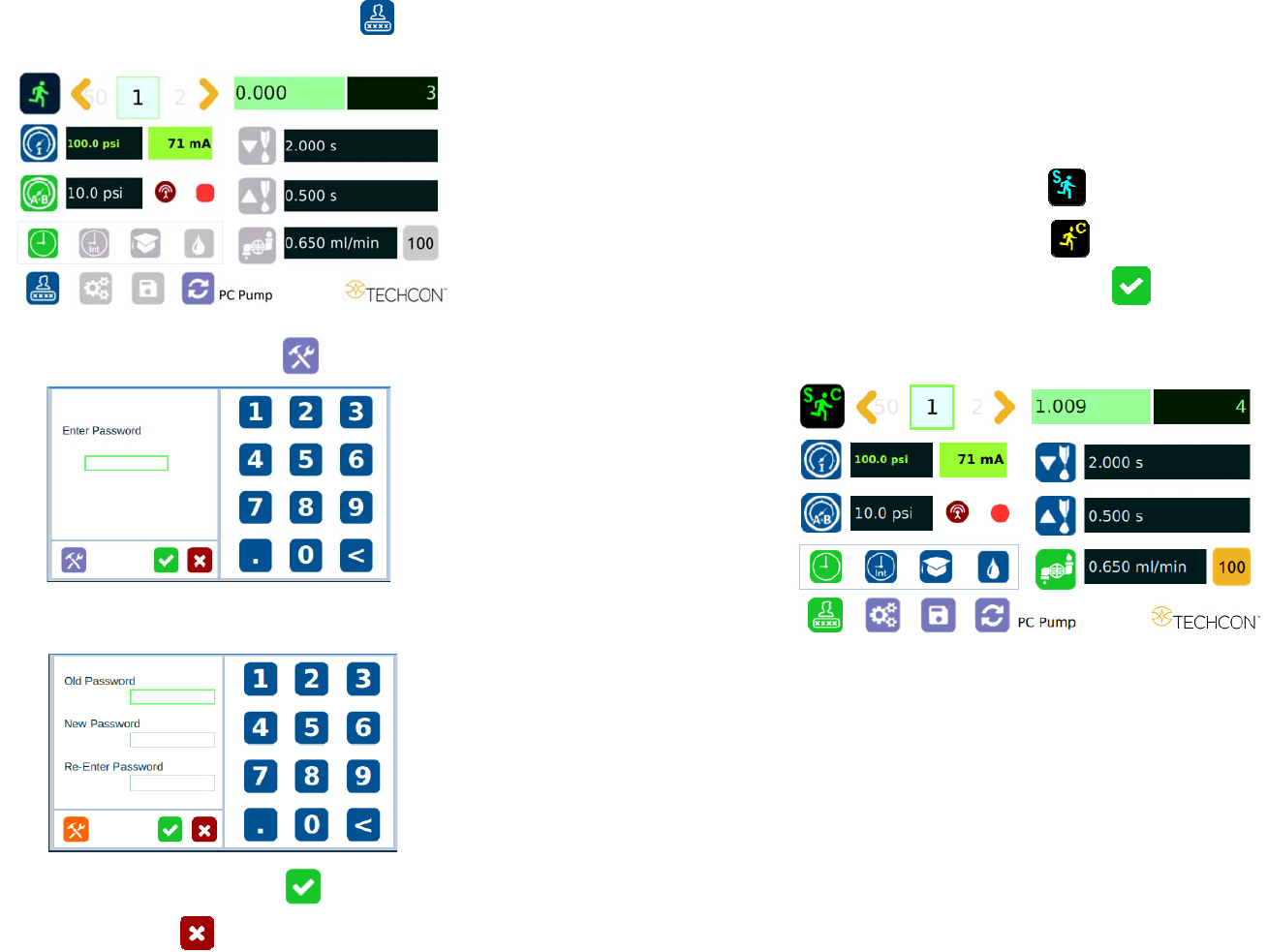

The screen will look similarly to the screen below:
Note: If the sequence mode is set to activate memory cell 1 – 3, and the
delay time is set at 5000 ms, the controller will activate memory 1 to 3
continuously with 5000 ms delay between each activation.
