Preliminary CP-842E/842ME Specifications- 4 -
3. Machine Specifications
3.1 Performance Specifications
Specifications
Item
CP-842E CP-842ME
Part size 0603 (0201) (0402 (01005)) to 19 × 19 mmParts
*1
Part height Up to 6 mm
Tape size
8, 12, 16, 24, 32 mm
(7”, 13”, 15”)
Packaging
*2
Bulk case 1005C (0402C), 1608C (0603C)
Capacity 70 × 2 40 × 2
100 % Cam speed 0.068 sec./part
X, Y axis 14.2 mm (including compensation
Z-axis 1.09 mm
D-axis None
θ-axis No limit
NC-axis Within one pitch
Placing rate
*3
Max.
movement
NY-axis 0.8 mm
Placing accuracy
*4
Rectangular chips, etc.
Currently undergoing testing
Placing reliability 99.99 % (including automatic recovery)
Fiducial mark reading time
*5
Approximately 0.25 sec./mark
Warranty period
*6
Warranty period for the equipment is 6,000 working
hours or 2 years (whichever elapses first).
Warranty period for the control software is 2,000
working hours or 1 year (whichever elapses first).
Warranty period for the feeders is 1 year.
Notes:
1. Support for placing 0402 (01005) parts is optional.
2. JIS, EIAJ compliant tape parts and EIA tape parts that are the same as EIAJ standard
parts.
3. The placing rate is reduced to 0.098 sec./part for one pitch movement of the D-axis, to
0.08 sec./part for two pitch movement of the NC-axis, and to 0.09 sec./part for three
pitch movement of the NC-axis.
4. The placing accuracy is obtained using fiducial mark referencing, based on tests
conducted by Fuji. Parts rotational offset is not considered. The above mentioned
Preliminary CP-842E/842ME Specifications- 5 -
accuracy may not be attained if the fabrication accuracy of the PCB or the parts that are
placed is not sufficient.
5. The fiducial mark reading time is obtained when reading a 1.2 mm diameter mark,
excluding the time to required to travel from mark to mark, and to make adjustments for
mark shape variations and location errors.
6. Some specified feeder parts, including consumable parts such as tape leaf and take-up
reel, are excluded from warranty. The feeder warranty period for overseas-users is
expanded to fourteen months from the date of factory shipment.
Preliminary CP-842E/842ME Specifications- 6 -

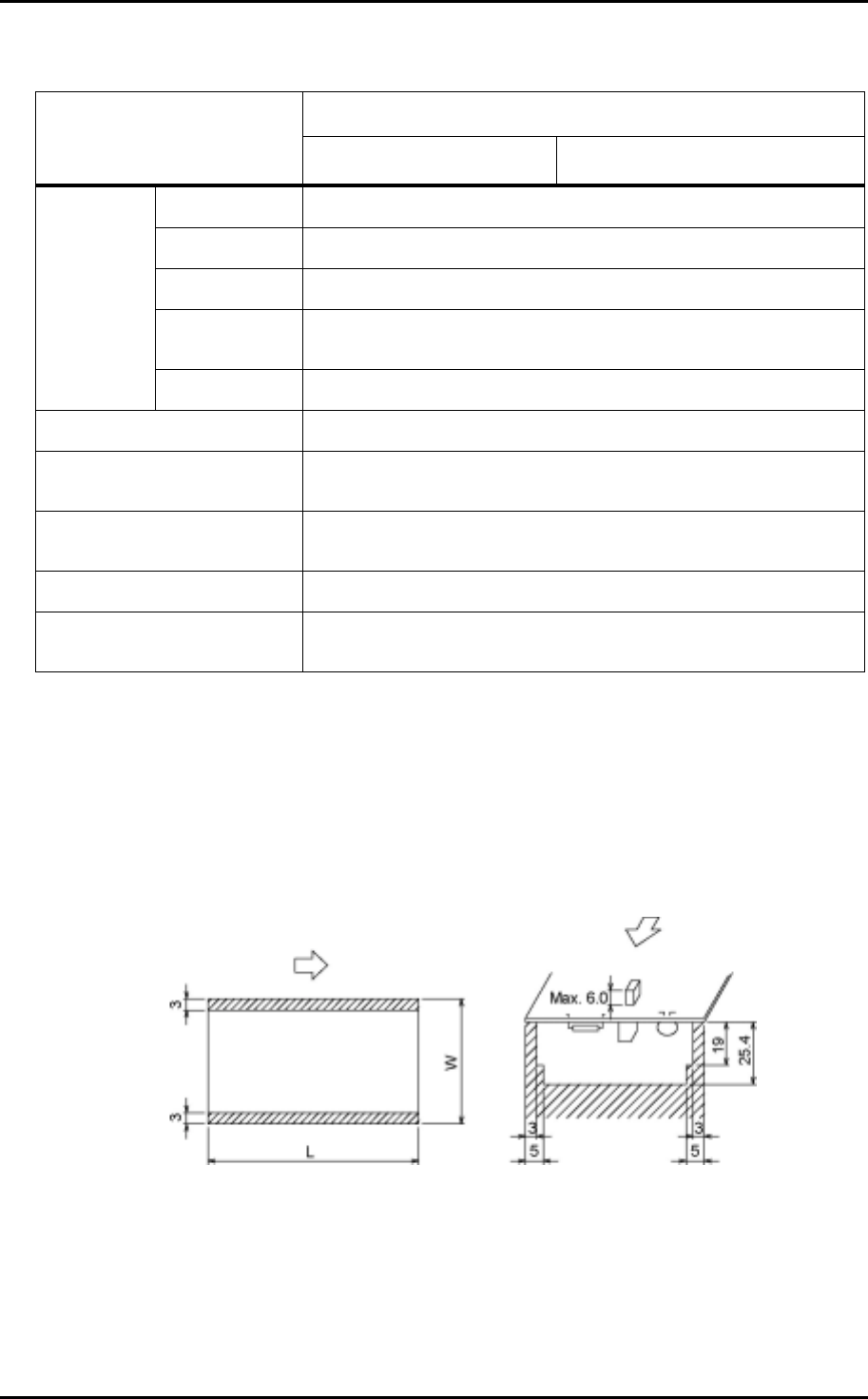

3.2 PCB Conveyance
Specifications
Items
CP-842E CP-842ME
L × W 50 × 50 mm to 457 × 356 mm
Thickness
*1
0.5 (0.3) mm to 5.0 (6.0) mm
Warpage
*2
Max. ± 1.0 mm
Premounted
parts height
*3
Max. 6.0 mm (on upper surface)
Max. 25.4 mm (on lower surface)
Dimensions
Materials Glass-epoxy, composite, paper phenol, ceramic, polyimide, etc.
PCB loading time
*4
1.4 sec.
Flow direction
*5 Standard: Left to right
Option: Right to left
Conveyor height
*6 Standard: 900 (+15, -5) mm
Option: 950 (+15, -5) mm
PCB weight
*7
Up to 1 kg
Conveyor width adjustment
Front rails are fixed; rear rails are adjusted together using a hand
wheel.
Notes:
1. Support for PCBs thinner than 0.5 mm, or thicker than 5 mm is optional. When support
of PCBs thicker than 5 mm is required, the supported PCB thickness range is from 3.0
mm to 6.0 mm. Consult Fuji if PCB support is required.
2. Backup pins or backup plate should be used when PCB warps downward.
3. Three millimeters of flat surface at the both edges of the PCB are required for clamping.
The shaded area must be free of parts.
4. XY-table travel time is not included.
5. Specify when order is placed.
6. Add 12 mm if antivibration pads are used. Specify when order is placed.
7. Roller conveyor is used for PCBs over 1kg and less than 2 kg.
