Preliminary CP-842E/842ME Specifications- 6 -
3.2 PCB Conveyance
Specifications
Items
CP-842E CP-842ME
L × W 50 × 50 mm to 457 × 356 mm
Thickness
*1
0.5 (0.3) mm to 5.0 (6.0) mm
Warpage
*2
Max. ± 1.0 mm
Premounted
parts height
*3
Max. 6.0 mm (on upper surface)
Max. 25.4 mm (on lower surface)
Dimensions
Materials Glass-epoxy, composite, paper phenol, ceramic, polyimide, etc.
PCB loading time
*4
1.4 sec.
Flow direction
*5 Standard: Left to right
Option: Right to left
Conveyor height
*6 Standard: 900 (+15, -5) mm
Option: 950 (+15, -5) mm
PCB weight
*7
Up to 1 kg
Conveyor width adjustment
Front rails are fixed; rear rails are adjusted together using a hand
wheel.
Notes:
1. Support for PCBs thinner than 0.5 mm, or thicker than 5 mm is optional. When support
of PCBs thicker than 5 mm is required, the supported PCB thickness range is from 3.0
mm to 6.0 mm. Consult Fuji if PCB support is required.
2. Backup pins or backup plate should be used when PCB warps downward.
3. Three millimeters of flat surface at the both edges of the PCB are required for clamping.
The shaded area must be free of parts.
4. XY-table travel time is not included.
5. Specify when order is placed.
6. Add 12 mm if antivibration pads are used. Specify when order is placed.
7. Roller conveyor is used for PCBs over 1kg and less than 2 kg.
Preliminary CP-842E/842ME Specifications- 7 -
4. Machine Structure
4.1 Placing Head

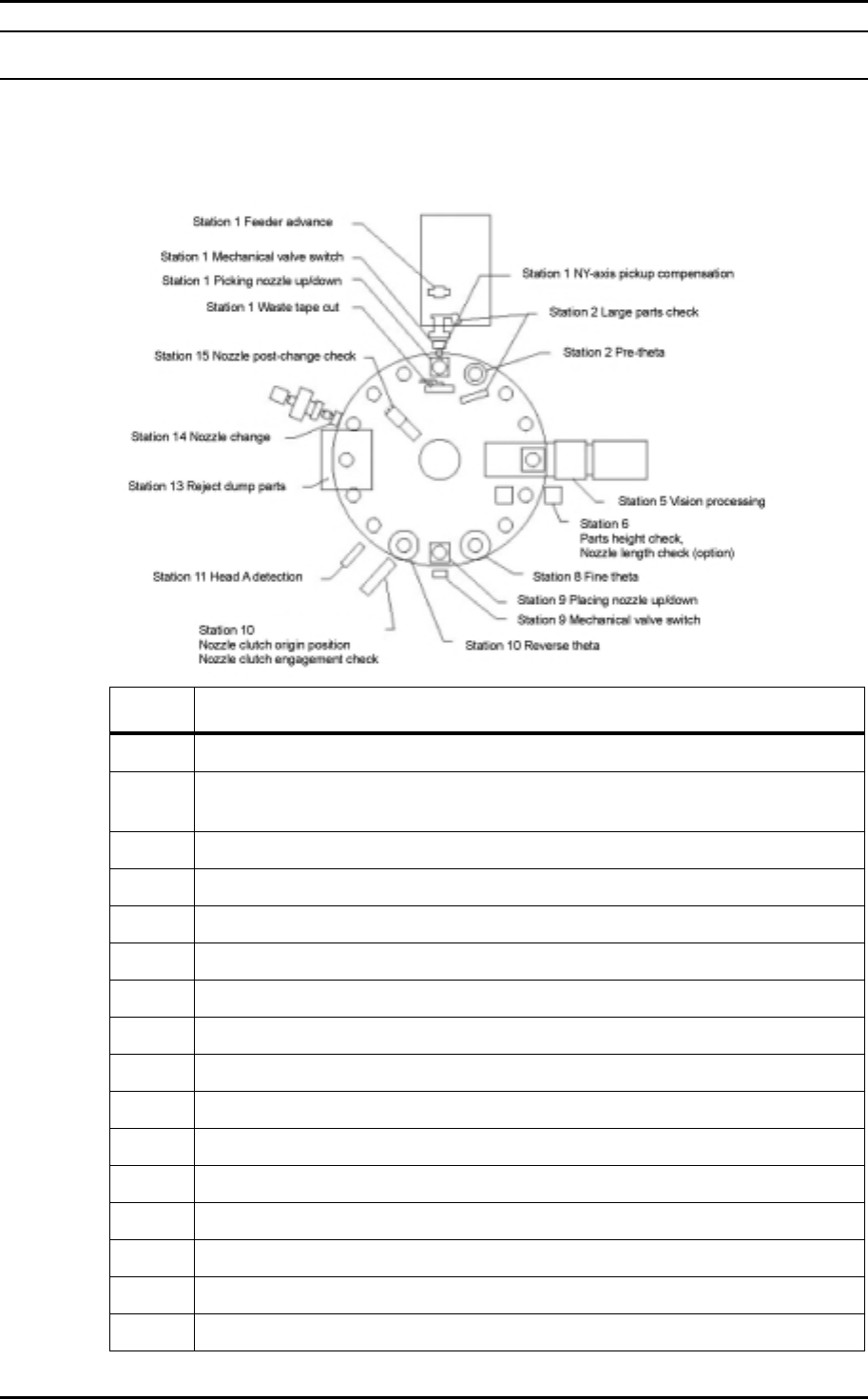

The function of each of the 16 stations on the turret are detailed below.
St. No. Functions
1 Pick-up part from the device table (Adjustable pick-up height)
2
Large parts pick-up confirmation
Pθ: Placement angle prerotation in 90° angles
3Idle
4Idle
5 Part inspection
6 Measurement of parts height
7Idle
8Fθ: Fine placement angle rotation (including compensation)
9 Placement
10 Rθ: Returns the nozzle to its origin position
11 A-head detection
12 Idle
13 Parts rejection
14 Nozzle change
15 Nozzle change check (detect type No. 1 - 6)
16 Idle
Preliminary CP-842E/842ME Specifications- 8 -
4.2 Nozzles
Nozzles are attached to each head, with the following nozzles being available for the CP-
842E/842ME.
Plate
Nozzle
diameter
Nozzle code
*1
Note
φ
0.27 For 0402 (01005) parts
R08-004
R08-004 Length: 4.5 mm
φ
0.4
R08-004T Tapered nozzle
φ
0.45 KR08-0045T
Supports close-proximity placement (for 0603
(0201))
R08-007
R08-007T Tapered nozzle
φ
0.7
For WL_CSP parts
φ
0.8 KR08-008T
Supports close-proximity placement (for 1005
(0402))
R08-010
φ
1.0
For WL_CSP parts
φ
1.2 KR08-012T
Supports close-proximity placement (for 1608
(0603))
φ
8
φ
1.3
R08-013
M08-013
*2
φ
1.8 R16-018
φ
2.5
R16-025
M16-025
*2
φ
3.7 R16-037
φ
16
φ
5.0 R16-050
φ
1.8
S16-018
B16-018
φ
2.5
S16-025
B16-025
φ
3.7
S16-037
B16-037
16 × 16
(black or
white)
φ
5.0
S16-050
B16-050
21 × 21
(black)
φ
5.0 B21-050
Units: mm
