Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE C-S104-16 0604-001 31 6-8 1 630 053 2173 GUIDE 3 659J--03B-023 2 41 1 051 1708 SCR TRS 4X6 6 M4X6 TRS 21 630 053 2166 BRACKET 1 659J--03B-022 22 41 1 141 4107 W ASHER V 5X…
C-S104-16
0604-001
30
XY
テーブル部
XY TABLE SECTION
Fig. 6-8
配線支持部
Wiring Support
A
See Fig.6-2
Key No.1
1
2
2
1
2
111
See Fig.6-4
Key No.112
2
A
22
23
24
21
25
113
116
115
113
115
116
26
26
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
C-S104-16
0604-001
31
6-8
1 630 053 2173 GUIDE 3 659J--03B-023
2 411 051 1708 SCR TRS 4X6 6 M4X6 TRS
21 630 053 2166 BRACKET 1 659J--03B-022
22 411 141 4107 WASHER V 5X10X1 4 FW5
23 411 141 6705 WASHER SPR 5 4 SW5
24 630 000 7756 BOLT,HEX-SCT 4 M5X12
25 630 095 6719 MECH PARTS 1 659J--03H-026
26 411 113 9109 SCR TRS 5X10 8 M5X10 TRS
111 630 076 1986 ASSY,CORD (C30-X-SP1-A) 1
113 630 076 1979 ASSY,CORD (C30-Y-CORD) 1
115 630 091 5822 CORD(C32-Y-PO) 1 659FB-03D-812
116 630 091 8144 CORD(C32-Y-PG) 1 659FB-03D-810
C-S104-16
0604-001
32
L

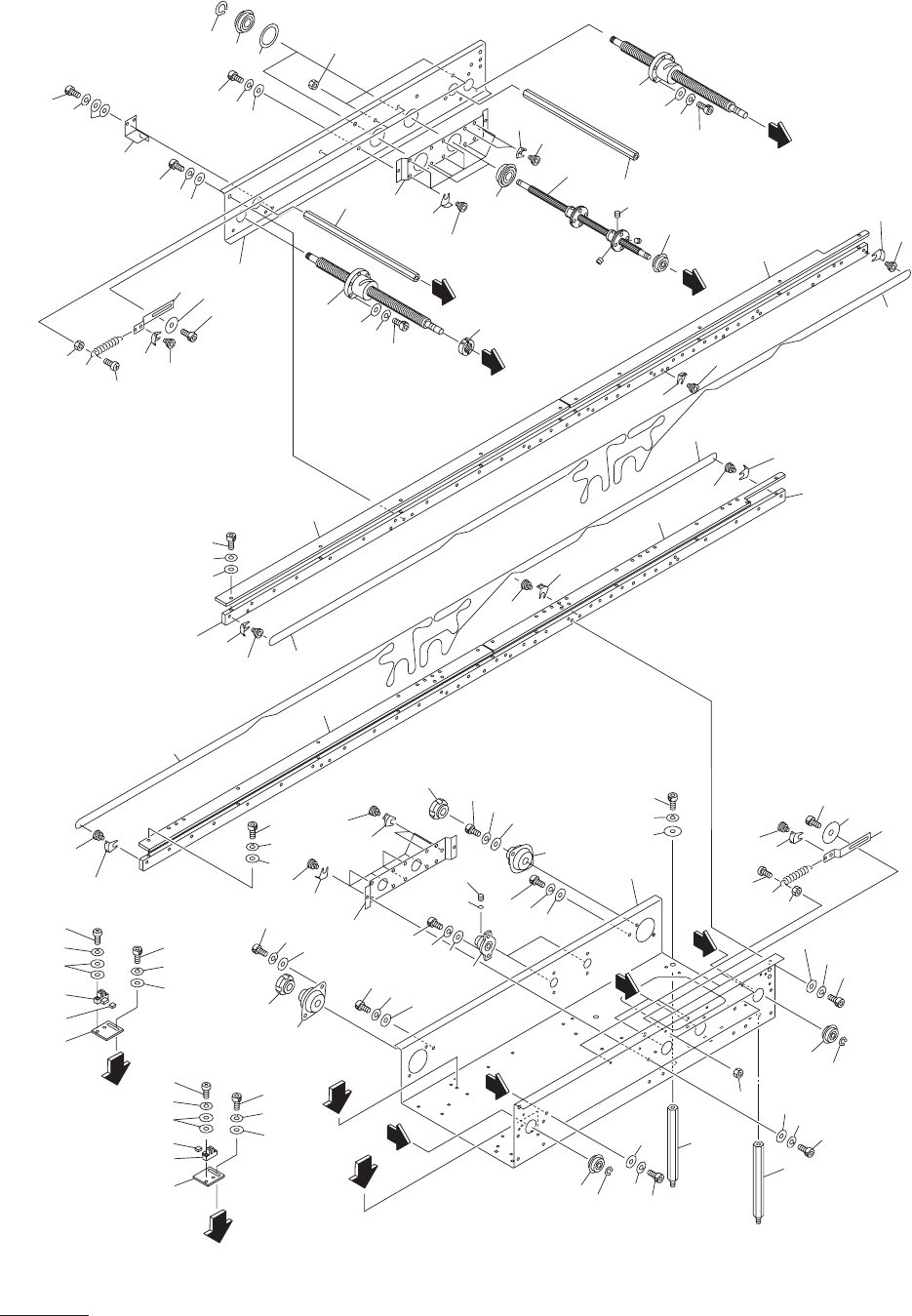

コンベア部
L CONVEYOR SECTION
Fig. 7-1
コンベア
Conveyor
67
68
69
66
14
15
16
45
13
18
20
11
12
53-3
53
38
96
28
29
30
43
42
53-3
53
47
48
46
C
B
44
D
19
21
7
38
18
53
53-2
10
9
28
29
30
A
53-3
53
54
53
53-1
8-1
57
57-1
60
59
58
53-3
53
55
54
53
56
53-3
8
53-2
53
56-1
55
53-3
53
58
59
60
53-1
53
53-3
53
10
34
35
36
37
33
39
40
41
26
26-1
22
23
24
25
39
40
41
33
37
34
35
36
79
78
77
74
73
72
71
75
76
E
76
75
74
73
72
71
F
79
78
77
E
F
D
C
39
40
41
32
31
2
1
45
1
4
5
6
32
31
16
15
14
46
48
47
53-3
44
43
42
53
91
92
93
A
B
17
27
27
