Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE C-S104-16 0604-001 47 8-2 1 630 053 0681 BRACKET(MOTOR) 1 659H--03B-010 1 -1 630 055 291 1 BRACKET(MOTOR) 1 659H--03B-031 2 630 003 2574 GEAR,REDUCTION 2 659H--03H-016 3 6…
C-S104-16
0604-001
46
R
コンベア部
R CONVEYOR SECTION

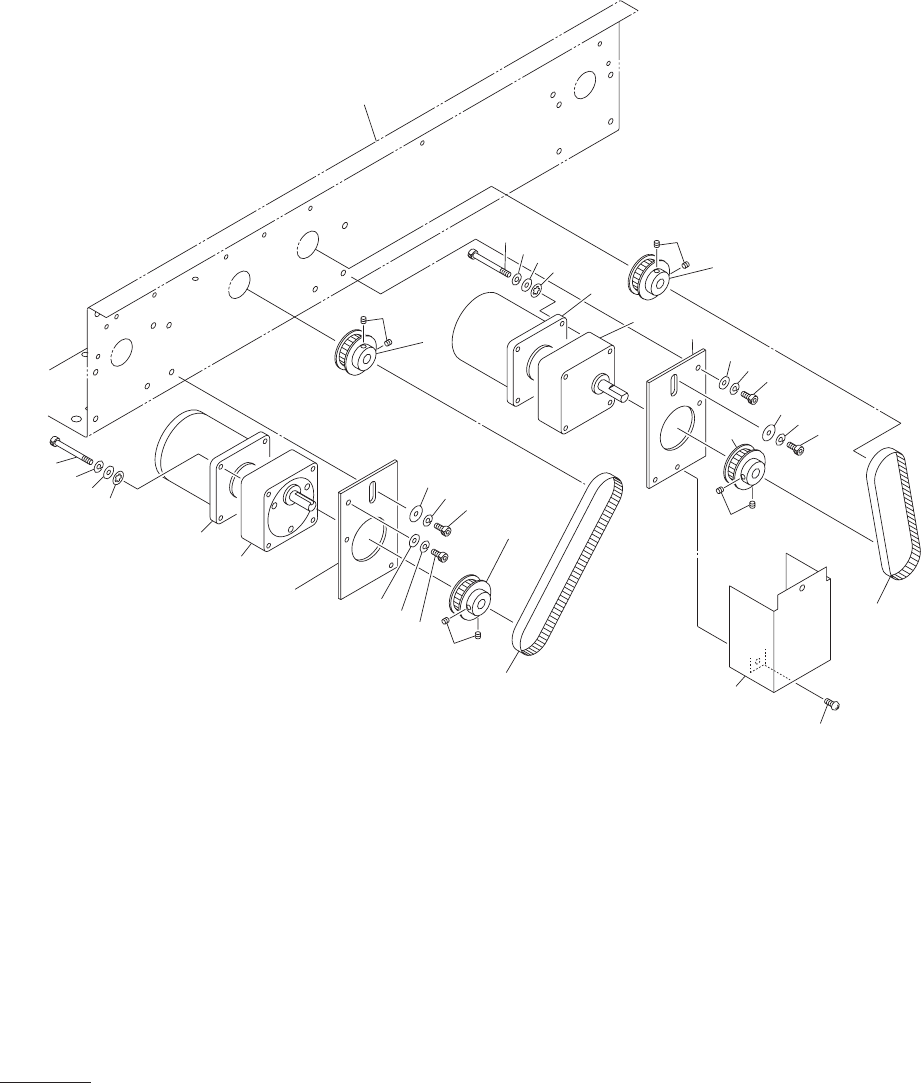

Fig. 8-2
コンベア駆動部
Conveyor Driving Section
See Fig.8-1
Key No.2
10
11
12
13
14
15
16
17
12
11
10
15
14
13
8
9
7
1
2
3
6-1
4
5
6
7
8
6-1
4
5
6
2
3
1-1
7
8
7
8
9-1
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
C-S104-16
0604-001
47
8-2
1 630 053 0681 BRACKET(MOTOR) 1 659H--03B-010
1 -1 630 055 2911 BRACKET(MOTOR) 1 659H--03B-031
2 630 003 2574 GEAR,REDUCTION 2 659H--03H-016
3 630 049 0831 MOTOR,REVERSIBLE 2 M4, M100, 3RK15GN-AUL 100V
659H--03H-015
4 411 141 4107 WASHER V 5X10X1 4 FW5
5 411 141 6705 WASHER SPR 5 4 SW5
6 630 000 7824 BOLT,HEX-SCT 4 M5X45
6 -1 411 087 1109 WASHER IN TW 5 2
7 630 009 2684 PULLEY,TIMING 4 659H--03H-017
8 630 000 8944 SET SCREW 8 M5X6 SET
9 630 053 2395 BELT,TIMING 1 659H--03H-018
9 -1 630 013 6296 BELT,TIMING 1 659H--03H-036
10 411 141 4107 WASHER V 5X10X1 2 FW5
11 411 141 6705 WASHER SPR 5 2 SW5
12 630 000 7749 BOLT,HEX-SCT 2 M5X10
13 630 001 0220 WASHER 2 659H--03H-027
14 411 141 6705 WASHER SPR 5 2 SW5
15 630 000 7756 BOLT,HEX-SCT 2 M5X12
16 630 061 0055 COVER(MOTOR) 1
659H--A03001B-032
17 411 051 1708 SCR TRS 4X6 1 M4X6 TRS
C-S104-16
0604-001
48
R
コンベア部
R CONVEYOR SECTION

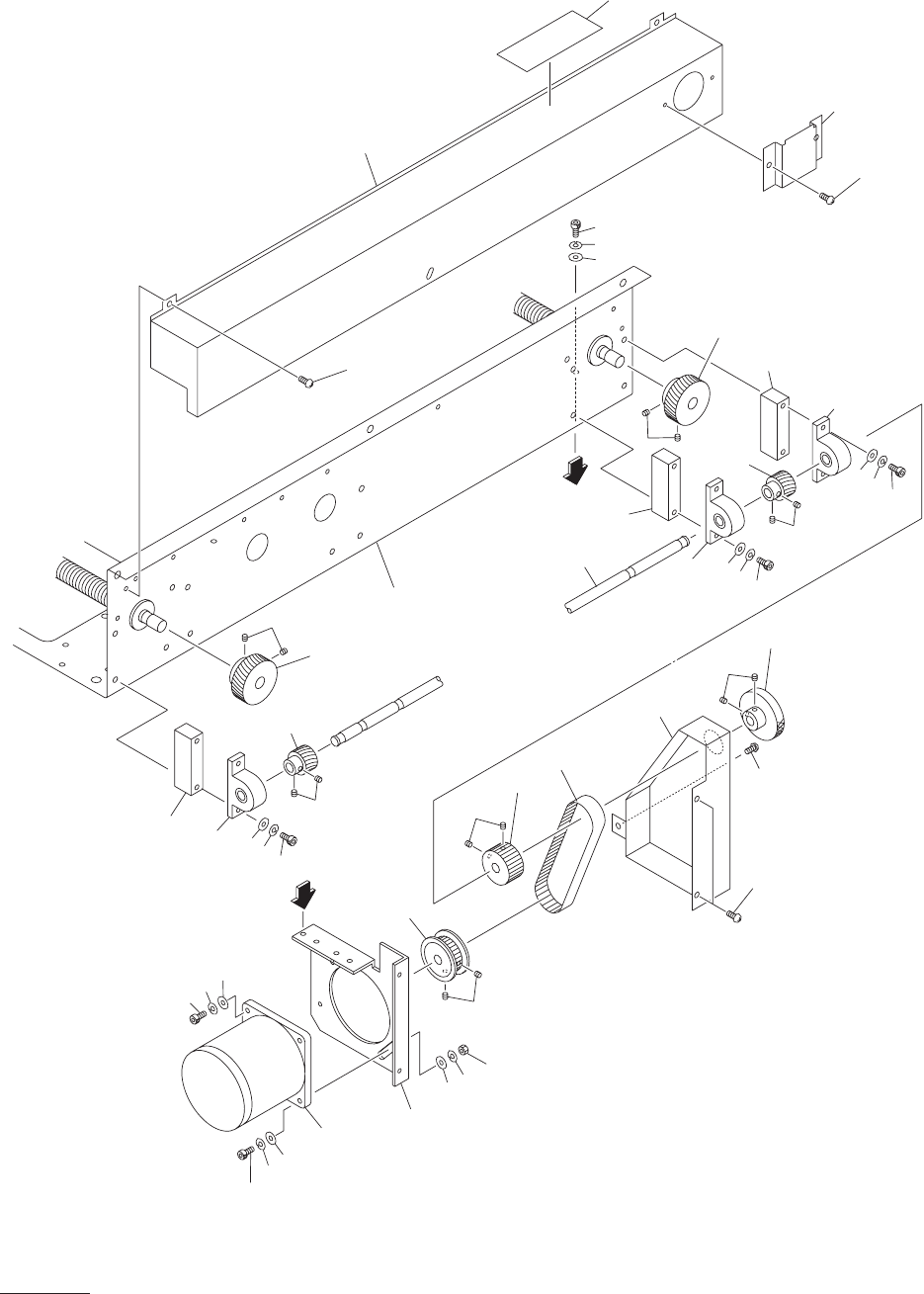

Fig. 8-3
ドライブシャフト
Driving Shaft
A
A
25
26
27
24
25
26
27-1
20
28
29
30
34
33
16
17
35
36
37
37
39
38
4
5
9
8
7
6
46
1
2
14
42
21
22
23
50
41
1
46
6
7
8
9
5
4
9
8
7
6
46
3
2
13
See Fig.8-1
Key No.2
