10 WF 4 TX-Series V2 Maintenance Clean the conveyor, lifting tables and gantry cables 1.5 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T1
Wear Part: Consumables:
C3
www.asm-smt.com

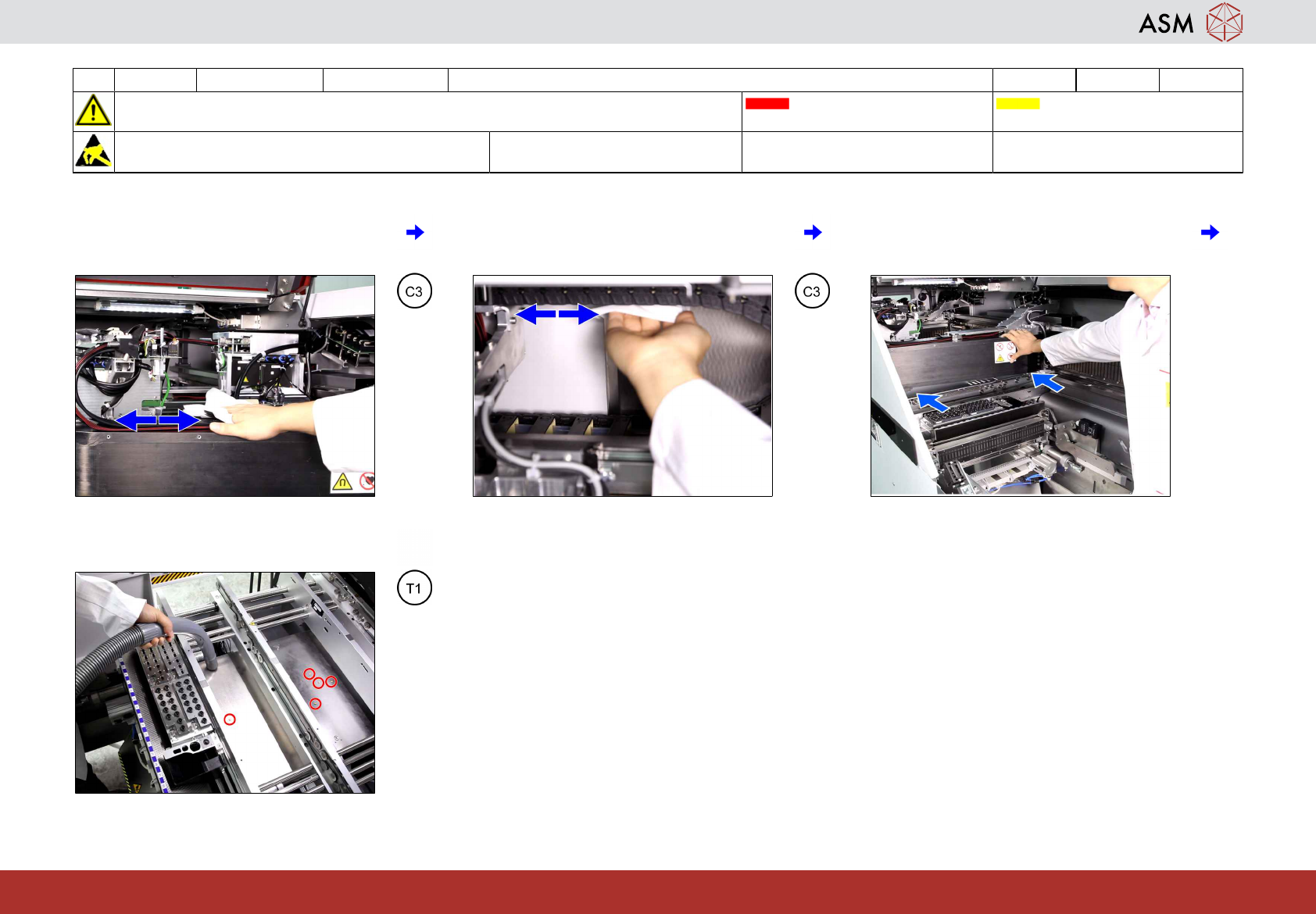

1 Clean the gantry cables of the X-Axis. 2 Clean the gantry cables of the Y-Axis. 3 Move all gantries to the end limit at loca-
tion 1 and repeat steps 1 to 2 for the other
gantry.
4 Vacuum all loose components on and
around the whole PCB conveyor.
www.asm-smt.com
11 WF 4 TX-Series V2 Clean the fiducial bars (TX V2 micron and HD only) 5 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
C3
www.asm-smt.com
1 Carefully clean the glass fiducial bars at all
locations.
2 Carefully clean the calibration boards at all
locations.
