17 WF 4 TX-Series V2 Maintenance Switch on the machine and return the tables (COT) 2 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
www.asm-smt.com

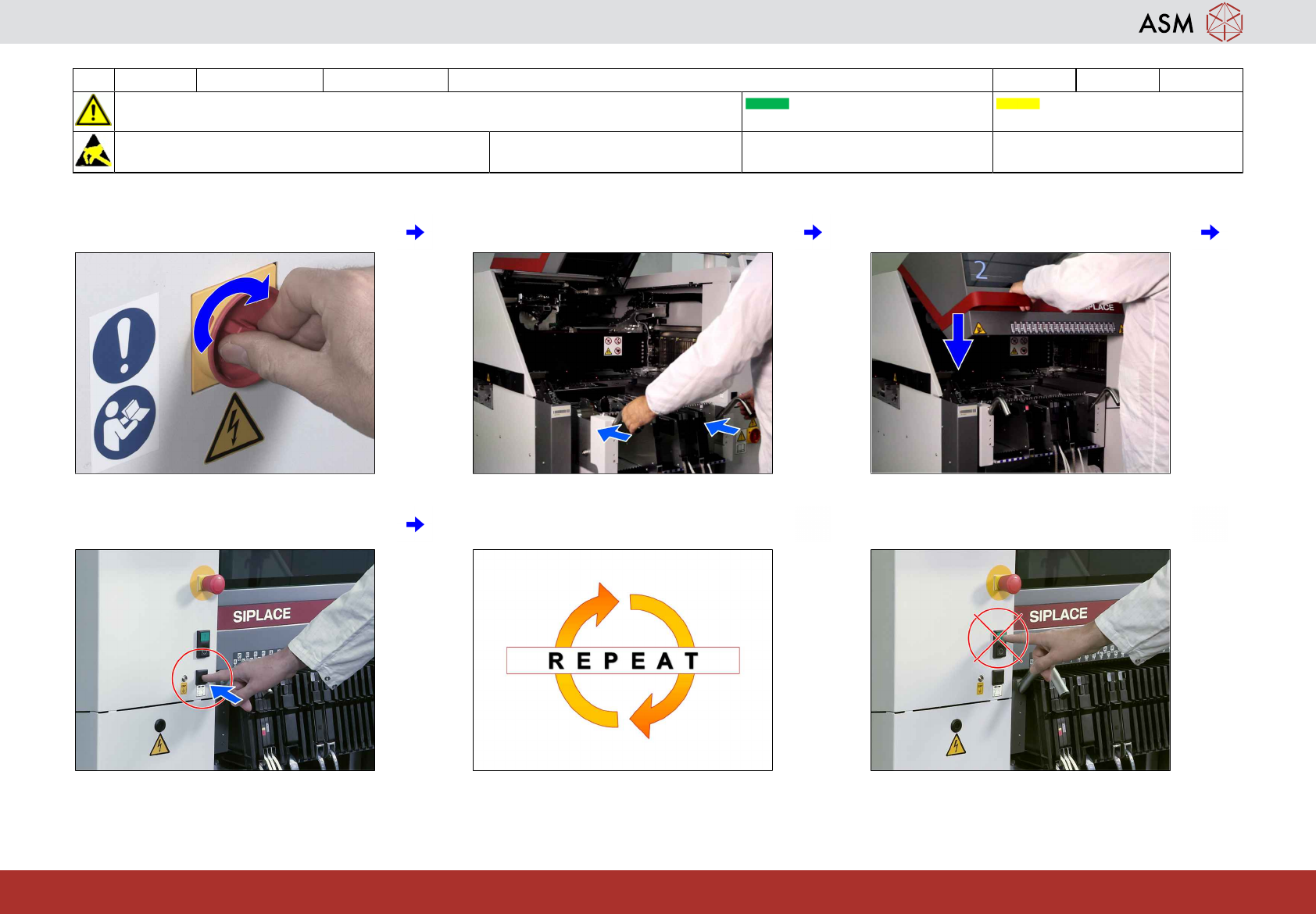

1 Switch on the machine. 2 Return the COT at location 2. 3 Close the cover at location 2.
4 Press the insert COT button to dock the
table.
5 Repeat steps 2 to 4 for the other location. 6 Do not press the start button.
www.asm-smt.com
18 WF 4 TX-Series V2 Maintenance Calibrate the maintained TH 13 min 1 / 9
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T5
Wear Part: Consumables:
www.asm-smt.com
1 Open the cover. 2 Insert the calibration tool into the pocket. 3 Close the cover.
4 Click on "Settings and options". 5 Click on "User settings". 6 Click on "Machine service".
