4 The kolb AQUBE ® series offer next-generation cleaning systems - even more efficient, even more compact, easy to handle and maintain, pre-equipped for extended water management and cyber-physically ready for the smart …

What contamination must be cleaned in which area?

Cleaning in electronics production

The up to date cleaning requirements:

• Reproducible quality in electronics product cleaning

• Fastest possible reutilization of tools in electronics tools cleaning

• Flexible, versatile, industry 4.0 ready smart systems with a preferably multiple process application spectrum

• Water and energy saving operation

• No extra safety areas required

• Ecologically safe processes with ecologically safe chemistry

• Detergents that clean fast and thoroughly without residues

• Uncomplicated disposal or processing of cleaning detergents

www.kolb-ct.com

Areas Goods to be cleaned Contaminations

SMD-

adhesive

SMD-

paste

Flux

Colophony

condensation

Flux

Colophony

residues

Dust

Grease

Oil

Electronic

products

cleaning

Assembled PCBs

DCBs

Hybrids / HDIs / SiPs

Misprints (single side mounted)

Electronic

tools

cleaning

Screens / Stencils

Misprints (bare boards)

Carriers / Pallets

Condensation traps

(Filters, ra-

diators from convection reflow ovens)

ESD Boxes / Containers

Magazines / Trays

Machinery parts

(Flux units - sheet metal - pumps etc.)

Process chambers

(Soldering systems)

Other production tools

NOTES

The kolb AQUBE

series offer next-generation cleaning

systems - even more efficient, even more compact, easy

to handle and maintain, pre-equipped for extended water

management and cyber-physically ready for the smart

factory (SF ready).

Cleaning of power electronics and PCBAs with increasingly

complex physical structures is a significant factor for profitable

production. The thorough removal of fluxes, rosin, resin, copper

oxide and aggressive soldering support-substances is the main

task to prevent failures during production and even more so

when the products are working.

The kolb AQUBE

X series offers market-leading process safety

and personnel protection for the cleaning of complex and valu-

able PCBs. Various chamber sizes, different rotor configurations

and drying technologies always provide the best solution for

every demand. All systems of the AQUBE

X series operate

in a fully automatic 5step process: Cleaning, MediumWipe

rinsing (tap water), DI-water rinsing and

CWA

supercharger compression drying

or VMH

TurboDigital evaporative drying.

All systems are pre-equipped for efficient

water recycling and / or disposal (see

page 12) modules.

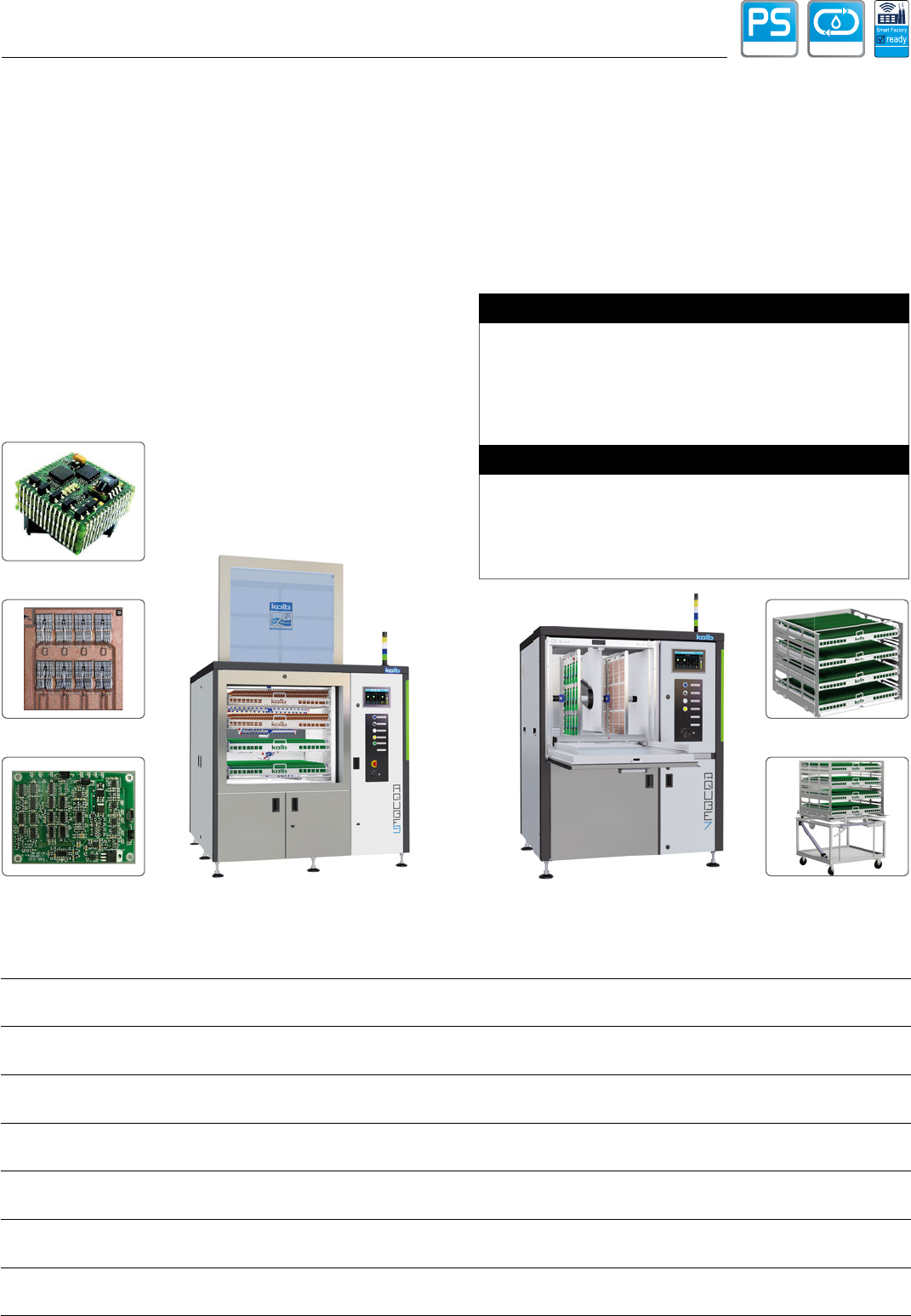

PRODUCT CLEANING - PCBs, DCBs, HDIs, SIPs

AQUBE

X series: For the highest demands

ClosedLoopPowerSpray

The main features of the AQUBE

X series:

• Three tank system with up to five circuits function

• Intelligent network connectivity for industry 4.0

• Relative cleaning time of one eurocard: 6.5 sec. (XH9)

• Process and service intervals PLC controlled

• Event issuing and software control via touch screen

• Cleaning up to 55 °C (standard), up to 80 °C (HT-version)

• ClosedLoop processing of cleaning and rinsing fluid

• Autom. adjustment of rinse water and ionic residues quality

• Traceability (SPC scanner, touch-monitor, industry PC)

• VARIccess

service access for easy maintenance

PREMIUM

kolb systems: solid - flexible - safe - smart Further information: www.kolb-ct.com

Hybrids / HDIs / SiPs

DCBs

Assembled PCBs

Slide-in unit

SpeedLoad cart

AQUBE

XH5, XH7, XH9

Capacity: up to 830 (19 m

) eurocards in up to four

baskets, suitable for horizontal DCB cleaning (H9, XH7),

PolyPower

pressure, up to 8 horizontal spray rotors, VMH

TurboDigital hot air evaporative drying, 1.1 - 3 m

footprint

Process chambers: from W 540 mm, D 590 mm, H 570 mm

up to 970 (W), 955 (D), 900 (H) mm

AQUBE

XV7, XV9

Capacity up to 72 eurocards in a wash cart or 40 DCB

panels (5“ x 7“), up to eight vertical spray rotors, CWA

supercharger compression drying, 1.6 - 3 m

footprint

Process chambers: from W 700 mm, D 710 mm, H 720 mm

up to W970 (W), 955 (D), 900 (H) mm

AQUBE

XH9 AQUBE

XV7

NOTES

Cleaning of PCBs is not only a necessary prerequisite for reliab-

le varnishing and embedding and thus consequently climatic

safety / leaking current safety. It also helps to eliminate mistakes

and thereby preserves the value of mounted PCBs and ensures

the optical quality of electronic components.

The kolb AQUBE

L series offers extremely fast and compact

batch cleaners with integrated process circuits for the fine

cleaning of PCB components, hybrids, SiPs, HDIs etc. becoming

a serious part of the value added chain.

The main features of the AQUBE

L series:

• Two tank combi system with three circuits

• Intelligent network connectivity for industry 4.0

• 101 freely selectable process programs

• Relative cleaning time per PCBA: 8 sec.(LH7)

• Process and service intervals PLC controlled

• Event issuing and intuitive software control via touch screen

• Cleaning up to 55 °C (standard), up to 80 °C (HT-version)

• ClosedLoop processing of cleaning

and rinsing fluid

• Automatic adjustment of rinse water

and ionic residues quality

• Traceability (SPC scanner, touch-

monitor, industry PC)

• VARIccess

service access for easy

maintenance

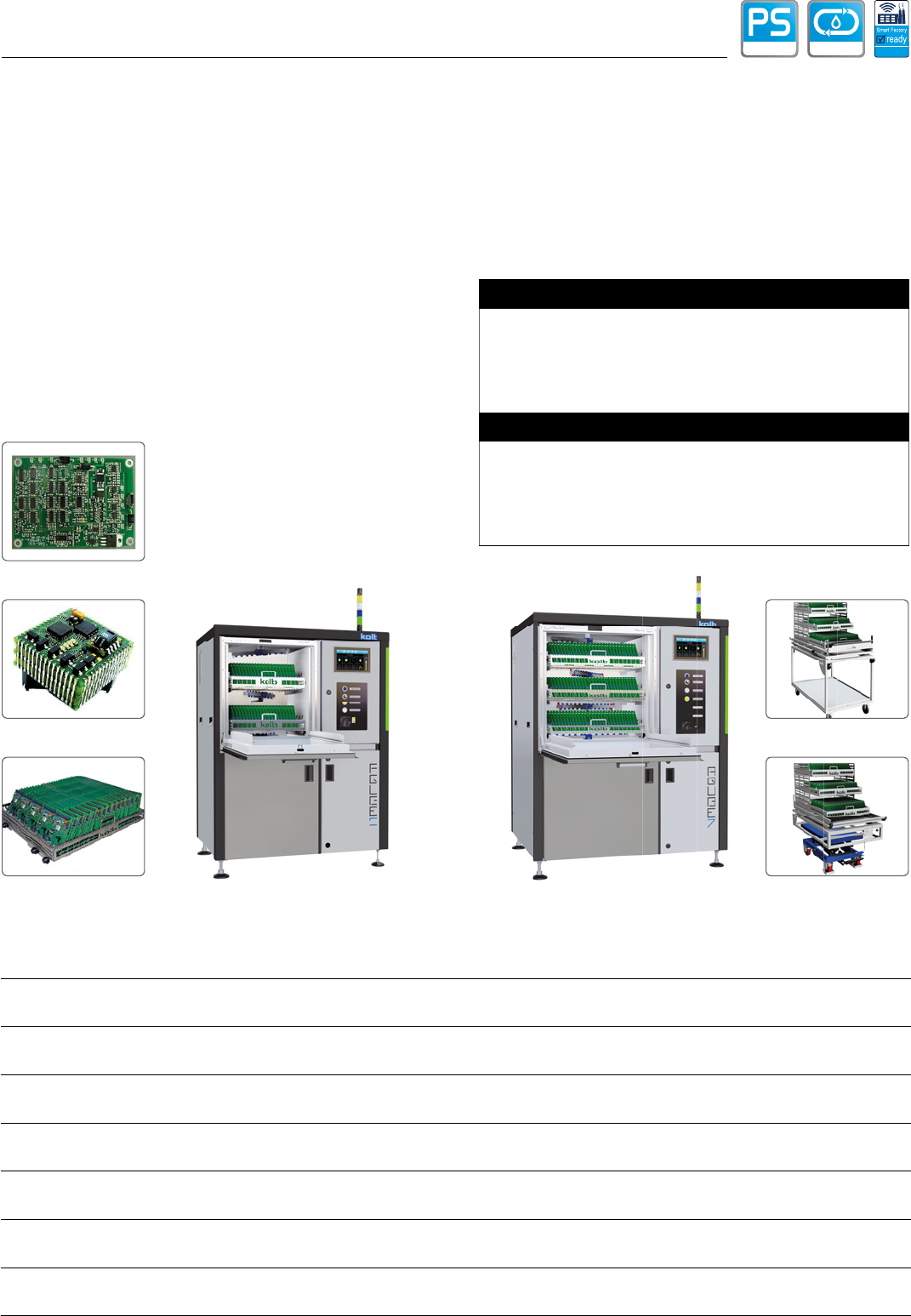

PRODUCT CLEANING - PCBAs, hybrids, misprints

AQUBE

L series: fast, efficient, process safe

The systems of the AQUBE

L series operate in a fully automatic

4step process: Cleaning, rinsing (tap water), DI-rinsing, VMH

TurboDigital evaporative drying (optionally CWA

supercharger

compression drying).

The horizontal rotor system with asynchronous pressure spray-

rotors prevents spray shadows / dead spots and cares for

thorough cleaning even of micro-dirt.

Both systems are pre-equipped for efficient water recycling and /

or disposal modules (see page 12).

ClosedLoopPowerSpray

PREMIUM

Assembled PCBs

Hybrids / HDIs / SIPs

Drawer basket

kolb systems: solid - flexible - safe - smart Further information: www.kolb-ct.com

DoubleSpeed load cart

Scissors lift loader

AQUBE

LH5

Up to 176 eurocards in up to two baskets, up to four rotors

with PolyPower

pressure technology, VMH

TurboDigital

hot air evaporative drying (control range 45 - 120 °C),

smart factory ready, 1.1 m

footprint

Process chamber: 540 (W) x 590 (D) x 570 (H) mm

AQUBE

LH7

Up to 540 eurocards in up to three baskets, up to six rotors

with PolyPower

pressure technology, VMH

TurboDigital

hot air evaporative drying, (control range 45 - 120 °C),

smart factory ready, 1.6 m

footprint

Process chamber: 700 (W) x 720 (D) x 710 (H) mm

AQUBE

LH5 AQUBE

LH7
