7 The systems of the new AQUBE ® MV series work in a fully auto- matic 4Step process with a vertical rotor system with up to eight asynchronous spray rotors. This ensures all-over and constant spray pressure on the stenc…

PRODUCT CLEANING - PCBs, hybrids, misprints

PSE L series: Solid, efficient, process safe

kolb PSE economy line is a quality series of advanced

cleaning systems, which focuses on all essential criteria

for a qualified cleaning process and therefore stands for

attractive purchase prices.

The kolb PSE L series offers solid and compact batch cleaners

with integrated process circuits for the fine cleaning of PCB

components, hybrids, misprints etc. representing a serious part

of the value added chain.

The main features of the PSE L series:

• Two- (LH5, LH7) and three tank- (LX9) combi systems

with three (LH5, LH7) and four (LX9) circuits

• 101 freely selectable process programs

• Up to 830 eurocards in one cleaning cycle (LX9)

• Relative cleaning time per PCB 8 sec. (LX9)

• Process and service intervals PLC controlled

• Event issuing and software control via touch screen

• Cleaning up to 55 °C (standard), up to 80 °C (HT-version)

• ClosedLoop processing of cleaning

and rinsing fluid

• Automatic adjustment of rinse water

and ionic residues quality

• Traceability (Basic)

All systems of the PSE L series are super compact and operate

in a fully automatic 4step process: Cleaning, rinsing (tap water),

DI-water rinsing, VMH

hot air evaporative drying.

The horizontal rotor system with asynchronous pressure spray-

rotors prevents spray shadows / dead spots and cares for

thorough cleaning even of micro-dirt.

ClosedLoopPowerSpray

PSE LH5 PSE LX9

Assembled PCBs

Hybrids / HDIs / SIPs

Drawer basket

PSE LH5

176 eurocards in two baskets, 4 rotors, VMH

hot air evapo-

rative drying (control range 70 - 90 °C), 1,1 m

footprint

Process chamber: 540 (W) x 590 (D) x 570 (H) mm

PSE LH7

540 eurocards in three baskets, 6 rotors, VMH

hot air eva-

porative drying, (control range 70 - 90 °C), 1,6 m

footprint

Process chamber: 700 (W) x 720 (D) x 710 (H) mm

PSE LX9

830 eurocards in four baskets, 8 rotors, VMH

hot air evapo-

rative drying, (control range 70 - 90 °C), 3 m

footprint

Process chamber: 970 (W) x 955 (D) x 900 (H) mm

Speed load cart

DoubleSpeed load cart

kolb systems: solid - flexible - safe - smart Further information: www.kolb-ct.com

NOTES

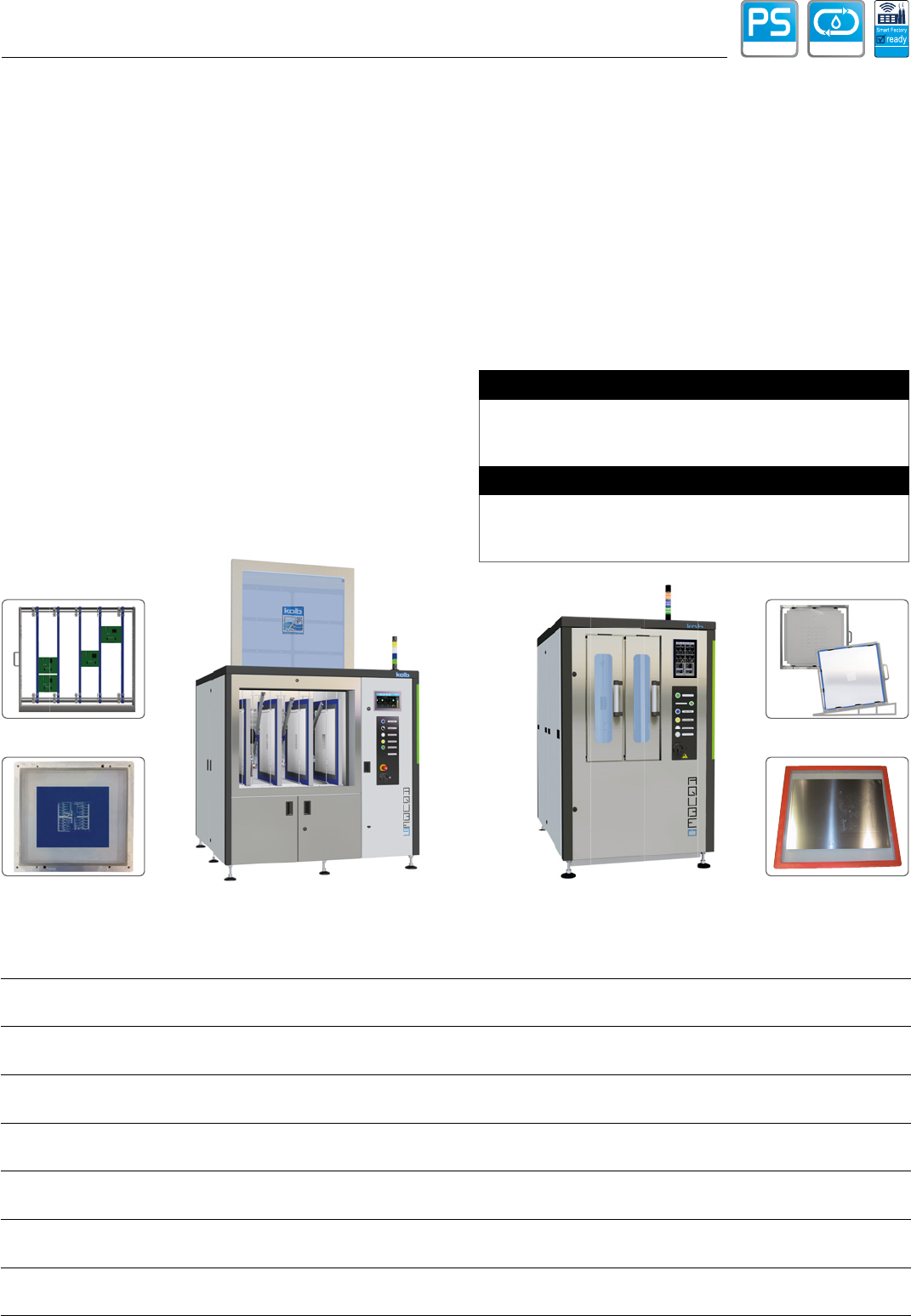

The systems of the new AQUBE

MV series work in a fully auto-

matic 4Step process with a vertical rotor system with up to eight

asynchronous spray rotors. This ensures all-over and constant

spray pressure on the stencils, prevents spray shadows and

provides for the most thorough cleaning of even the finest dirt in

the smallest appertures.

kolb AQUBE

MV8 sTWIN is a unique high-end dual cham-

ber PowerSpray

system for the thorough parallel or squential

cleaning of two stencils, which provides excellent cleaning results

in a short cycle time. While common systems with double capa-

city have to wait until two stencils are ready for cleaning or until

the running cleaning cycle has ended, AQUBE

MV8 sTWIN can

start cleaning one stencil immediately and a second one later

(sequential) or in parallel.

Economic, efficient and with high throughput: Systems of

the AQUBE

MV series clean up to four screens or stencils

in just one fully automatic 4step cleaning cycle (Cleaning,

MediumWipe

, rinsing, drying).

The main features of the AQUBE

MV series:

• Two tank combi systems with two separate circuits

• Intelligent network connectivity for industry 4.0

• 101 freely selectable process programs

• Process and service intervals PLC controlled

• Water-free operation possible: A suitable detergent can be

used for the rinsing due to the double tank system

• ClosedLoop processing of cleaning and rinsing fluid

• Short cycle time (approx. 7 min.) depending on

detergent and thickness of contamination

• Fully automatic 4step process

• Integrated 4-fold LED change-over light strip in the system

frame for process status control

• Event issuing and software control via touch screen

• Smart factory ready

• Traceability (SPC scanner, touch-monitor, industry PC)

• MV9 QUAD pre-equipped for WPSDIU (see page 12) water

disposal management module

• VARIccess

service access for easy maintenance

• Inimitably compact: 2 m

(MV8) - 3 m

(MV9) footprint

TOOLS CLEANING - Screens, stencils, PumpPrints

AQUBE

MV series: A multiple choice

ClosedLoopPowerSpray

PREMIUM

Misprints

Screens

AQUBE

MV9 QUAD

kolb systems: solid - flexible - safe - smart Further information: www.kolb-ct.com

Stencils

Screen-stencils

AQUBE

MV8 TWIN

AQUBE

MV9 QUAD

4 screens up to 800 x 940 mm (31.5“ x 37“), 8 vertical spray

rotors, CWA

compression drying, cycle time 3 - 4 min,

Process chamber: 970 (W), 900 (D), 955 (H) mm

AQUBE

MV8 sTWIN

2 stencils up to 900 x 800 mm (35“ x 32“), 4 vertical spray

rotors, CWA

compression drying, cycle time 7 - 10 min,

2 process chambers: 225 (W), 875 (D), 1000 (H) mm

NOTES

Screens, stencils, PumpPrints, PCBAs, Misprints, Carrier

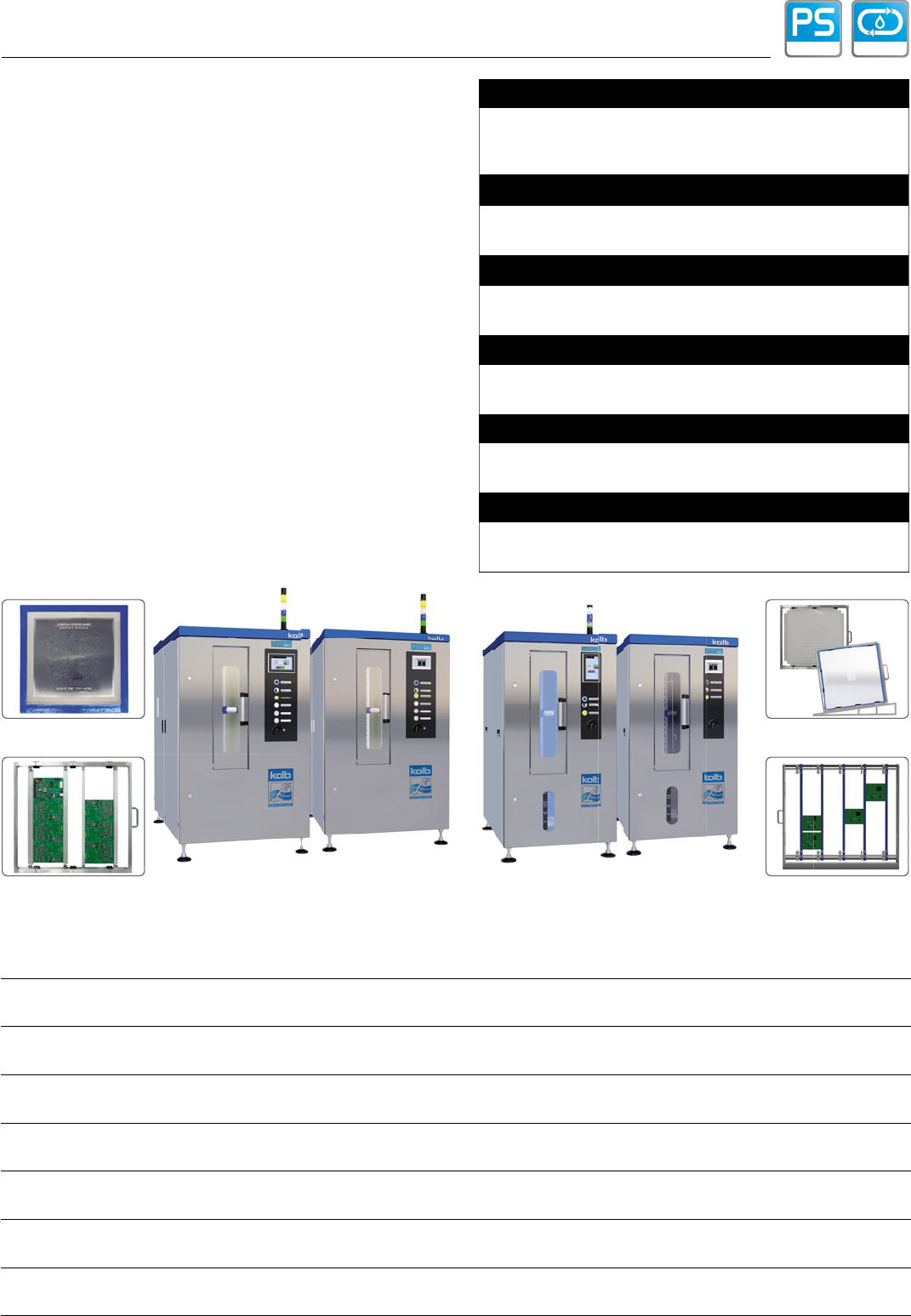

PSE 300 series: Start up pros with attractive prices

ClosedLoopPowerSpray

kolb systems: solid - flexible - safe - smart Further information: www.kolb-ct.com

PSE 300 series is optimally designed for the cleaning of screens,

stencils and misprints from SMD paste, SMD adhesive, oil, dust,

grease and many more.

Particularly the PSE 300 2HY is the most compact multifunctio-

nal system in its class. With two tanks and two circuits, it also

performs highly qualified product cleaning processes in the field

of PCBAs in addition to the sophisticated tool cleaning tasks.

The main features of PSE 300 series:

• Two tank systems with two circuits: 2VL, 2HY, 2HD

• Single tank combi-systems: VL-RS, VL, HD

• For cleaning products up to 31“ x 37.5“ / 780 x 950 mm

• ClosedLoop recycling cleaning and rinsing: 2VL, 2HY, 2HD

• Water free, without water connection operable: VL-RS, VL, HD

• Integrated cascaded sediment filtration: VL-RS, VL, HD

• Fully automatic 2 - 5step process

• Comfortable push-one-button operation

• Short cycle times

• PLC controlled process time

• Permanent fine filtration

• PLC controlled filter saturation

• Software control via touch screen

• Traceability - SPC scanner, monitor, PC: 2VL, 2HY, VL-RS

• Stainless steel front with all process sections made of

electrolysis-resistant materials

• Positioning close to the screen printer possible

•

Traceability (Basic): 2VL, 2HY, VL-RS

Screen-stencils

PCBAs

Stencils

Misprints (bare boards)

PSE 300 2HY

Hybrid system for PCBs, stencils, carriers, PolyPower

pres-

sure, 3 - 5step process: cleaning, MediumWipe

, rinsing,

DI-water rinsing, VMH

TurboDigital evaporative drying.

PSE 300 2VL

Two tank system with two separate circuits, 4Step process,

CWA

compression drying. Eaton PLC with 7“ touch screen

PSE 300 2HD

Two tank system with two separate circuits, 3Step process,

HotSpeed warm air drying, Eaton PLC with 3,5“ touchscreen

PSE 300 VL-RS

3step process, CWA

compression drying.

cycle time < 10 min., Eaton PLC with 3,5“ touchscreen

PSE 300 VS

2step process, CWA

compression drying.

cycle time < 18 min., Eaton PLC with 3,5“ touchscreen

PSE 300 HD

2step process, HotSpeed warm air drying,

cycle time approx. 30 min., Eaton PLC with 3,5“ touchscreen

PSE 300 VS

PSE 300 HD

PSE 300 2HY

PSE 300 2VL

PSE 300 2HD PSE 300 VL-RS

PSE 300 2HY
