5 Cleaning of PCBs is not only a necessary prerequisite for reliab- le varnishing and embedding and thus consequently climatic safety / leaking current safety. It also helps to eliminate mistakes and thereby preserves th…

The kolb AQUBE

series offer next-generation cleaning

systems - even more efficient, even more compact, easy

to handle and maintain, pre-equipped for extended water

management and cyber-physically ready for the smart

factory (SF ready).

Cleaning of power electronics and PCBAs with increasingly

complex physical structures is a significant factor for profitable

production. The thorough removal of fluxes, rosin, resin, copper

oxide and aggressive soldering support-substances is the main

task to prevent failures during production and even more so

when the products are working.

The kolb AQUBE

X series offers market-leading process safety

and personnel protection for the cleaning of complex and valu-

able PCBs. Various chamber sizes, different rotor configurations

and drying technologies always provide the best solution for

every demand. All systems of the AQUBE

X series operate

in a fully automatic 5step process: Cleaning, MediumWipe

rinsing (tap water), DI-water rinsing and

CWA

supercharger compression drying

or VMH

TurboDigital evaporative drying.

All systems are pre-equipped for efficient

water recycling and / or disposal (see

page 12) modules.

PRODUCT CLEANING - PCBs, DCBs, HDIs, SIPs

AQUBE

X series: For the highest demands

ClosedLoopPowerSpray

The main features of the AQUBE

X series:

• Three tank system with up to five circuits function

• Intelligent network connectivity for industry 4.0

• Relative cleaning time of one eurocard: 6.5 sec. (XH9)

• Process and service intervals PLC controlled

• Event issuing and software control via touch screen

• Cleaning up to 55 °C (standard), up to 80 °C (HT-version)

• ClosedLoop processing of cleaning and rinsing fluid

• Autom. adjustment of rinse water and ionic residues quality

• Traceability (SPC scanner, touch-monitor, industry PC)

• VARIccess

service access for easy maintenance

PREMIUM

kolb systems: solid - flexible - safe - smart Further information: www.kolb-ct.com

Hybrids / HDIs / SiPs

DCBs

Assembled PCBs

Slide-in unit

SpeedLoad cart

AQUBE

XH5, XH7, XH9

Capacity: up to 830 (19 m

) eurocards in up to four

baskets, suitable for horizontal DCB cleaning (H9, XH7),

PolyPower

pressure, up to 8 horizontal spray rotors, VMH

TurboDigital hot air evaporative drying, 1.1 - 3 m

footprint

Process chambers: from W 540 mm, D 590 mm, H 570 mm

up to 970 (W), 955 (D), 900 (H) mm

AQUBE

XV7, XV9

Capacity up to 72 eurocards in a wash cart or 40 DCB

panels (5“ x 7“), up to eight vertical spray rotors, CWA

supercharger compression drying, 1.6 - 3 m

footprint

Process chambers: from W 700 mm, D 710 mm, H 720 mm

up to W970 (W), 955 (D), 900 (H) mm

AQUBE

XH9 AQUBE

XV7

NOTES

Cleaning of PCBs is not only a necessary prerequisite for reliab-

le varnishing and embedding and thus consequently climatic

safety / leaking current safety. It also helps to eliminate mistakes

and thereby preserves the value of mounted PCBs and ensures

the optical quality of electronic components.

The kolb AQUBE

L series offers extremely fast and compact

batch cleaners with integrated process circuits for the fine

cleaning of PCB components, hybrids, SiPs, HDIs etc. becoming

a serious part of the value added chain.

The main features of the AQUBE

L series:

• Two tank combi system with three circuits

• Intelligent network connectivity for industry 4.0

• 101 freely selectable process programs

• Relative cleaning time per PCBA: 8 sec.(LH7)

• Process and service intervals PLC controlled

• Event issuing and intuitive software control via touch screen

• Cleaning up to 55 °C (standard), up to 80 °C (HT-version)

• ClosedLoop processing of cleaning

and rinsing fluid

• Automatic adjustment of rinse water

and ionic residues quality

• Traceability (SPC scanner, touch-

monitor, industry PC)

• VARIccess

service access for easy

maintenance

PRODUCT CLEANING - PCBAs, hybrids, misprints

AQUBE

L series: fast, efficient, process safe

The systems of the AQUBE

L series operate in a fully automatic

4step process: Cleaning, rinsing (tap water), DI-rinsing, VMH

TurboDigital evaporative drying (optionally CWA

supercharger

compression drying).

The horizontal rotor system with asynchronous pressure spray-

rotors prevents spray shadows / dead spots and cares for

thorough cleaning even of micro-dirt.

Both systems are pre-equipped for efficient water recycling and /

or disposal modules (see page 12).

ClosedLoopPowerSpray

PREMIUM

Assembled PCBs

Hybrids / HDIs / SIPs

Drawer basket

kolb systems: solid - flexible - safe - smart Further information: www.kolb-ct.com

DoubleSpeed load cart

Scissors lift loader

AQUBE

LH5

Up to 176 eurocards in up to two baskets, up to four rotors

with PolyPower

pressure technology, VMH

TurboDigital

hot air evaporative drying (control range 45 - 120 °C),

smart factory ready, 1.1 m

footprint

Process chamber: 540 (W) x 590 (D) x 570 (H) mm

AQUBE

LH7

Up to 540 eurocards in up to three baskets, up to six rotors

with PolyPower

pressure technology, VMH

TurboDigital

hot air evaporative drying, (control range 45 - 120 °C),

smart factory ready, 1.6 m

footprint

Process chamber: 700 (W) x 720 (D) x 710 (H) mm

AQUBE

LH5 AQUBE

LH7

NOTES

PRODUCT CLEANING - PCBs, hybrids, misprints

PSE L series: Solid, efficient, process safe

kolb PSE economy line is a quality series of advanced

cleaning systems, which focuses on all essential criteria

for a qualified cleaning process and therefore stands for

attractive purchase prices.

The kolb PSE L series offers solid and compact batch cleaners

with integrated process circuits for the fine cleaning of PCB

components, hybrids, misprints etc. representing a serious part

of the value added chain.

The main features of the PSE L series:

• Two- (LH5, LH7) and three tank- (LX9) combi systems

with three (LH5, LH7) and four (LX9) circuits

• 101 freely selectable process programs

• Up to 830 eurocards in one cleaning cycle (LX9)

• Relative cleaning time per PCB 8 sec. (LX9)

• Process and service intervals PLC controlled

• Event issuing and software control via touch screen

• Cleaning up to 55 °C (standard), up to 80 °C (HT-version)

• ClosedLoop processing of cleaning

and rinsing fluid

• Automatic adjustment of rinse water

and ionic residues quality

• Traceability (Basic)

All systems of the PSE L series are super compact and operate

in a fully automatic 4step process: Cleaning, rinsing (tap water),

DI-water rinsing, VMH

hot air evaporative drying.

The horizontal rotor system with asynchronous pressure spray-

rotors prevents spray shadows / dead spots and cares for

thorough cleaning even of micro-dirt.

ClosedLoopPowerSpray

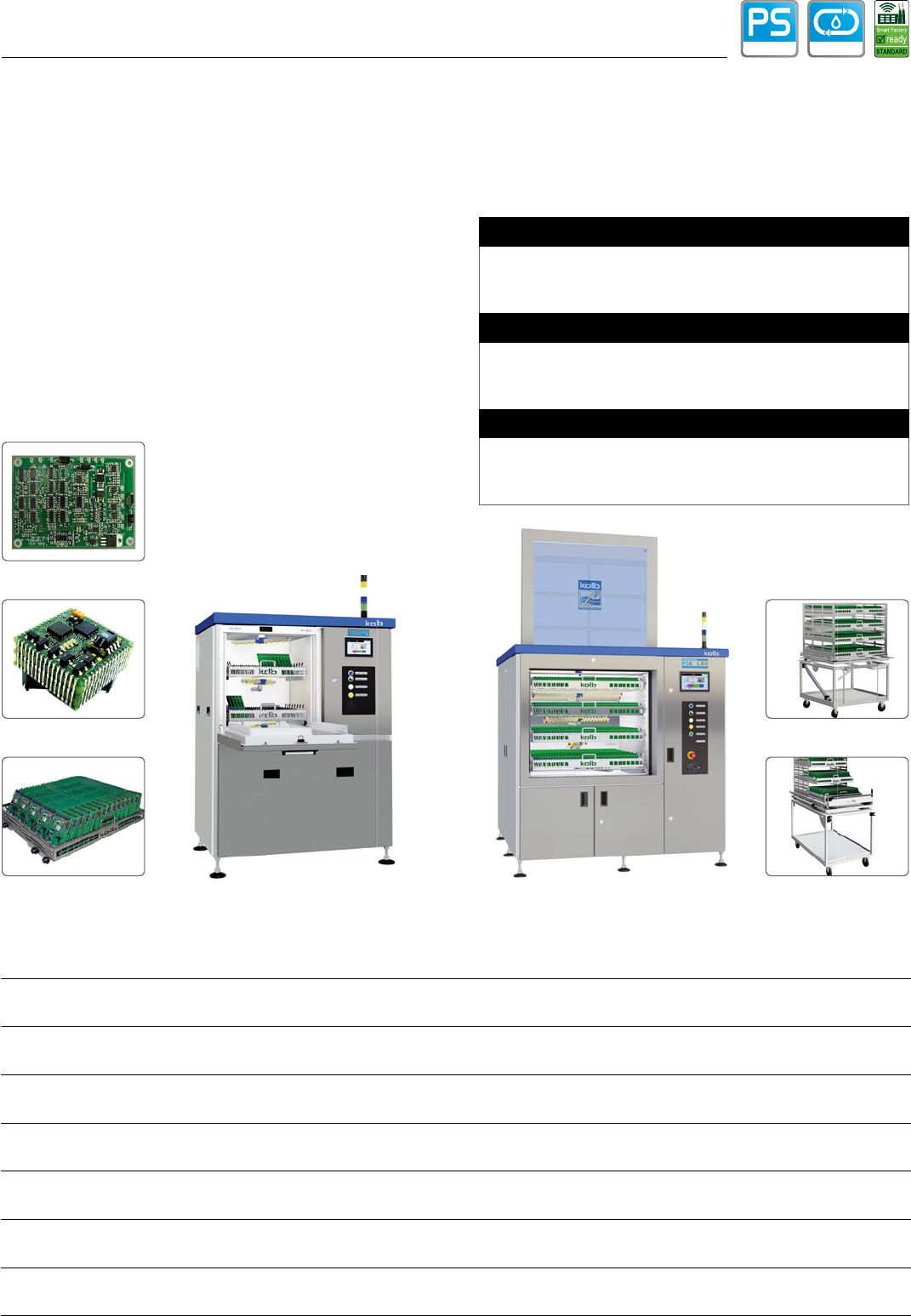

PSE LH5 PSE LX9

Assembled PCBs

Hybrids / HDIs / SIPs

Drawer basket

PSE LH5

176 eurocards in two baskets, 4 rotors, VMH

hot air evapo-

rative drying (control range 70 - 90 °C), 1,1 m

footprint

Process chamber: 540 (W) x 590 (D) x 570 (H) mm

PSE LH7

540 eurocards in three baskets, 6 rotors, VMH

hot air eva-

porative drying, (control range 70 - 90 °C), 1,6 m

footprint

Process chamber: 700 (W) x 720 (D) x 710 (H) mm

PSE LX9

830 eurocards in four baskets, 8 rotors, VMH

hot air evapo-

rative drying, (control range 70 - 90 °C), 3 m

footprint

Process chamber: 970 (W) x 955 (D) x 900 (H) mm

Speed load cart

DoubleSpeed load cart

kolb systems: solid - flexible - safe - smart Further information: www.kolb-ct.com
