9 In electronics production process a great variety of tools is permanently c ontaminated with different residues . The systems of the kolb AQUBE ® MH series clean solder carriers, ESD-boxes, PCB storage racks, masks, ma…

Screens, stencils, PumpPrints, PCBAs, Misprints, Carrier

PSE 300 series: Start up pros with attractive prices

ClosedLoopPowerSpray

kolb systems: solid - flexible - safe - smart Further information: www.kolb-ct.com

PSE 300 series is optimally designed for the cleaning of screens,

stencils and misprints from SMD paste, SMD adhesive, oil, dust,

grease and many more.

Particularly the PSE 300 2HY is the most compact multifunctio-

nal system in its class. With two tanks and two circuits, it also

performs highly qualified product cleaning processes in the field

of PCBAs in addition to the sophisticated tool cleaning tasks.

The main features of PSE 300 series:

• Two tank systems with two circuits: 2VL, 2HY, 2HD

• Single tank combi-systems: VL-RS, VL, HD

• For cleaning products up to 31“ x 37.5“ / 780 x 950 mm

• ClosedLoop recycling cleaning and rinsing: 2VL, 2HY, 2HD

• Water free, without water connection operable: VL-RS, VL, HD

• Integrated cascaded sediment filtration: VL-RS, VL, HD

• Fully automatic 2 - 5step process

• Comfortable push-one-button operation

• Short cycle times

• PLC controlled process time

• Permanent fine filtration

• PLC controlled filter saturation

• Software control via touch screen

• Traceability - SPC scanner, monitor, PC: 2VL, 2HY, VL-RS

• Stainless steel front with all process sections made of

electrolysis-resistant materials

• Positioning close to the screen printer possible

•

Traceability (Basic): 2VL, 2HY, VL-RS

Screen-stencils

PCBAs

Stencils

Misprints (bare boards)

PSE 300 2HY

Hybrid system for PCBs, stencils, carriers, PolyPower

pres-

sure, 3 - 5step process: cleaning, MediumWipe

, rinsing,

DI-water rinsing, VMH

TurboDigital evaporative drying.

PSE 300 2VL

Two tank system with two separate circuits, 4Step process,

CWA

compression drying. Eaton PLC with 7“ touch screen

PSE 300 2HD

Two tank system with two separate circuits, 3Step process,

HotSpeed warm air drying, Eaton PLC with 3,5“ touchscreen

PSE 300 VL-RS

3step process, CWA

compression drying.

cycle time < 10 min., Eaton PLC with 3,5“ touchscreen

PSE 300 VS

2step process, CWA

compression drying.

cycle time < 18 min., Eaton PLC with 3,5“ touchscreen

PSE 300 HD

2step process, HotSpeed warm air drying,

cycle time approx. 30 min., Eaton PLC with 3,5“ touchscreen

PSE 300 VS

PSE 300 HD

PSE 300 2HY

PSE 300 2VL

PSE 300 2HD PSE 300 VL-RS

PSE 300 2HY

NOTES

In electronics production process a great variety of tools

is permanently contaminated with different residues.

The systems of the kolb AQUBE

MH series clean solder

carriers, ESD-boxes, PCB storage racks, masks, machine

parts and other small parts from flux, oil, dust and grease.

All systems of the AQUBE

M series are inimitably compact,

easy to operate and to maintain, pre-equipped for extended

water management and cyber-physically ready for the smart

factory (SF ready).

The main features of the AQUBE

MH series:

• Two tank combi system with three circuits

• Intelligent network connectivity for industry 4.0

• 101 freely selectable process programs

• Fully automatic 3 - 4step process

• Process and service intervals PLC controlled

• Event issuing and software control via touch screen

• Cleaning up to 55 °C (standard), up to 80 °C (HT-version)

• ClosedLoop processing of cleaning and rinsing fluid

• Automatic rinse water exchange and pump out unit

• Traceability (SPC scanner, touch-monitor, industry PC)

• Pre-equipped for WPSDIU (see page 12) water disposal

management module

• VARIccess

service access for easy maintenance

Systems of the AQUBE

MH series are real „all rounders“ for

any kind of tools or maintenance cleaning due to their flexible

machine configuration.

Likewise flexible are the capabilities of rinse and cleaning fluids:

The optimal adapted cleaning medium can be used as ready-

mix (RM ReadyMix) or via the optional re-dosage unit as a

concentrate (CN Concentrate).

TOOLS CLEANING - Carriers, magazines, filters, machinery parts

AQUBE

MH series: Simply clean tools

ClosedLoopPowerSpray

PREMIUM

AQUBE

MH5

Capacity: 7 solder carriers up to 560 x 490 mm or up to 2

baskets, PolyPower

pressure unit, VMH

-Digital hot air

drying, Process chamber: 540 (W), 590 (D), 570 (H)mm

AQUBE

MH7

Capacity: 11 solder carriers up to 700 x 620 mm or up to 3

baskets, PolyPower

pressure unit, VMH

-Digital hot air

drying, Process chamber: 700 (W), 720 (D), 710 (H) mm

AQUBE

MH9

Capacity: 28 solder carriers up to 710 x 450 mm or up to

4 baskets, horizontal spray rotors, VMH

VMH

-Digital hot

air drying, Process chamber: 970 (W), 955 (D), 900 (H) mm

Solder carriers

ESD boxes

Solder Carriers

Machinery parts

AQUBE

MH7

kolb systems: solid - flexible - safe - smart Further information: www.kolb-ct.com

AQUBE

MH9

NOTES

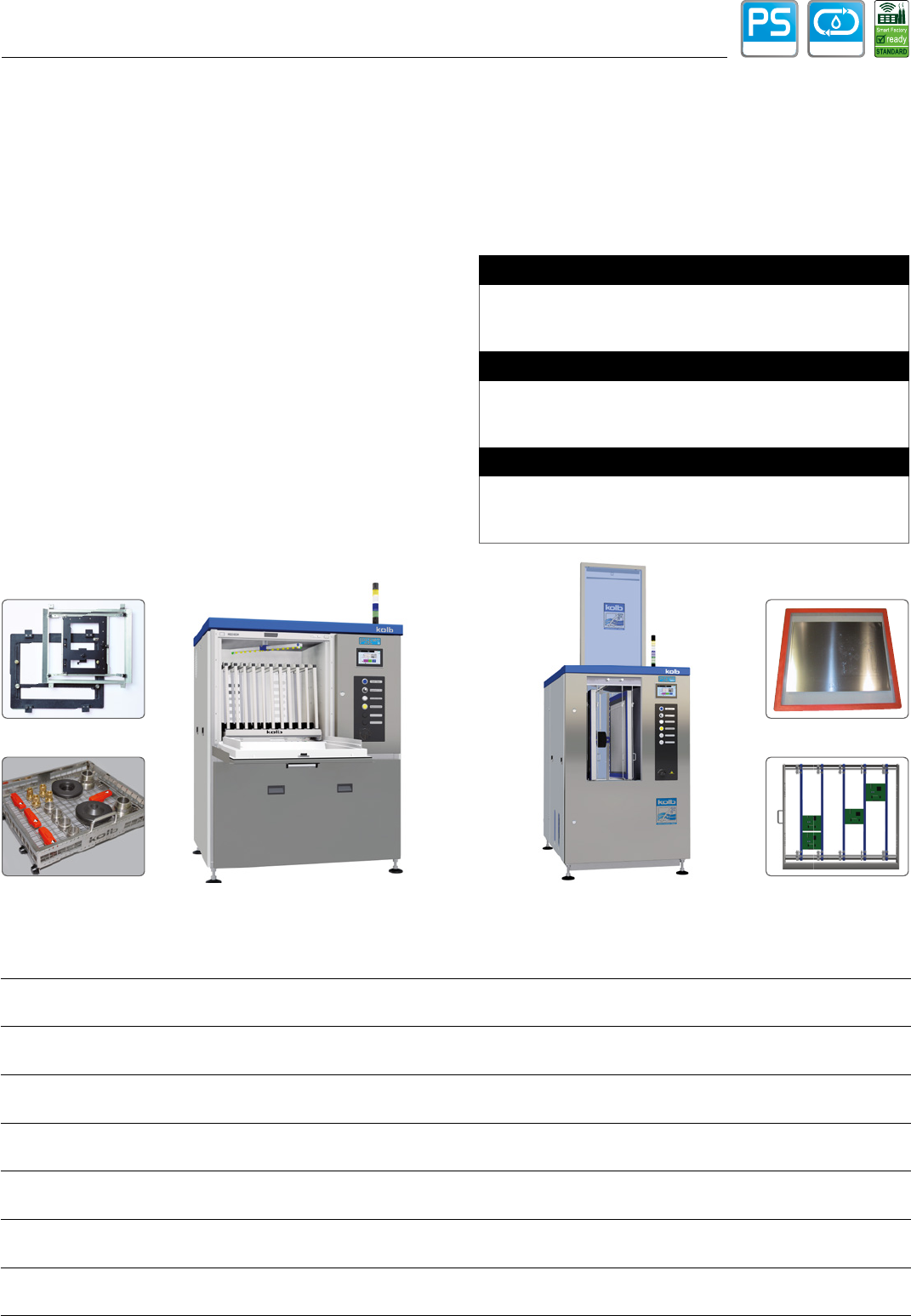

TOOLS CLEANING - Stencils, carriers, machinery parts, filters

PSE M series: Perfect for maintenance cleaning

Systems of the PSE M series are fully equipped in their basic

version and clean stencils (MV8), carriers, masks, pallets,

ESD boxes, magazines, machinery parts, lathe parts and milled

parts (MH5, MH7).

The main features of PSE MH systems

• Two tank solder carrier cleaning system with three circuits

• 101 freely selectable process programs

• Fully automatic 3 - 4step process

• Process and service intervals PLC controlled

• Event issuing and software control via touch screen

• Cleaning up to 55 °C (standard), up to 80 °C (HT-version)

• ClosedLoop processing of cleaning and rinsing fluid

• Exchange for rinse water and pump out unit as standard

• Traceability (Basic)

The main features of PSE MV8 TWIN

• Two tank combi system with two separate circuits

• TWIN-Slot for two stencils

• Short cycle time (ca. 7 min) depending on contamination

• ClosedLoop processing of cleaning and rinsing fluid

• Three-stage double fine filter system 10μm

• Process and service intervals PLC controlled

• Event issuing and software control via touch screen

• Waterfree process possible with applicable cleaning and

rinsing detergent

• Traceability (Basic)

The PSE MH systems offer economy all-round systems for

nearly all requirements of maintenance cleaning from flux, oil,

dust and grease for carriers / masks ESD boxes, PCB magazi-

nes, pallets, machine parts and other small parts (for example,

turning and milling parts).

The PSE MV8 TWIN is a robust PowerSpray

system for the

cleaning of two stencils / misprint frames up to 900 x 800 mm

(35“ x 32“) in one cleaning cycle which provides excellent

cleaning results in a short cycle time (about 7 - 10 minutes).

ClosedLoopPowerSpray

PSE MH5

Capacity: 7 solder carriers up to 560 x 490 mm or up to 2

baskets, VMH

hot air evaporative drying

Process chamber: 540 (W), 590 (D), 570 (H)mm

PSE MH7

Capacity: 11 solder carriers up to 700 x 620 mm or up to 3

baskets, VMH

hot air evaporative drying

Process chamber: 700 (W), 720 (D), 710 (H) mm

PSE MV8 TWIN

2 stencils / misprint frames up to 900 x 800 mm (35“ x 32“),

4 vertical spray rotors, CWA

compression drying

Process chamber: 550 (W), 875 (D), 1000 (H) mm

Screens / stencils

Misprints

Solder carriers

Machinery parts

PSE MV8 TWINPSE MH7
