SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 5 Vision Functions
Edition 03/98 from Software Version SR.404.xx 5.6 Test Component
Line engineer 5 - 97
This menu is used to store the generated video image as a file on the hard disk of the machine controller. The
file name and path are preset to:
C:\TMP\MVSBILD.MVS
For further analysis at Siemens AG, copy the file from the hard disk of the MVS controller onto a diskette and
send it to the AUT 5 Service Department.
5.6.4.6
Analysis time
Option
NOTE
You cannot click on this option until a package form number has been loaded.
Fig. 5.6.17 Test component menu, Analysis time option
This option is used to display the analysis time for a selected component. Once you have activated the func-
tion, the following actions are started:
– The measuring procedure is activated.
– The video image appears on the screen
– The analysis time is overlaid.
5 Vision Functions SIPLACE 80S-20/F4/F4-6/F5 User’s Manual
5.6 Test Component Edition 03/98 from Software Version SR.404.xx
5 - 98 Line engineer

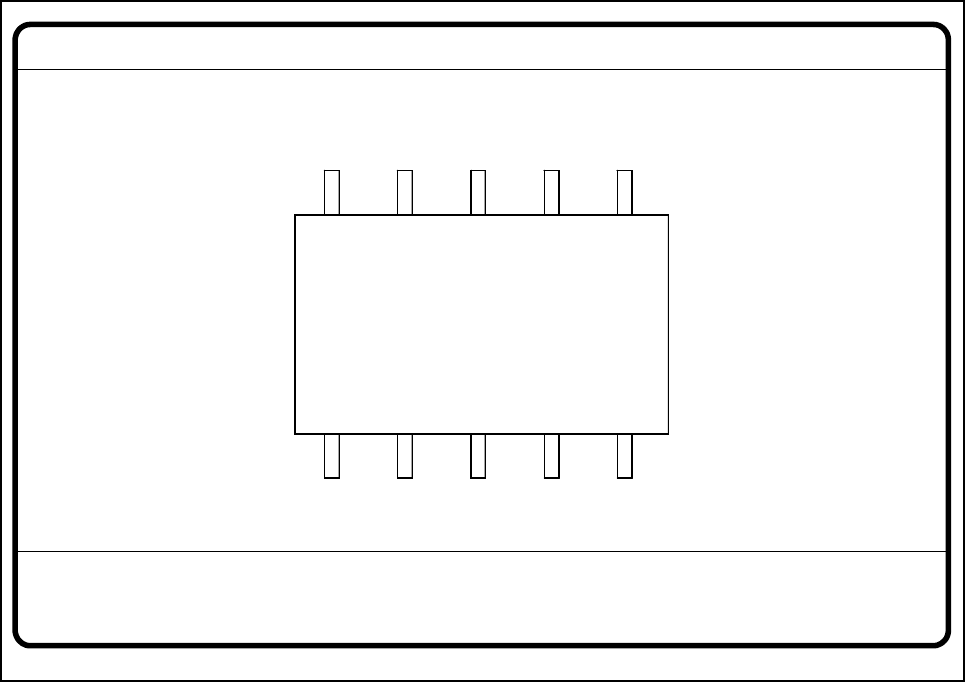

Fig. 5.6.18 Test component menu, Analysis time video image
– Press the RETURN key to start the measurement. Once the measuring procedure has ended, the measur-
ing time in msec is overlaid.
– Press ESC to leave the option. The video image will disappear and the ‘Test component’ menu will appear
once more.
5.6.4.7 Information on the Group of
Edit GF Data
Options
The following options belong to the Edit GF data group of options:
– Lighting
– Package dimensions
– Lead dimensions
– Ball illustration
– Transformation table
– Select component type (80F
4
, 80F
4
-6 or 80F
5
machines only, see Section 5.10 from Page 5 - 157)
– Measure mode
The GF or package form file is stored in the line computer. Basically it consists of two main parts:
– the geometric package form data and
– the sensor-specific data.
GF No. = 5
Evaluation time
Evaluation time [ms] =
RET: Measure component
SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 5 Vision Functions
Edition 03/98 from Software Version SR.404.xx 5.6 Test Component
Line engineer 5 - 99
The sensor-specific part contains
– the measurement conditions for the component,
– the type of lighting and
– the transformation table data.
NOTE
The buttons of the options of the Test component menu will only be active if you have already loaded a pack-
age form.
Fig. 5.6.19 Test component menu, options
This menu allows you to change
– the lead dimensions,
– the package dimensions,
– the ball imaging parameters,
– the illumination parameters and,
– the transformation table.
Lead dimension parameters are
– optical lead length in the x and y directions of the component
– optically lead width in the x and y directions of the component
