17 Nozzle Overview SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 17.1 Nozzle Contour Diagrams Edition 03/98 from Software Version SR.404.xx 17 - 12 Fig. 17.1.9 Nozzle contour for nozz le type 7xx / long side - Key to Fig. 17.1…
SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 17 Nozzle Overview
Edition 03/98 from Software Version SR.404.xx 17.1 Nozzle Contour Diagrams
17 - 11

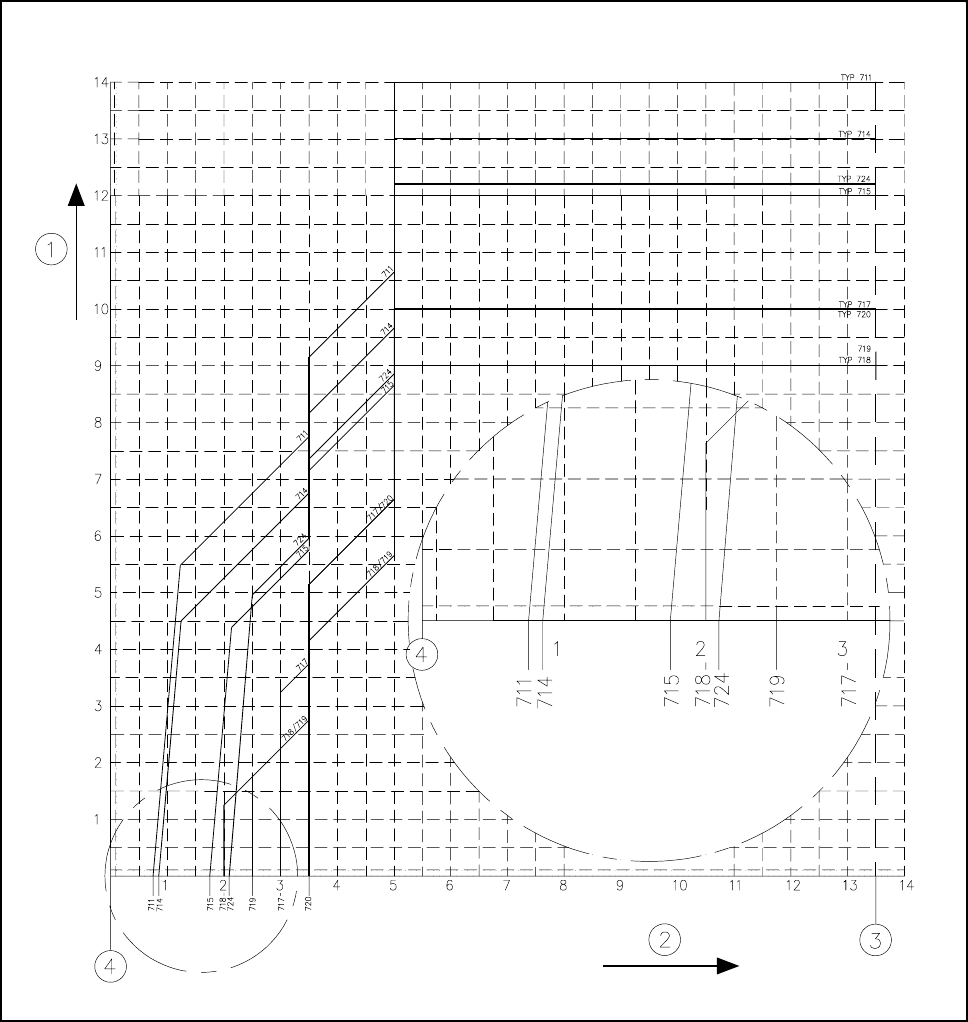

Fig. 17.1.8 Nozzle contour for nozzle type 7xx / narrow side
- Key to Fig. 17.1.8
1 Components height difference [mm] 2 Placement shadow [mm]
3 Outer edge of encoder disk 4 Center of nozzle
17 Nozzle Overview SIPLACE 80S-20/F4/F4-6/F5 User’s Manual
17.1 Nozzle Contour Diagrams Edition 03/98 from Software Version SR.404.xx
17 - 12
Fig. 17.1.9 Nozzle contour for nozzle type 7xx / long side
- Key to Fig. 17.1.9
1 Components height difference [mm] 2 Placement shadow [mm]
3 Outer edge of encoder disk 4 Center of nozzle
SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 17 Nozzle Overview
Edition 03/98 from Software Version SR.404.xx 17.1 Nozzle Contour Diagrams
17 - 13
Fig. 17.1.10 Nozzle contour for nozzle type 75x / polyurethane / narrow side
- Key to Fig. 17.1.10
1 Components height difference [mm] 2 Placement shadow [mm]
3 Outer edge of encoder disk 4 Center of nozzle
