Issue 03 November 2020 Indicator Beacon Remove the indicator beacon from its protective packaging. Remo v e the four M4 butt o n head screws from the top of TM TCM (FIG 3 ), pos ition the beacon so that the four screws c…

Issue 03 November 2020

Condensate Collection

Alternatively, condensate can be diverted directly to a drain via pipe work

NOTE: Please make sure the condensate hose is a straight run with

no kinks (see below)

Issue 03 November 2020

Indicator Beacon

Remove the indicator beacon from its protective packaging. Remove the four M4 button

head screws from the top of TM TCM (FIG 3), position the beacon so that the four

screws can be re-inserted and fixed to hold the beacon in place (FIG 4).

FIG 3 FIG 4

Issue 03 November 2020

OPERATION

Initializing the Machine

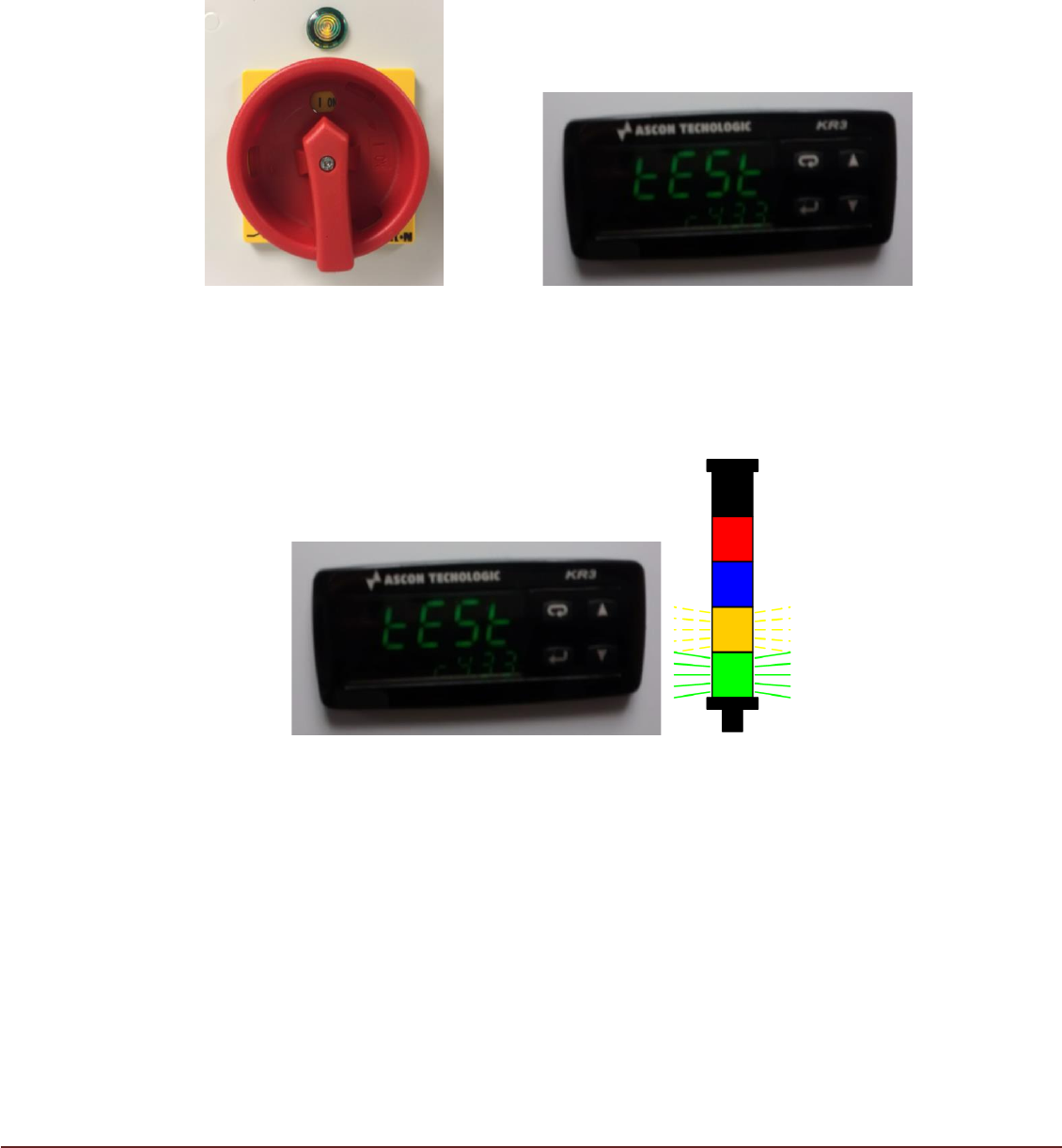

1. On completion of the Printer/TM TCM installation turn the TM TCM Isolator to the ON

position (FIG 5). The Green lamp should illuminate indicating that the TCM is energized

and the Controller display will initially show as (FIG 6) with ‘TEST’ flashing.

FIG 5 FIG 6

2a. After approximately 5 seconds, the Controller display will change. If no output

temperature signal is available from the printer, the controller will display ‘0.0’ and

the Orange beacon segment flash quickly. The TM TCM will not start (FIG 7).

Note:

FIG 7

The printer does not output temperature signal to the TM TCM until the initialization

sequence has completed. If after 1 min a temperature signal is still not present the

Orange beacon flashes at a slower rate. After a further 1 min without signal the Amber

beacon is continuously lit. These periods are determined by the ‘Disconnect’ and

‘Shutdown’ settings on the control PCB.
