Issue 03 November 2020 Condensate Collection Alternati ve ly, condensate can be diverted directly to a d ra in via pipe work NOTE: Please ma k e sure the condensate hose is a str aig ht run with no kinks (see below)

Issue 03 November 2020

Power Supply Connection

1. Check the integrity of the electrical power supply cable.

2. Test the mains input at the isolated supply is the correct voltage and frequency

before proceeding.

3. Connect to the mains supply.

WARNING

All electrical connections should be carried out by suitably

qualified personnel ensuring relevant rules and regulations

are observed.

WARNING

To reduce the risk of fire, electric shock, or injury:

Connect to a properly earthed/grounded outlet.

Use only as described in the manual.

Isolate from power supply before opening covers.

WARNING

LETHAL VOLTAGE. Dangerous voltages exist within this

equipment. Ensure all electrical covers and main machine

covers are fitted before operating equipment.

WARNING

ELECTRICAL HAZARD. If any damage to the electrical cable

is found the unit must not be connected. Installation is to

cease until inspected by a qualified electrician.

Issue 03 November 2020

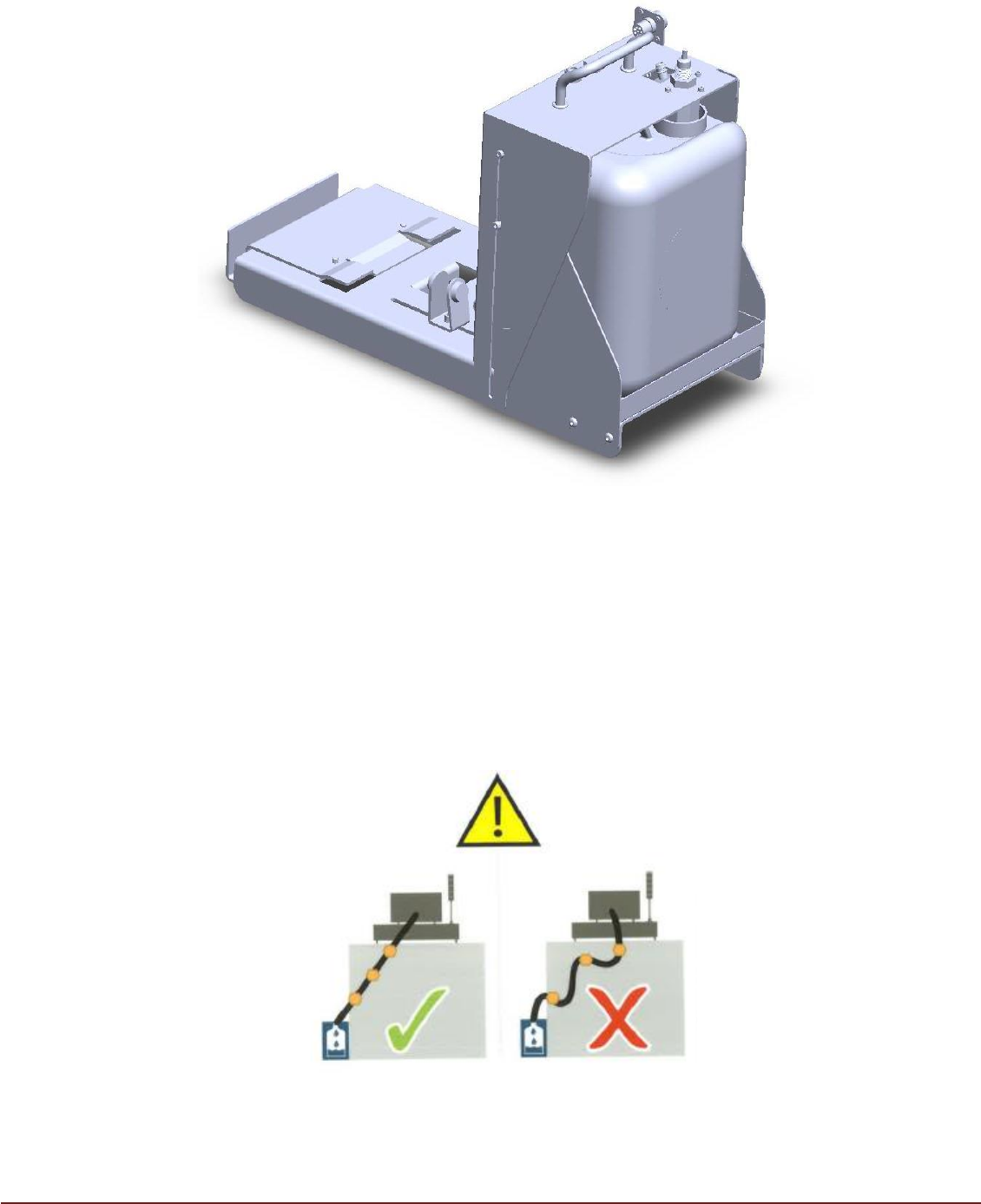

Condensate Collection

Alternatively, condensate can be diverted directly to a drain via pipe work

NOTE: Please make sure the condensate hose is a straight run with

no kinks (see below)

Issue 03 November 2020

Indicator Beacon

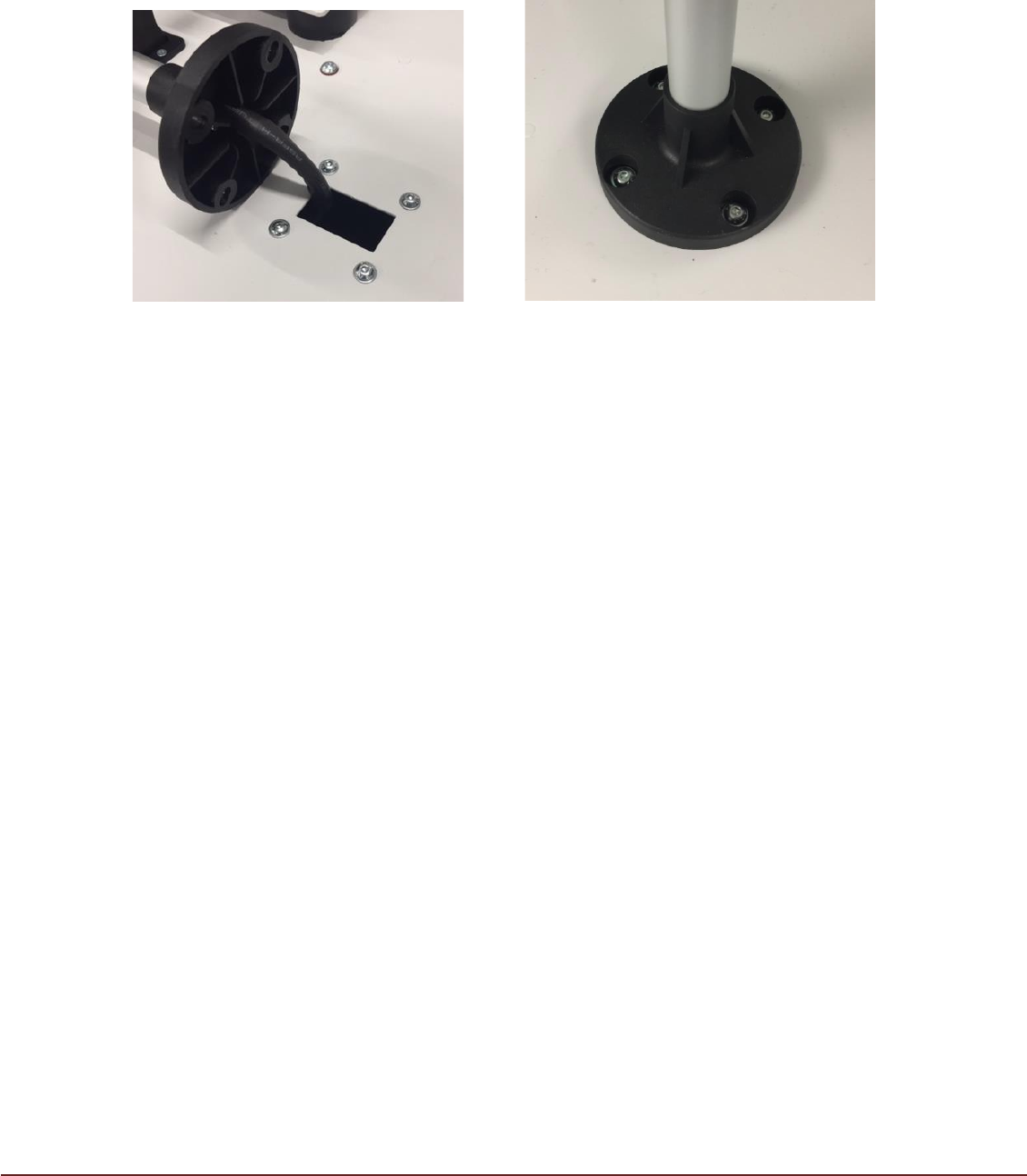

Remove the indicator beacon from its protective packaging. Remove the four M4 button

head screws from the top of TM TCM (FIG 3), position the beacon so that the four

screws can be re-inserted and fixed to hold the beacon in place (FIG 4).

FIG 3 FIG 4
