FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 6 Proper Data Measurements Page 16 of 30
10. Confirm that the resolution results are within the tolerances shown below:
Mark camera resolution tolerance
X_Unit
0.0140 ~ 0.0147
X_View
8.90 ~ 9.50
Y_Unit
0.0140~ 0.0147
Y_View
6.56 ~ 6.95
11. The resolution measurement is now complete, press [OK] to return to the [Maintenance
A] screen.
6.12 Mark Positions and Angle Measurement
1. Select [Maintenance A] – [Jog] – [Fiducial] – the fiducial lamp comes ON and the mark
camera live image is displayed on the screen.
2. Select the cross hairs and then center the mark camera in the center of the parts gage
station left hand fiducial mark
{.
{
|
}
3. Select [Maintenance C] – [Mark Camera Measurement] – [F MarkPos Measure] –

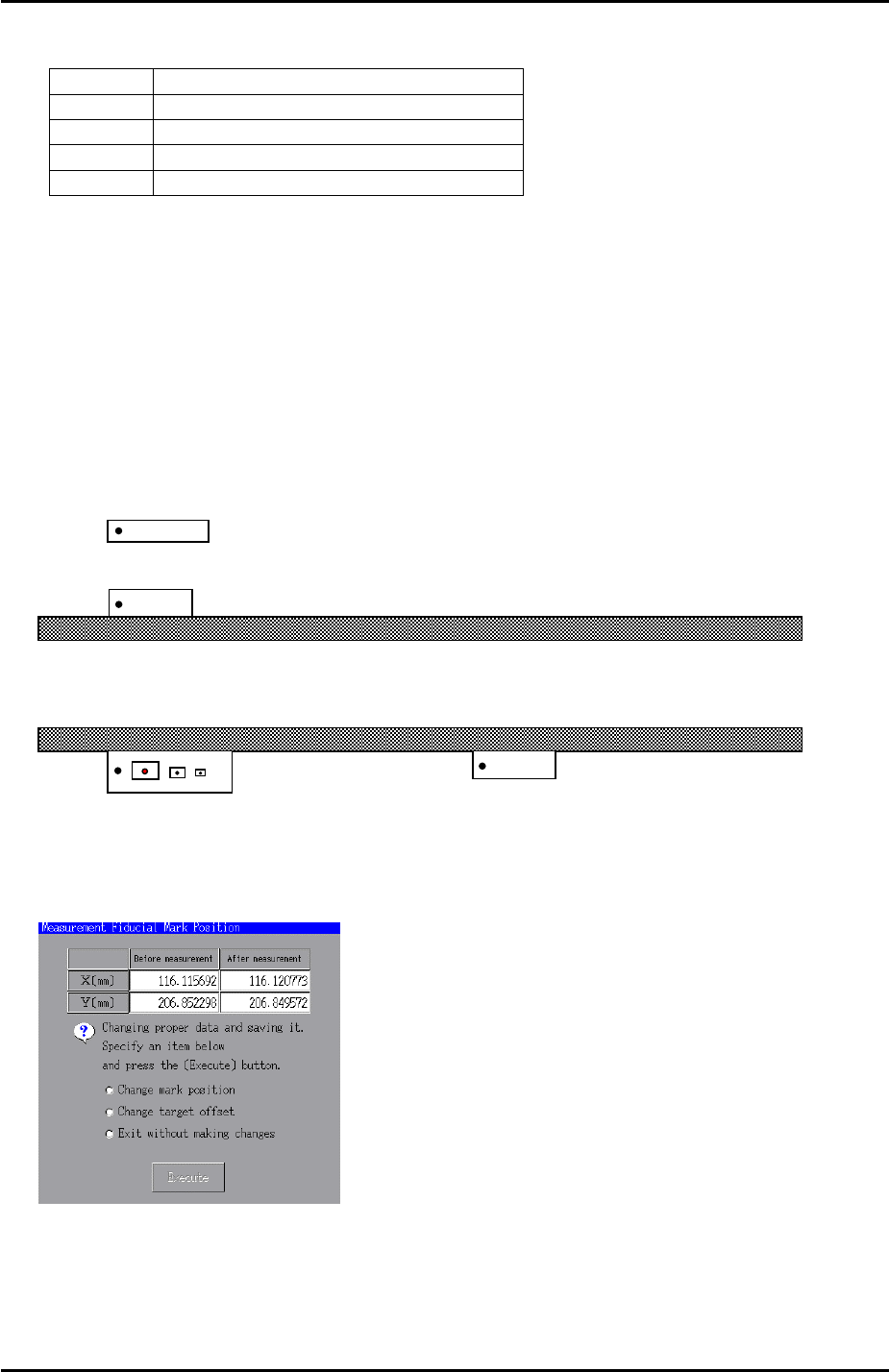

[START] to measure the position of the fiducial mark. The following dialogue box will
then display:
4. Select [Change mark position] – [Execute] and the results of the measurement will be
automatically saved in [Proper Data Editor] – [OTHERS] – [X_MeasureFidMark] and
[Y_MeasureFidMark].
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
6 – 16 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 6 Proper Data Measurements Page 17 of 30
5. With the mark camera still centered on fiducial mark { select [Angle Measure] – [START]
to measure the mark camera Q (theta) orientation. To save the calibration results press
[OK].
6. Now select [Maintenance C] – [Custom Maintenance] – [Fiducial] and center the mark
camera on fiducial mark
|. Select [Maintenance] – [Proper Data Editor] – [OTHERS] –
[X_MeasureFidMark2] and [Y_MeasureFidMark2] – [Direct Servo Input] to save the
current position in proper data.
7. Return to the Maintenance Mode jog screen and center the mark camera on fiducial mark
}. Select [Maintenance] – [Proper Data Editor] – [OTHERS] – [X_MeasureFidMark3] and
[Y_MeasureFidMark3] – [Direct Servo Input] to save the current position in proper data.
6.13 Measuring the Board Origin
1. Select [Maintenance A] – [I/O Check] – [Y02A Main StationSt] – and raise the main
stopper.
2. Select [Maintenance A] – [Jog] – [Fiducial] and display the cross hairs on the screen.
3. Set the vertical cross hair flush with the left side of the main stopper and then use the
inching tabs (in step mode) to move the X axis exactly 5mm in the minus direction.
4. Select [Maintenance C] – [Proper Data Editor] – [Machine Origin] – [X_board Origin] –
[Direct Servo Input] to save the current position to proper data.
5. Return to the [JOG] screen and set the horizontal cross hair flush with the side of the
reference rail and then use the inching tabs to move the Y axis 5.25mm in the plus
direction.
6. Select [Maintenance C] – [Proper Data Editor] – [Machine Origin] – [Y_board Origin] –
[Direct Servo Input] to save the current position to proper data.
5.0 mm
5.25 mm
Side of the reference rail
Main Stopper
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
6 – 17 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 6 Proper Data Measurements Page 18 of 30
6.14 Measuring Z0
1. Equipment: Lever type dial gage (0.01mm). Plate jig (AJPJ-0060). Nozzle jig
(A5706ADEAJ8100).
2. Refer to the piston height measurement results recorded in chapter 3.3, to identify the
highest piston.
3. Move the highest piston to the front of the machine and install the nozzle jig on the
piston.
4. Clamp the plate jig in the main conveyor.
5. Inch the nozzle jig above the plate jig and then press the emergency stop button to cut
the 200v power supply to the servos.
6. Set the Q axis pusher to 0 degrees and align the pusher and piston.
7. Manually descend the Z-axis until the nozzle jig contacts the plate jig.
8. Set the dial gage on the nozzle jig and then raise the Z-axis until the dial indicator starts
to move. This point is Z0.
Plate jig
A
JPJ-0060
Pickup height measuring
nozzle jig (A5706ADEAJ8100)
9. Select [Maintenance C] – [Proper Data Editor] – [Machine Origin] – [Z Board Surface] –
[Direct Servo Input] to save the current Z-axis counter value to proper data.
10. Note: components higher than 0.3mm are all placed at Z0. The spring in the nozzle
cushions the contact between component and panel during placement. Components with
heights of 0.3 or less are placed at Z0 – (minus) 0.3mm.
