3.Machine System SYS-CP842-1.1E

60 CP-842E / CP-842ME System Reference

3.1.10 Loading and Unloading Panels

Automatic Panel Conveyance

The machine automatically loads and unloads panels during production. When production

is started, the machine loads panels to the main conveyor (XY-table) for assembly. When

assembly is complete, the panels are unloaded and conveyed to the next machine. A

carrier loader system is used on CP-842E/842ME to reduce loading and unloading time.

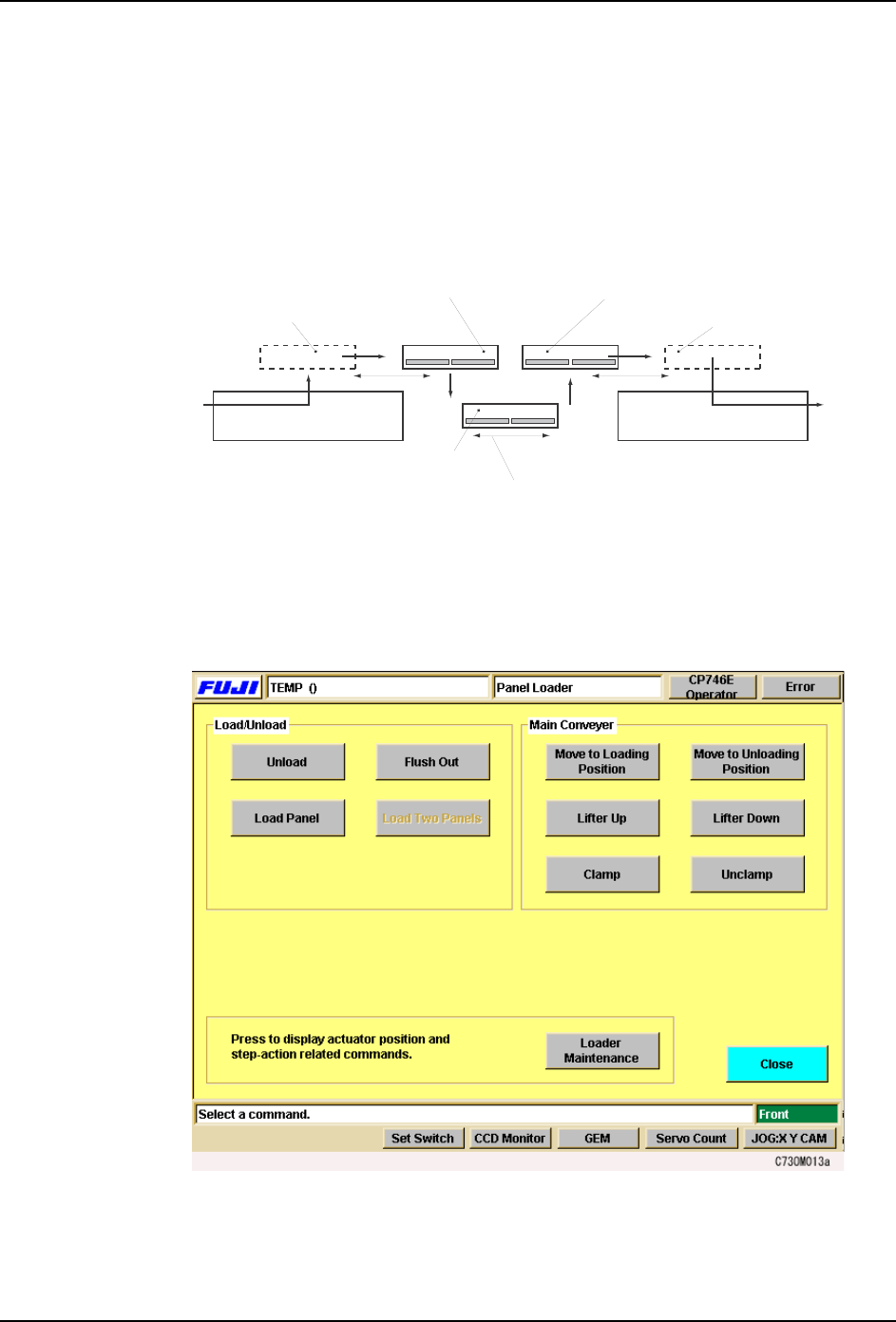

The action of the carrier loader system is shown below.

Loading and Unloading Panels Manually

The operator can unload or load panels using commands at the machine.

Procedure

1. Press [Panel Loader] at the [Main] screen. The [Panel Loader] screen displays.

2. To load a new panel, select [Load Panel] from the “Load/ Unload” section. To unload a

panel from the machine, select [Unload]. After selecting one of these commands, the

START button is enabled.

In-carrier

In-conveyor

Main conveyor

Main conveyor movement

Out-conveyor

Out-carrier

Production standby

position

Panel receiving

position

From

machine To next

machine

C73OM003

SYS-CP842-1.1E 3.Machine System

CP-842E / CP-842ME System Reference 61

Note: When the CP-842ME has the optional double panel loading function, two panels can be loaded at one

time by selecting [Load Two Panels].

3. Press START to commence.

Loading/unloading is carried out, and the machine awaits further input when the

operation is finished. To return to the [Main] screen, press [Close].

Clearing All Panels from the Machine (Flush Out)

The [Flush Out] command allows users to unload all panels currently held in the machine,

and prevent new panels from being loaded.

Procedure

1. At the [Main] screen, press [Panel Loader] to display the [Panel Loader] screen.

2. Press [Flush Out] to enable the START button, and press START to start flush out.

The machine unloads all panels currently on the machine, and awaits input from the

operator when the operation is complete.

3.Machine System SYS-CP842-1.1E

62 CP-842E / CP-842ME System Reference

3.1.11 Changing the Conveyor Width

On machines equipped with an automatic conveyor width changing mechanism, the

conveyor width can be automatically changed in 0.1 mm increments by commands

executed from the machine.

Automatic Conveyor Width Change Function

The automatic conveyor width change function is used to facilitate changeovers. To use

this function, enter the panel width (for the post-changeover production program) at the

[Conveyor Width] screen shown below. The conveyor then automatically moves to that

width.

Note: Be sure to remove the backup pins before performing width changes.

Procedure

1. At the [Main] screen’s “Changeover” area, select the [Conveyor] item to display the

[Conveyor Width Select] screen, then press the [Conveyor Width] button to display the

[Conveyor Width] screen shown below.
