1-24 N67xx DUT Power Supply Installation

From the front panel:

1 Select Protect/Clear.

2 Select the Clear button.

Using SCPI command:

To clear a protection fault on output1, execute OUTP:PROT:CLE(@1)

N67xx DUT Power Supply Installation 1-25

Connecting the Power and GPIB Cables

Plug the DUT Power Supply’s power cord into the nearest power outlet box, with

the proper voltage, in the testhead. Each outlet box is marked with its voltage.

Connect 0.5-meter GPIB cables (10833D) to existing supplies. The DUT power

supplies handshake faster than most other devices on the bus. If they are cabled

directly to the controller, the glitches they generate can cause GPIB timeout errors.

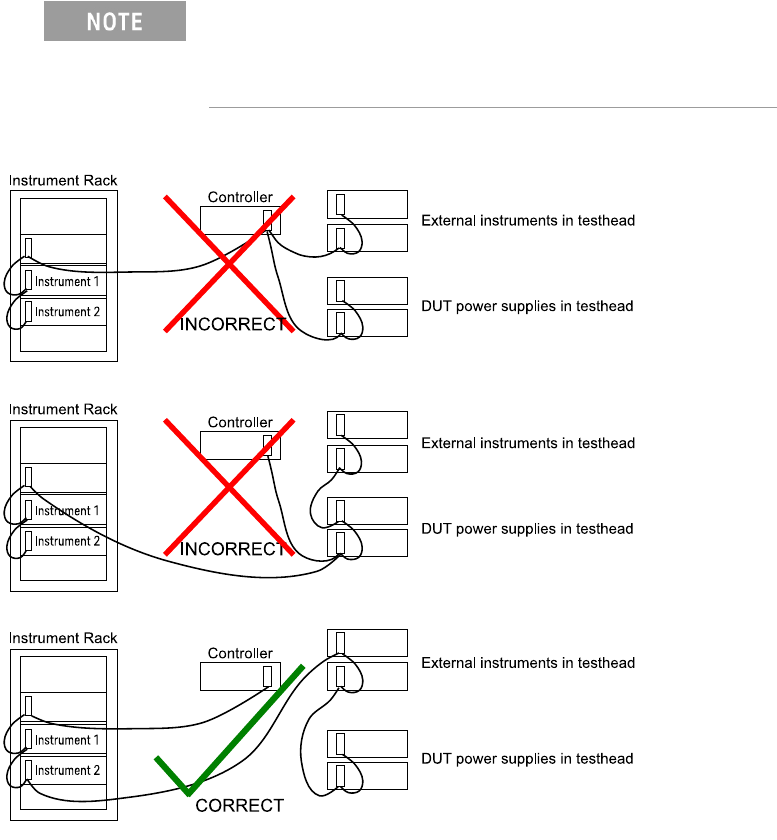

Figure 1-13 Connecting the GPIB cables

The DUT Power Supply GPIB cables must be at the end of

the GPIB cable string. Figure 1-13 shows how to connect

the GPIB cables, including when an optional instrument bay

is used.

1-26 N67xx DUT Power Supply Installation

Programming the GPIB Address on Power Supplies

Table 1-8 shows the valid GPIB addresses for DUT power supplies. Be sure not to

duplicate a GPIB address if making changes.

Set the GPIB address from the front panel of the DUT power supply.

1 Press ADDR and enter the address.

2 Press ENTER.

Table 1-8 DUT Power Supply Addressing

Power Supply Connection GPIB Address Device File (in /dev/)

Module 0, ASRU Card channels 1-4

Module 0, ASRU Card channels 1, 2, 5, 6

22 ps0

Module 1, ASRU Card channels 1-4

Module 1, ASRU Card channels 1, 2, 5, 6

23 ps1

Module 2, ASRU Card channels 1-4

Module 2, ASRU Card channels 1, 2, 5, 6

24 ps2

Module 3, ASRU Card channels 1-4

Module 3, ASRU Card channels 1, 2, 5, 6

25 ps3

Module 0, ASRU Card channel 5 or 5-6 26 ps4

Module 0, ASRU Card channel 6 27 ps5

Module 1, ASRU Card channels 5-6 28 ps6

Module 1, ASRU Card channel 6 29 ps7

Module 2, ASRU Card channels 5-6 1 ps8

Module 2, ASRU Card channel 6 2 ps9

Module 3, ASRU Card channels 5-6 3 ps10

Module 3, ASRU Card channel 6 4 ps11

Module 0, ASRU Card channel 3 12 ps20

Module 0, ASRU Card channel 4 13 ps21

Module 1, ASRU Card channel 3 15 ps22

Module 1, ASRU Card channel 4 16 ps23

Module 2, ASRU Card channel 3 18 ps24

Module 2, ASRU Card channel 4 19 ps25

Module 3, ASRU Card channel 3 20 ps26

Module 3, ASRU Card channel 4 30 ps27
