SI-G200AAMK7_PartList_JPG.pdf - 第14页

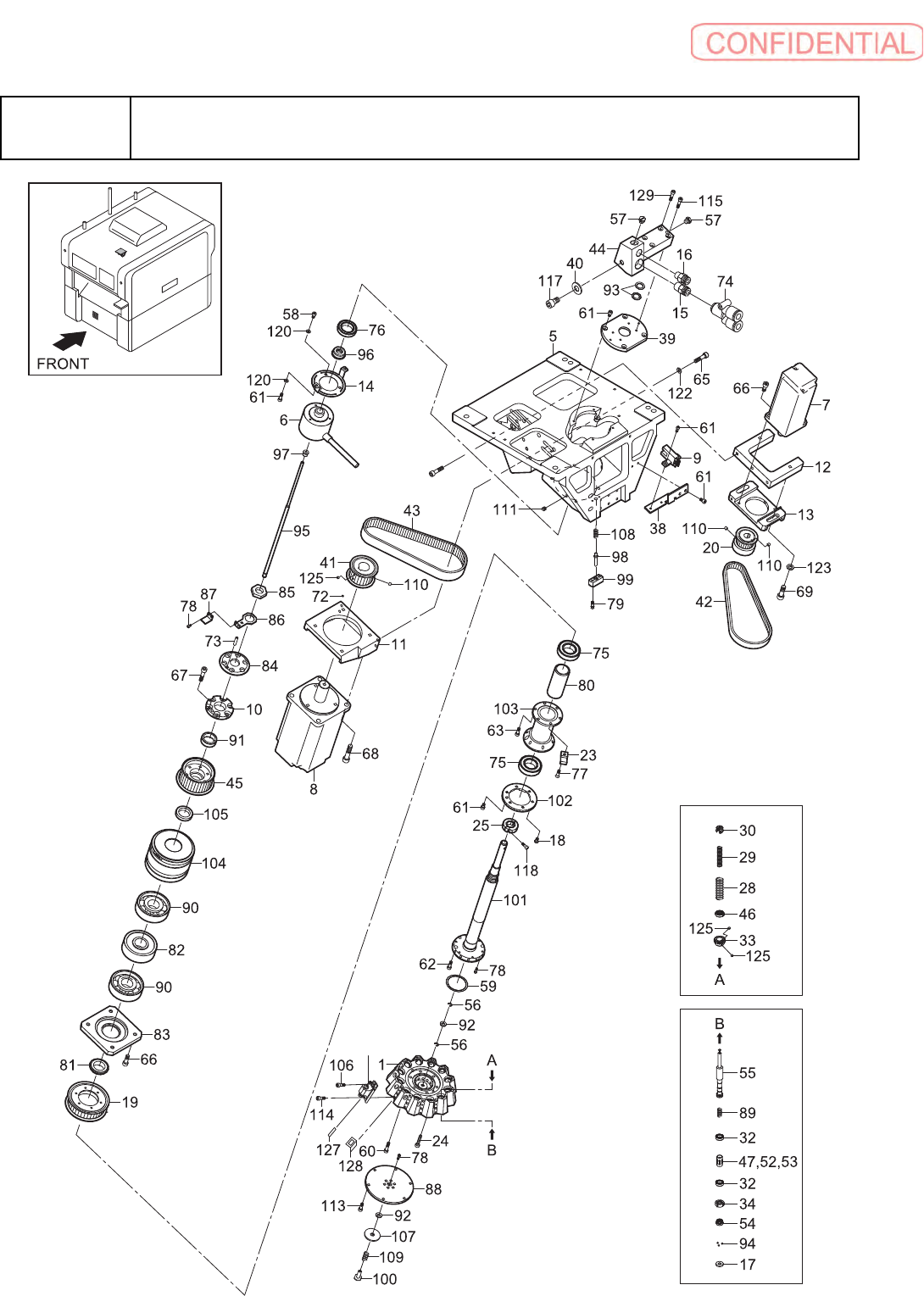

3-2-1 3-2 Ａヘッド ユニット（ 1/2 ） HEAD UNIT, A (1/2) 31,130
3-1-4
3-1
Ｘ軸 ユニット
X-AXIS UNIT
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
3-2-1
3-2
Ａヘッド ユニット（1/2）
HEAD UNIT, A (1/2)
31,130
3-2-2
3-2
Ａヘッド ユニット（1/2）
HEAD UNIT, A (1/2)
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 X-2109-603-4
ﾍﾂﾄﾞ
SUB ASSY
HEAD SUB ASSY
1
5 X-2548-088-1
ﾍﾂﾄﾞ
ﾊｳｼﾞﾝｸﾞ
ASSY
HOUSING, HEAD ASSY
1
6 1-479-340-11
ﾛ
-
ﾀﾘ
-
ｴﾝｺ
-
ﾀﾞ
(RE93-1024T06)
ENCODER, ROTARY (RE93-1024T06)
1
RE93-1024T06
7 1-787-838-11
ｻ
-
ﾎﾞ
ﾓ
-
ﾀ
(SGMJV-01ADA61)
MOTOR, SERVO (SGMJV-01ADA61)
1
SGMJV-01ADA61
8 1-787-837-11
ｻ
-
ﾎﾞ
ﾓ
-
ﾀ
(SGMAV-04ADA61)
MOTOR, SERVO (SGMAV-04ADA61)
1
SGMAV-04ADA61
9 1-480-565-11
ﾌｵﾄｾﾝｻ
(EE-SX673A)
SENSOR, PHOTO (EE-SX673A)
1
EE-SX673A
10 2-109-499-02
ｵｻｴ
ﾌﾗﾝｼﾞ
(
ｳﾁ
)
FLANGE (INNER), RETAINER
1
11 2-109-501-03
RT
ﾓ
-
ﾀ
ﾌﾞﾗｹﾂﾄ
BRACKET, RT MOTOR
1
12 2-109-502-01
RN
ﾓ
-
ﾀ
ﾌﾞﾗｹﾂﾄ
BRACKET, RN MOTOR
1
13 2-109-582-01
RN
ﾓ
-
ﾀ
ﾎﾙﾀﾞ
-
HOLDER, RN MOTOR
1
14 2-109-583-01
ｴﾝｺ
-
ﾀﾞ
ｲﾀﾊﾞﾈ
SPRING, ENCODER LEAF
1
15 2-148-085-01
ﾊ
-
ﾌ
ﾕﾆｵﾝ
(KQ2H08-U02)
UNION, HALF (KQ2H08-U02)
1
KQ2H08-U02, SMC
16 2-148-085-11
ﾊ
-
ﾌ
ﾕﾆｵﾝ
(KQ2H06-U01)
UNION, HALF (KQ2H06-U01)
1
KQ2H06-U01, SMC
17 2-148-138-02
ﾉｽﾞﾙ
O
ﾘﾝｸﾞ
NOZZLE (O RING)
12
18 2-149-679-01
ｷﾖｸ
ﾃｲﾄｳ
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(CBSS*
BOLT, HEXAGON SOCKET (CBSS3-6)
6
CBSS3-6
19 2-149-703-01
ﾌﾟ
-
ﾘ
(RN)
PULLEY (RN)
1
20 2-149-704-01
ｸﾄﾞｳ
ﾌﾟ
-
ﾘ
(RN)
PULLEY (RN), DRIVING
1
- 2-172-448-01
ﾄﾒ
ﾈｼﾞ
6
ｶｸ
ｱﾅ
ﾋﾗｻｷ
(2X2)
SCREW (2X2)
24
2X2
- 2-176-600-01
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M3X22 SUS)
BOLT (M3X22 SUS), SOCKET
3
M3X22 SUS
23 2-178-936-02
RN
ﾄﾞｸﾞ
DOG, RN
1
24 2-178-937-01
RN
ｽﾄﾂﾊﾟ
-
ﾎﾞﾙﾄ
BOLT, RN STOPPER
2
25 2-514-330-01
ﾍｲｺｳﾋﾟﾝ
(
ﾔｷｲﾚ
) (
ﾌｱｲ
4X6H7)
PIN (HARDENING) (DIA. 4X6H7)
1
DIA 4X6H7
- 2-514-331-02
ｾﾂﾄ
ｶﾗ
-
COLLAR, SET
1
28 2-673-671-01
ｲﾝﾅ
-
ｼﾔﾌﾄ
ﾊﾞﾈ
(
ｳﾁ
)
SPRING (INNER), INNER SHAFT
12
29 2-673-672-01
ｲﾝﾅ
-
ｼﾔﾌﾄ
ﾊﾞﾈ
(
ｿﾄ
)
SPRING (OUTER), INNER SHAFT
12
30 2-673-683-03
ﾊﾞﾈ
ｵｻｴ
RETAINER, SPRING
12
