4-5 4 中継 ユニット RELAY UNIT ｲﾗｽﾄ番号 Ref.No. 部品コード Parts Code 部品名 Parts Name Serial No. 個数 Q'ty 備考 Remarks 同期 Repl.
4-4
4
中継 ユニット
RELAY UNIT
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
54 3-288-074-01
ﾍﾂﾄﾞ
ｺﾈｸﾀ
-
ｶﾊﾞ
-
COVER, HEAD CONNECTOR
1
55 4-186-193-01
ﾍﾂﾄﾞ
ｺﾈｸﾀ
-
ﾌﾟﾚ
-
ﾄ
PLATE, HEAD CONNECTOR
1
56 2-698-399-02
ｺﾞｸ
ﾃｲﾄｳ
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(CBST*
CAP SCREW, EXTRA LOW HEAD
2
58 4-706-724-02
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M3X4SUS)
BOLT (M3X4SUS), HEXAGON SOCKET
12
M3X4SUS
59 4-706-724-11
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M3X6)
BOLT (M3X6), HEXAGON SOCKET
4
M3X6
60 4-706-725-01
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X8)
BOLT (M4X8), HEXAGON SOCKET
12
M4X8
61 4-706-725-05
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X20SUS)
BOLT (M4X20SUS),HEXAGON SOCKET
2
M4X20SUS
62 4-706-725-31
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X30)
BOLT (M4X30), HEXAGON SOCKET
4
M4X30
63 4-706-725-51
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X6)
BOLT (M4X6), HEXAGON SOCKET
4
M4X6
64 4-706-726-31
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M5X10)
BOLT (M5X10), HEXAGON SOCKET
4
M5X10
65 4-706-740-21
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M6X8)
BOLT (M6X8), HEXAGON SOCKET
6
M6X8
66 4-720-755-01
ｲﾄﾞｳ
ﾔｼﾞﾙｼ
ｼ
-
ﾙ
(
ｼﾖｳ
)
SEAL, MOVE ARROW MARK (SMALL)
1
- 4-720-769-01
ｽﾄﾚ
-
ﾄ
(KQ2H06-00)
STRAIGHT (KQ2H06-00)
1
KQ2H06-00, SMC
- 4-720-769-21
ｽﾄﾚ
-
ﾄ
(KQ2H08-00)
STRAIGHT (KQ2H08-00)
2
KQ2H08-00, SMC
70 4-761-747-02
ｹ
-
ﾌﾞﾙ
ｵｻｴ
ｶﾗ
- (Y
ｼﾞｸ
)
COLLAR, CABLE RETAINER(Y AXIS)
4
72 7-681-000-11
+K M4X6
SCREW +K M4X6
3
+K M4X6
73 7-682-950-01
+PSW 3X12
SCREW +PSW 3X12
8
+PSW 3X12
74 7-688-004-11
W 4, MIDDLE
W 4, MIDDLE
4
W 4, MIDDLE
75 7-688-005-11
W 5, MIDDLE
W 5, MIDDLE
4
W 5, MIDDLE
76 4-192-767-01
ﾚｷﾞﾕﾚｰﾀｰ
ﾌﾞﾗｹﾂﾄ
(R)
BRACKET (R),REGULATOR
1
77 4-123-424-01
ｾｲﾐﾂ
ﾚｷﾞｭﾚｰﾀ
(IR1000-01BG-X80)
REGULATOR (IR1000-01BG-X80)
1
IR1000-01BG-X80, SMC
78 4-123-284-01
ｱﾂﾘｮｸｹｲ
(G36-4-01)
GAUGE (G36-4-01), PRESSURE
1
G36-4-01, SMC
80 3-877-267-02
ｺﾃｲﾊﾞﾝ
PLATE, FIXED
2
81 3-877-264-01
ｶﾊﾞｰｼｰﾄ
SHEET, COVER
1
82 4-258-526-01
ｺﾞﾑ
ｼｰﾄ
(3)
SHEET, RUBBER (3)
4
83 4-258-527-01
ｺﾞﾑ
ｼｰﾄ
(4)
SHEET, RUBBER (4)
8
4-5
4
中継 ユニット
RELAY UNIT
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.

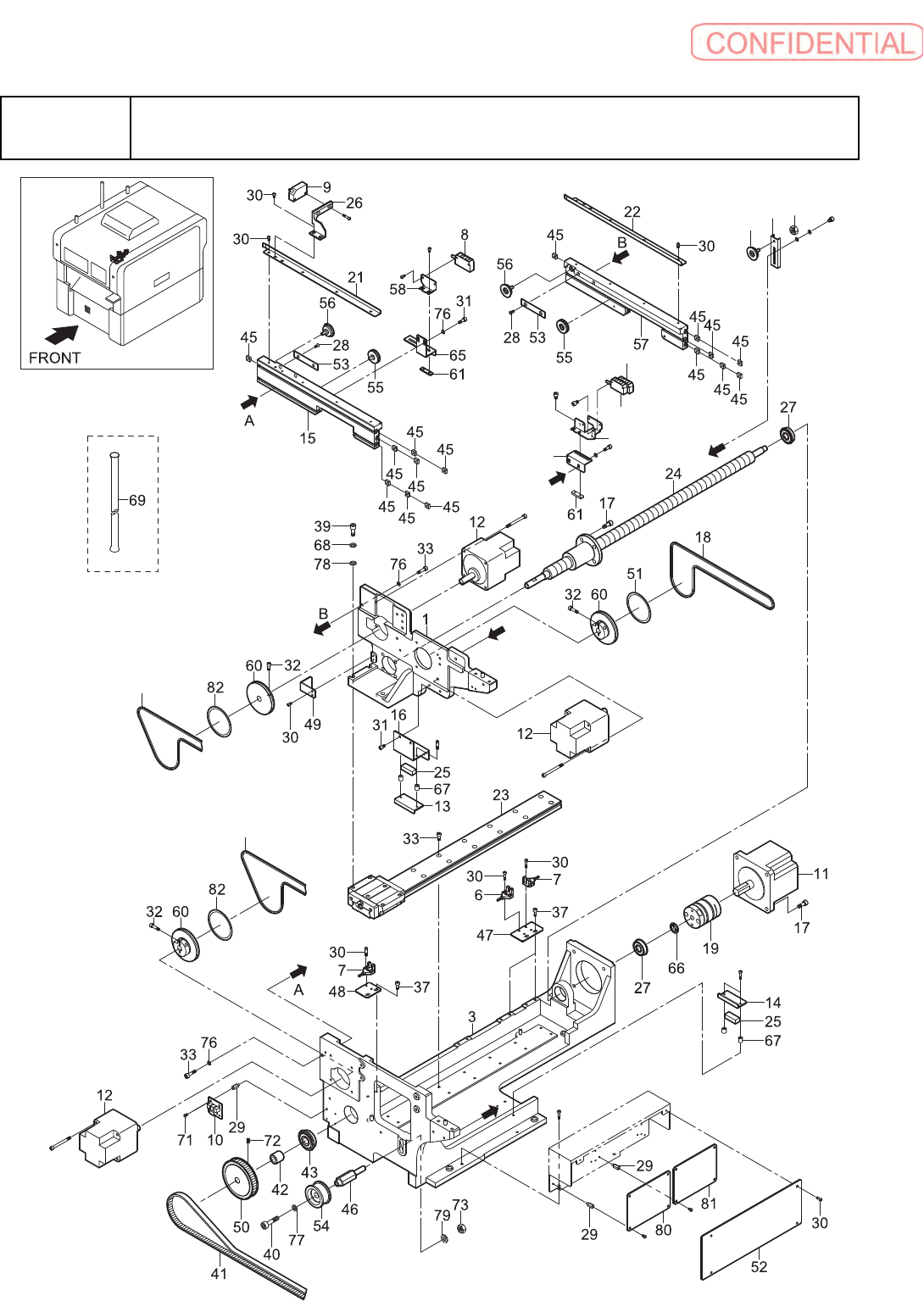

5-1-1
5-1
コンベア ユニット（左側）
CONVEYANCE UNIT (L), G
20-1
20-2
C
C
84
85
83
C
83
D
86
D
87
88
