2-2 2 Ｙ軸 ユニット Y-AXIS UNIT ｲﾗｽﾄ番号 Ref.No. 部品コード Parts Code 部品名 Parts Name Serial No. 個数 Q'ty 備考 Remarks 同期 Repl. 1 2-108-571-01 ｲﾁｷﾞﾒ ﾌﾞﾂｼﾕ BUSHING, POSITIONING 2 2 2-697-044-07 G200 ﾒｲﾝ ﾌﾚ - ﾑ MAIN FRAME, G200 1 3 4…

100%1 / 190

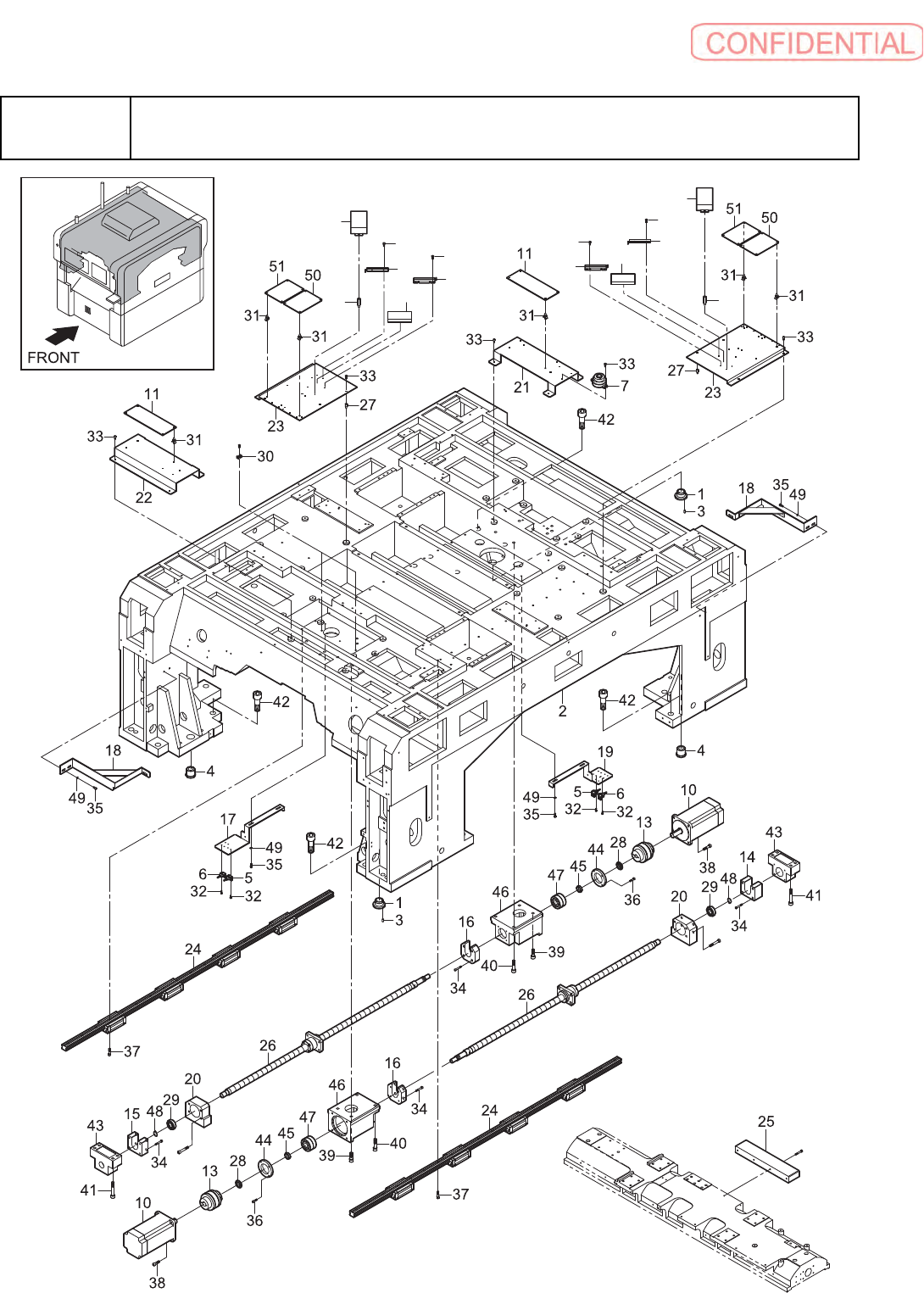

2-1
2
Ｙ軸 ユニット
Y-AXIS UNIT
52
53
54
54
55
56
56
54
54
55
56
56
53
52
2-2
2
Ｙ軸 ユニット
Y-AXIS UNIT
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 2-108-571-01
ｲﾁｷﾞﾒ
ﾌﾞﾂｼﾕ
BUSHING, POSITIONING
2
2 2-697-044-07
G200
ﾒｲﾝ
ﾌﾚ
-
ﾑ
MAIN FRAME, G200
1
3 4-705-597-41
ﾍｲｺｳ
ﾋﾟﾝ
(
ﾌｱｲ
5)
PIN (DIA. 5), PARALLEL
2
DIA 5
4 4-720-230-01
ｲﾁｷﾞﾒ
ﾋﾟﾝ
ﾖｳ
ﾌﾞﾂｼﾕ
(JBH16-20)
BUSHING (POSITIONING PIN)
2
JBH16-20
5 1-480-809-11
(S)
ﾌｵﾄｾﾝｻ
ASSY (EE-SX771A)
SENSOR ASSY, (S) PHOTO (EE-SX*
2
EE-SX771A, OMRON
6 1-480-810-11
(S)
ﾌｵﾄｾﾝｻ
ASSY (EE-SX871A)
SENSOR ASSY, (S) PHOHO (EE-SX*
2
EE-SX871A, OMRON
7 1-480-828-11
(S)
ﾃﾞﾝｼ
ﾌﾞｻﾞ
- ASSY (EB1124)
BUZZER ASSY, (S) ELECTRONIC
1
EB1124, National
10 1-787-834-12
ｻ
-
ﾎﾞ
ﾓ
-
ﾀ
(SGMAS-12ADA-SY12)
MOTOR, SERVO (SGMAS-12ADA-SY12)
2
SGMAS-12ADA-SY12,
YASUKAWA
11 1-857-585-11
SERVO-LS
ｷﾊﾞﾝ
ASSY
BOARD ASSY, SERVO-LS
2
13 2-594-323-01
ｶﾂﾌﾟﾘﾝｸﾞ
(SFC-050DA2-12B-16B)
COUPLING (SFC-050DA2-12B-16B)
2
SFC-050DA2-12B-16B
14 2-689-940-01
Y+
ｳﾚﾀﾝ
ｽﾄﾂﾊﾟ
(
ﾌﾛﾝﾄ
)
STOPPER (FRONT), Y+ URETHANE
1
15 2-689-941-01
Y+
ｳﾚﾀﾝ
ｽﾄﾂﾊﾟ
STOPPER, Y+ URETHANE
1
16 4-147-343-01
Y-
ｳﾚﾀﾝ
ｽﾄﾂﾊﾟ
STOPPER, Y- URETHANE
2
17 2-689-951-03
Y
ｹﾞﾝﾃﾝ
ｾﾝｻ
ﾌﾞﾗｹﾂﾄ
(
ﾌﾛﾝﾄ
ﾖｳ
)
BRACKET, Y ORIGIN SENSOR
1
18 2-689-953-01
ｼﾂﾋﾟﾝｸﾞ
ｸﾗﾝﾌﾟ
CLAMP, SHIPPING
2
For transportation
19 2-689-954-05
Y
ｹﾞﾝﾃﾝ
ｾﾝｻ
ﾌﾞﾗｹﾂﾄ
(
ﾘｱ
-
ﾖｳ
)
BRACKET, Y ORIGIN SENSOR
1
20 4-186-996-01
Y
ﾎﾞ
-
ﾙ
ﾈｼﾞ
ﾅﾂﾄ
ﾎﾙﾀﾞｰ
HOLDER, Y BALL SCREW NUT
2
21 4-186-185-01
ﾎﾞ
-
ﾄﾞ
ﾌﾞﾗｹﾂﾄ
(R)
BRACKET (R), BOARD
1
22 4-186-184-01
ﾎﾞ
-
ﾄﾞ
ﾌﾞﾗｹﾂﾄ
(F)
BRACKET (F), BOARD
1
23 4-186-186-03
I/O
ﾎﾞ
-
ﾄﾞ
ﾌﾞﾗｹﾂﾄ
BRACKET, I/O BOARD
2
24 4-135-400-01
ﾘﾆｱ
ﾛｰﾗ
ｳｪｲ
(MXS20C4R1180S2)
RAIL(MXS20C4R1180S2), ROLLER
2
MXS20C4R1180S2
24 4-135-400-11
ﾘﾆｱ
ﾛｰﾗ
ｳｪｲ
(MXS20C4R1180S1)
RAIL(MXS20C4R1180S1), ROLLER
2
MXS20C4R1180S1
24 4-135-400-21
ﾘﾆｱ
ﾛｰﾗ
ｳｪｲ
(MXS20C4R1180)
RAIL(MXS20C4R1180), ROLLER
2
MXS20C4R1180
25 4-135-456-02
ｳﾚﾀﾝ
ｽﾄﾂﾊﾟ
-
STOPPER, URETHANE
1
26 2-697-045-01
ﾎﾞ
-
ﾙ
ﾈｼﾞ
(SBK2020YS-5.6RRGT+9*
SCREW (SBK2020YS-5.6RRGT+9*)
2
SBK2020YS-5.6RRGT+9*
27 2-698-404-01
ｽﾁ
-
ﾙ
ｽﾍﾟ
-
ｻ
(BSF-408E)
SPACER (BSF-408E), STEEL
4
BSF-408E
2-3
2
Ｙ軸 ユニット
Y-AXIS UNIT
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
28 4-703-128-01
ﾌｱｲﾝ
U
ﾅﾂﾄ
(FU02SS)
NUT (FU02SS), FINE (U)
2
FU02SS
29 4-703-129-01
ﾌｶﾐｿﾞ
ﾀﾏ
ｼﾞｸｳｹ
(6002ZZ)
BEARING (6002ZZ), BALL
2
6002ZZ
30 4-706-151-11
ﾊｲｾﾝﾄﾞﾒ
(KR5G5)
CLAMP (KR5G5)
2
KR5G5
31 4-706-153-01
ｶ
-
ﾄﾞ
ｽﾍﾟ
-
ｻ
(KGLS-4S)
SPACER (KGLS-4S), CARD
44
KGLS-4S
32 4-706-724-21
ﾛﾂｶﾅ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M3X8)
BOLT (M3X8), HEXAGON SOCKET
8
M3X8
33 4-706-725-01
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X8)
BOLT (M4X8), HEXAGON SOCKET
20
M4X8
34 4-706-725-06
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X25SUS)
BOLT (M4X25SUS),HEXAGON SOCKET
16
M4X25SUS
35 4-706-725-11
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X10)
BOLT (M4X10), HEXAGON SOCKET
10
M4X10
36 4-706-725-61
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X15)
BOLT (M4X15), HEXAGON SOCKET
8
M4X15
37 4-706-726-11
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M5X20)
BOLT (M5X20), HEXAGON SOCKET
40
M5X20
38 4-706-740-07
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M6X20SUS)
BOLT (M6X20SUS),HEXAGON SOCKET
8
M6X20SUS
39 4-716-148-06
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M8X25 SUS)
BOLT (M8X25 SUS), SOCKET
4
M8X25 SUS
40 4-716-148-08
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M8X35 SUS)
BOLT (M8X35 SUS), SOCKET
4
M8X35 SUS
41 4-716-148-11
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M8X50 SUS)
BOLT (M8X50 SUS), SOCKET
8
M8X50 SUS
42 4-716-151-07
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M16X50 SUS)
BOLT (M16X50 SUS), SOCKET
20
M16X50 SUS
43 4-719-803-05
X
ﾎﾞ
-
ﾙﾈｼﾞ
ｼｼﾞ
ﾌﾞﾗｹﾂﾄ
BRACKET, X BALL SCREW SUPPORT
2
44 4-721-723-02
X
ﾍﾞｱﾘﾝｸﾞ
ｺﾃｲ
ﾌﾗﾝｼﾞ
FLANGE, X BEARING FIXED
2
45 4-721-724-01
X
ﾍﾞｱﾘﾝｸﾞ
ｺﾃｲ
ｶﾗ
-
COLLAR, X BEARING FIXED
2
46 4-721-725-04
X
ﾓ
-
ﾀ
ﾄﾘﾂｹ
ﾌﾞﾗｹﾂﾄ
BRACKET, X MOTOR FITTING
2
47 4-721-726-01
ｱﾝｷﾞﾕﾗ
ﾀﾏｼﾞｸｳｹ
(7302BTDFC8P5)
BALL BEARING, ANGULAR
2
7302BTDFC8P5
48 7-624-197-21
C
ｶﾞﾀ
ﾄﾒﾜ
15 (
ｼﾞｸﾖｳ
)
STOP RING 15, TYPE-C
2
49 7-688-004-11
W 4, MIDDLE
W 4, MIDDLE
8
W 4, MIDDLE
50 1-789-653-11
SD10S-OUT16
ｷﾊﾞﾝ
ASSY
SD10S-OUT16 BOARD ASSY
2
51 1-789-652-11
SD10S-IN16
ｷﾊﾞﾝ
ASSY
SD10S-IN16 BOARD ASSY
2
52 1-458-298-11
2
ﾎﾟｰﾄ
ﾘﾋﾟｰﾀ
(PR-280)
REPEATER, 2 PORT (PR-280)
2
PR-280
53 1-458-328-11
3
ﾎﾟｰﾄ
ﾘﾋﾟｰﾀ
(PR-380S)
REPEATER, 3 PORT (PR-380S)
2
PR-380S
