SI-G200AAMK7_PartList_JPG.pdf - 第56页

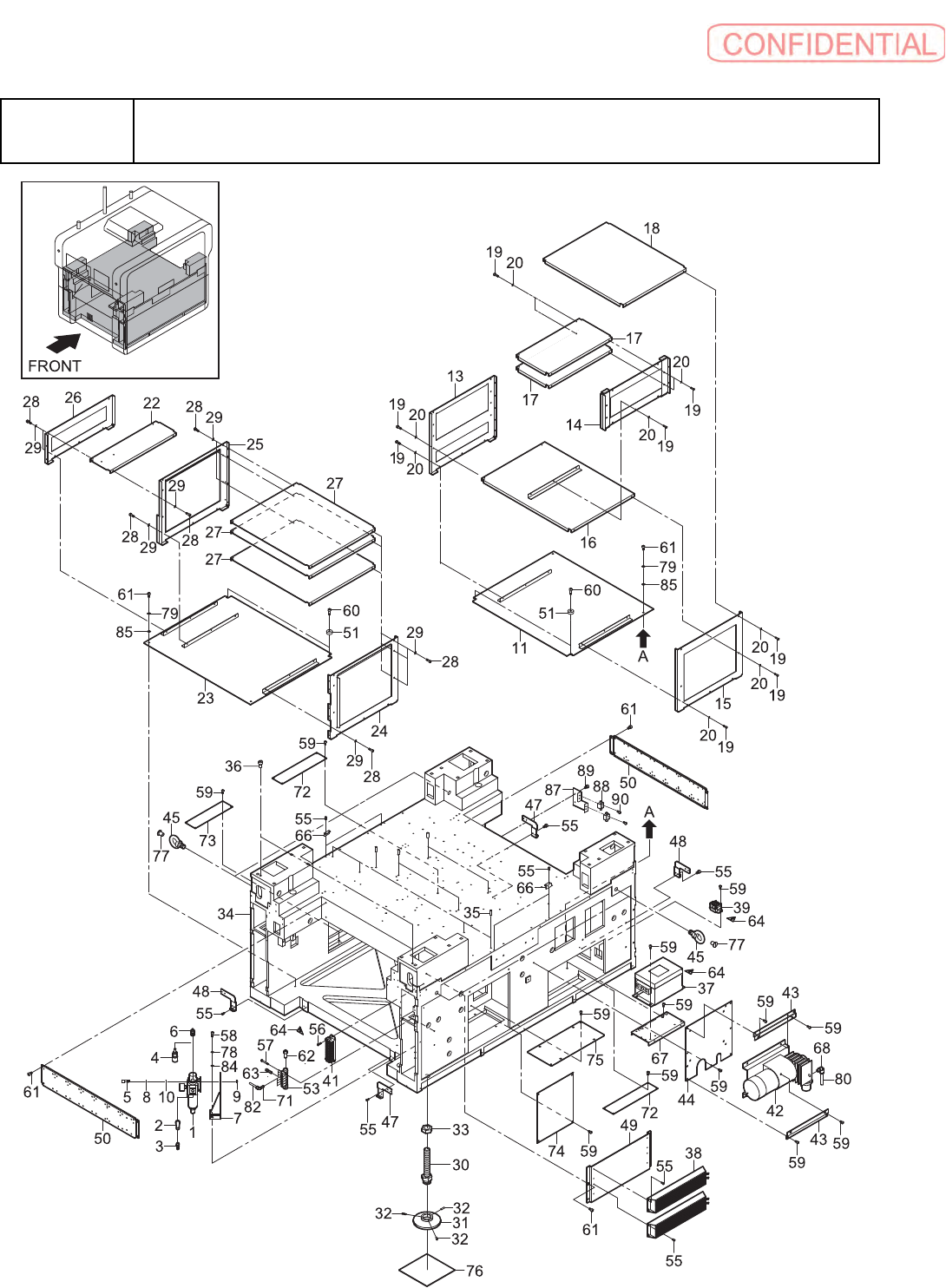

7-1-1 7-1 架台 ユニット（ 1/2 ） STAND UNIT (1/2)
6-4
6
フィーダー ステージ キット
STAGE KIT, FEEDER
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
7-1-1
7-1
架台 ユニット（1/2）
STAND UNIT (1/2)
7-1-2
7-1
架台 ユニット（1/2）
STAND UNIT (1/2)
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 2-149-053-01
ｴｱ
-
ｺﾝﾋﾞﾈ
-
ｼﾖﾝ
(AC30D-02DG-R)
COMBINATION, AIR (AC30D-02DG-
1
AC30D-02DG-R, SMC
2 4-701-316-01
ｽﾄﾘ
-
ﾄ
ｴﾙﾎﾞ
ELBOW, STREET
1
3 4-703-607-02
ﾊｲ
ｶﾌﾟﾗ
- (20PM)
COUPLER, HIGH (20PM)
1
20PM, NITTO KOHKI
4 4-703-619-01
ﾊｲ
ｶﾌﾟﾗ
- (20SH)
COUPLER, HIGH (20SH)
1
20SH, NITTO KOHKI
5 4-706-740-06
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M6X16SUS)
BOLT (M6X16SUS),HEXAGON SOCKET
2
M6X16SUS
6 4-706-963-51
ﾂｷﾞﾃ
ｴﾙﾎﾞ
ﾕﾆｵﾝ
(KQL12-02S)
UNION, JOINT ELBOW (KQL12-02S)
1
KQL12-02S, SMC
7 4-720-084-02
ｴｱ
ｾﾂﾄ
ﾌﾞﾗｹﾂﾄ
BRACKET, AIR SET
1
8 7-623-213-22
SW 6, TYPE 2
SW 6, TYPE 2
2
SW 6, TYPE 2
9 7-684-026-04
N 6, TYPE 2
N 6, TYPE 2
2
N 6, TYPE 2
10 7-688-006-01
W 6, SMALL
W 6, SMALL
2
W 6, SMALL
11 4-184-165-01
ﾍﾞ
-
ｽ
ｲﾀ
(B)
PLATE (B), BASE
1
13 4-184-166-01
ｿｸ
ﾊﾞﾝ
(E)
PLATE (E), SIDE
1
14 2-689-672-01
ｿｸ
ﾊﾞﾝ
(F)
PLATE (F), SIDE
1
15 2-689-673-01
ｿｸﾊﾞﾝ
(G)
PLATE (G), SIDE
1
16 4-184-167-01
ﾀﾅ
ｲﾀ
(C)
PLATE (C), RACK
1
17 2-689-689-01
ﾀﾅ
ｲﾀ
(D)
PLATE (D), RACK
2
18 2-689-690-01
ﾃﾝﾊﾞﾝ
(B)
PLATE (B), TOP
1
19 4-706-726-03
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M5X8SUS)
BOLT (M5X8SUS), HEXAGON SOCKET
39
M5X8SUS
20 7-688-005-11
W 5, MIDDLE
W 5, MIDDLE
39
W 5, MIDDLE
22 2-689-662-01
ﾃﾝﾊﾞﾝ
(A)
PLATE (A), TOP
1
23 2-689-664-02
ﾍﾞ
-
ｽ
ｲﾀ
(A)
PLATE (A), BASE
1
24 2-689-665-02
ｿｸ
ﾊﾞﾝ
(A)
PLATE (A), SIDE
1
25 4-184-163-01
ｿｸ
ﾊﾞﾝ
(B)
PLATE (B), SIDE
1
26 4-184-164-01
ｿｸ
ﾊﾞﾝ
(C)
PLATE (C), SIDE
1
27 2-689-668-01
ﾀﾅ
ｲﾀ
(A)
PLATE (A), RACK
3
28 4-706-726-03
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M5X8SUS)
BOLT (M5X8SUS), HEXAGON SOCKET
29
M5X8SUS
