6. INTERNET of Thing (IoT)

6.1 Setup webserver on the computer

1. Go to Techcon Website (www.techconsystems.com) and download the

following files to your computer:

a. The “portal.exe” file

b. The “timezone.zip” file

2. Create a new folder and name “IoT” or any desired name

3. Copy the “portal.exe” file and the “timezone.zip” file in the “IoT” folder

4. Click on the “Windows” start icon

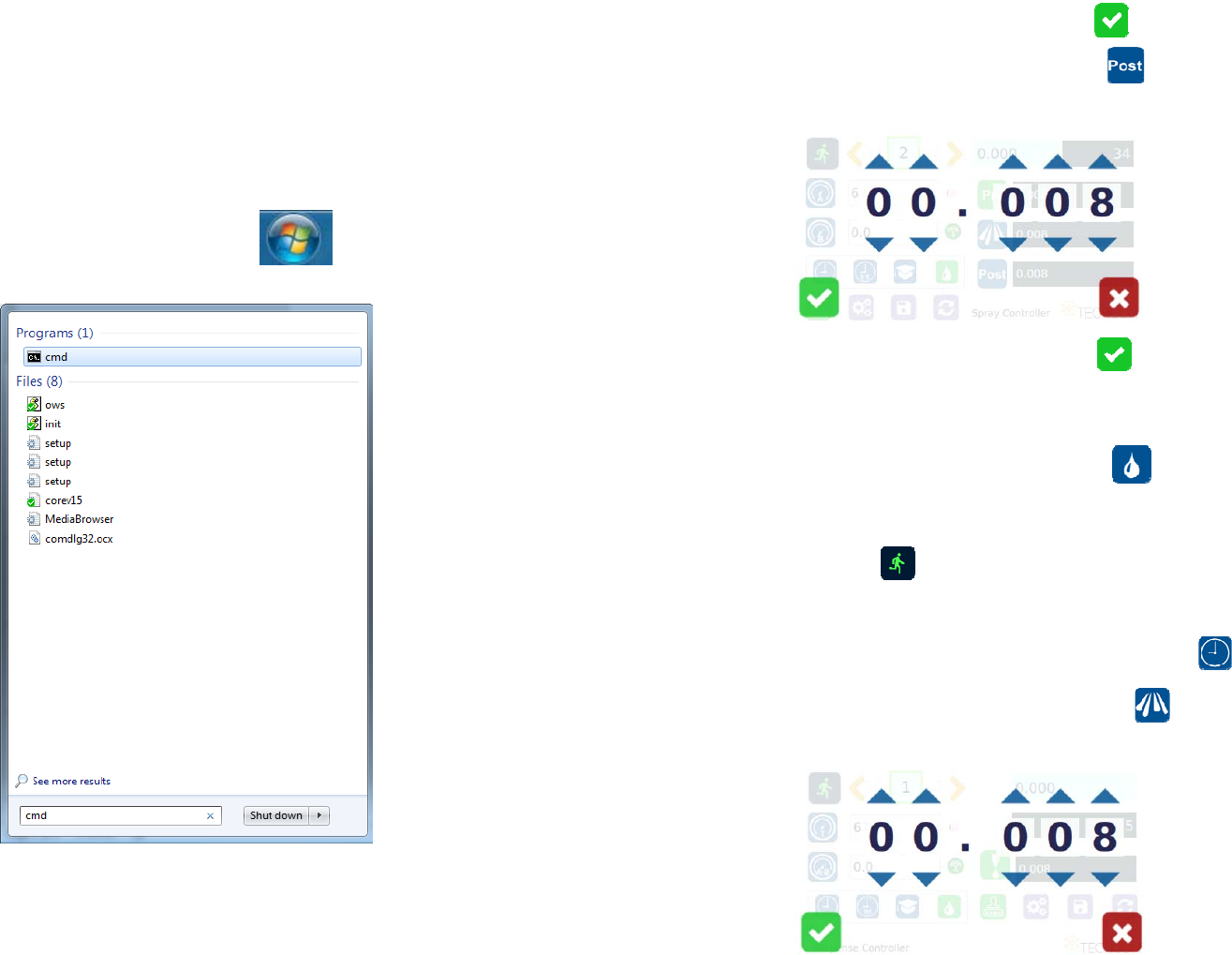

5. Type: “cmd” in the box (as show below)

6. Press the “Enter” button

The screen should appear as shown below

3. Touch the Check Mark icon to save and exit

4. Touch the “Post” icon to setup post-spray time

5. Touch Up and Down arrows to set the desired post-spray time

6. Touch the Check Mark icon to save and exit

5.2.4 Manual/Purge Cycle Setting

1. Touch the Purge icon to select the purge cycle.

The Purge icon will turn to green color.

2. Press and hold down the foot switch to activate the purge cycle.

Alternately, touch and hold the Run icon on the display to activate the

purge cycle.

5.2.5 Automatic Spray Cycle Setting

1. Touch the “Timed” mode icon to set the spray cycle time.

The icon will turn to green color.

2. Touch the “Spray” icon to enter the setup screen

3. Touch the Up and Down arrows to set the desired spray time

Note: The minimum activation is 0.008 second

1. Press the Check Mark icon to save and exit

2. Press the foot switch to activate the “Timed” spray cycle.

Alternately, touch the Run icon on the display to activate the “Timed”

spray cycle

Note: The unit has an “Interrupt” mode feature. In this mode, the

“Timed” spray cycle can be disrupted if the foot switch is released and

resumed when the foot wwitch is depressed again.

3. Touch the “Interrupt” icon to activate “Interrupt” mode. The icon will

turn to green color

5.2.6 Teach Mode Setting

In the teach mode, the spray time will be accumulated as long as the foot

switch is depressed. This is helpful in determining the required spray

time when the dispense output is known.

1. Touch the “Teach” icon to enter the teach mode

2. Touch the “Time Reset” icon to set timer to

zero

3. Press and hold down the foot switch, the spray time will be accumulated

4. Release the foot switch when the desired amount of fluid has sprayed

5. Touch the “Timed” icon to transfer the accumulated spray time to “Timed”

mode

6. The unit is now set to repeat this “Timed” cycle

5.2.7 To run in Continous Mode

The controller can be setup to repeat the run continuously.

1. Touch the Setup icon to enter the setup screen

5. Touch the Up and Down arrows to select the desired network

6. If the selected network is an unsecured network (not password protected),

touch “Connect” tab to connect.

7. Once the unit is successfully connected to the Wi-Fi network, the

“Connect” tab will change to “Disconnect” and the online symbol will

change to green

8. If the selected network is a secured network (password protected), first

create a text file and type the network’s password, then save the file as

“password.txt”

9. Copy the “password.txt” file to a blank USB thumb drive. Note: Do not put

the “password.txt” file inside a folder

10. Insert the USB drive to the USB port located in the back of the unit

11. Touch “Connect” tab to connect. Once the unit is successufully connected

to the Wi-Fi network, remove the USB drive from the USB port

12. Touch X icon to save and exit

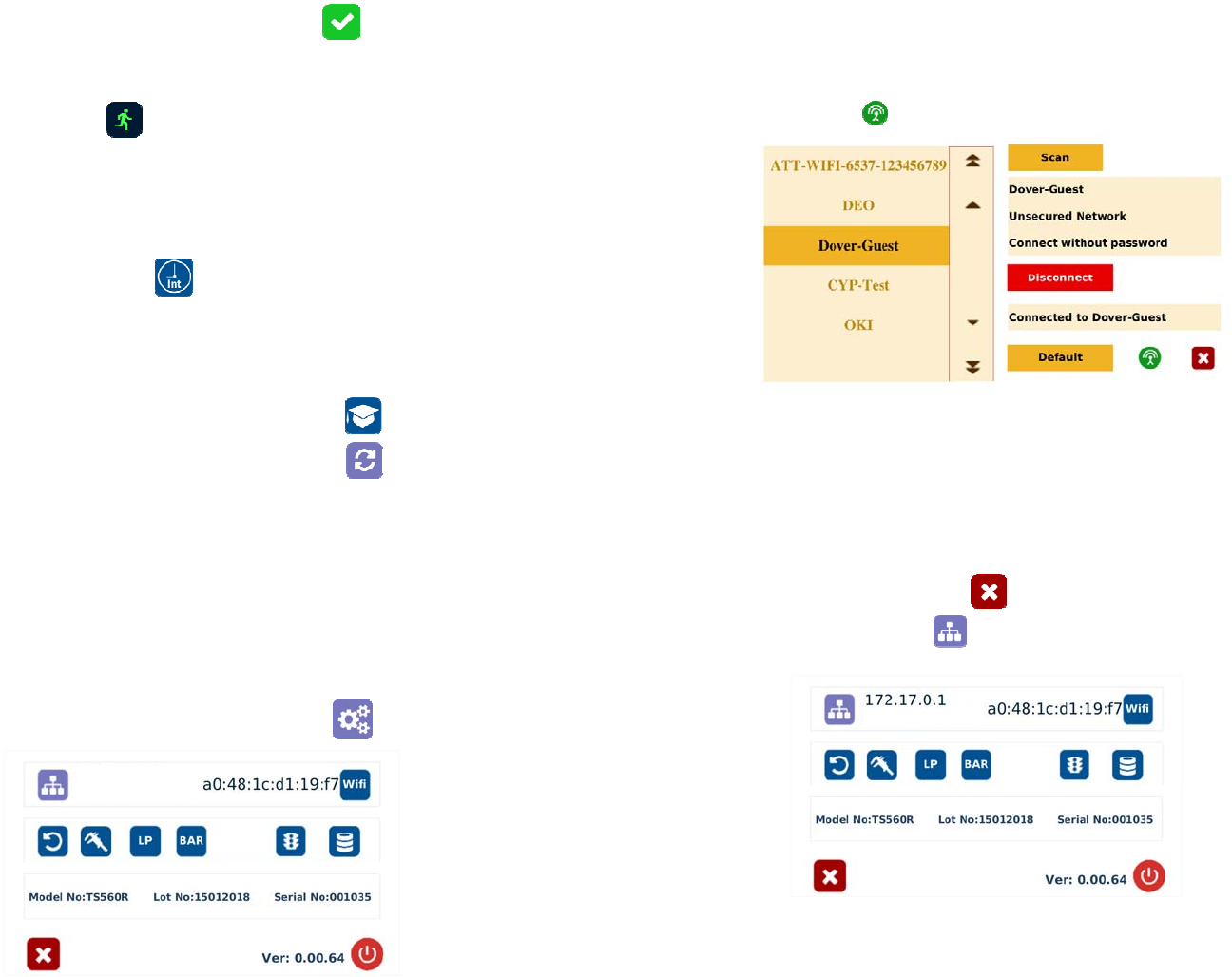

13. Touch the IP Address icon and the unit will show an IP address

Note: Once the unit is turned off, the Wi-Fi connection is lost. To re-connect

the unit back to the same network after the unit is turned on, repeat steps 1-4

and touch the “Default” tab.

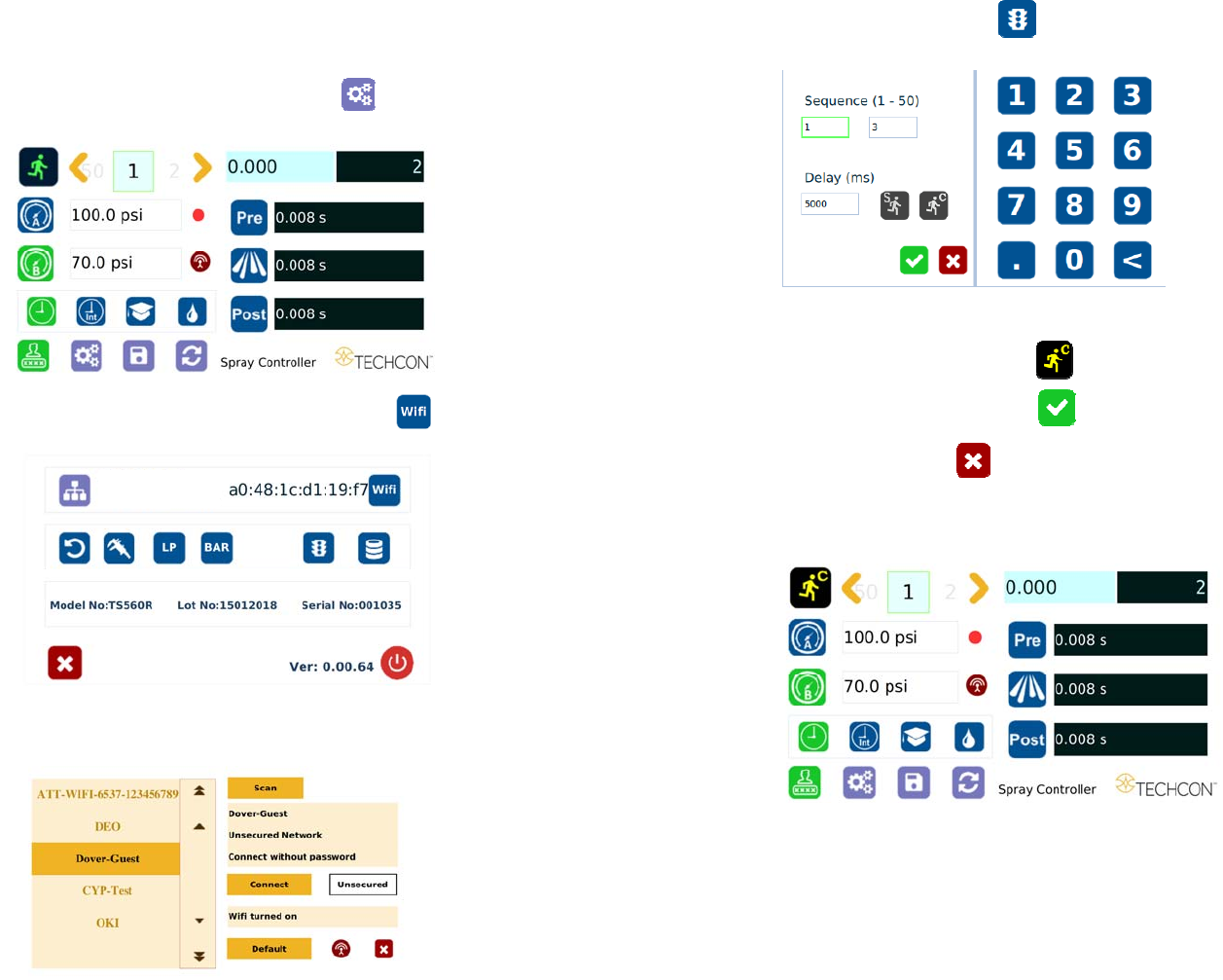

5.7 To Connect to Wi-Fi network.

1. Connect the antenna to the Wi-Fi connector located in the back of the unit

2. Touch the Setup icon to enter the setup screen

3. Touch the Wi-Fi icon to enter the network setup screen

4. Touch the “Scan” tab to scan for all available networks

2. Touch the “Run Method” icon

3. Enter the delay time (ex. 5000 ms)

4. Touch the “Countinous Run” icon

5. Touch the Check Mark icon to save

6. Touch the X icon to exit

The screen will look similarly to the screen below:

Note: If the controller is set to activate memory cell 1 and the delay time is

set at 5000 ms, the controller will activate memory 1 continuously with

5000 ms delay between each activation.
