20 5.7 To Connect to Wi-Fi ne twork. 1. Connect the antenna to the Wi-Fi connect or located in the back of the unit 2. Touch the Setup icon to enter the setup screen 3. Touch the Wi-Fi icon to enter the network s etup sc…
12
1. Press the Check Mark icon to save and exit
2. Press the foot switch to activate the “Timed” spray cycle.
Alternately, touch the Run icon on the display to activate the “Timed”
spray cycle
Note: The unit has an “Interrupt” mode feature. In this mode, the
“Timed” spray cycle can be disrupted if the foot switch is released and
resumed when the foot wwitch is depressed again.
3. Touch the “Interrupt” icon to activate “Interrupt” mode. The icon will
turn to green color
5.2.6 Teach Mode Setting
In the teach mode, the spray time will be accumulated as long as the foot
switch is depressed. This is helpful in determining the required spray
time when the dispense output is known.
1. Touch the “Teach” icon to enter the teach mode
2. Touch the “Time Reset” icon to set timer to
zero
3. Press and hold down the foot switch, the spray time will be accumulated
4. Release the foot switch when the desired amount of fluid has sprayed
5. Touch the “Timed” icon to transfer the accumulated spray time to “Timed”
mode
6. The unit is now set to repeat this “Timed” cycle
5.2.7 To run in Continous Mode
The controller can be setup to repeat the run continuously.
1. Touch the Setup icon to enter the setup screen
21
5. Touch the Up and Down arrows to select the desired network
6. If the selected network is an unsecured network (not password protected),
touch “Connect” tab to connect.
7. Once the unit is successfully connected to the Wi-Fi network, the
“Connect” tab will change to “Disconnect” and the online symbol will
change to green
8. If the selected network is a secured network (password protected), first
create a text file and type the network’s password, then save the file as
“password.txt”
9. Copy the “password.txt” file to a blank USB thumb drive. Note: Do not put
the “password.txt” file inside a folder
10. Insert the USB drive to the USB port located in the back of the unit
11. Touch “Connect” tab to connect. Once the unit is successufully connected
to the Wi-Fi network, remove the USB drive from the USB port
12. Touch X icon to save and exit
13. Touch the IP Address icon and the unit will show an IP address
Note: Once the unit is turned off, the Wi-Fi connection is lost. To re-connect
the unit back to the same network after the unit is turned on, repeat steps 1-4
and touch the “Default” tab.
20
5.7 To Connect to Wi-Fi network.
1. Connect the antenna to the Wi-Fi connector located in the back of the unit
2. Touch the Setup icon to enter the setup screen
3. Touch the Wi-Fi icon to enter the network setup screen
4. Touch the “Scan” tab to scan for all available networks
13
2. Touch the “Run Method” icon
3. Enter the delay time (ex. 5000 ms)
4. Touch the “Countinous Run” icon
5. Touch the Check Mark icon to save
6. Touch the X icon to exit
The screen will look similarly to the screen below:
Note: If the controller is set to activate memory cell 1 and the delay time is
set at 5000 ms, the controller will activate memory 1 continuously with
5000 ms delay between each activation.
14
5.3 Low Pressure Alarm Setting
Note: This controller is equipped with an adjustable “Low Pressure” alarm
function. If the set pressure dropped below the “Low Pressure” setting, the
controller will not activate. The “Low Pressure” setting is pre-set at the factory
to 70 Psi (4.8 bars). When the supplied pressure drops below 70 Psi (4.8 bars)
the unit will not function. The “Low Pressure” setting can be adjusted. Follow
the instructions below.

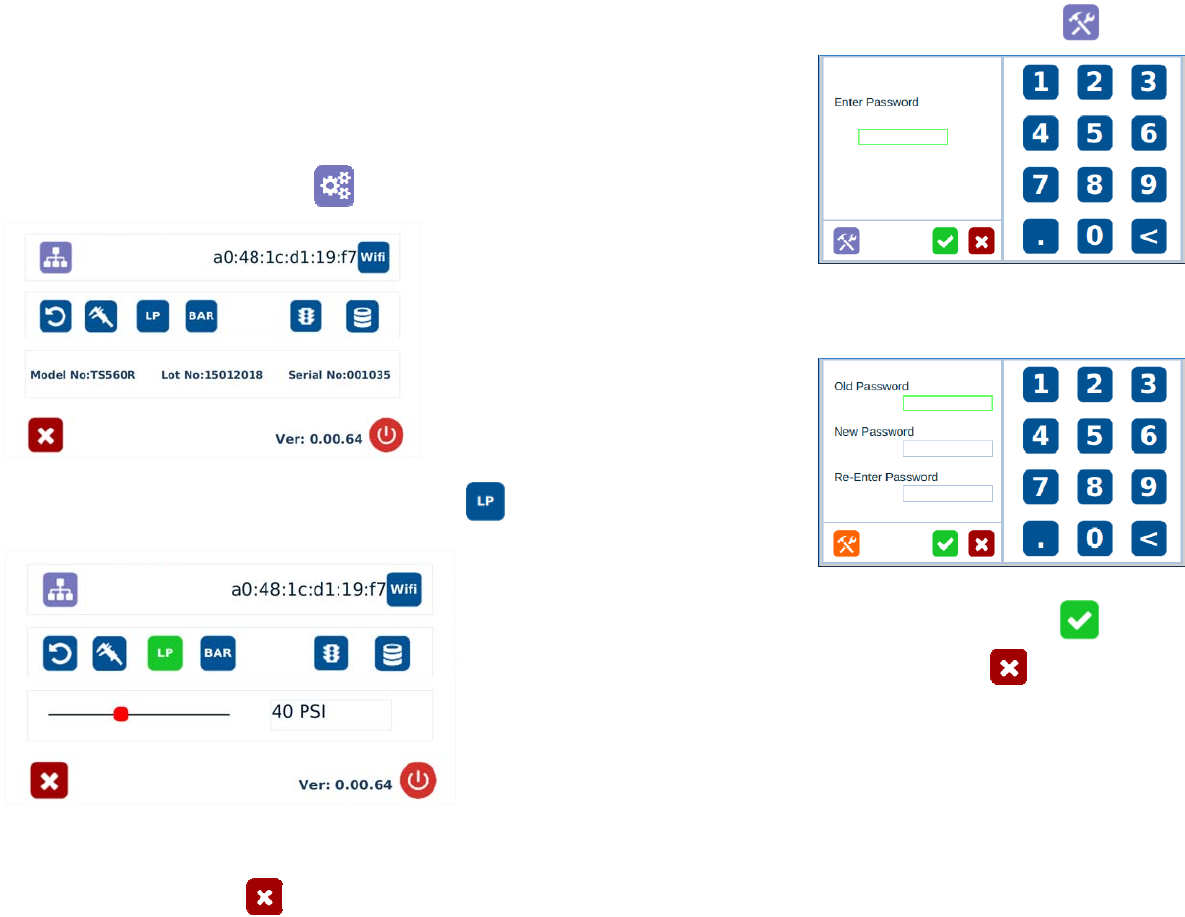

1. Touch the Setup icon to enter setup screen
2. Touch the Low Pressure (LP) icon to set the desired low pressure
3. Slide the pressure scale to set the desired low pressure threashold
4. Press the X icon to save and exit
19
2. Touch the change “Password” icon
3. Enter the old password, then enter the new password
4. Touch the Check Mark icon to save
5. Touch the X icon to exit
