8 4. Touch the Setup icon to enter setup screen 5. Touch the Calibration icon to enter calibration s creen Note: Make sure the air pressure line is not con nected to the un it at this time. 6. Touch the “0” ic on to set …

18. Go to the setup screen of the controller and touch the “Remote Server”

icon

19. Enter the Server IPv4 address recorded in step #11 into Remote IP address box

20. Touch the green check mark icon to save

21. The controller is now connected to the webserver site.

5.1.1 Login

1. Touch the Login Icon to enter login screen

2. Enter “0000” in Password window

3. Touch the Check Mark icon to save and exit

5.1.2 Pressure Calibration

Note: Pressure calibration must be performed when the unit is activated for

the first time.

4. Touch the Setup icon to enter setup screen

5. Touch the Calibration icon to enter calibration screen

Note: Make sure the air pressure line is not connected to the unit at this time.

6. Touch the “0” icon to set the pressure to 0

7. Now connect the supplied air pressure line to the back of the unit and

turn up input air pressure to 100 psi

8. Touch the “100” icon to set the pressure to 100

Note: The digital values shown at “0” and “100” icons are for reference only.

The actual calibrated values will be different.

9. Touch the Reboot icon to save the settings and reboot the system

10. Wait until the system completes the rebooting sequence and the home

screen is displayed

The unit is now calibrated and ready to operate

13. Go to any computer and open any web browser

14. Type in:

http://localhost:8090/ then press the enter button

You are now in the webserver site. The screen below will be displayed

15. Click the “Login” button

16. Enter “admin” in the Login box

17. Enter “1001” in the Password box

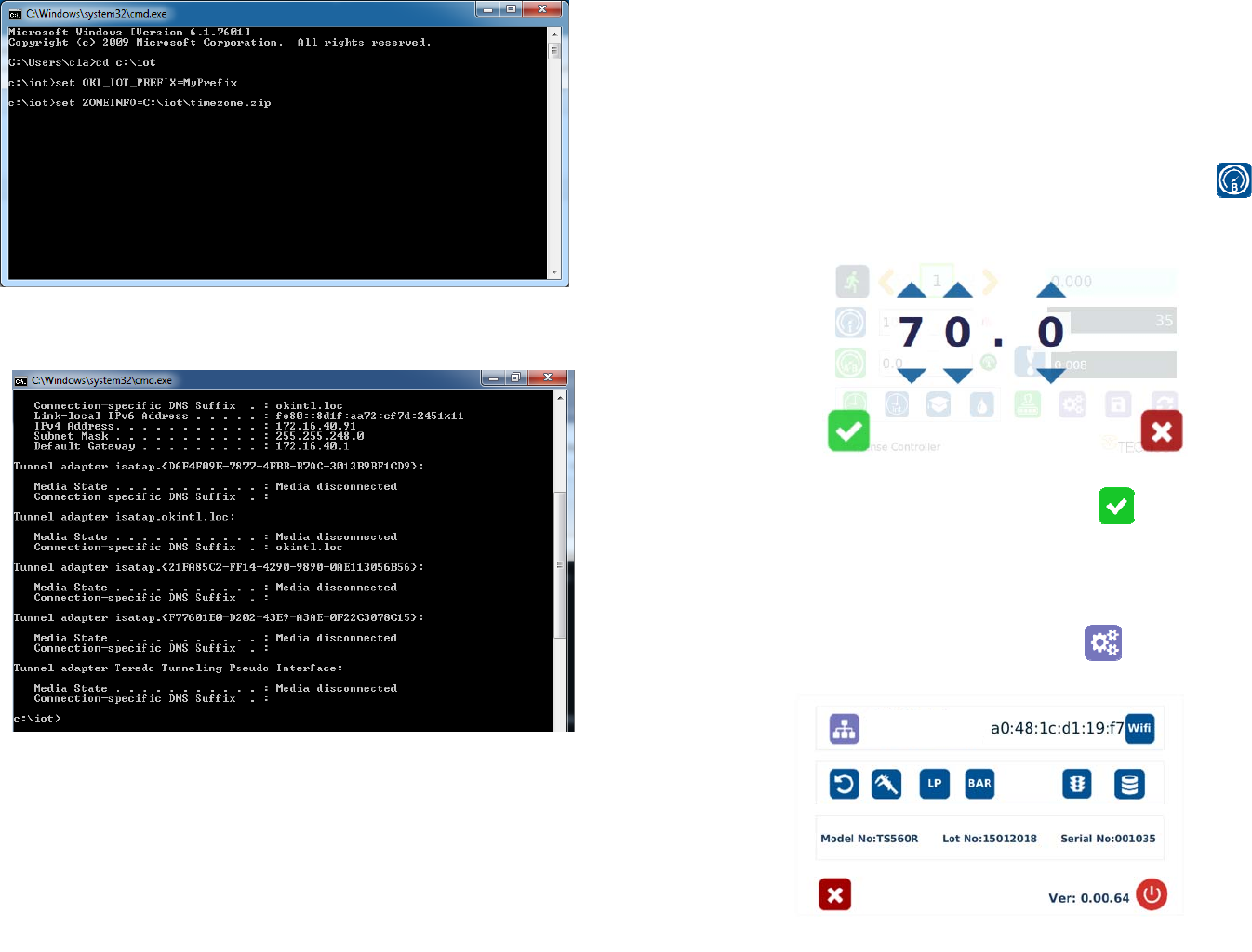

9. Type: “set ZONEINFO=C:\iot\timezone.zip” then press the “Enter” button

10. Type: “ipconfig” then press the “Enter” button

11. Record the Server IPv4 address show in the “IPv4 Address” line on the above

screen; For this example, the Server IP address is: 172.16.40.91

This address will be entered in the controller screen later.

12. Type: “.\portal” then press the Enter button

5.2 SPRAYING

5.2.1 Pressure Adjustment

Note: Pressure in Port A is not regulated. It delivers the same pressure as

the supplied inlet pressure. This pressure is to activate the valve. Make

sure the supplied pressure is at least 70 psi (4.8 bar)

Pressure in Port B is regulated. This pressure is to control the atomized air

spray. Adjust the pressure accordingly to achieve desired spray results.

1. Touch the “Pressure B” icon to enter the pressure setup screen

2. Touch the Up and Down arrows to set the desired atomized pressure

3. Touch the Check Mark icon to save and exit

5.2.2 To Change Pressure Unit Display

Note: The default pressure unit is PSI. To change pressure unit to BAR,

follow below instructions.

1. Touch the Setup icon to enter setup screen
