manual-ale-automatic-feed-soldering-control-unit-jbc-0033469_ID-245046_EN.pdf - 第13页

EAR TH FUSE F1.25 A USE ONL Y WITH A 250 V FUSE EAR TH FUSE F1.25 A EAR TH FUSE F1.25 A USE ONL Y WITH A 250 V FUSE EAR TH FUSE F1.25 A SFR-B GSFR TR A CLR EX TR A C CIÓN 22220 EX TR A C CIÓN 26842 26843 EX TR A C CIÓN 2…

100%1 / 24
EARTH FUSE F1.25 A
USE ONLY WITH A 250 V FUSE
EARTH FUSE F1.25 A
EARTH FUSE F1.25 A
USE ONLY WITH A 250 V FUSE
EARTH FUSE F1.25 A
SFR-B
GSFR
TRA
CLR
EXTRACCIÓN
22220
EXTRACCIÓN
26842
26843
EXTRACCIÓN
26846
26847
26848
EXTRACCIÓN
26844
VERMELL
NEGRE GROC
VERMELL
BLAU
VERMELL
BLAU
BLAU
VERD
VERMELL
BLAU
VERD
VERMELL
NEGRE GROC
VERMELL
BLAU
BLAU
VERD
6
2
3
4
5
1
9
10
12
Guide Tube
Set
*
1
Guide wheel bears diameter marking.

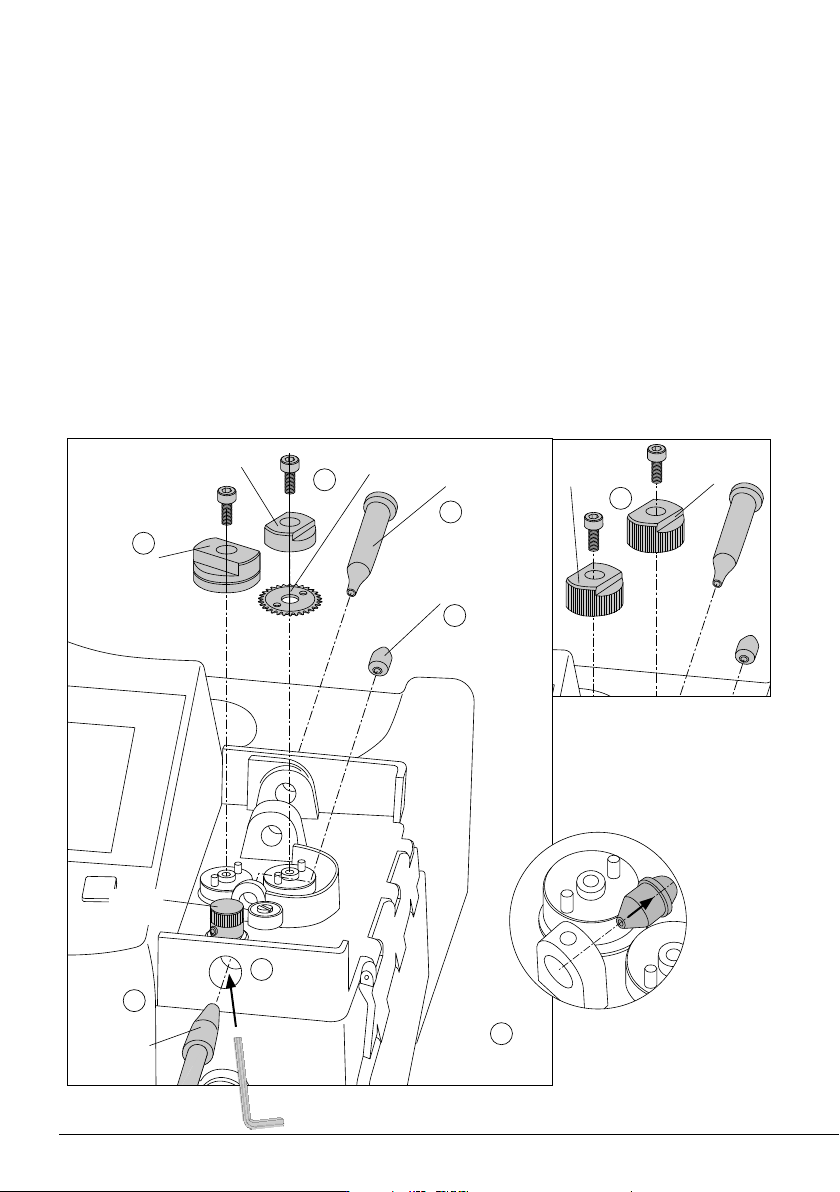

Guide Kits Disassembly
For this operation, disconnect the device from the mains. Unload any solder wire running inside the
guide tube, disconnect the tool from the control unit and open its cover.
Before trying to remove any components, be sure to loosen the corresponding set screws. To do
this, use the Allen key and spanner provided with the station.
First disassemble the guide tube set (1), the guide wheel (4), blade and blade clamp (5) and then the
nozzles (2) + (3). Note: The wheel components
*3
on devices without solder wire perforation (10) are
slightly different from those with solder wire perforation.
Lastly, disassemble the counter wheel (6), introducing the Allen key through the frontal opening (9)
to loosen its set screw.
Inlet
Nozzle
Interm. Nozzle*
2
Blade
Blade Clamp
Guide Wheel*
1
Counter
Wheel
*
2
Intermediate nozzle
disassembly
Support
Wheel*
3
Traction
Wheel*
3
*
3
Wheel components for devices
without solder wire perforation.
EARTH FUSE F1.25 A
USE ONLY WITH A 250 V FUSE
EARTH FUSE F1.25 A
EARTH FUSE F1.25 A
USE ONLY WITH A 250 V FUSE
EARTH FUSE F1.25 A
SFR-B
GSFR
TRA
CLR
EXTRACCIÓN
22220
EXTRACCIÓN
26842
26843
EXTRACCIÓN
26846
26847
26848
EXTRACCIÓN
26844
VERMELL
NEGRE GROC
VERMELL
BLAU
VERMELL
BLAU
BLAU
VERD
VERMELL
BLAU
VERD
VERMELL
NEGRE GROC
VERMELL
BLAU
BLAU
VERD
2
3
1
1
4
3
5
6
7
8
9
13
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - negro plano
200 mm
300 mm
Assemble the inlet nozzle (5).
Assemble the guide wheel (6)
and tighten its screw.
Install the blade first (7),
then mount the blade clamp
(8) onto the same axis and
tighten the screw.
Caution: handle the blade
carefully to avoid injury.
Finally, insert the guide tube
set (9).
Counter
Wheel
Axis,
Flat Side
Allen Key
inserting here
Assemble first the counter wheel (1). Make sure that its thread entry
for the set screw is aligned with the flat side of the axis (2). If not,
the set screw will protrude, which may cause difficulties for the wire
transportation.
Inserting the Allen key through the front opening will make it easier
to tighten the screw (3).
Afterward, insert the intermediate nozzle (4) until its collar rests against
the housing and tighten its screw.
Inlet
Nozzle
Interm.
Nozzle *
2
Counter
Wheel
Guide Tube
Set
Guide
Wheel *
1
Blade
Blade Clamp
*
1
Guide wheel bears diameter marking.
*
2
Intermediate
nozzle assembly
Guide Kits Assembly - with Solder Wire Perforation:
EARTH FUSE F1.25 A
USE ONLY WITH A 250 V FUSE
EARTH FUSE F1.25 A
SFR-B
GSFR
TRA
CLR
EXTRACCIÓN
22220
EXTRACCIÓN
26842
26843
EXTRACCIÓN
26846
26847
26848
EXTRACCIÓN
26844
VERMELL
NEGRE GROC
VERMELL
BLAU
VERMELL
BLAU
BLAU
VERD
VERMELL
BLAU
VERD
VERMELL
NEGRE GROC
VERMELL
BLAU
BLAU
VERD
2
3
4
5
1
6
14
Assemble first the counter wheel (1) in the same way as shown on the previous page (see (1), (2) and
(3) on the page before).
Afterwardas insert the intermediate nozzle (2) until its collar rests against the housing and tighten
its screw.
Assemble the inlet nozzle (3).
Assemble the support wheel* (4) and the traction wheel (5) on the corresponding axis and tighten
the respective screws
Finally insert the guide tube set (6) and tighten the screw.
Support
Wheel *
1
Traction
Wheel
Interm.
Nozzle*
2
Inlet
Nozzle
Counter
Wheel
Guide
Tube Set
*
1
Support wheel bears diameter marking.
*
2
Intermediate nozzle
assembly
Guide Kits Assembly - without Solder Wire Perforation:
