4 for w ire ø 0.8 mm / ø 0.032 i n - R e f. GALE08V -B for w ire ø 1 .0 m m / ø 0.040 in - Ref. GALE10V -B for wire ø 1.2 mm / ø 0.047 in - R e f. G A L E 12 V - B for w ire ø 1 .6 m m / ø 0.063 i n - Ref. G A L E 16 V- …
3
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - negro plano
200 mm
300 mm
Allen Key ø 2.5 ............ 1 unitAllen Key ø 1.5 ............ 1 unit
Power Cord .................... 1 unit
Ref. 0024077 (100V)
0023717 (120V)
0024080 (230V)
Manual ............................ 1 unit
Ref. 0033469
Automatic-Feed Soldering
Control Unit ................... 1 unit
Spanner ......................... 1 unit
Key Set*
for SF / AL ...................... 1 unit
Ref. 0019341
includes:
*Already assembled in ALE Control Unit
Packing List
The following items are included in all references:
4
for wire ø 0.8 mm / ø 0.032 in
- Ref. GALE08V-B
for wire ø 1.0 mm / ø 0.040 in
- Ref. GALE10V-B
for wire ø 1.2 mm / ø 0.047 in
- Ref. GALE12V-B
for wire ø 1.6 mm / ø 0.063 in
- Ref. GALE16V-B
Components already
assembled in
Control Unit
for wire ø 0.38 - 0.4 mm / ø 0.015 - 0.016 in
- Ref. GALE04D-B
for wire ø 0.46 - 0.56 mm / ø 0.018 - 0.022 in
- Ref. GALE05D-B
for wire ø 0.80 - 0.82 mm / ø 0.032 - 0.033 in
- Ref. GALE08D-B
for wire ø 0.90 - 1.10 mm / ø 0.036 - 0.044 in
- Ref. GALE10D-B
Components already
assembled in
Control Unit

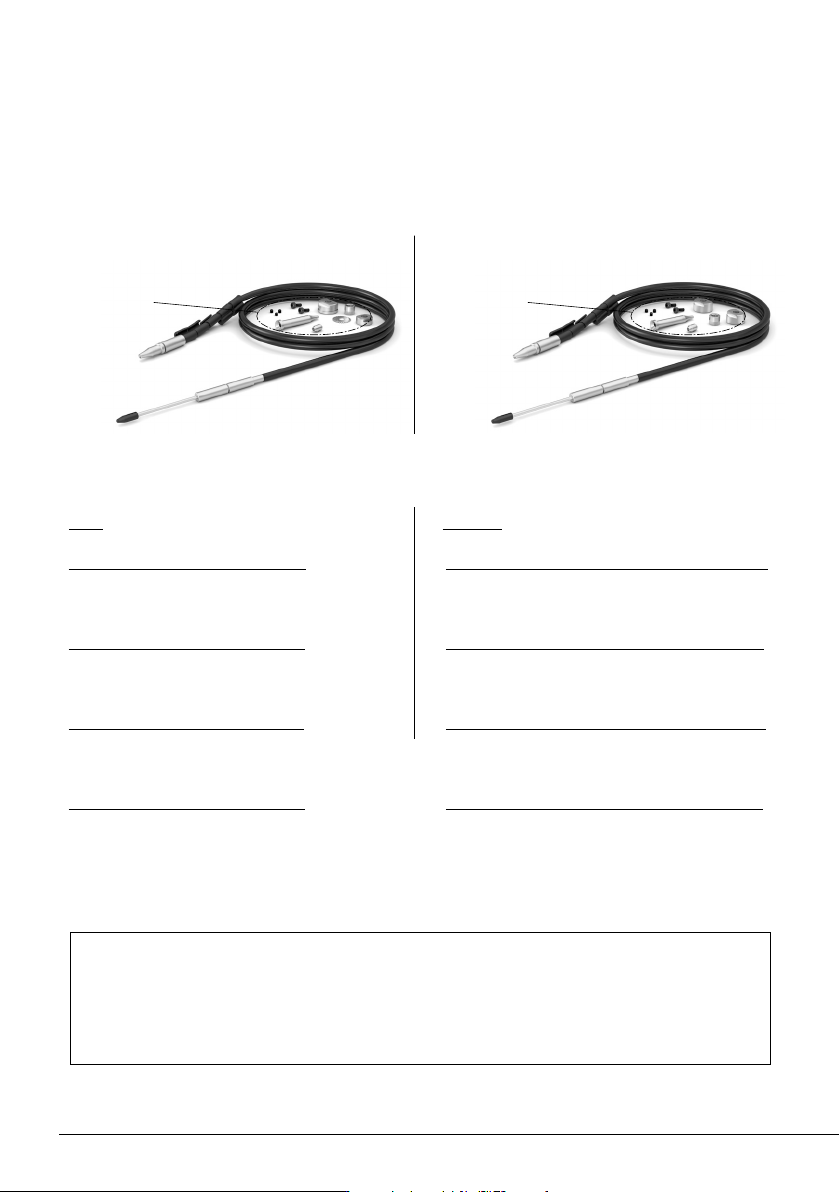

Without solder wire perforation:With solder wire perforation:
One of the following items is included according to purchased reference:
Solder Wire Guide Kit ............................................................................................................................. 1 unit
Note: For correct operation, the diameter of the solder wire in use must match the diameter
of the purchased guide kit.
Guide sets for different diameters are available at:
www.jbctools.com/solder-wire-guide-kit-product-2098.html
Packing List
5
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - negro plano
200 mm
300 mm
Power Socket
and Main Fuse
Earth Fuse
RJ12
Connector for FAE
and Robot System
USB-B
Connector
USB-A
Connector
Solder Wire
Inlet
Features and Connections
ALE250
Automatic-Feed
Soldering Iron*
ALE
Automatic-Feed
Soldering Control Unit
Main Switch
Display
Solder Reel
Stand
below
Equipotential
Connector
Pedal
Connector
ALES
Stand for ALE250
Automatic-Feed
Soldering Iron*
Allen Key
and Spanner
Storage
Peripherals
Connector
*not included
GALE
Solder Wire Guide
Kit for ALE250
availabe for
different solder
wire diameters
see page 11 + 12
